Toyota Verso

2009-02 → 2017-10 · chassis AUR2#,WAR20,ZGR2# · catalogue 157240 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Controled Diesel (ECD)

14 part groups · 2 illustrations

Illustrations

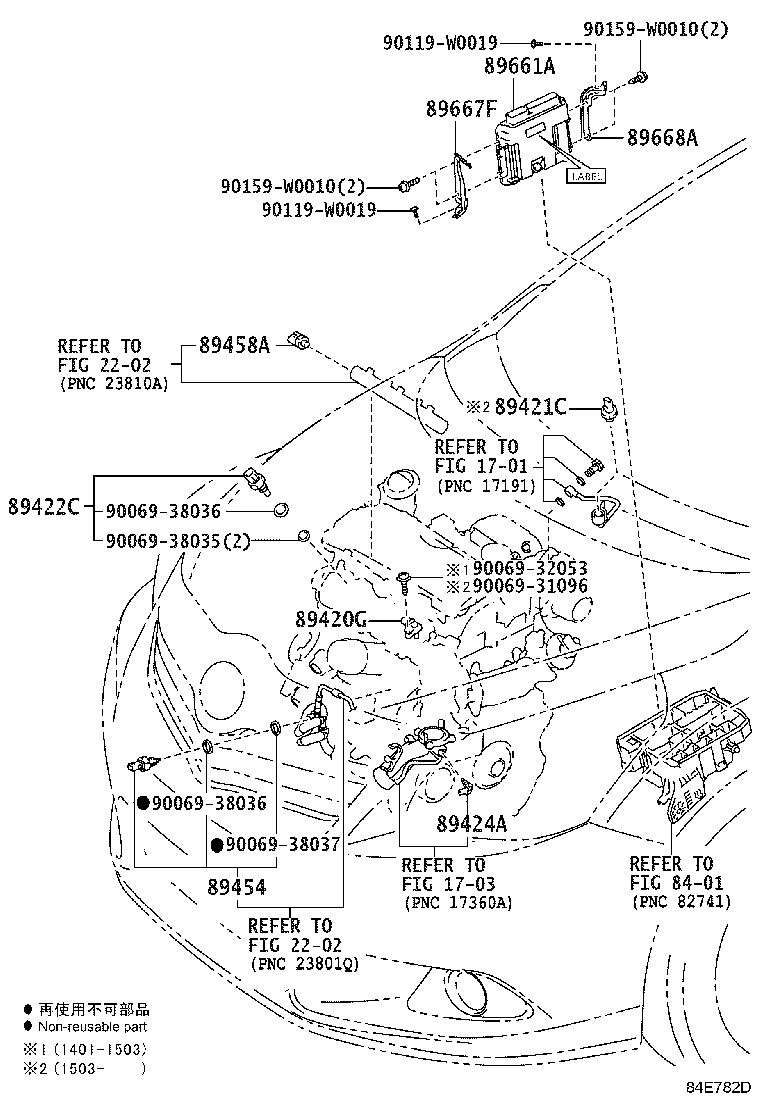

Figure 84A283D 84A283D 2009-02 → 2015-03 Figure 84E782D 84E782D 2014-01 → —

Part groups

PNCDescription
85911K Relay, Heater(FOR AIR FUEL RATIO SENSOR)
89420G Sensor Assy, Turbo Pressure
89421C Sensor, Turbo Pressure (FOR DIESEL TURBO)
89422C Sensor, Diesel Engine Water Temperature
89424A Sensor, Inlet Air Temperature (FOR DIESEL TURBO)
89424D Sensor, Inlet Air Temperature
89454 Sensor, Fuel Temperature
89458A Sensor, Fuel Pressure
89661A Computer, Engine Control
89667A Bracket, Engine Control Computer, NO.1
89667F Bracket, Engine Control Computer, NO.1
89668A Bracket, Engine Control Computer, NO.2
89871A Driver, Injector
89879B Bracket, Injector Driver
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
