Toyota Verso

2009-02 → 2017-10 · chassis AUR2#,WAR20,ZGR2# · catalogue 157240 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clearance & Back Sonar

10 part groups · 2 illustrations

Illustrations

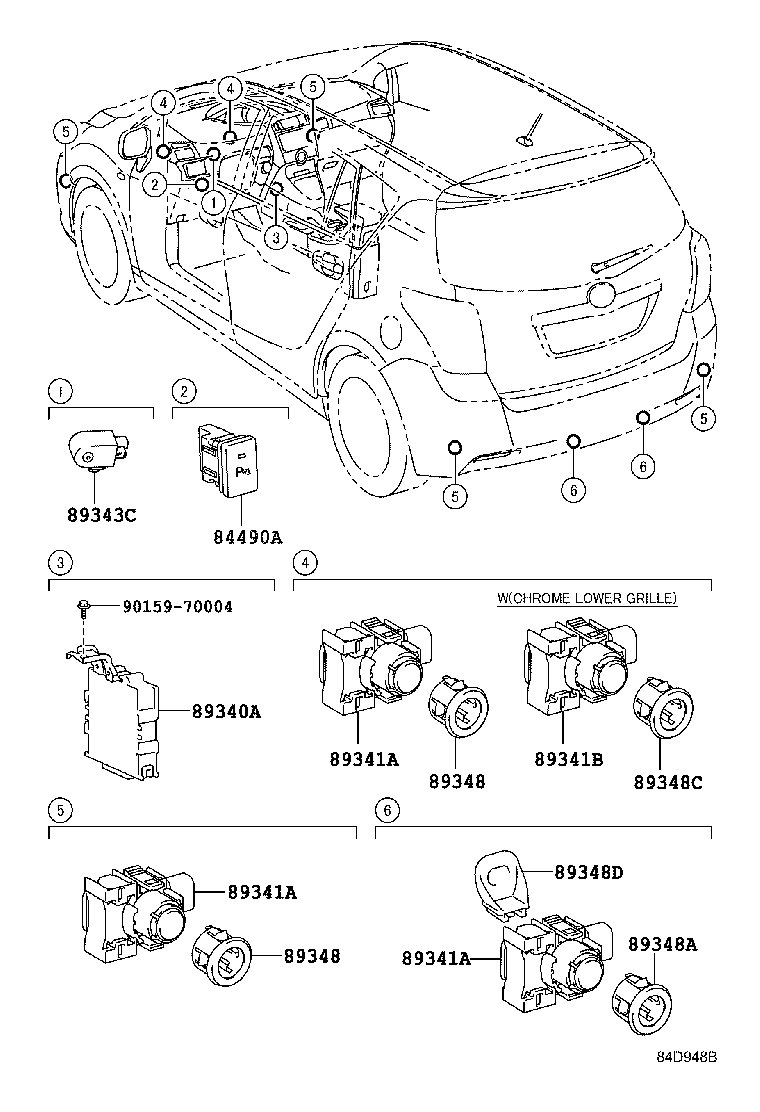

Figure 84B501 84B501 2010-07 → 2012-11 Figure 84D948B 84D948B 2012-11 → —

Part groups

PNCDescription
84490A Switch Assy, Back Sonar OR Clearance Sonar
89340A Computer Assy, Clearance Warning
89341A Sensor, Ultrasonic, NO.1
89341B Sensor, Ultrasonic, NO.2
89343C Buzzer, Clearance Warning, NO.1
89348 Retainer, Ultrasonic Sensor, NO.1
89348A Retainer, Ultrasonic Sensor, NO.2
89348C Retainer, Ultrasonic Sensor, NO.3
89348D Clip, Ultrasonic Sensor
89348J Clip, Ultrasonic Sensor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
