Toyota Verso

2009-02 → 2017-10 · chassis AUR2#,WAR20,ZGR2# · catalogue 157240 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

15 part groups · 10 illustrations

Illustrations

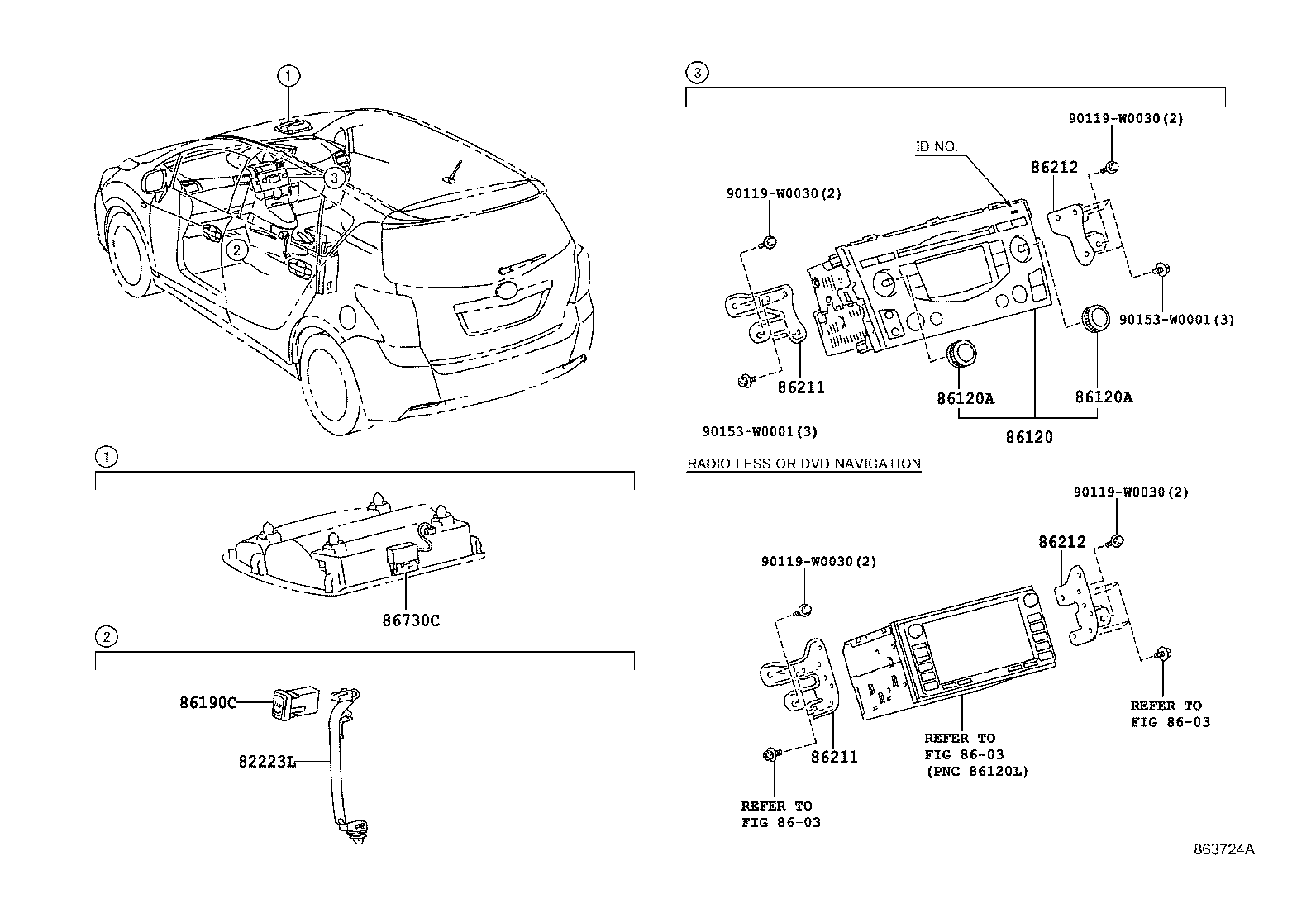

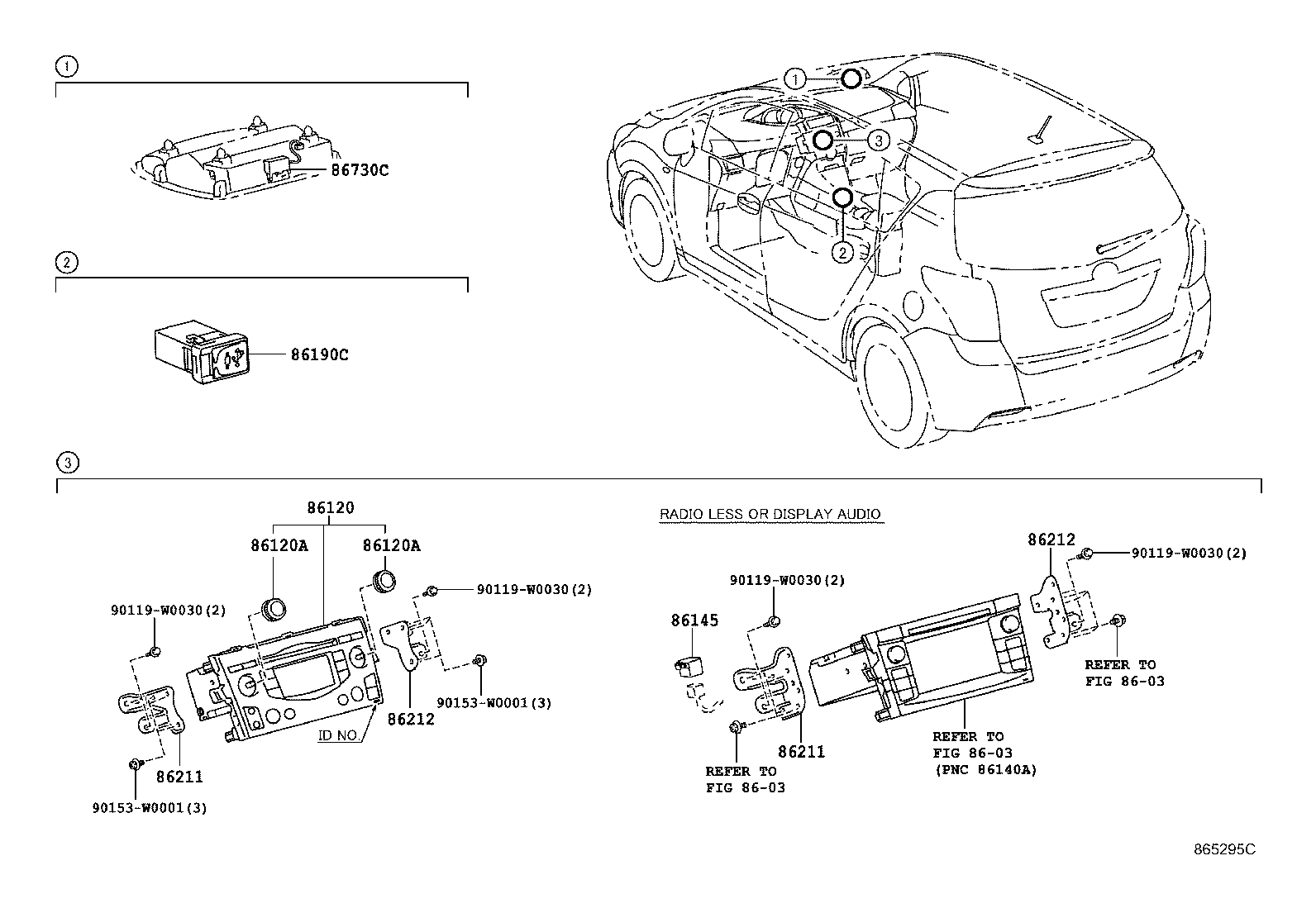

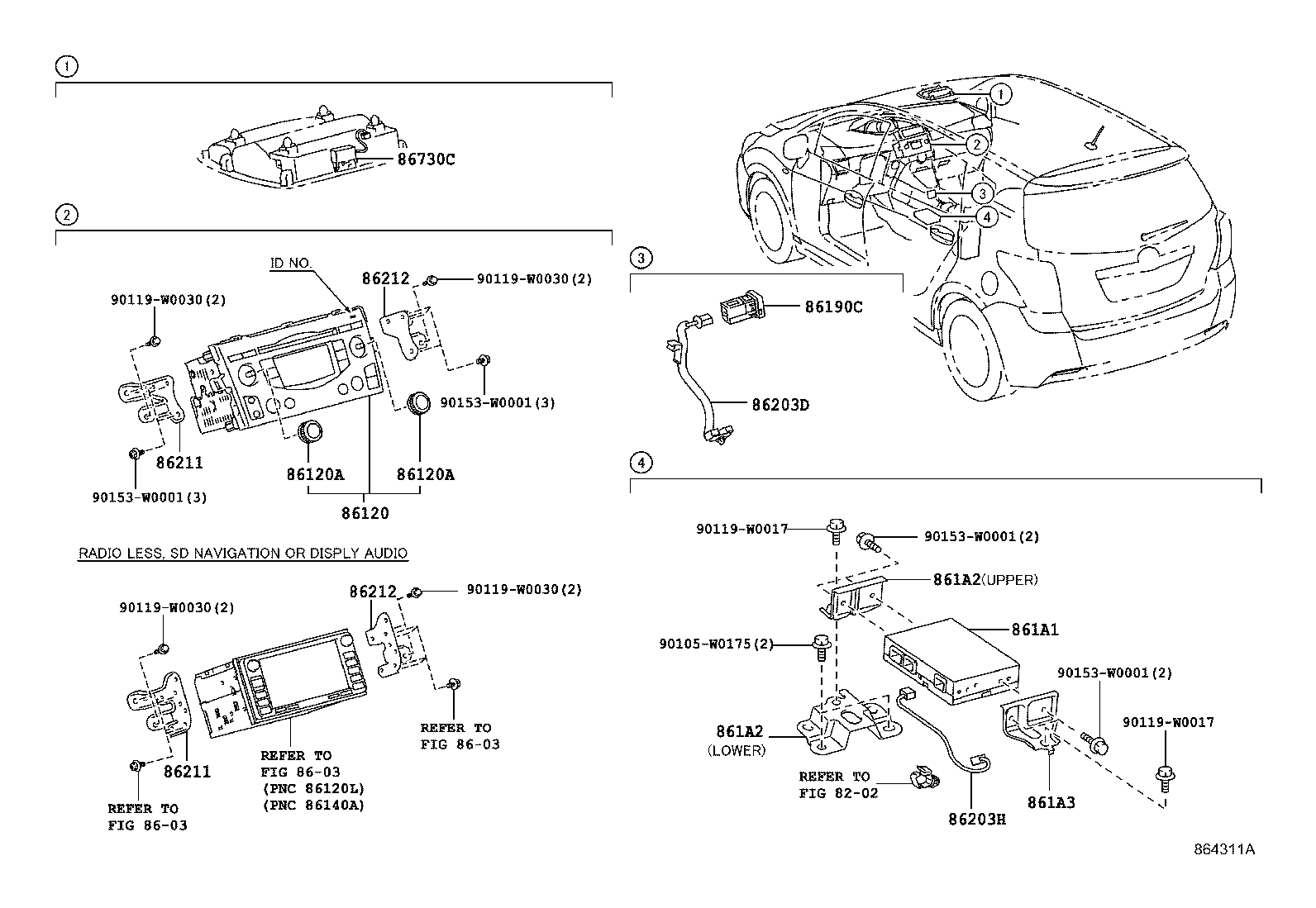

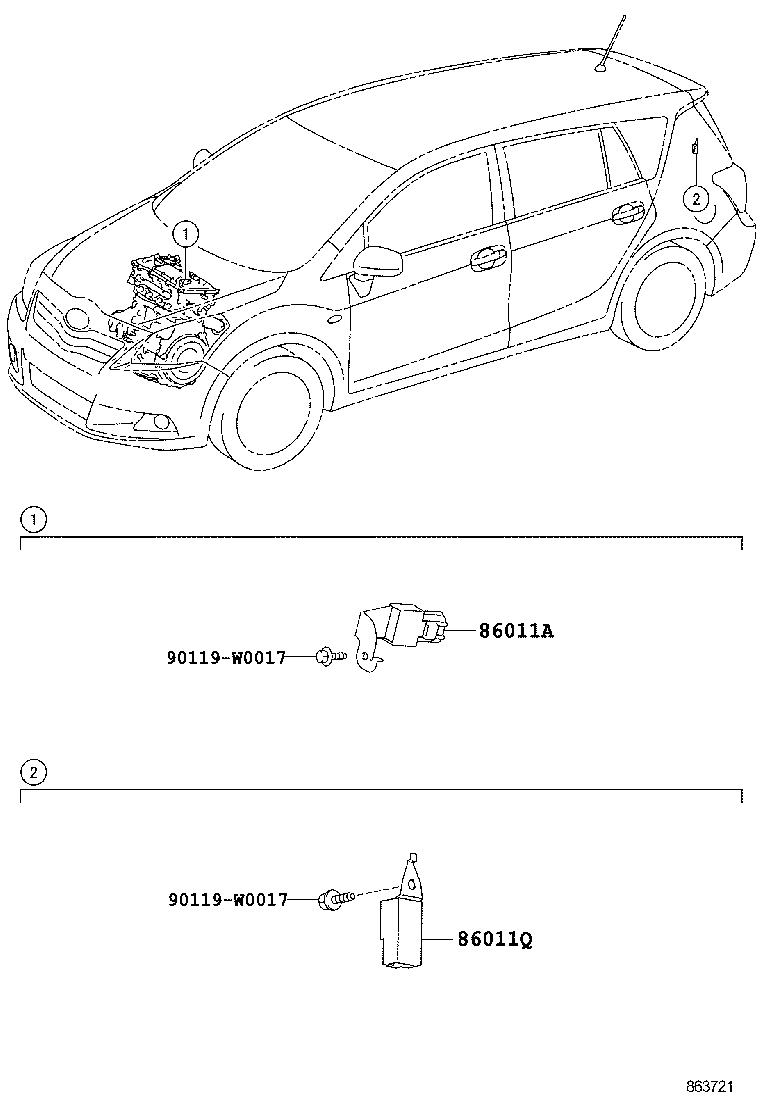

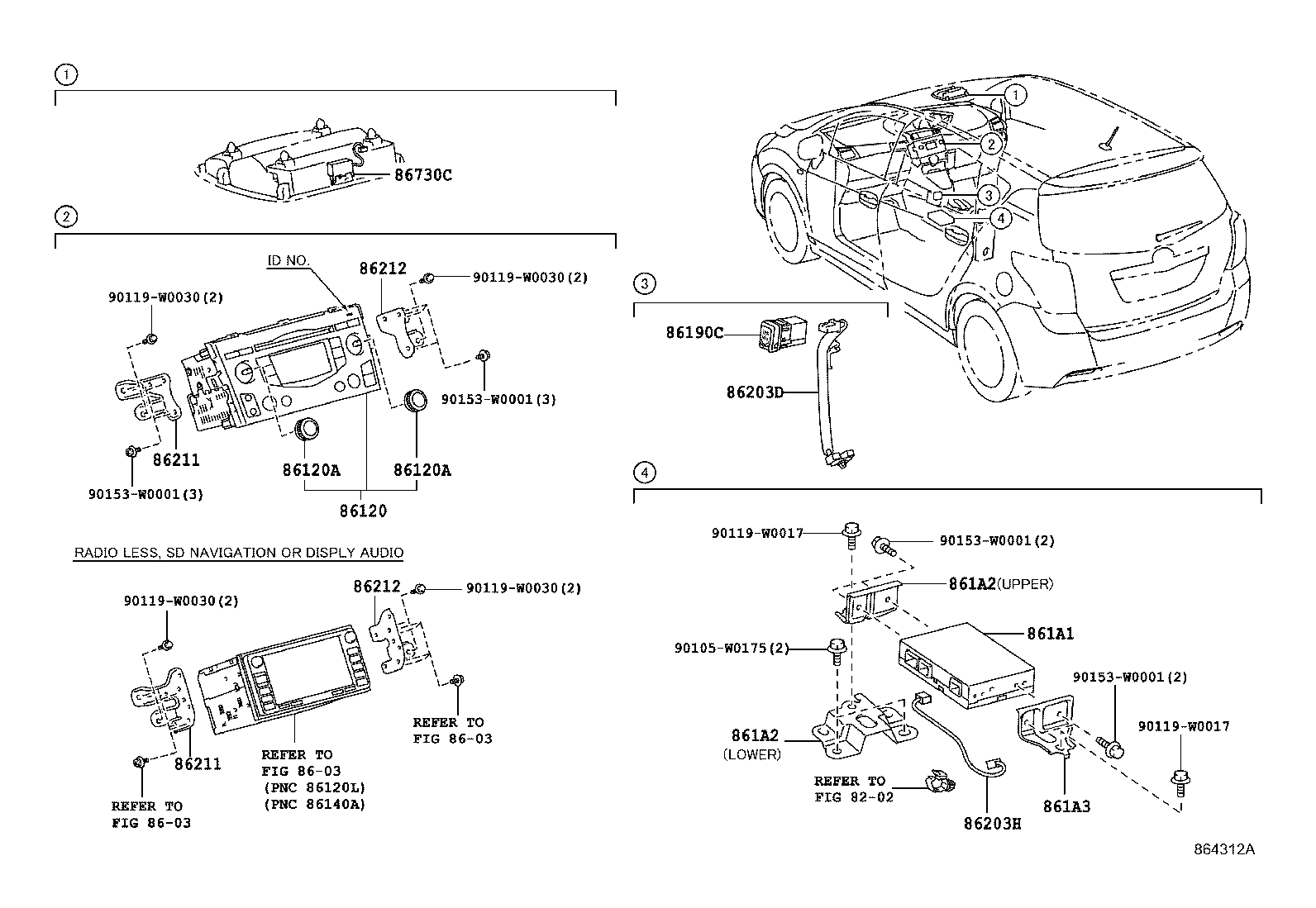

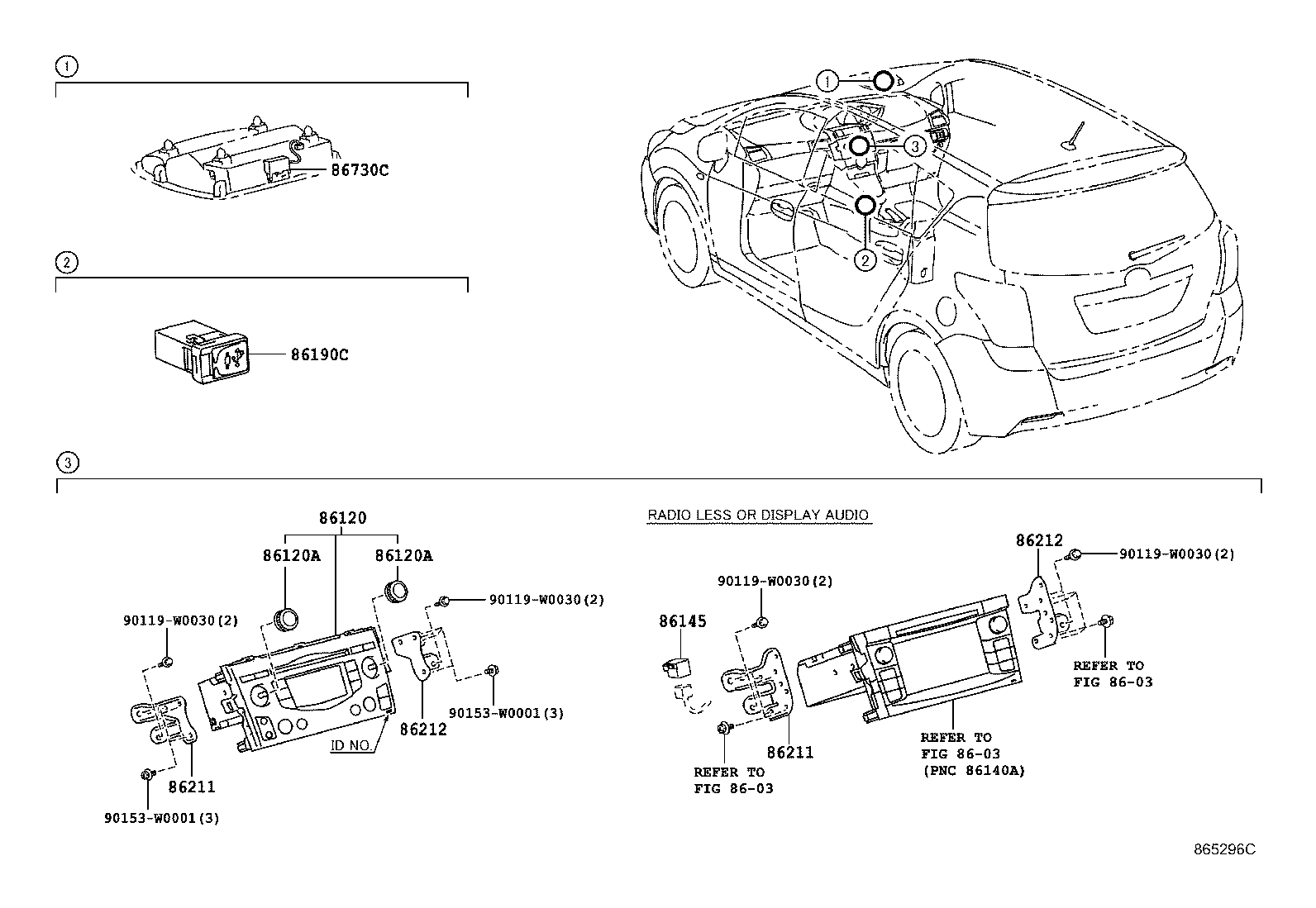

Figure 863723A 863723A 2009-02 → 2010-07 Figure 863723A 863723A 2009-02 → — Figure 863724A 863724A 2009-02 → — Figure 863724A 863724A 2009-07 → 2010-07 Figure 864311A 864311A 2010-07 → 2012-11 Figure 864312A 864312A 2010-07 → 2012-11 Figure 863721 863721 2009-02 → 2012-11 Figure 865295C 865295C 2012-11 → — Figure 865296C 865296C 2012-11 → — Figure 865297 865297 2012-11 → —

Part groups

PNCDescription
82223L Wire, Switch
86011A Condenser, Radio Setting
86011Q Condenser, Radio Setting
86120 Receiver Assy, Radio
86120A Knob, Radio Receiver Switch
86145 Connector, Antenna Male
86190C Adapter Assy, Stereo Jack, NO.1
861A1 Computer, Multi-media Interface
861A2 Bracket, Multi-media Interface, NO.1
861A3 Bracket, Multi-media Interface, NO.2
86203D Wire, Stereo Component, NO.1
86203H Wire, Stereo Component, NO.2
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86730C Microphone Assy, Telephone
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
