Toyota Verso

2009-02 → 2017-10 · chassis AUR2#,WAR20,ZGR2# · catalogue 157240 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

20 part groups · 13 illustrations

Illustrations

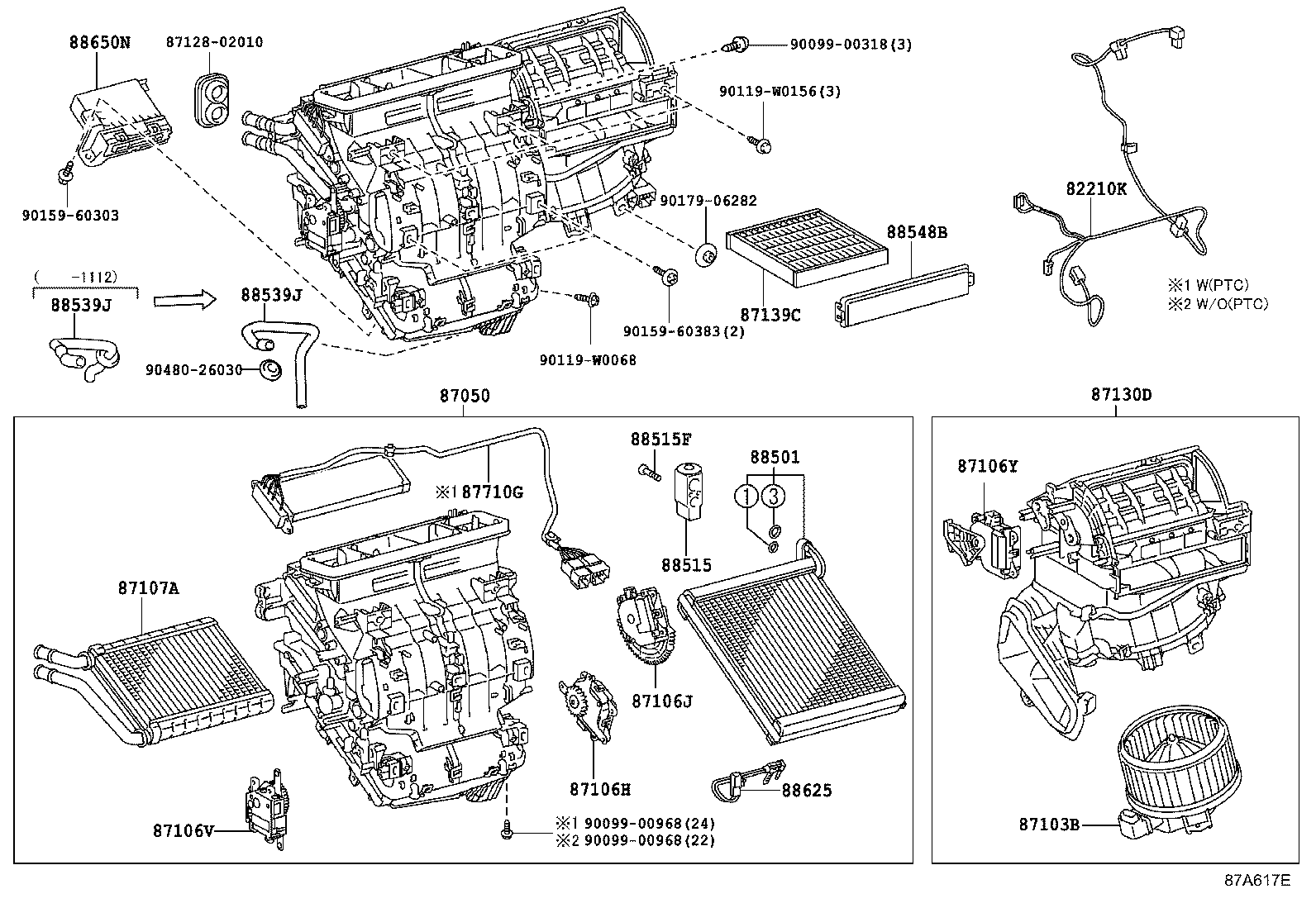

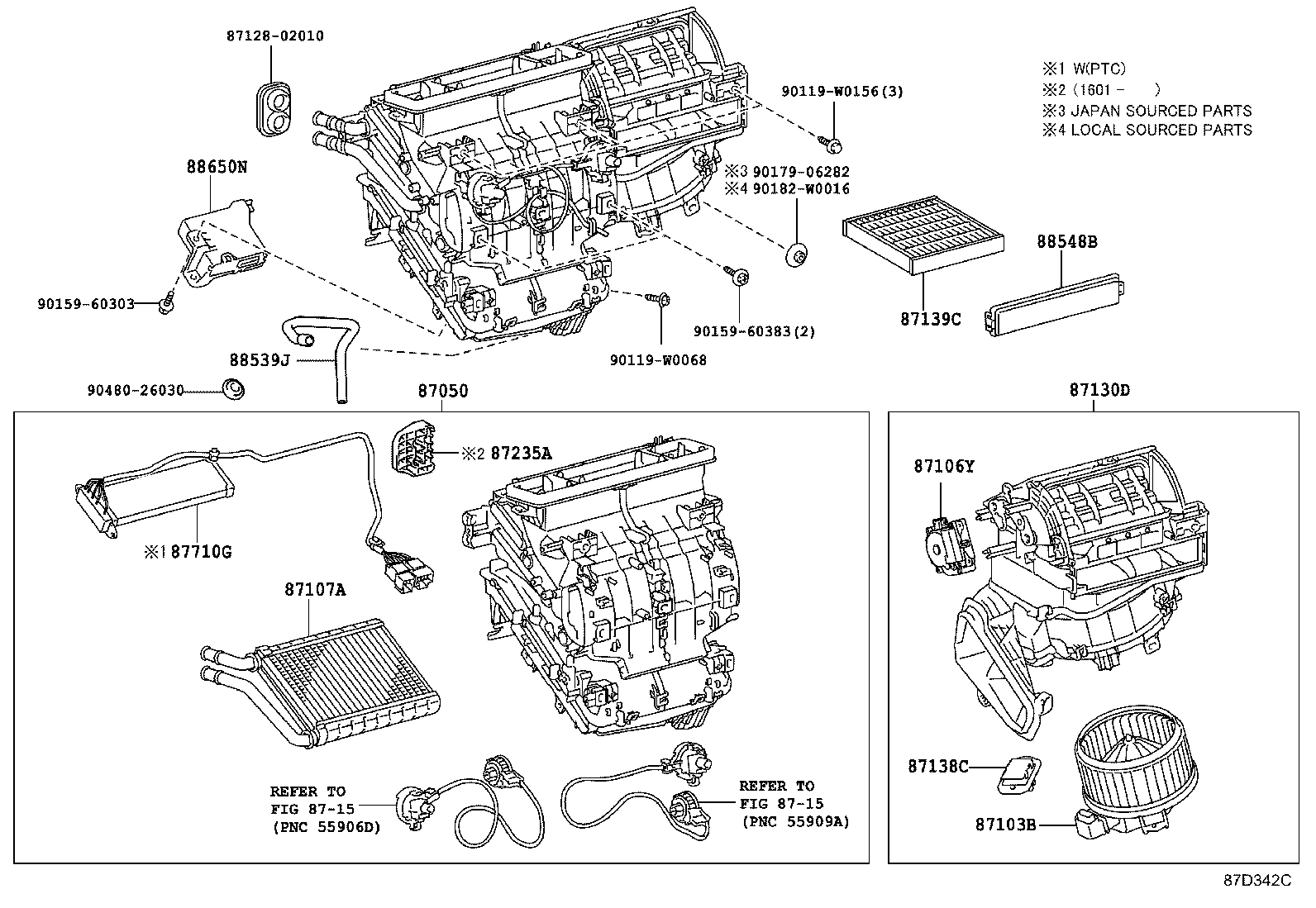

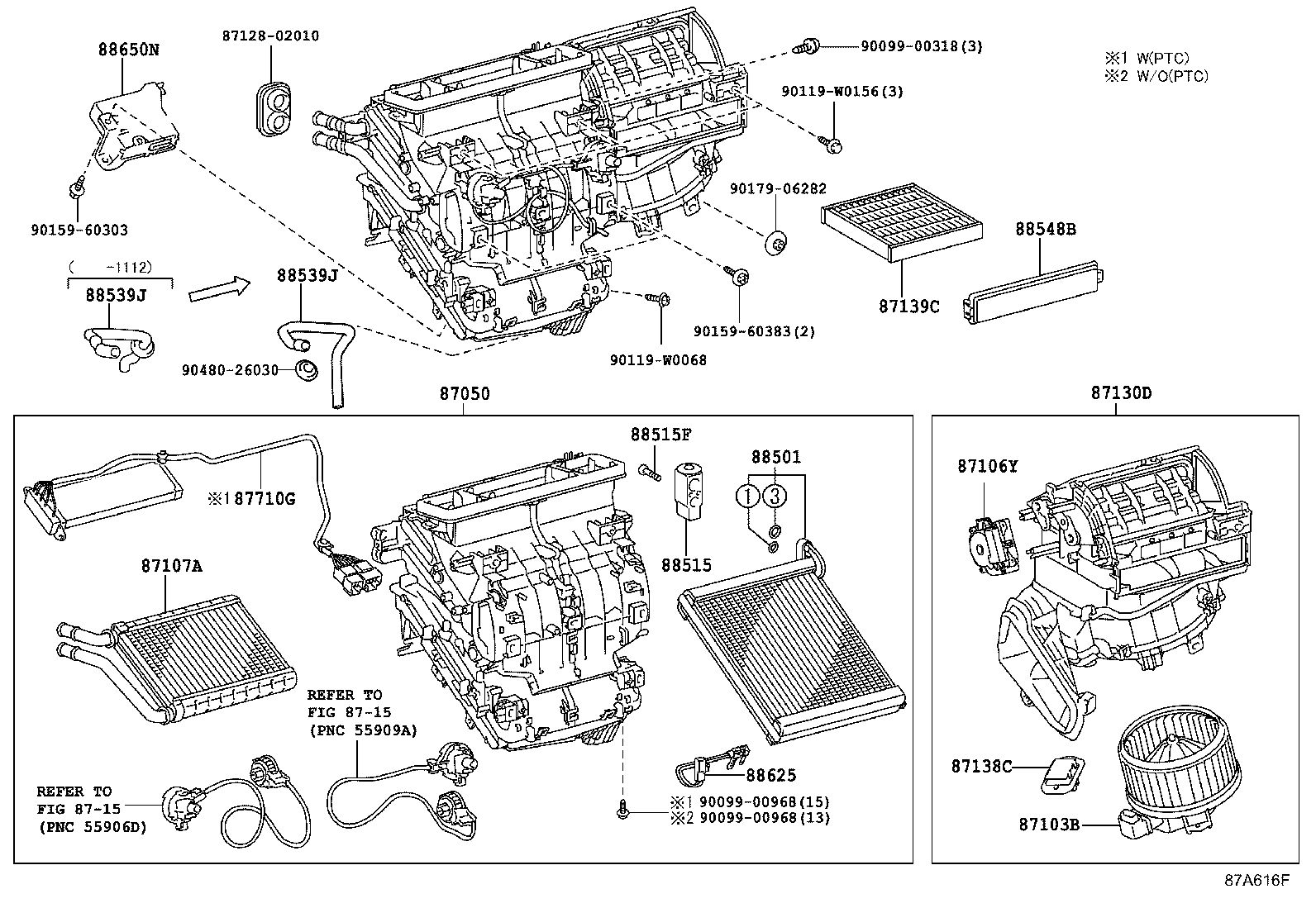

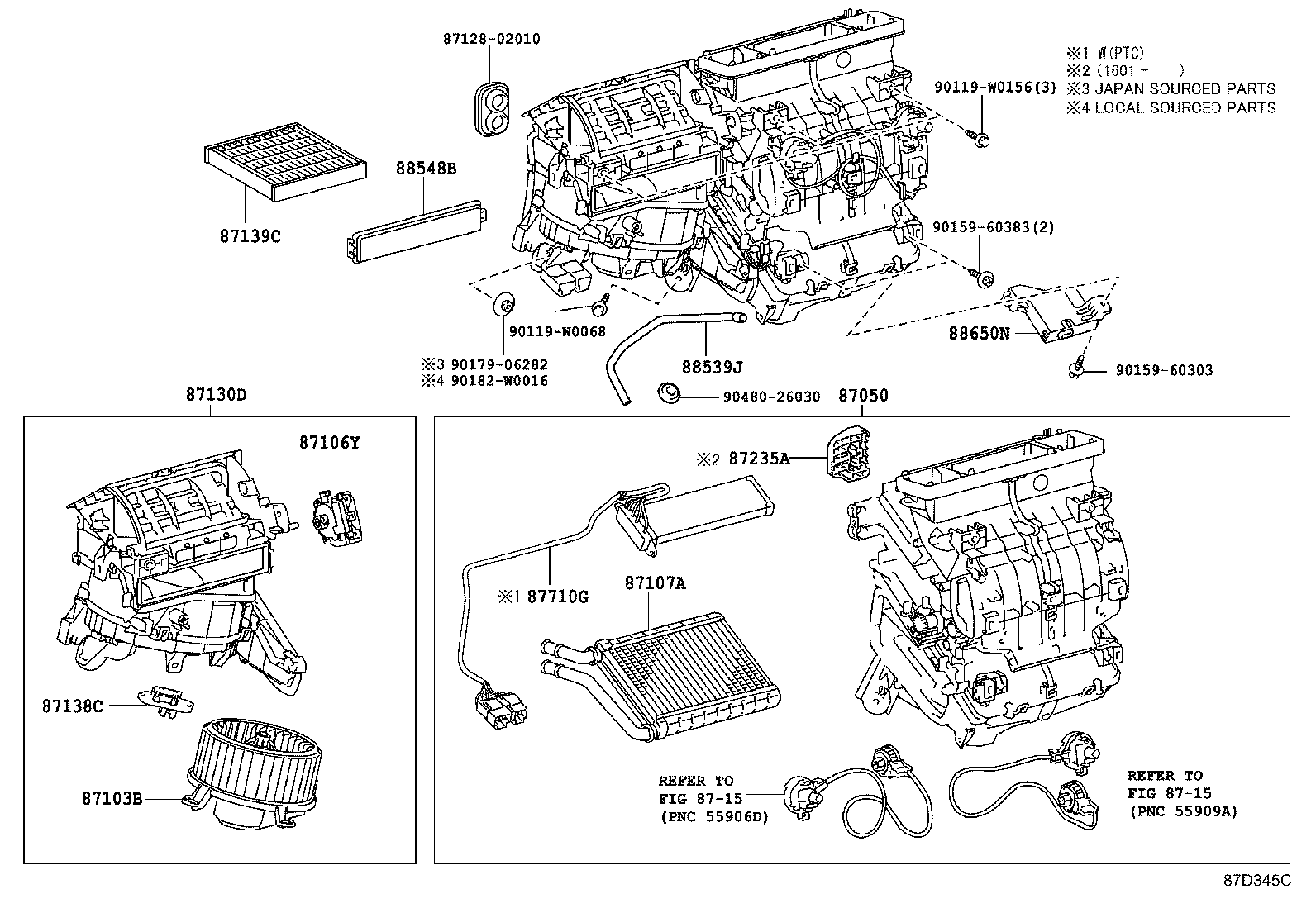

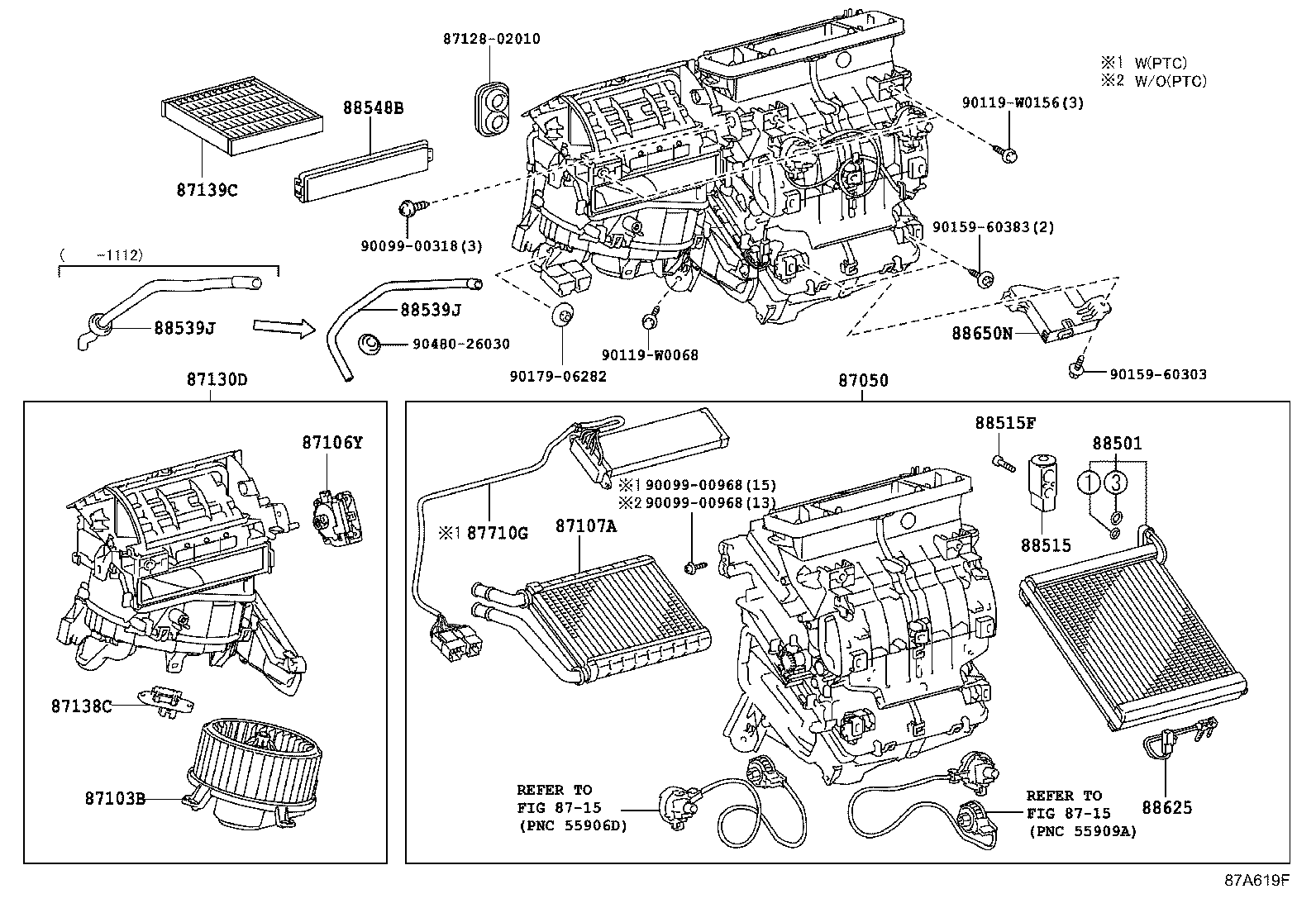

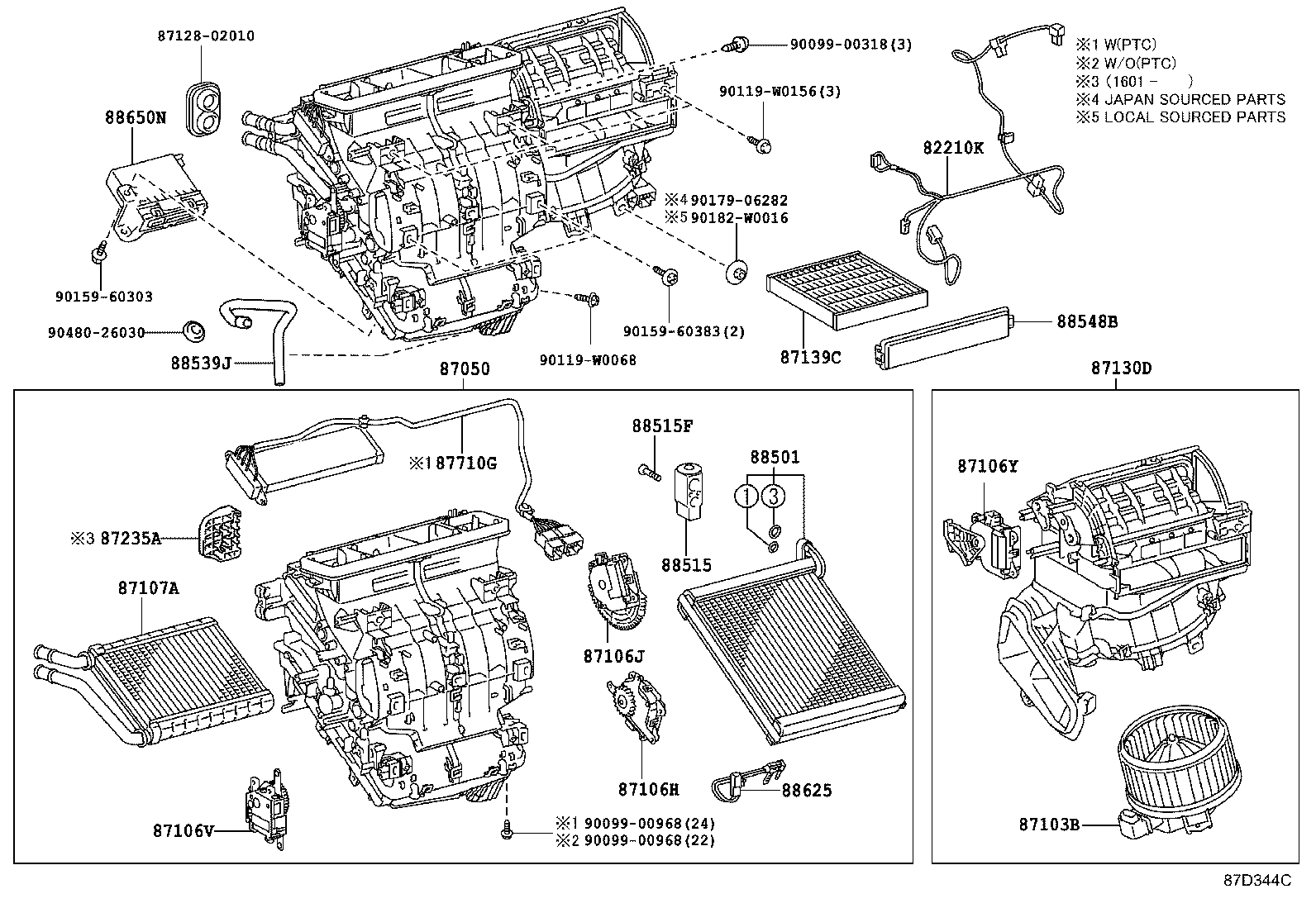

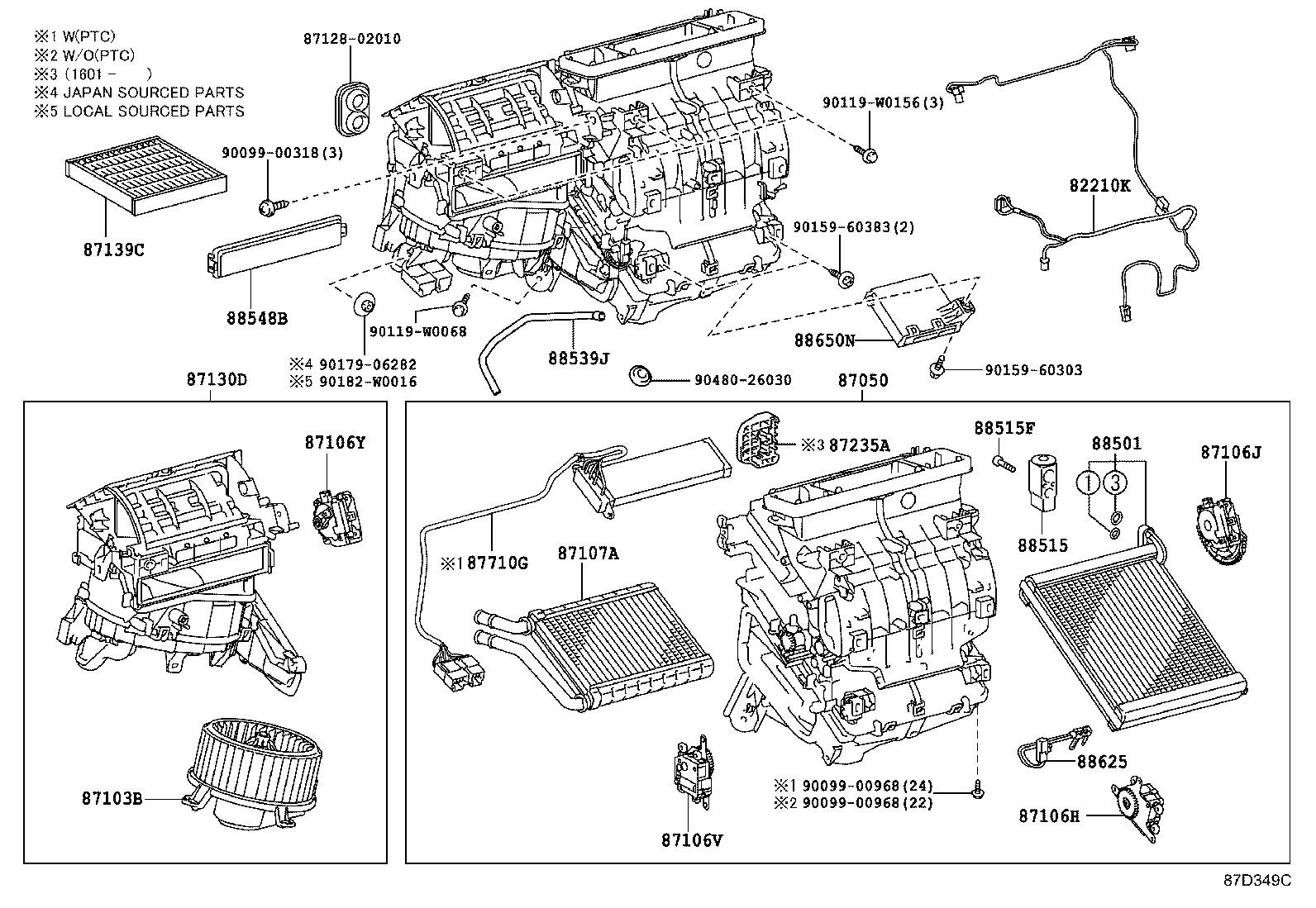

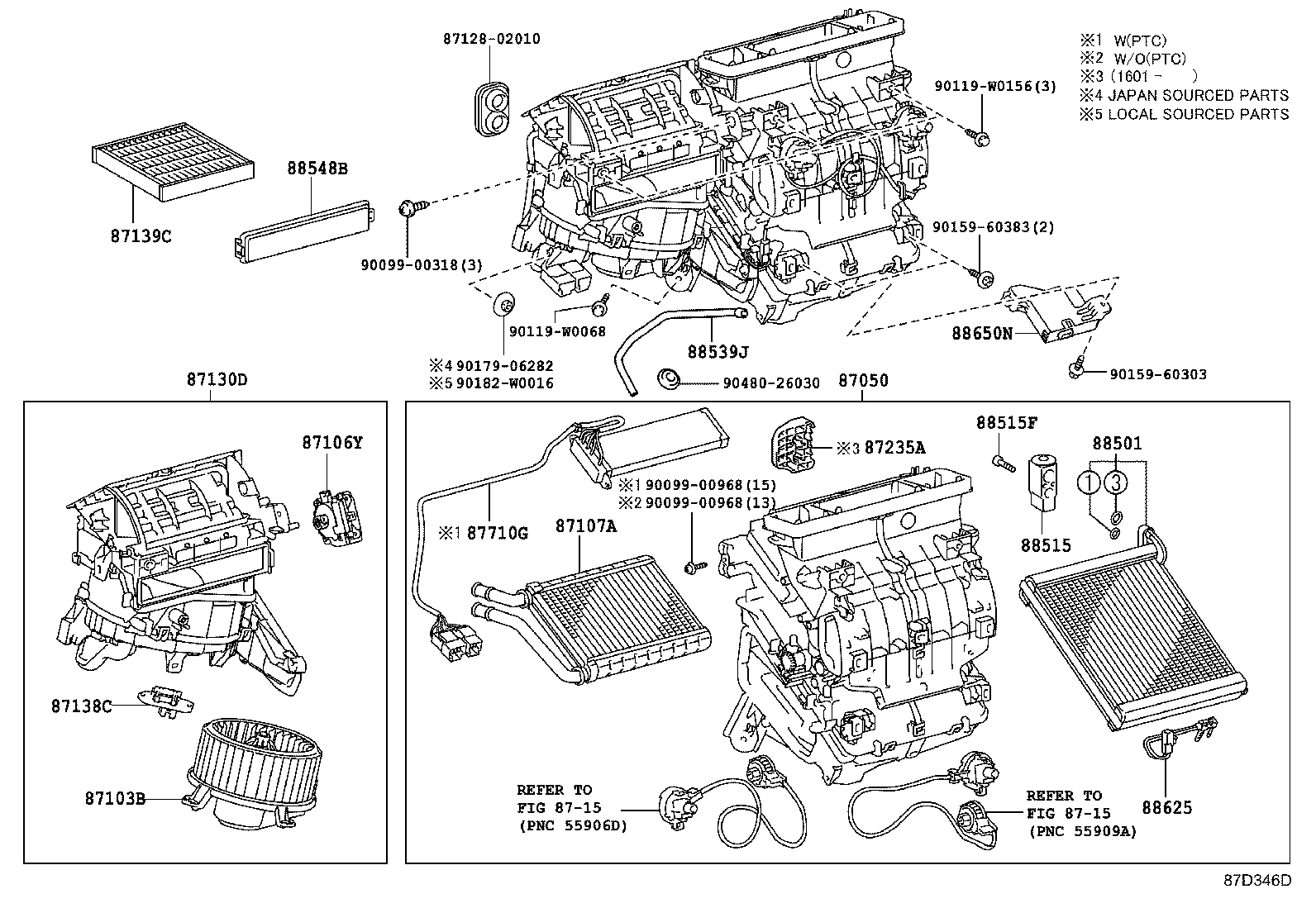

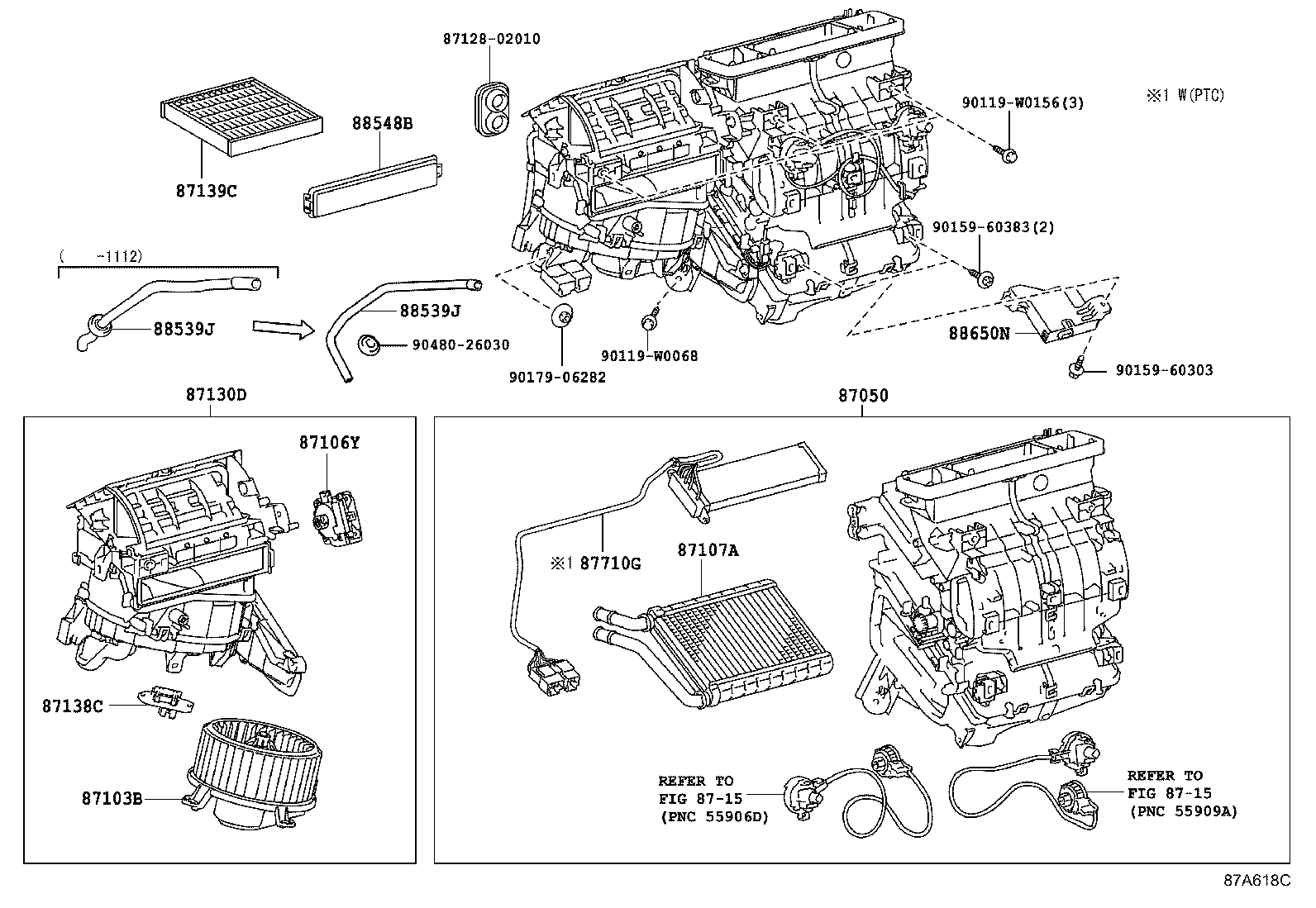

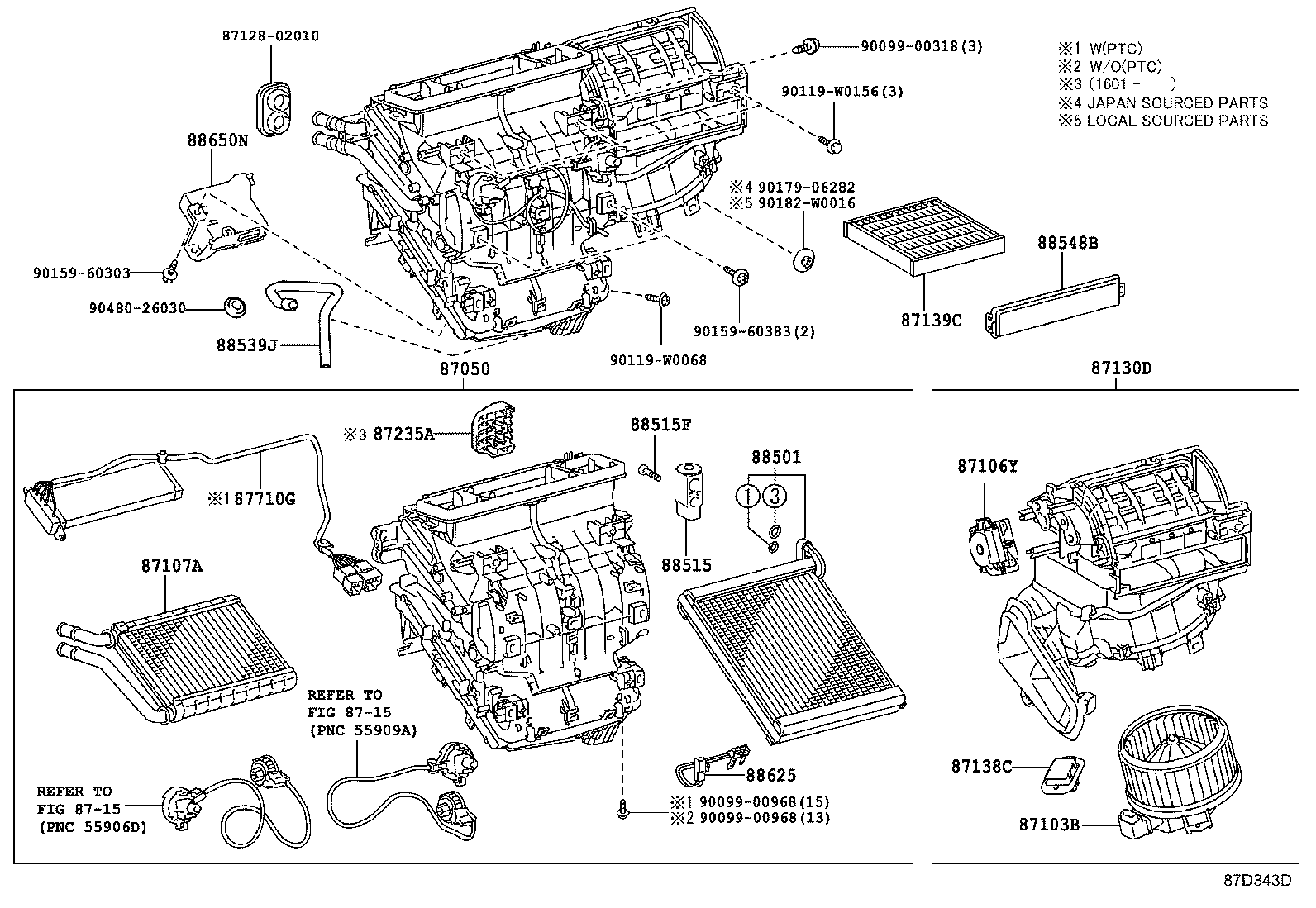

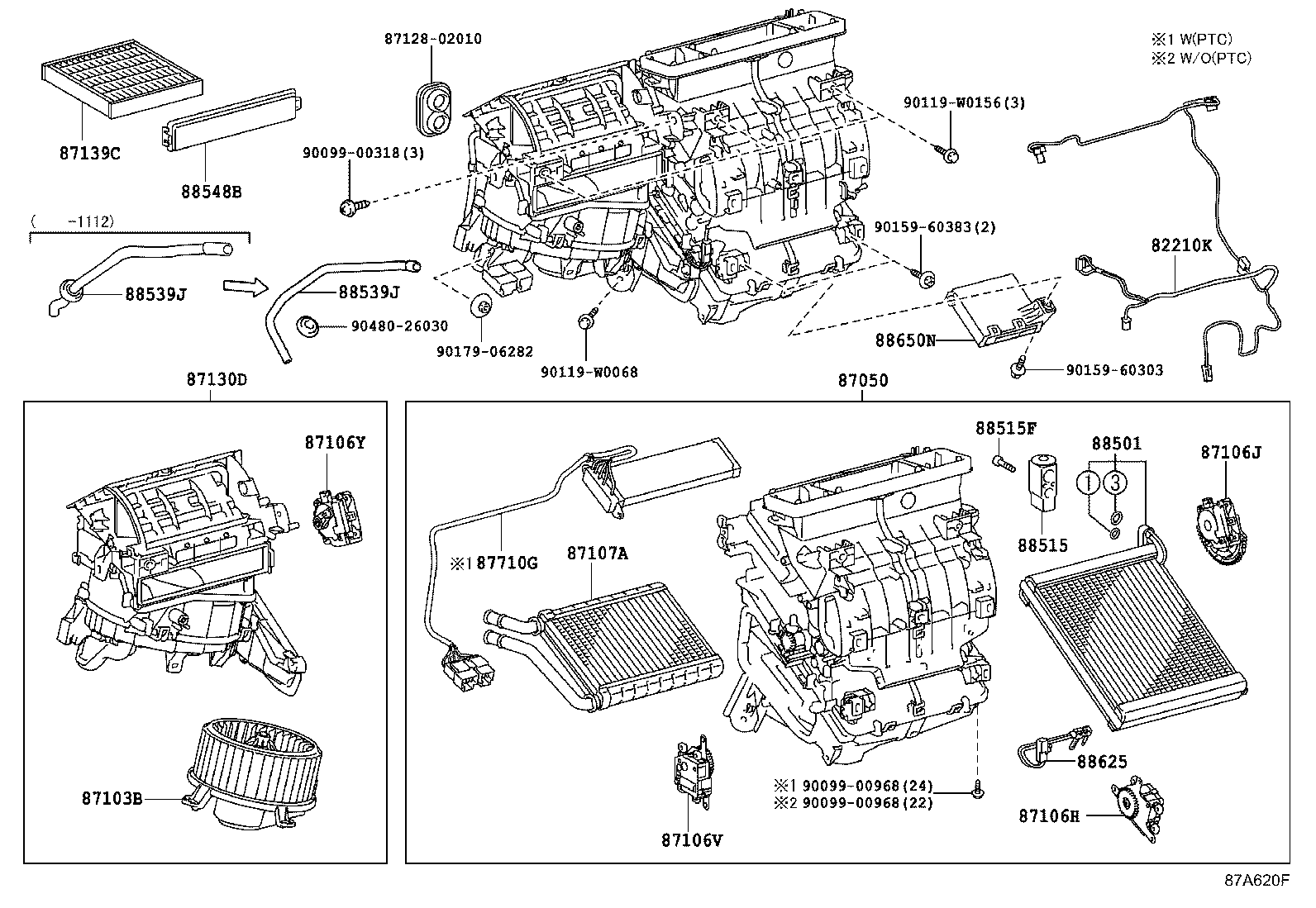

Figure 87A615C 87A615C 2009-02 → 2012-11 Figure 87D342C 87D342C 2012-11 → — Figure 87A616F 87A616F 2009-02 → 2012-11 Figure 87D343D 87D343D 2012-11 → — Figure 87A617E 87A617E 2009-02 → 2012-11 Figure 87D344C 87D344C 2012-11 → — Figure 87A618C 87A618C 2009-02 → 2012-11 Figure 87D345C 87D345C 2012-11 → — Figure 87A619F 87A619F 2009-02 → 2012-11 Figure 87D346D 87D346D 2012-11 → — Figure 87A620F 87A620F 2009-02 → 2012-11 Figure 87D349C 87D349C 2012-11 → — Figure 87F618A 87F618A 2009-02 → —

Part groups

PNCDescription
82210K Harness Assy, Air Conditioner
87050 Radiator Assy, Air Conditioner
87103B Motor Sub-assy, Blower W/Fan
87106H Servo Sub-assy, Damper(FOR AIRMIX)
87106J Servo Sub-assy, Damper(FOR MODE)
87106V Servo Sub-assy, Damper(FOR AIRMIX NO.2)
87106Y Servo Sub-assy, Damper(FOR RECIRCULATION & FRESH)
87107A Unit Sub-assy, Heater Radiator
87130D Blower Assy
87138C Resistor, Blower
87139C Filter, Clean Air
87235A Bracket, Heater Cover
87710G Quick Heater Assy
88501 Evaporator Sub-assy, Cooler, NO.1
88515 Valve, Cooler Expansion
88515F Bolt(FOR COOLER EXPANSION VALVE)
88539J Hose, Drain Cooler
88548B Case, Air Filter
88625 Thermistor, Cooler, NO.1
88650N Amplifier Assy, Air Conditioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
