Toyota Verso

2009-02 → 2017-10 · chassis AUR2#,WAR20,ZGR2# · catalogue 157240 · Europe

Supported model Data version 2018-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

35 part groups · 7 illustrations

Illustrations

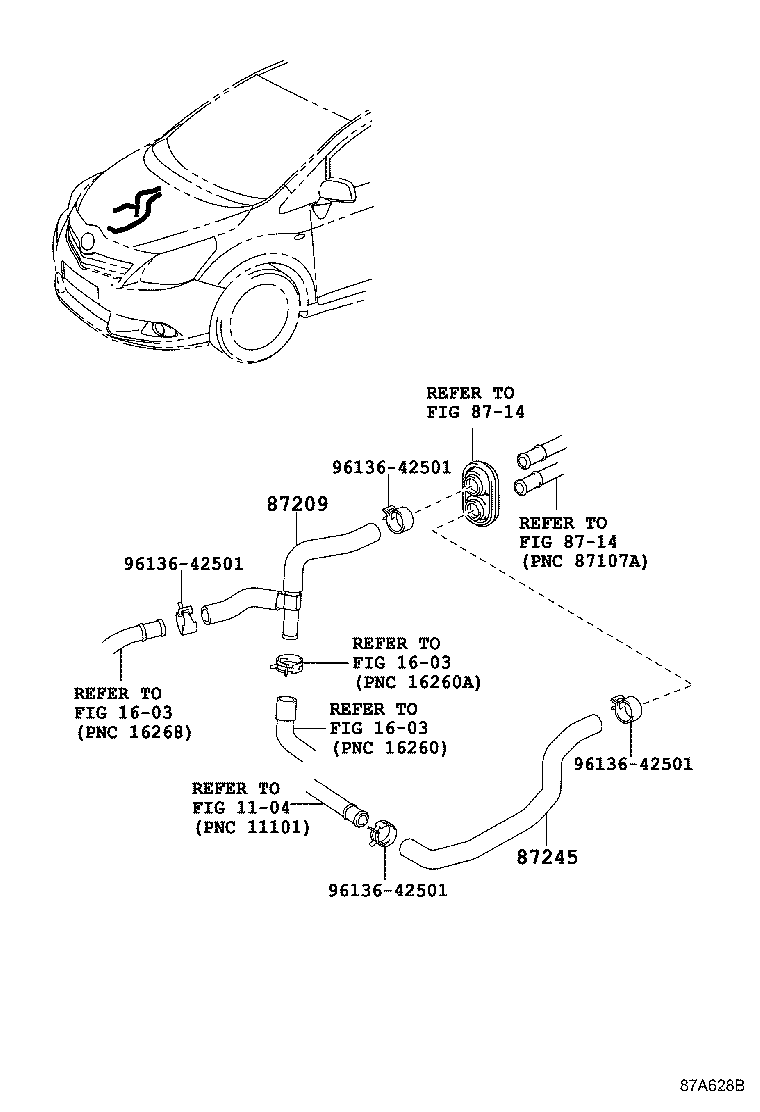

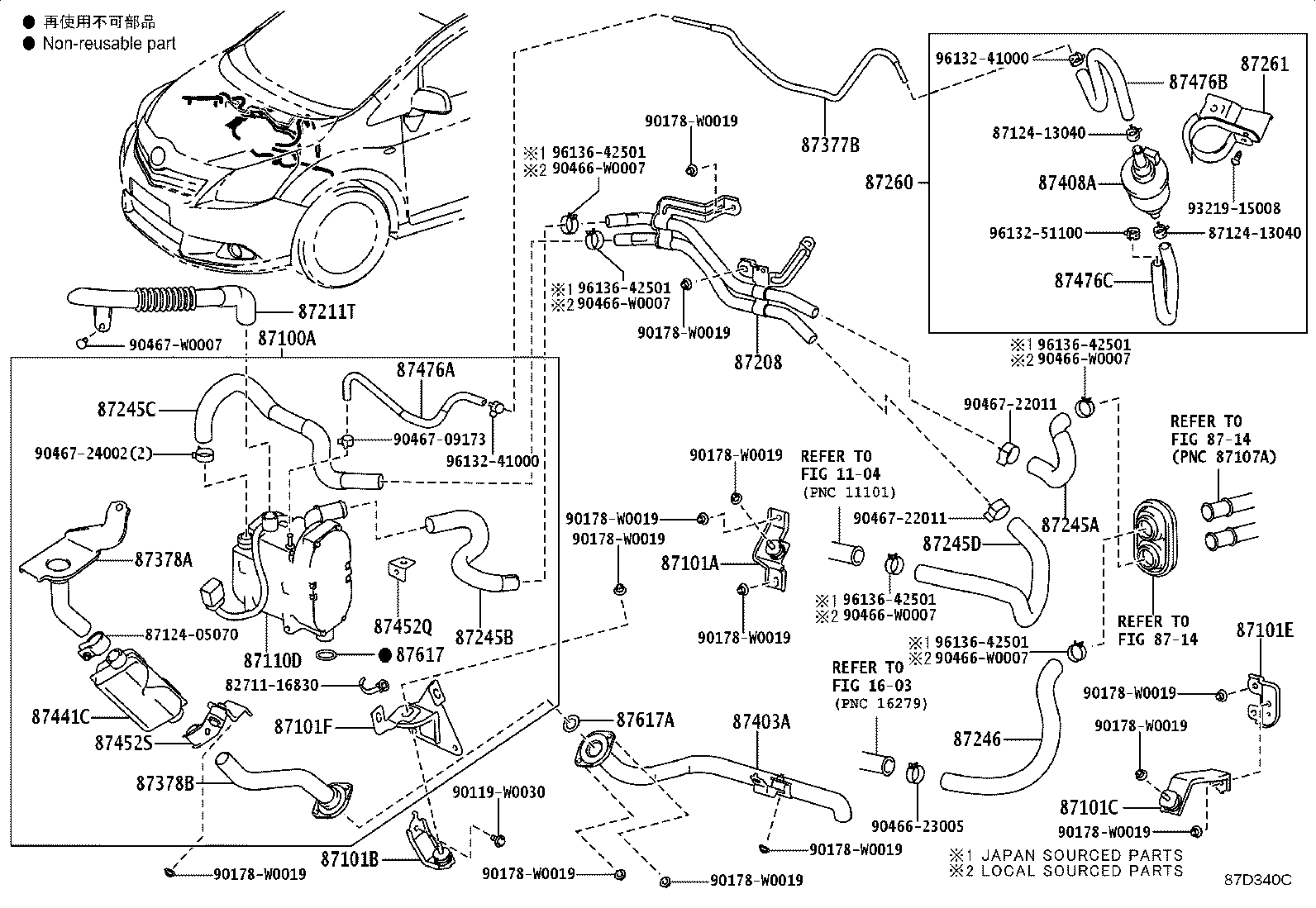

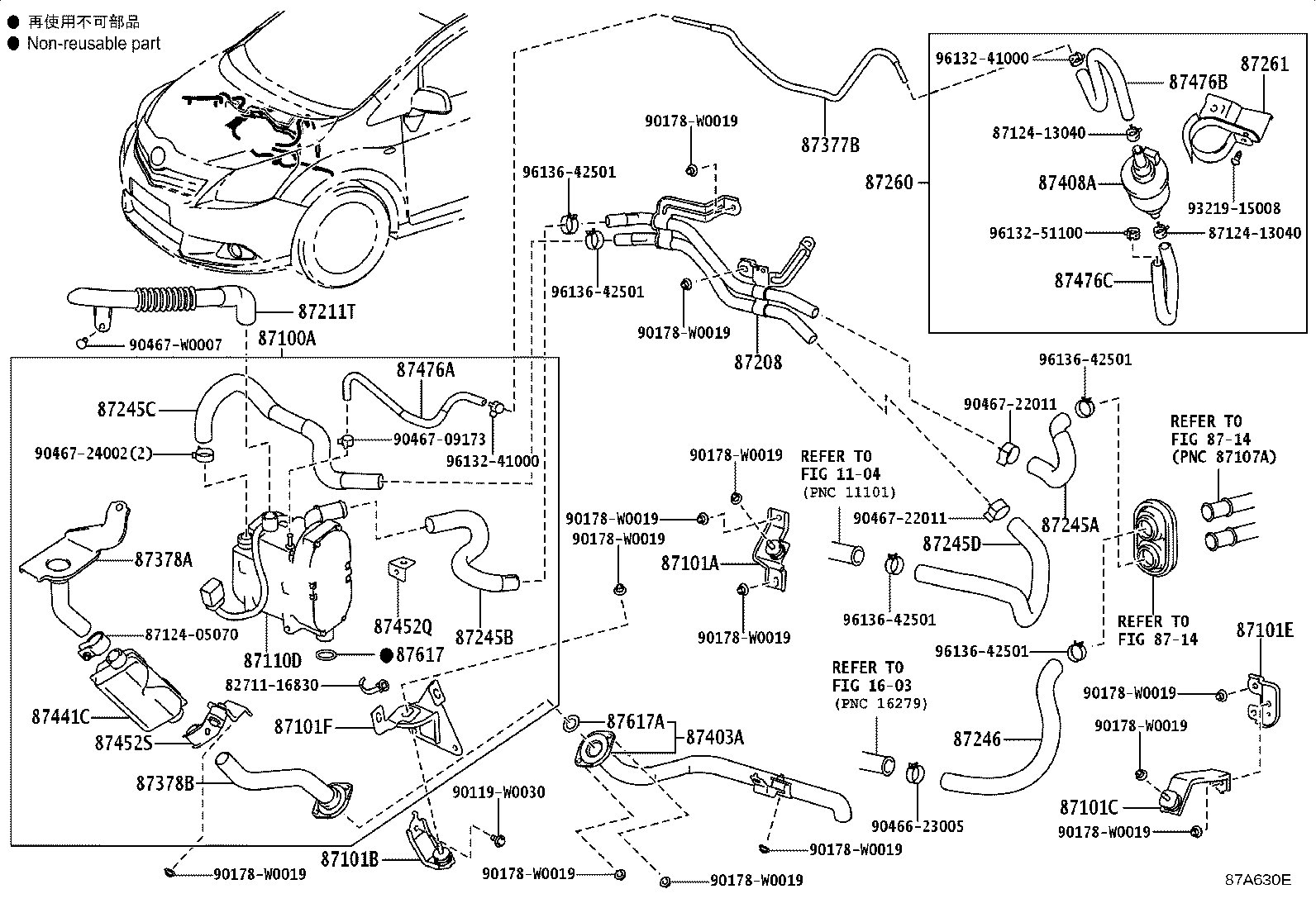

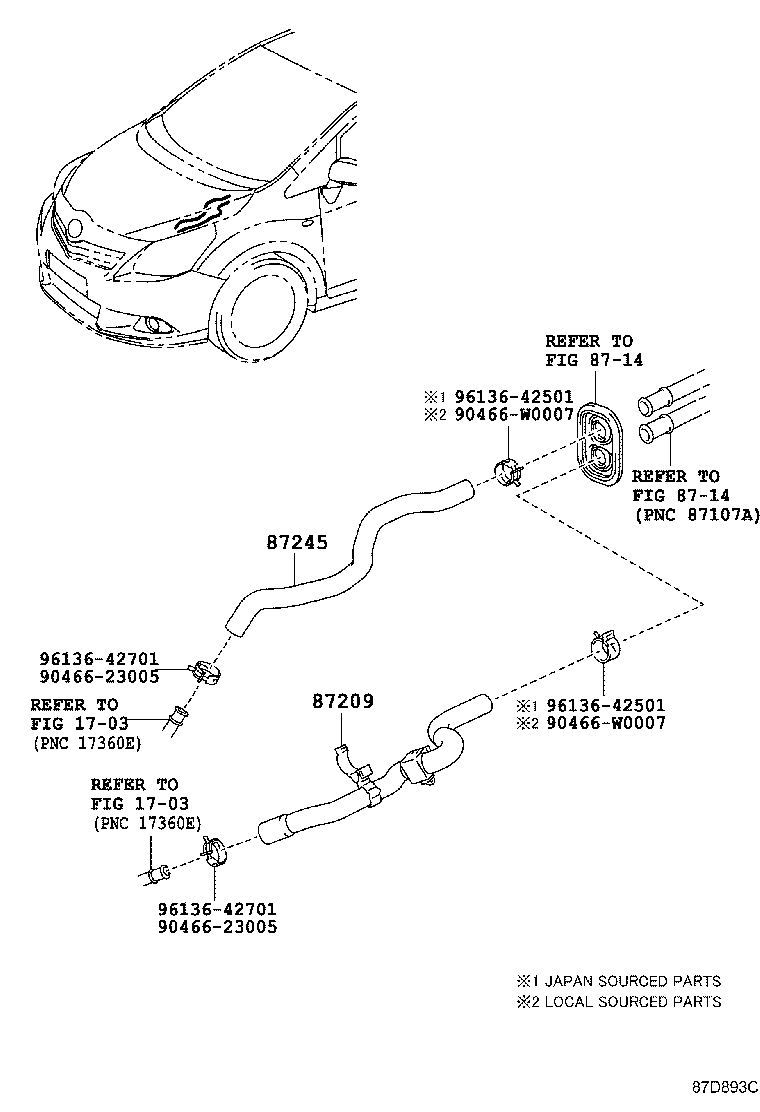

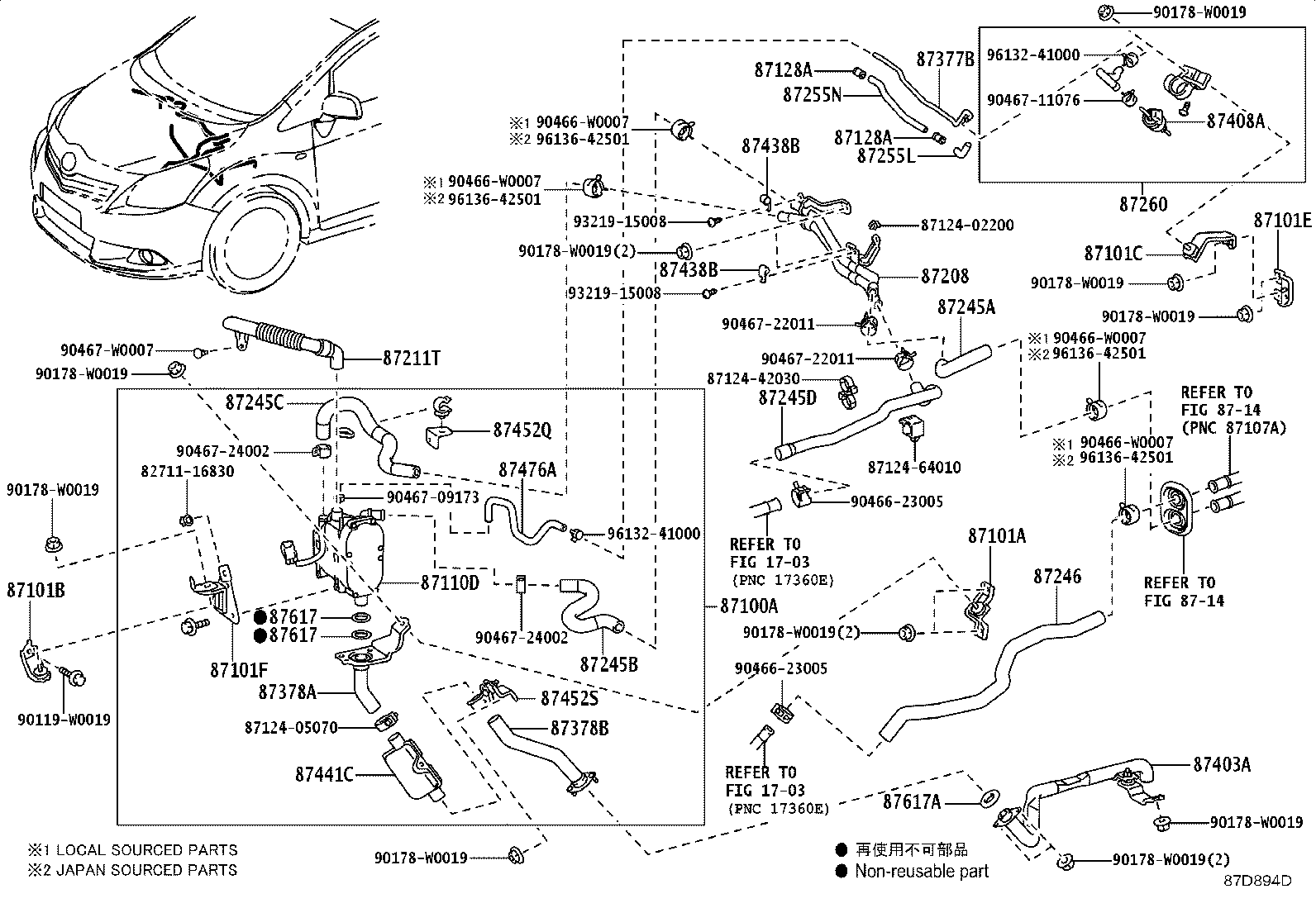

Figure 87A629E 87A629E 2009-02 → — Figure 87A630E 87A630E 2009-02 → 2012-11 Figure 87D340C 87D340C 2012-11 → — Figure 87A627A 87A627A 2009-02 → — Figure 87A628B 87A628B 2009-02 → — Figure 87D893C 87D893C 2014-01 → — Figure 87D894D 87D894D 2014-01 → —

Part groups

PNCDescription
87100A Heater & Accessory Assy
87101A Bracket Sub-assy, Heater NO.1
87101B Bracket Sub-assy, Heater NO.2
87101C Bracket Sub-assy, Heater NO.3
87101E Bracket Sub-assy, Heater NO.4
87101F Bracket Sub-assy, Heater NO.5
87110D Heater Assy
87128A Grommet, Heater
87208 Pipe Sub-assy, Heater Water
87209 Hose Sub-assy, Water
87211T Duct, Air
87245 Hose, Heater Water, Inlet
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245D Hose, Heater Water, Inlet D
87246 Hose, Heater Water, Outlet
87255L Pipe, Heater Protector, NO.2
87255N Pipe, Heater Protector, NO.1
87260 Pump Assy, Heater
87261 Bracket, Heater Pump
87377B Pipe, Fuel
87378A Pipe, Exhaust
87378B Pipe, Exhaust, NO.2
87403A Pipe Sub-assy, Exhaust
87408A Pump Sub-assy, Fuel
87438B Bracket, Heater Pipe, C
87441C Muffler
87452Q Bracket, Heater, NO.1
87452S Bracket, Heater, NO.2
87476A Hose, Heater Fuel, NO.1
87476B Hose, Heater Fuel, NO.2
87476C Hose, Heater Fuel, NO.3
87617 Gasket, Heat Exchanger Unit NO.1
87617A Gasket, Heat Exchanger Unit NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
