Heating & Air Conditioning - Cooler Piping

14 part groups · 8 illustrations

Illustrations

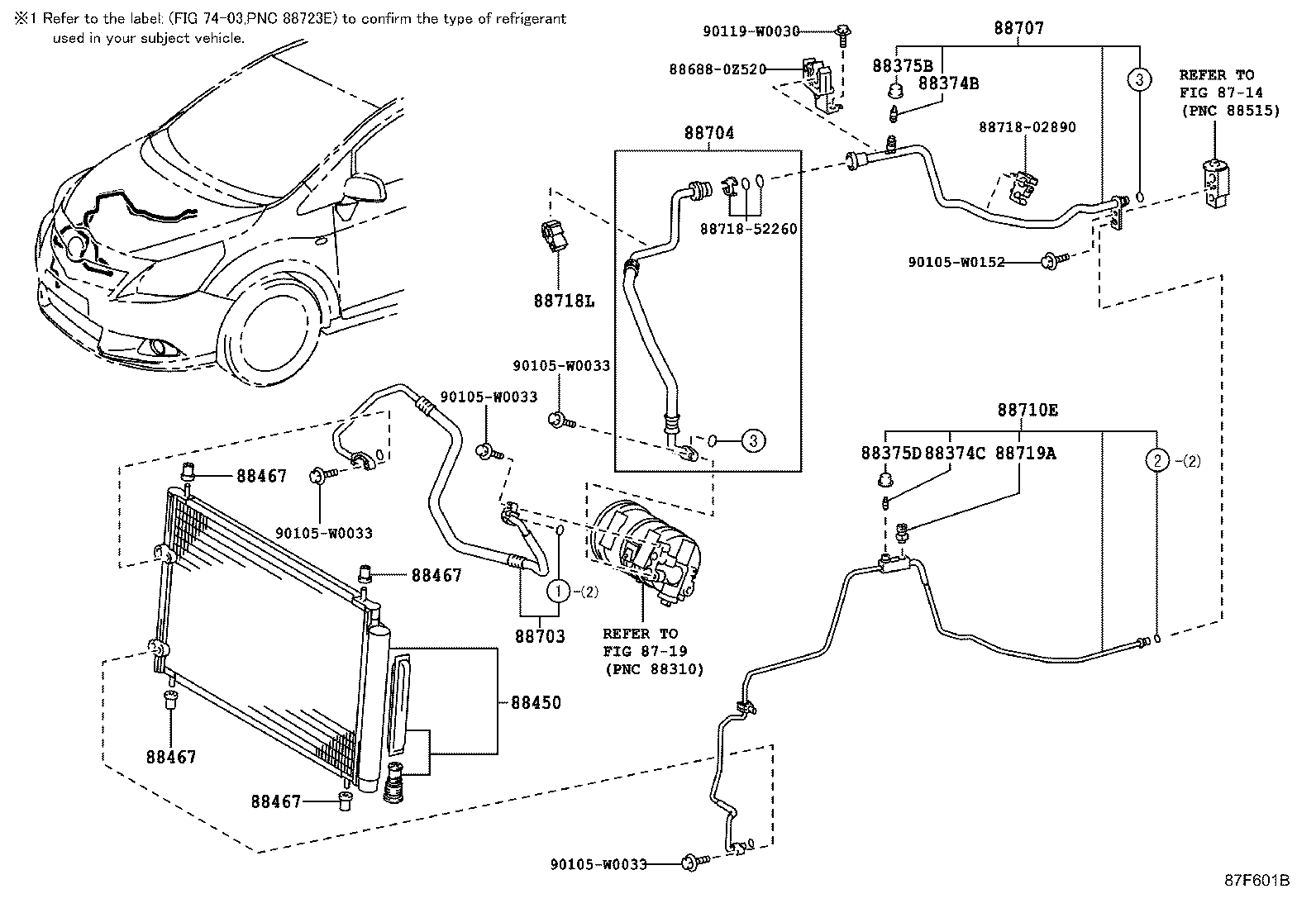

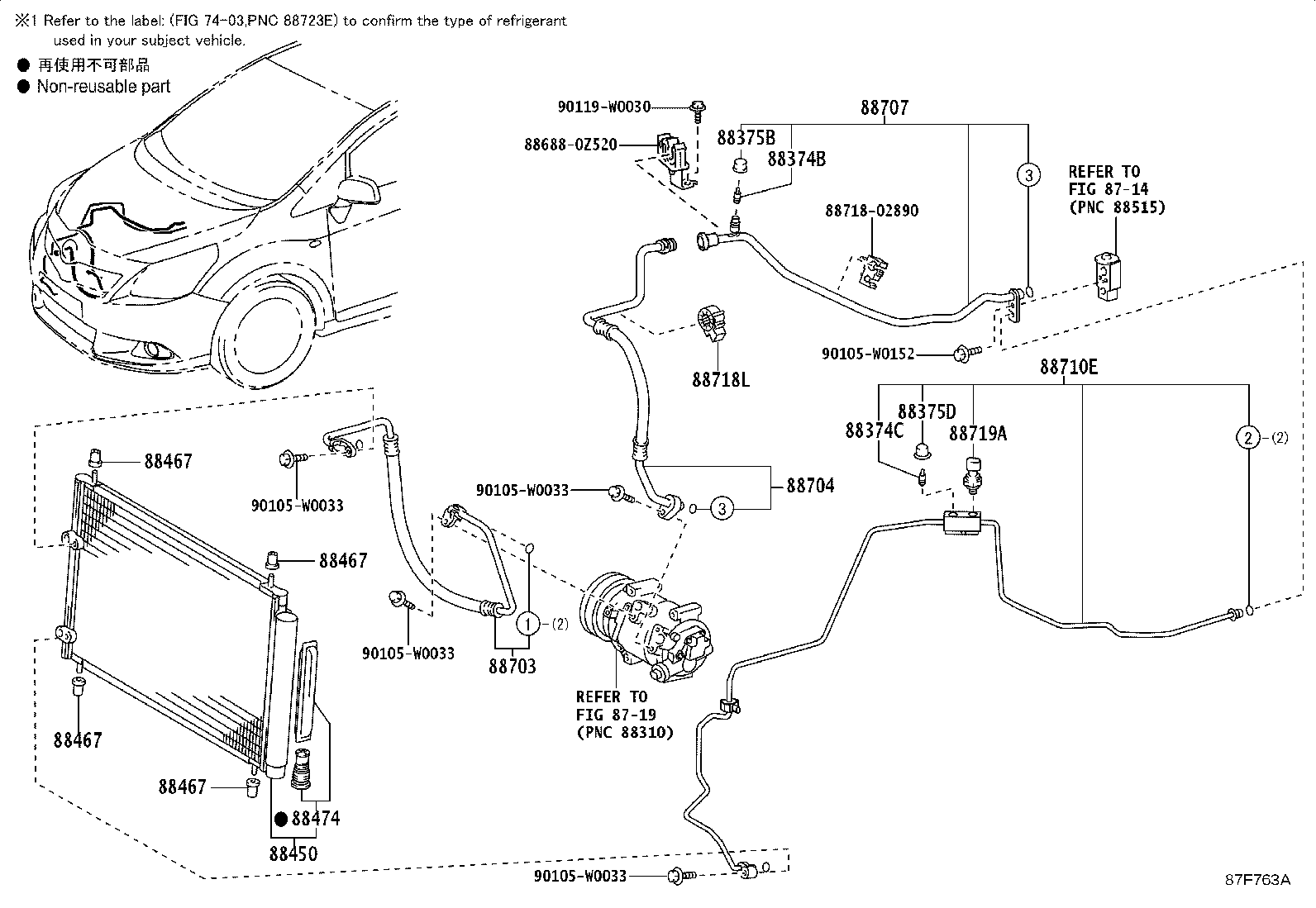

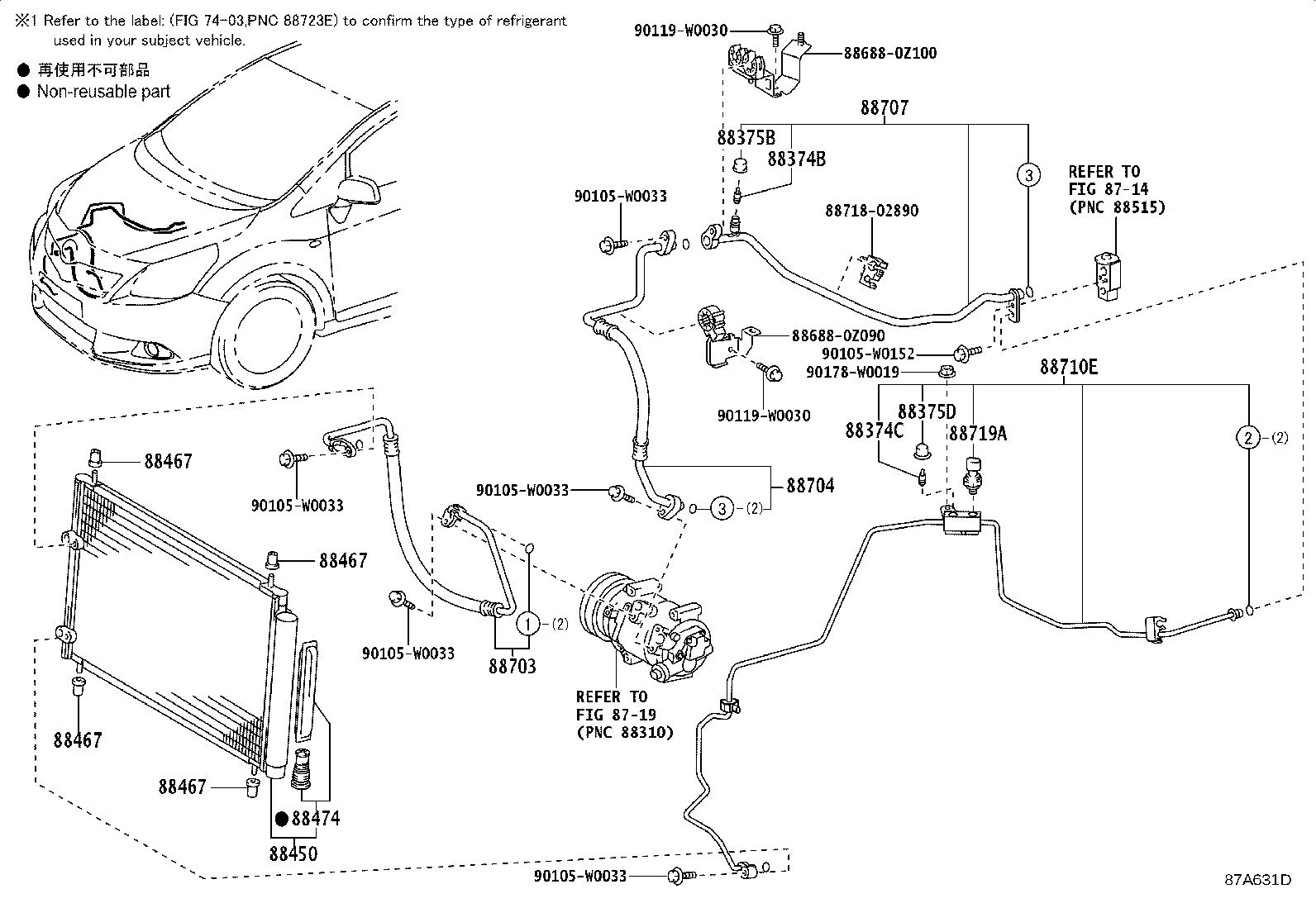

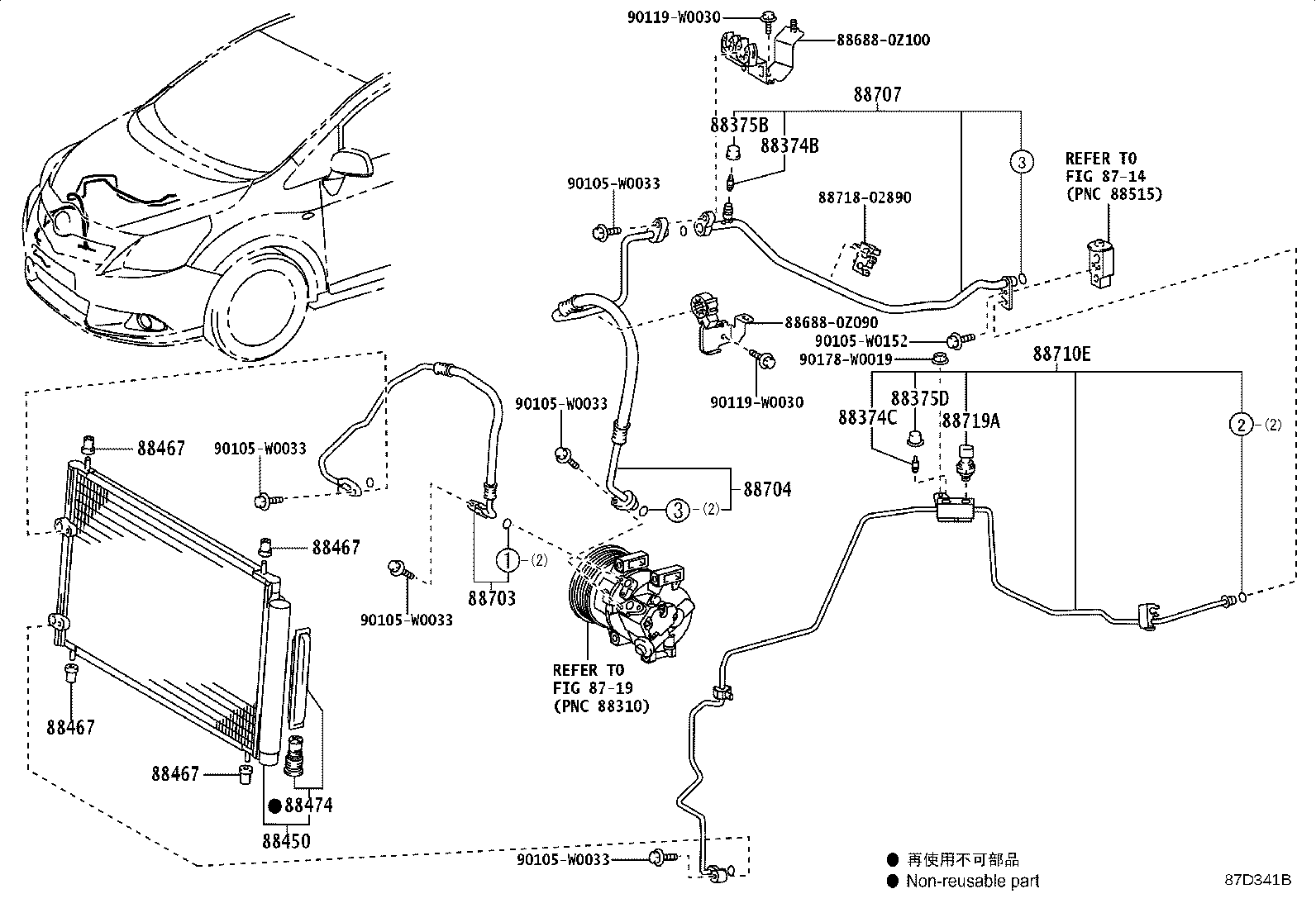

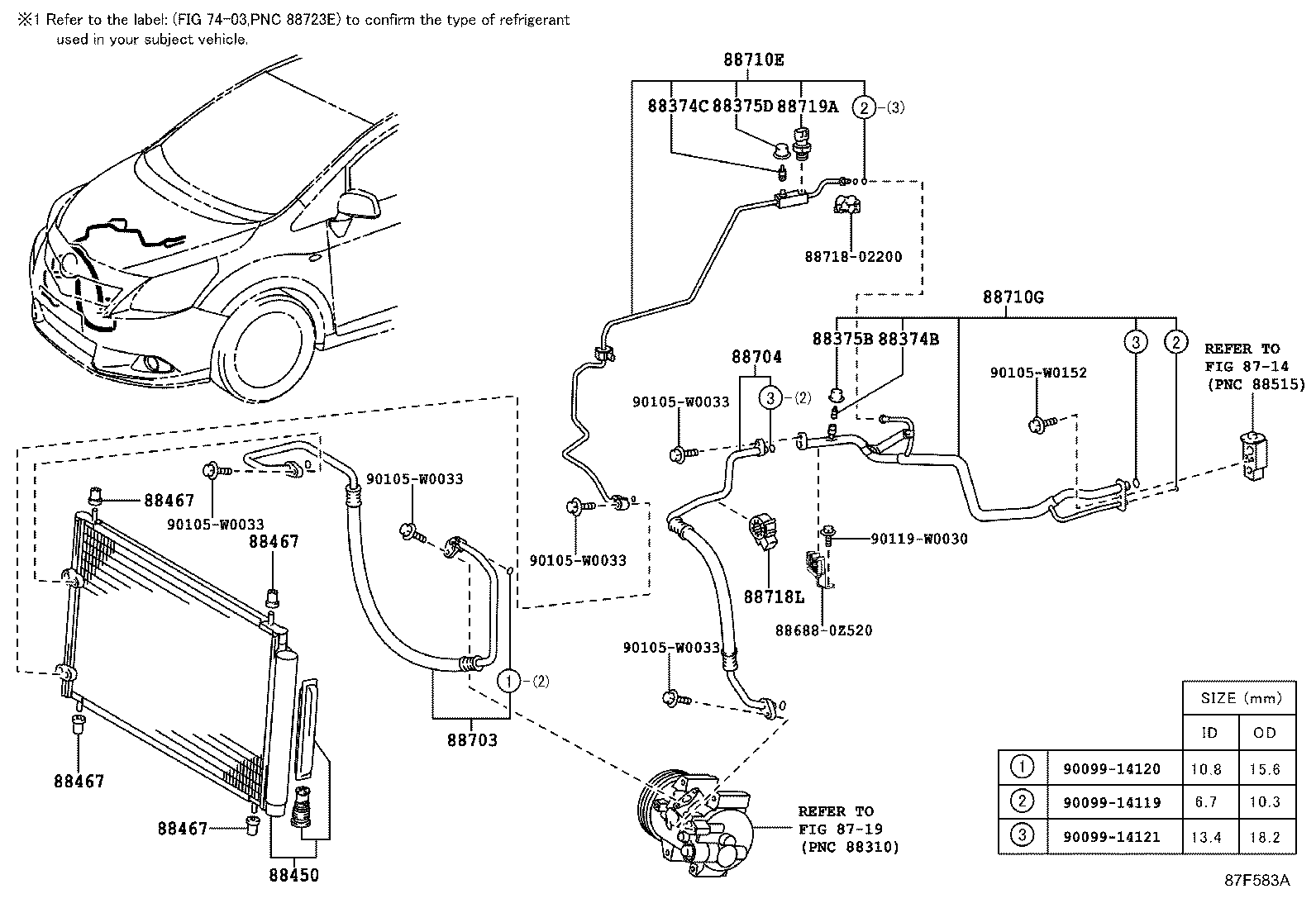

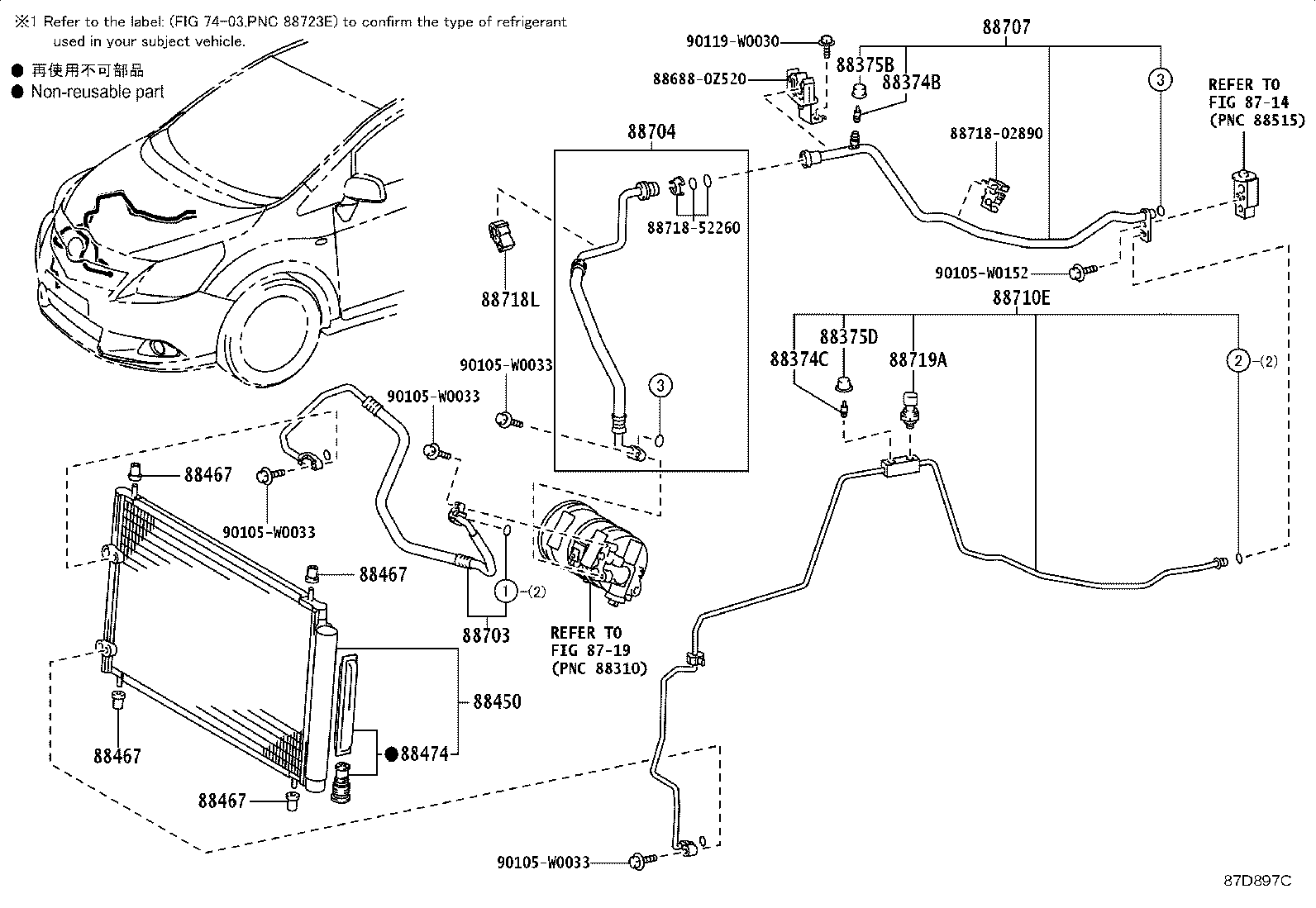

Figure 87A632B 87A632B 2009-02 → 2012-11 Figure 87D341B 87D341B 2012-11 → 2015-03 Figure 87A631D 87A631D 2009-02 → 2016-01 Figure 87F763A 87F763A 2016-01 → — Figure 87F583A 87F583A 2016-01 → — Figure 87D897C 87D897C 2014-01 → — Figure 87F601B 87F601B 2016-01 → — Figure 879932D 879932D 2009-02 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88450 Condenser Assy, W/Receiver
88467 Cushion, Cooler Condenser, NO.1
88474 Dryer, Cooler
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88707 Pipe Sub-assy, Suction
88710E Tube & Accessory Assy, Air Conditioner
88710G Tube & Accessory Assy, Air Conditioner, NO.2
88718L Clamp, Piping
88719A Sensor, Air Conditioner Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
