Toyota Corolla Wagon

1990-09 → 1993-08 · chassis AE95 · catalogue 157410 · Europe

Discontinued model Data version 1994-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

11 part groups · 2 illustrations

Illustrations

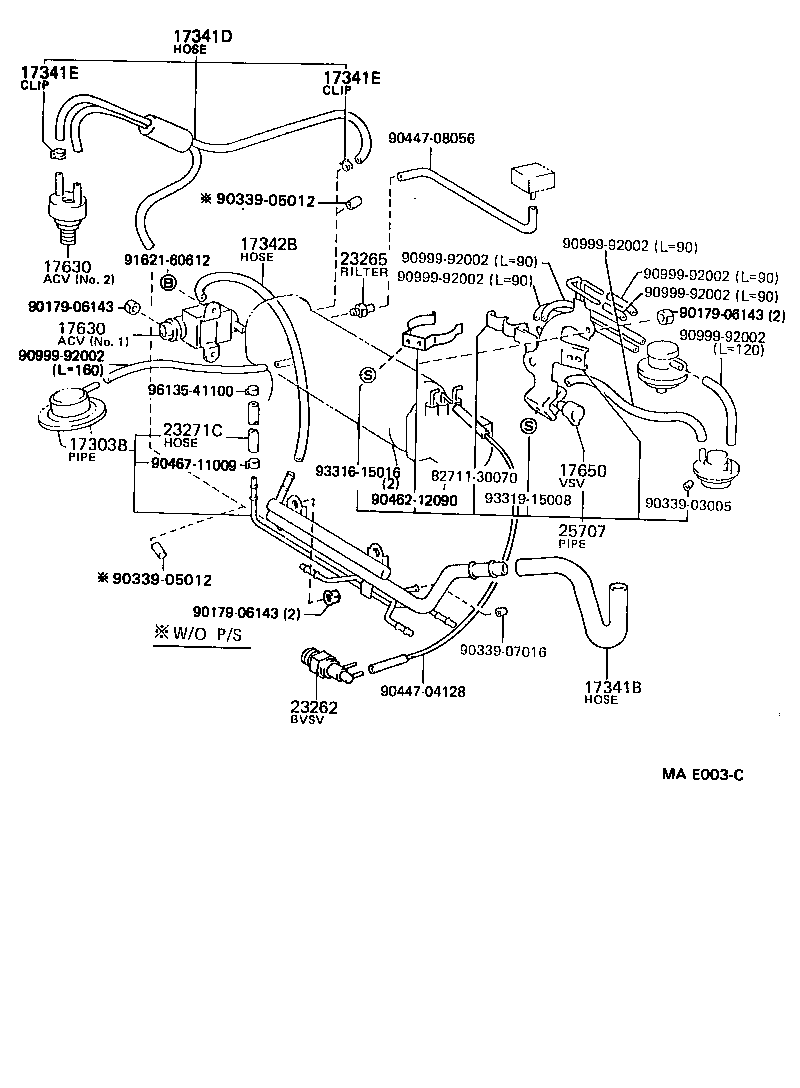

Figure MA9504B MA9504B 1990-09 → — Figure MAE003C MAE003C 1990-09 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17341B Hose, NO.1(FOR AIR INJECTION SYSTEM)
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23271C Hose, Fuel
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
