Toyota Corolla Wagon
1990-09 → 1993-08 · chassis AE95 · catalogue 157410 · Europe
Discontinued model
Data version 1994-03

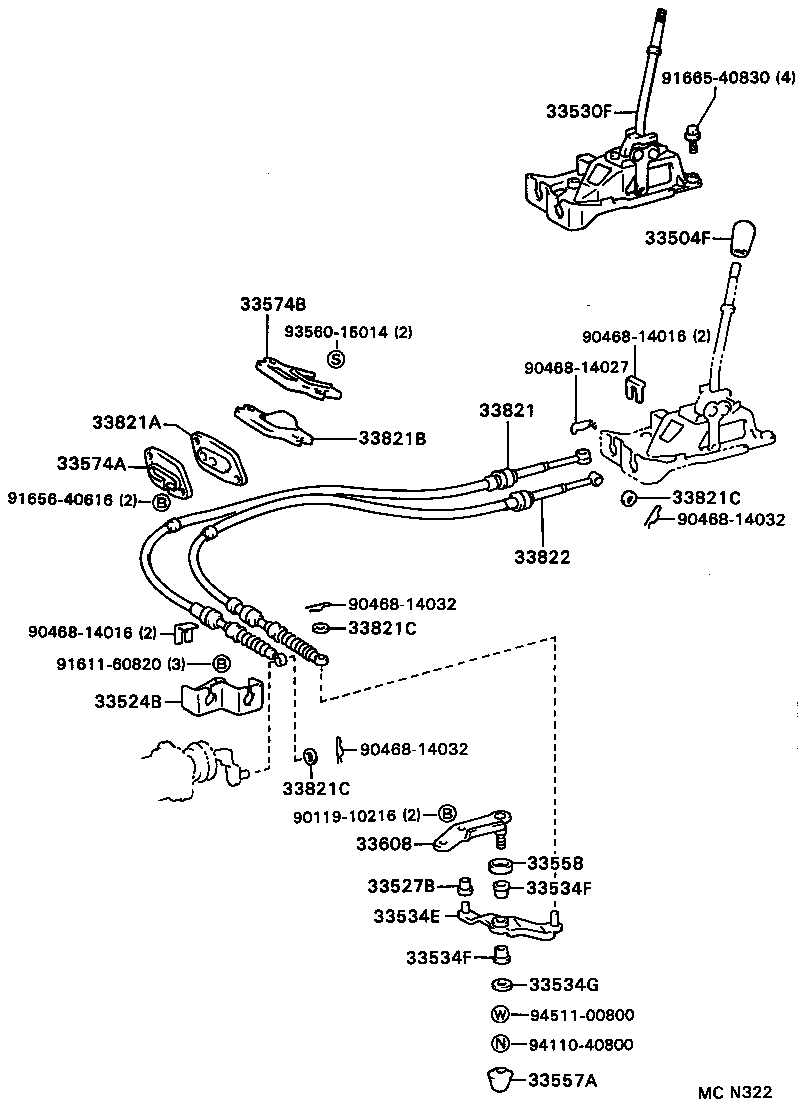

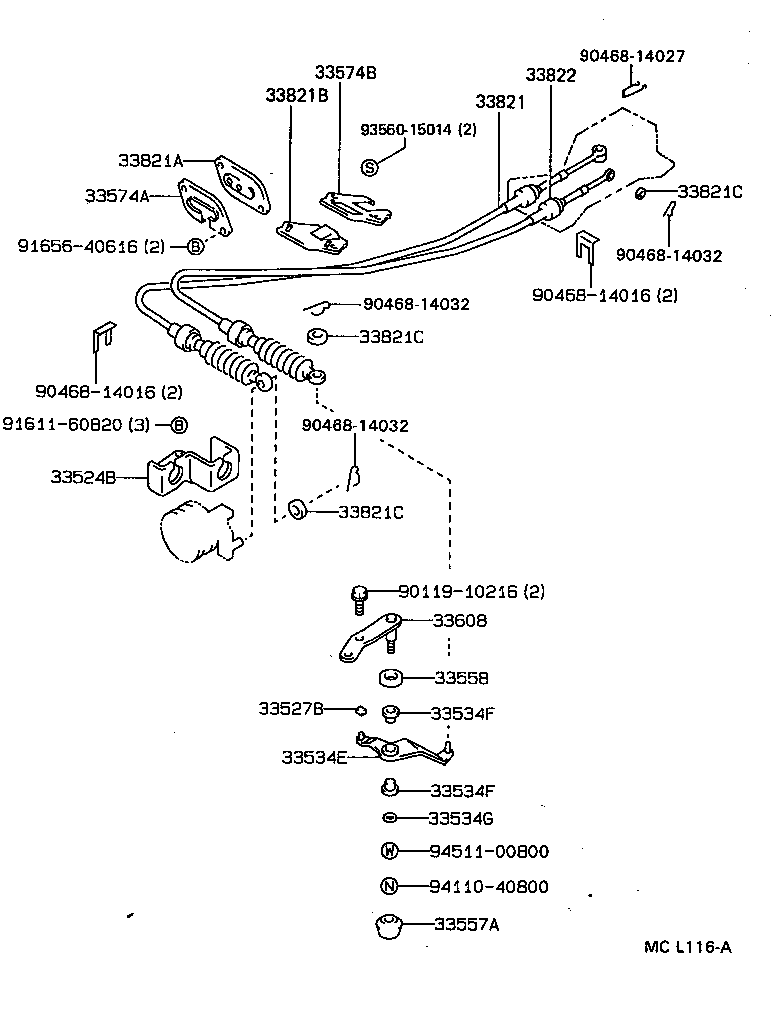

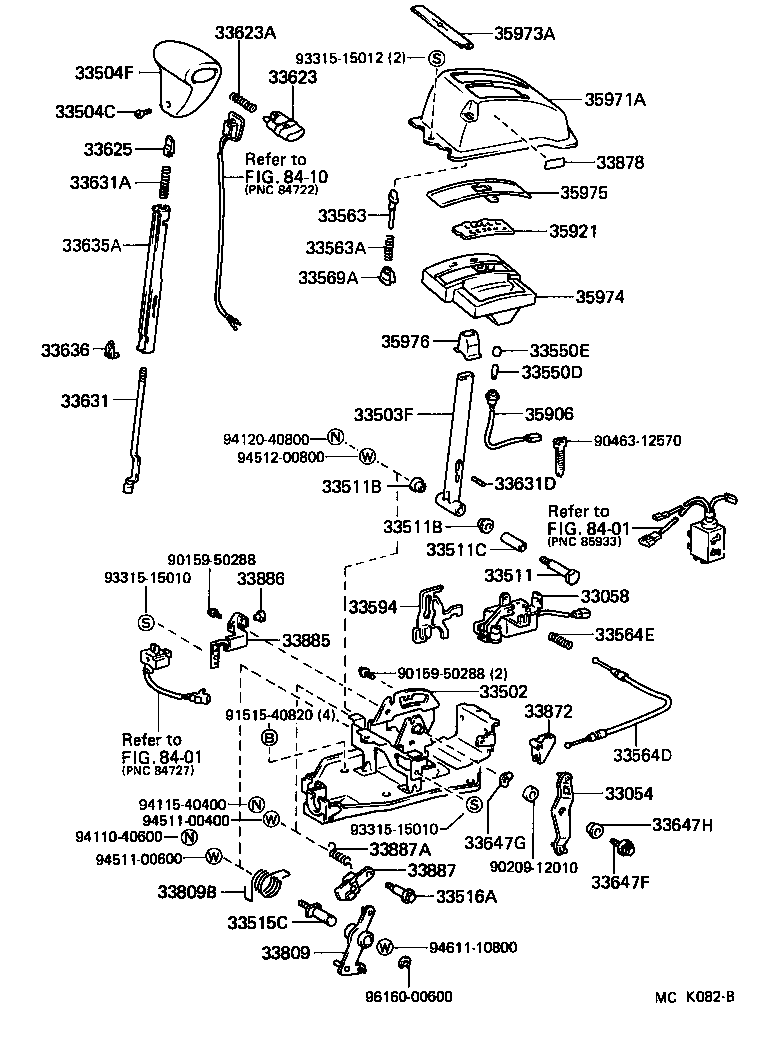

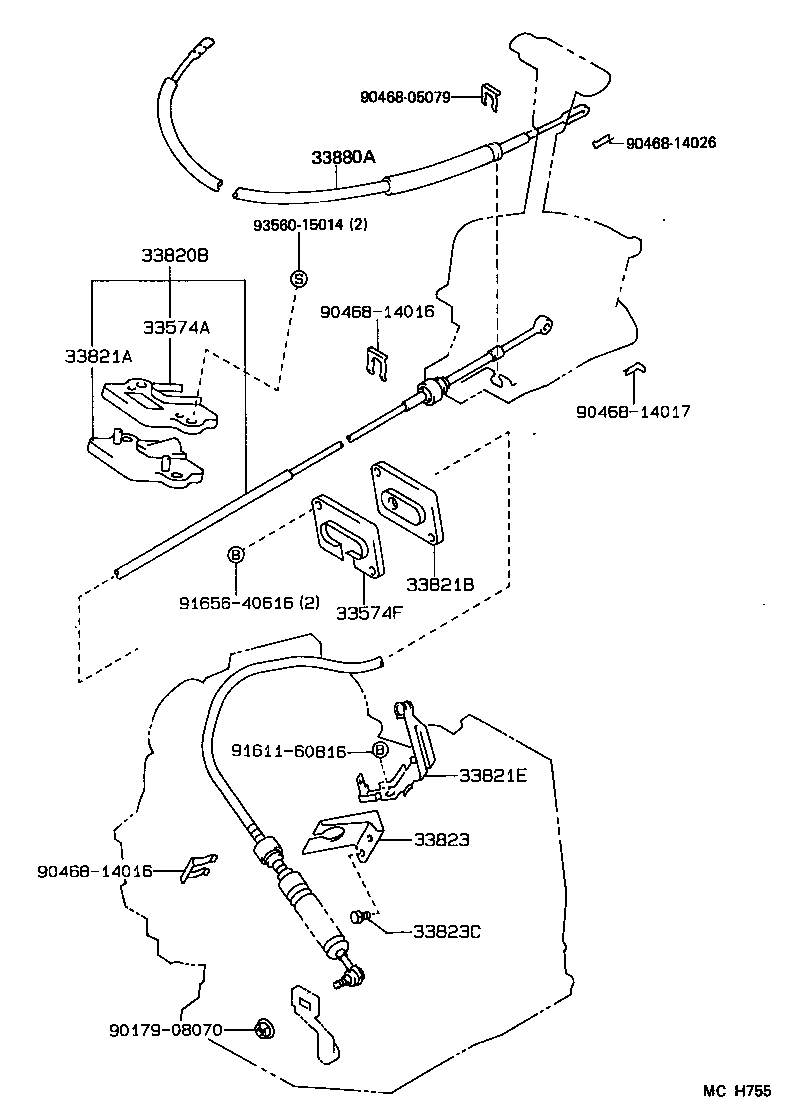

Shift Lever & Retainer
85 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 33054 | Lever Sub-assy, Shift, NO.2(FOR FLOOR SHIFT) |
| 33058 | Bracket Sub-assy, Shift Lock Solenoid |
| 33502 | Plate Sub-assy, Shift Lever |
| 33503F | Lever Sub-assy, Shift(FOR FLOOR SHIFT) |
| 33504C | Screw (FOR SHIFT LEVER KNOB SETTING) |
| 33504F | Knob Sub-assy, Shift Lever |
| 33509 | Crank Sub-assy, Selecting Bell, NO.1 |
| 33511 | Shaft, Control (FOR FLOOR SHIFT) |
| 33511B | Bush (FOR CONTROL SHAFT) |
| 33511C | Collar (FOR CONTROL SHAFT) |
| 33515C | Shaft, Control, NO.2 |
| 33516A | Shaft, Control, NO.3 |
| 33524B | Bracket, Control Cable |
| 33527B | Bush (FOR CONTROL SHIFT LEVER) |
| 33530F | Lever Assy, Shift (FOR FLOOR SHIFT) |
| 33534C | Bush (FOR SELECTING BELLCRANK NO.1) |
| 33534D | Spring, Torsion (FOR SELECTING BELLCRANK NO.1) |
| 33534E | Crank, Selecting Bell, NO.2 |
| 33534F | Bush (FOR SELECTING BELLCRANK NO.2) |
| 33534G | Washer, Plate (FOR SELECTING BELLCRANK NO.2) |
| 33534K | Washer, Wave (FOR SELECTING BELLCRANK NO.1) |
| 33534P | Washer, Plate (FOR SELECTING BELLCRANK NO.1) |
| 33534Q | Ring, E (FOR SELECTING BELLCRANK NO.1) |
| 33534R | Cushion (FOR SELECTING BELLCRANK NO.1) |
| 33539 | Cushion, Shift Lever Anti-rattle |
| 33548F | Bush, NO.1, Shift Lever (FOR FLOOR SHIFT) |
| 33550D | Bulb, Position Indicator Lamp |
| 33550E | Cap, Position Indicator Lamp |
| 33556B | Bush (FOR TRANSMISSION SHIFT LEVER BALL SEAT) |
| 33556F | Seat, Transmission Shift Lever Ball |
| 33556J | Ring, Shaft Snap (FOR TRANSMISSION SHIFT LEVER SEAT) |
| 33557A | Cover, Selecting Bellcrank Dust, NO.1 |
| 33558 | Cover, Selecting Bellcrank Dust, NO.2 |
| 33563 | Button, Shift Lock Release |
| 33563A | Spring, Compression (FOR SHIFT LOCK RELEASE BUTTON) |
| 33564D | Cable, Shift Lock Release |
| 33564E | Spring, Compression (FOR SHIFT LOCK RELEASE CABLE) |
| 33565 | Plate, Control Shift Lever Retainer |
| 33565A | Bush, NO.1 (FOR CONTROL SHIFT LEVER RETAINER PLATE) |
| 33565B | Bush, NO.2 (FOR CONTROL SHIFT LEVER RETAINER PLATE) |
| 33569A | Guide, Shift Lock Release Button |
| 33574A | Retainer, Shift Cable Grommet, NO.1 |
| 33574B | Retainer, Shift Cable Grommet, NO.2 |
| 33574F | Retainer, Dust Seal (FOR FLOOR SHIFT) |
| 33575 | Retainer, Control Shift Lever (FOR FLOOR SHIFT) |
| 33575C | Bolt (FOR CONTROL SHIFT LEVER RETAINER) |
| 33594 | Plate, Shift Lock (FOR FLOOR SHIFT) |
| 33608 | Support Sub-assy, Selecting Bellcrank |
| 33623 | Button, Shift Lever Knob |
| 33623A | Spring, Compression (FOR SHIFT LEVER KNOB BUTTON) |
| 33625 | Sleeve, Shift Lever Knob |
| 33631 | Rod, Detent |
| 33631A | Spring, Compression (FOR DETENT ROD) |
| 33631D | Pin, Grooved (FOR DETENT ROD) |
| 33635A | Guide, Wire, NO.1 (FOR SHIFT LEVER) |
| 33636 | Guide, Wire, NO.2 (FOR SHIFT LEVER) |
| 33647F | Shaft, Control Link (FOR FLOOR SHIFT) |
| 33647G | Washer, Wave (FOR CONTROL LINK SHAFT) |
| 33647H | Bush (FOR CONTROL LINK SHAFT) |
| 33695A | Cover, Shift Lever Ball |
| 33809 | Lever Sub-assy, Cable Control |
| 33809B | Spring, Torsion (FOR CABLE CONTROL LEVER) |
| 33820B | Cable Assy, Transmission Control |
| 33821 | Cable Transmission Control Shift (FOR FLOOR SHIFT) |
| 33821A | Grommet, NO.1 (FOR TRANSMISSION CONTROL CABLE) |
| 33821B | Grommet, NO.2 (FOR TRANSMISSION CONTROL CABLE) |
| 33821C | Washer, Plate (FOR TRANSMISSION CONTROL CABLE) |
| 33821E | Clamp, NO.1 (FOR TRANSMISSION CONTROL CABLE) |
| 33822 | Cable Transmission Control Select (FOR FLOOR SHIFT) |
| 33823 | Bracket, Transmission Control Cable, NO.1 |
| 33823C | Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET) |
| 33872 | Link, Shift Lock Release, NO.2 |
| 33878 | Label, Shift Lock Information, NO.2 |
| 33880A | Cable Assy, Parking Lock (FOR FLOOR SHIFT) |
| 33885 | Bracket, Shift Lever Stopper |
| 33886 | Stopper, Shift Lever |
| 33887 | Stopper, Cable Control Lever |
| 33887A | Spring, Torsion (FOR CABLE CONTOROL LEVER STOPPER) |
| 35906 | Wire Sub-assy, Indicator Lamp |
| 35921 | Plate, Control Position Indicator |
| 35971A | Housing, Position Indicator, Upper |
| 35973A | Attachment, Position Indicator Housing Cover |
| 35974 | Housing, Position Indicator, Lower |
| 35975 | Cover, Slide (FOR POSITION INDICATOR) |
| 35976 | Cover, Slide, NO.2 (FOR POSITION INDICATOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
