Toyota Corolla Wagon

1990-09 → 1993-08 · chassis AE95 · catalogue 157410 · Europe

Discontinued model Data version 1994-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

21 part groups · 2 illustrations

Illustrations

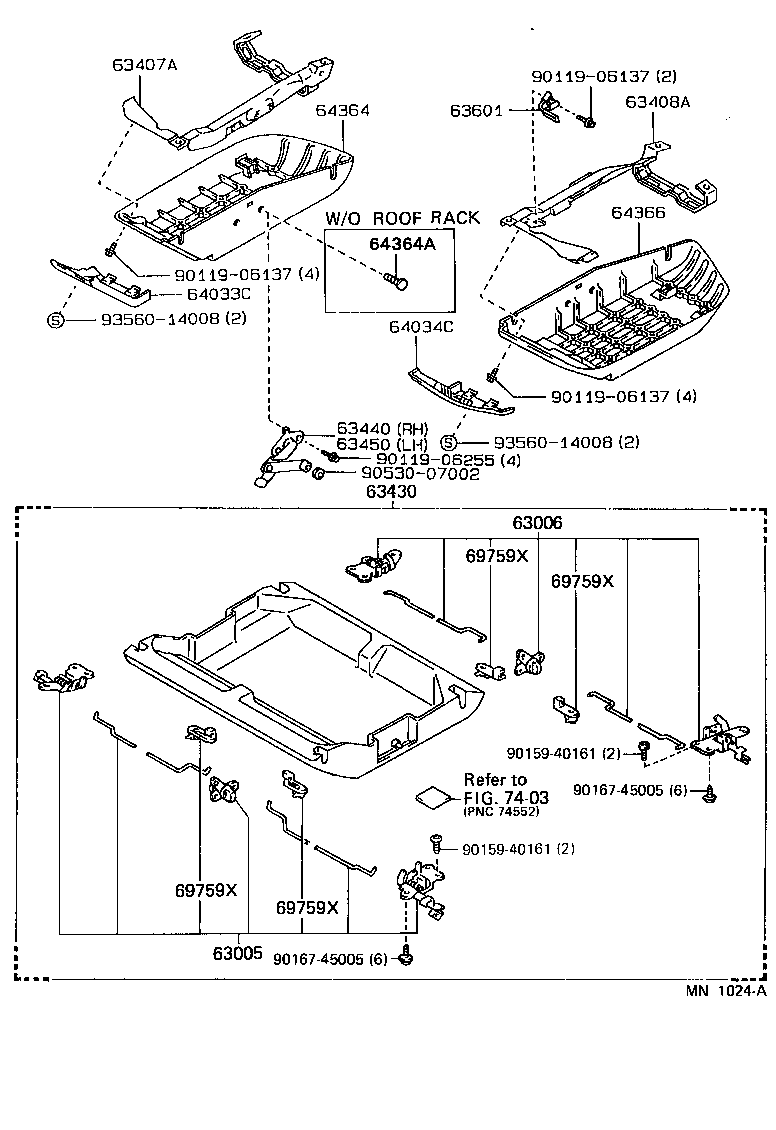

Figure MN1025 MN1025 1990-09 → — Figure MN1024A MN1024A 1990-09 → —

Part groups

PNCDescription
63005 Lock Set, Roof Inner Rack, Front
63006 Lock Set, Roof Inner Rack, Rear
63305B Trim Sub-assy, Roof Headlining, Rear
63310 Headlining Assy, Roof
63318C Moulding, Sun Roof Opening Trim
63320F Headlining Assy, Sun Roof
63342 Pad, Roof Silencer, NO.2
63381 Retainer, Headlining, Front
63391 Trim, Roof Headlining, Front
63407A Bracket Sub-assy, Roof Inner Rack, RH
63408A Bracket Sub-assy, Roof Inner Rack, LH
63430 Rack Assy, Roof, Inner
63440 Hinge Assy, Roof Inner Rack, RH
63450 Hinge Assy, Roof Inner Rack, LH
63601 Striker Sub-assy, Roof Inner Rack Lock
64033C Grille Sub-assy, Rear Speaker, RH
64034C Grille Sub-assy, Rear Speaker, LH
64364 Cover, Rear Speaker Grille, NO.1
64364A Clip
64366 Cover, Rear Speaker Grille, NO.2
69759X Snap, Roof Inner Rack Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
