Toyota Corolla Wagon
1990-09 → 1993-08 · chassis AE95 · catalogue 157410 · Europe
Discontinued model
Data version 1994-03

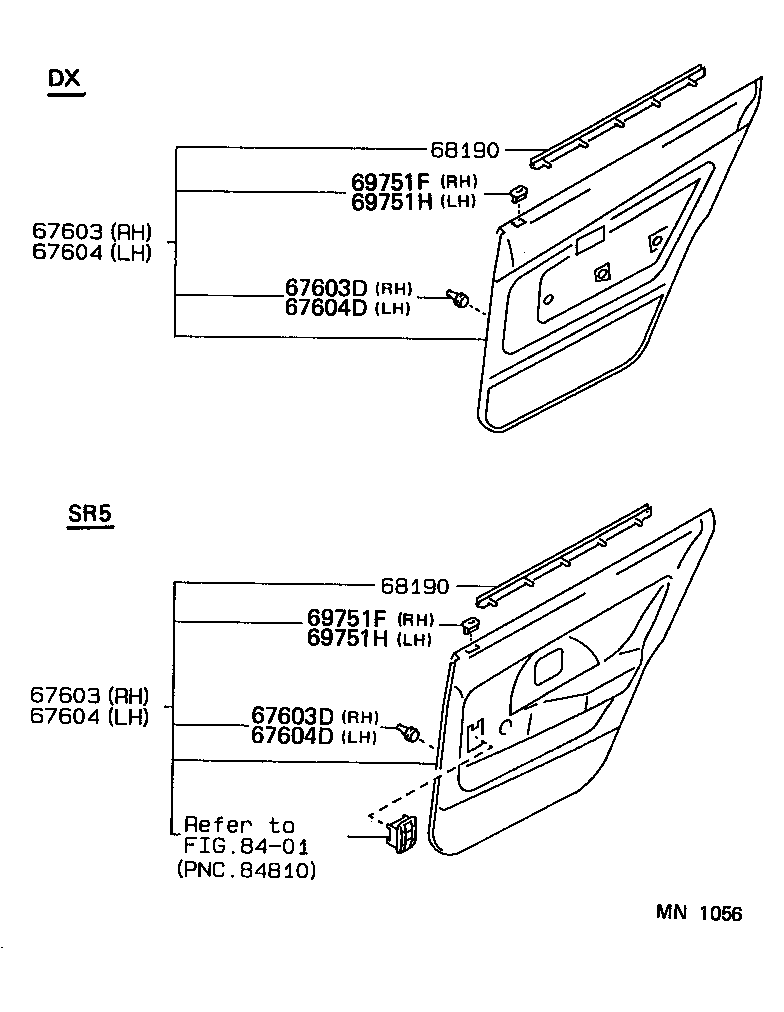

Rear Door Panel & Glass
32 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67113 | Panel, Rear Door, Outer RH |
| 67114 | Panel, Rear Door, Outer LH |
| 67383 | Bracket, Rear Door Inside Panel, NO.2 RH |
| 67384 | Bracket, Rear Door Inside Panel, NO.2 LH |
| 67407E | Bar Sub-assy, Rear Door Window Division, RH |
| 67408E | Bar Sub-assy, Rear Door Window Division, LH |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603D | Retainer, Rear Door Trim, RH |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67604D | Retainer, Rear Door Trim, LH |
| 67841B | Cover, Rear Door Service Hole |
| 67857B | Protector, Rear Door Panel, RH |
| 67858B | Protector, Rear Door Panel, LH |
| 67867D | Retainer, Rear Door Weatherstrip, RH |
| 67868D | Retainer, Rear Door Weatherstrip, LH |
| 67871 | Weatherstrip, Rear Door, RH |
| 67872 | Weatherstrip, Rear Door, LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68123 | Glass, Rear Door Window, RH |
| 68124 | Glass, Rear Door Window, LH |
| 68142B | Run, Rear Door Window, RH |
| 68152B | Run, Rear Door Window, LH |
| 68188 | Weatherstrip, Rear Door Quarter Window, RH |
| 68189 | Weatherstrip, Rear Door Quarter Window, LH |
| 68190 | Weatherstrip Assy, Rear Door Glass, Inner |
| 68617A | Pin, Rear Door Check |
| 68630 | Check Assy, Rear Door |
| 69751F | Holder, Rear Door Lock Control Knob |
| 69751H | Holder, Rear Door Lock Contral Knob |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
