Toyota Corolla Wagon

1990-09 → 1993-08 · chassis AE95 · catalogue 157410 · Europe

Discontinued model Data version 1994-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

28 part groups · 3 illustrations

Illustrations

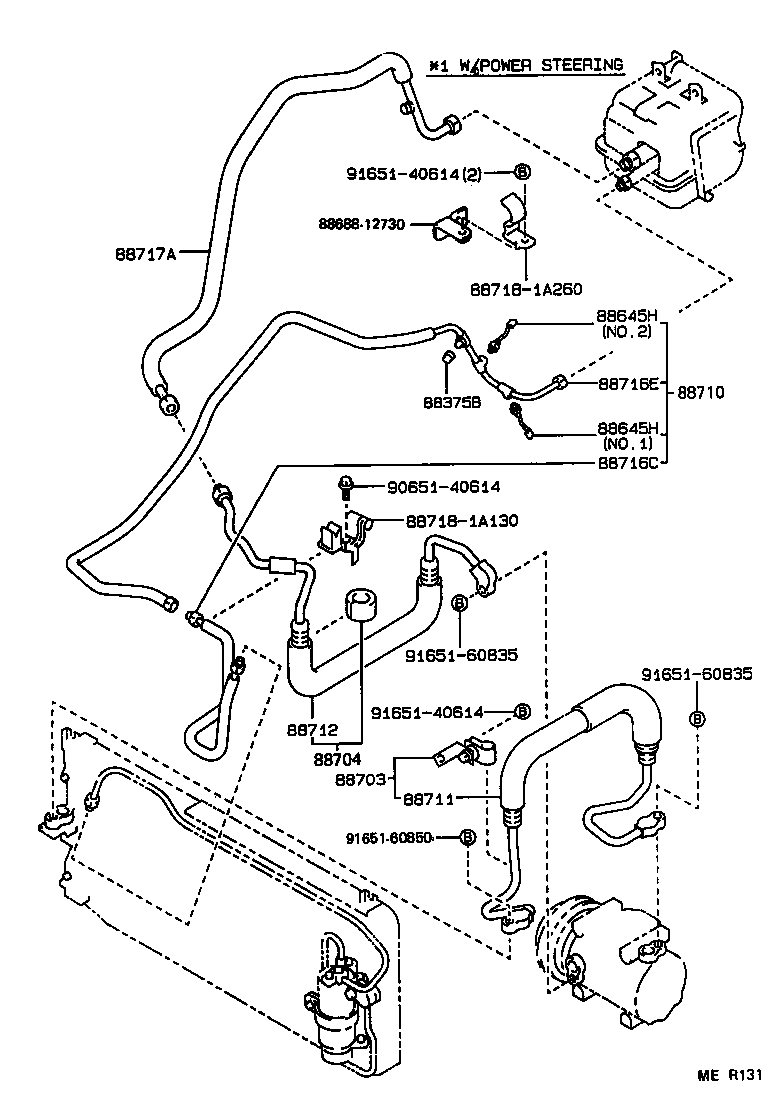

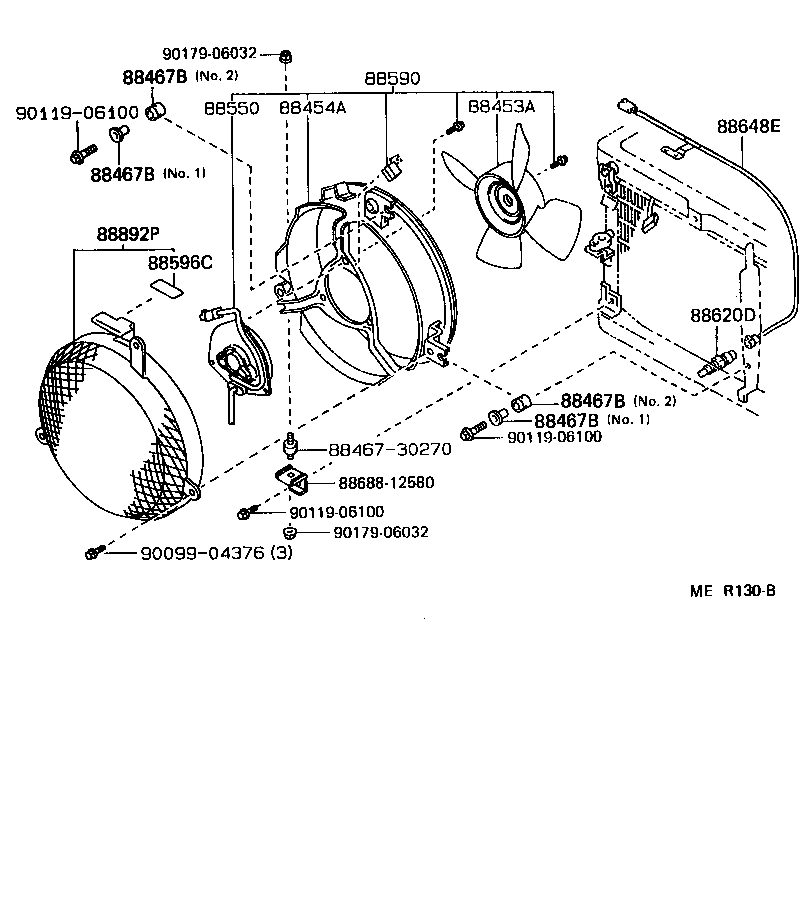

Figure MER343A MER343A 1990-09 → — Figure MER130B MER130B 1990-09 → — Figure MER131 MER131 1990-09 → —

Part groups

PNCDescription
88375B Cap, Service Valve, NO.1
88453A Fan, Cooling
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88463 Bracket, Cooler Condenser, NO.1
88467 Cushion, Cooler Condenser, NO.1
88467B Insulator, Cooler Condenser Mounting
88470 Receiver & Dryer Assy, Cooler
88470C Bolt, Fuse
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88550 Motor Assy, Blower (FOR CONDENSER)
88590 Blower Assy, W/Shroud
88596C Plate, Caution, NO.2
88620D Thermostat Assy
88645H Switch, Pressure NO.1
88648E Wiring, Cooler
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88710 Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88892P Net, Fan Shroud
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
