Toyota Corolla Wagon

1990-09 → 1995-08 · chassis AE95 · catalogue 157510 · Europe

Discontinued model Data version 1996-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

14 part groups · 3 illustrations

Illustrations

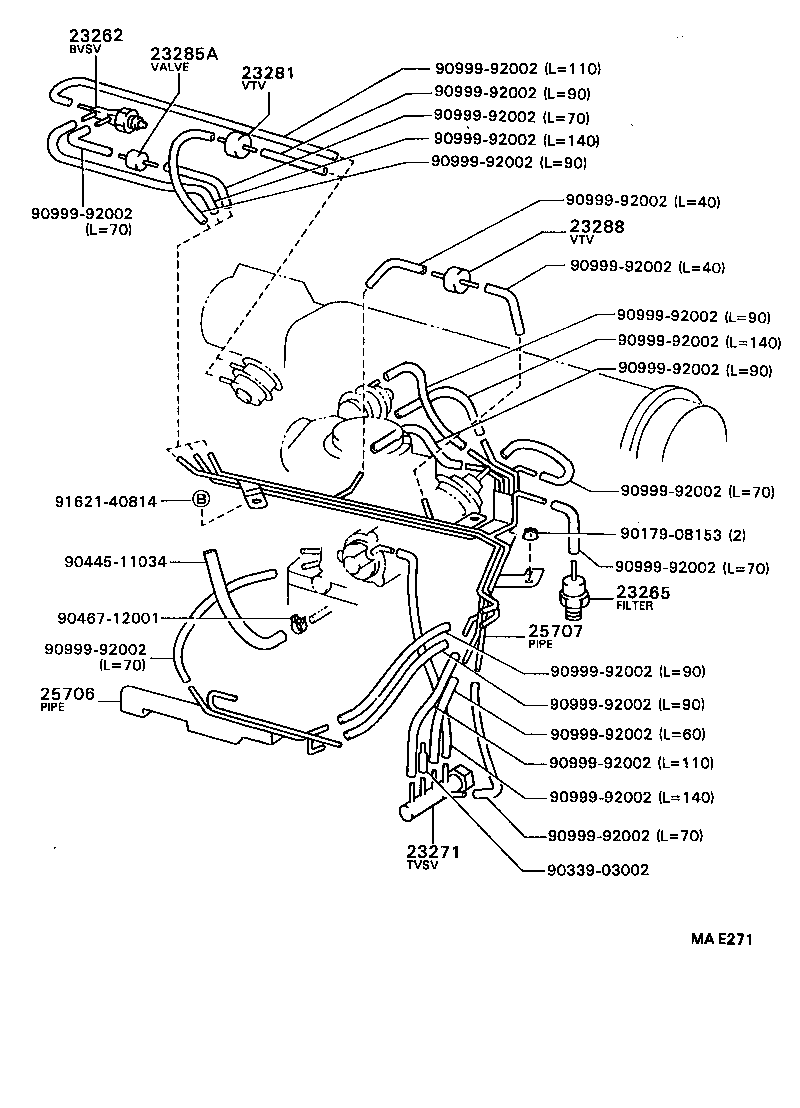

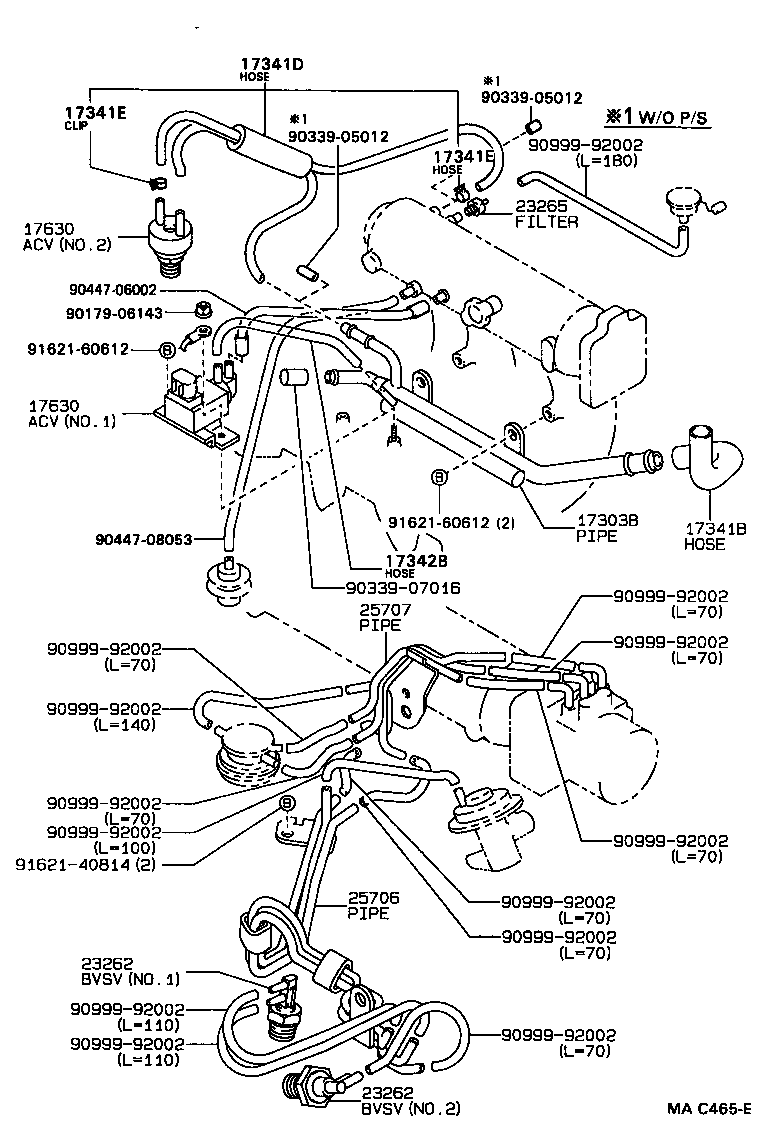

Figure MA9504B MA9504B 1990-09 → — Figure MAE271 MAE271 1990-09 → 1992-05 Figure MAC465E MAC465E 1990-09 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17341B Hose, NO.1(FOR AIR INJECTION SYSTEM)
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17630 Valve Assy, Air Control
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23271 Valve, Thermostatic Vacuum Switching, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23285A Valve, Check, NO.1
23288 Jet, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
