Toyota Corolla Wagon
1990-09 → 1995-08 · chassis AE95 · catalogue 157510 · Europe
Discontinued model
Data version 1996-11

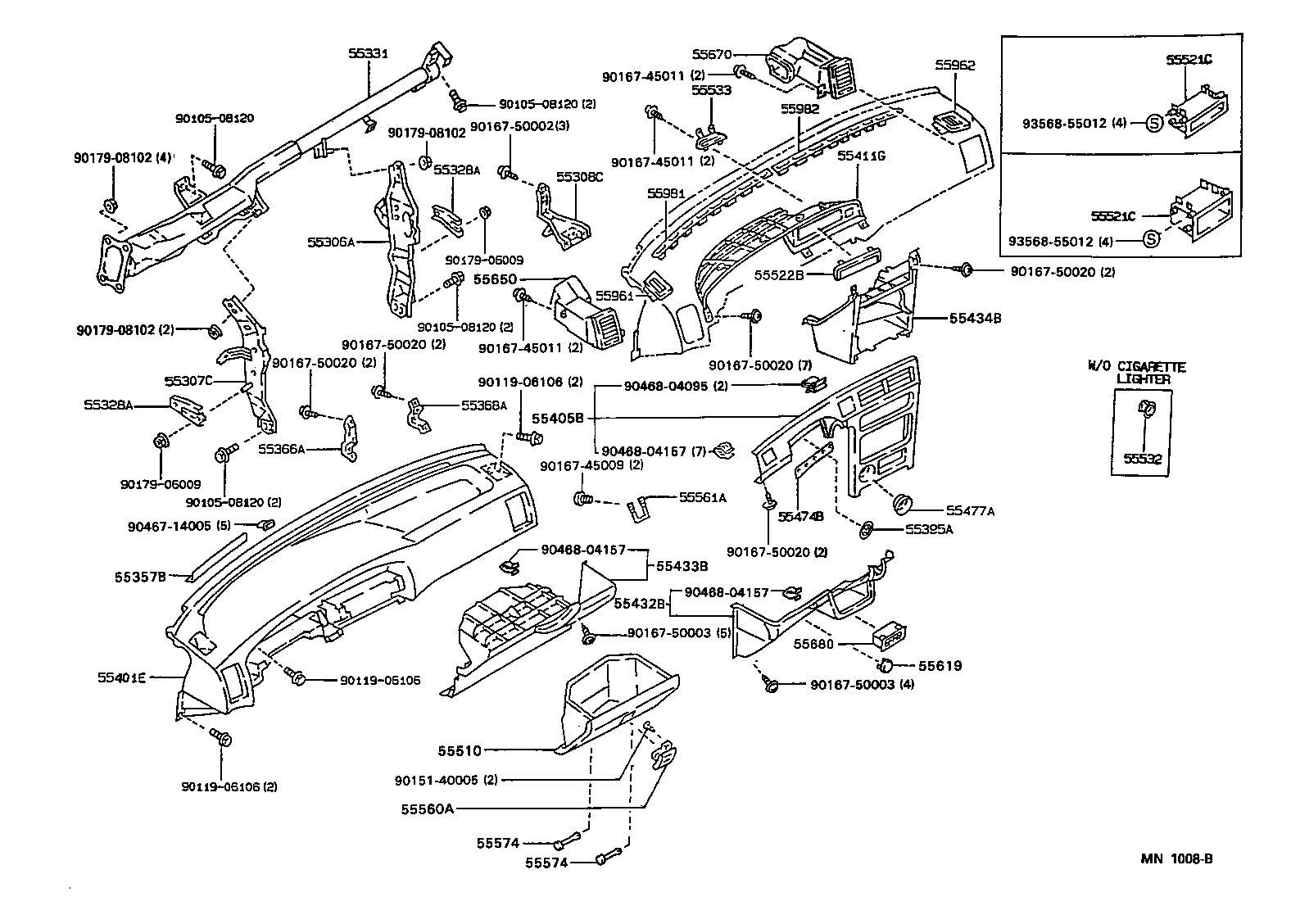

Instrument Panel & Glove Compartment
34 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55328A | Stay, Instrument Panel, NO.3 |
| 55331 | Reinforcement, Instrument Panel |
| 55357B | Cushion, Instrument Panel, NO.3 |
| 55366A | Bracket, Radio Mounting, NO.1 |
| 55368A | Bracket, Radio Mounting, NO.2 |
| 55395A | Retainer, Instrument Panel Clamp |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55433B | Panel, Instrument Panel Finish, Lower NO.2 |
| 55434B | Panel, Instrument Panel Finish, Lower Center |
| 55474B | Garnish, Instrument Cluster Finish Panel |
| 55477A | Bezel, Cigarette Lighter Hole |
| 55510 | Door Assy, Glove Compartment |
| 55521C | Cover, Stereo Opening |
| 55522B | Cover, Radio Tuner Opening |
| 55531B | Cover, Choke Knob Hole |
| 55532 | Cover, Cigar Lighter Hole |
| 55533 | Cover, Auto Clock Hole |
| 55560A | Lock Assy, Glove Compartment Door |
| 55561A | Striker, Glove Compartment Door Lock |
| 55574 | Shaft, Glove Compartment Door Hinge |
| 55619 | Cover, Switch Hole |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55680 | Register Assy, Instrument Panel, Lower NO.1 |
| 55961 | Nozzle, Side Defroster, NO.1 |
| 55962 | Nozzle, Side Defroster, NO.2 |
| 55981 | Garnish, Defroster Nozzle, NO.1 |
| 55982 | Garnish, Defroster Nozzle, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
