Toyota Corolla Wagon

1990-09 → 1995-08 · chassis AE95 · catalogue 157510 · Europe

Discontinued model Data version 1996-11

Roof Panel & Back Window Glass

41 part groups · 3 illustrations

PNC	Description
63102A	Panel Sub-assy, Windshield Header
63105A	Frame Sub-assy, Back Door Opening
63107C	Bracket Sub-assy, Roof Rack, Rear RH
63108C	Bracket Sub-assy, Roof Rack, Rear LH
63111	Panel, Roof
63141H	Reinforcement, Roof Panel, Center
63142	Reinforcement, Roof Panel, NO.2
63143B	Reinforcement, Roof Panel, NO.3
63144A	Reinforcement, Roof Panel, NO.4
63185A	Bracket, Roof Rack, Front RH
63186A	Bracket, Roof Rack, Front LH
63189A	Bracket, Roof Rack, Center

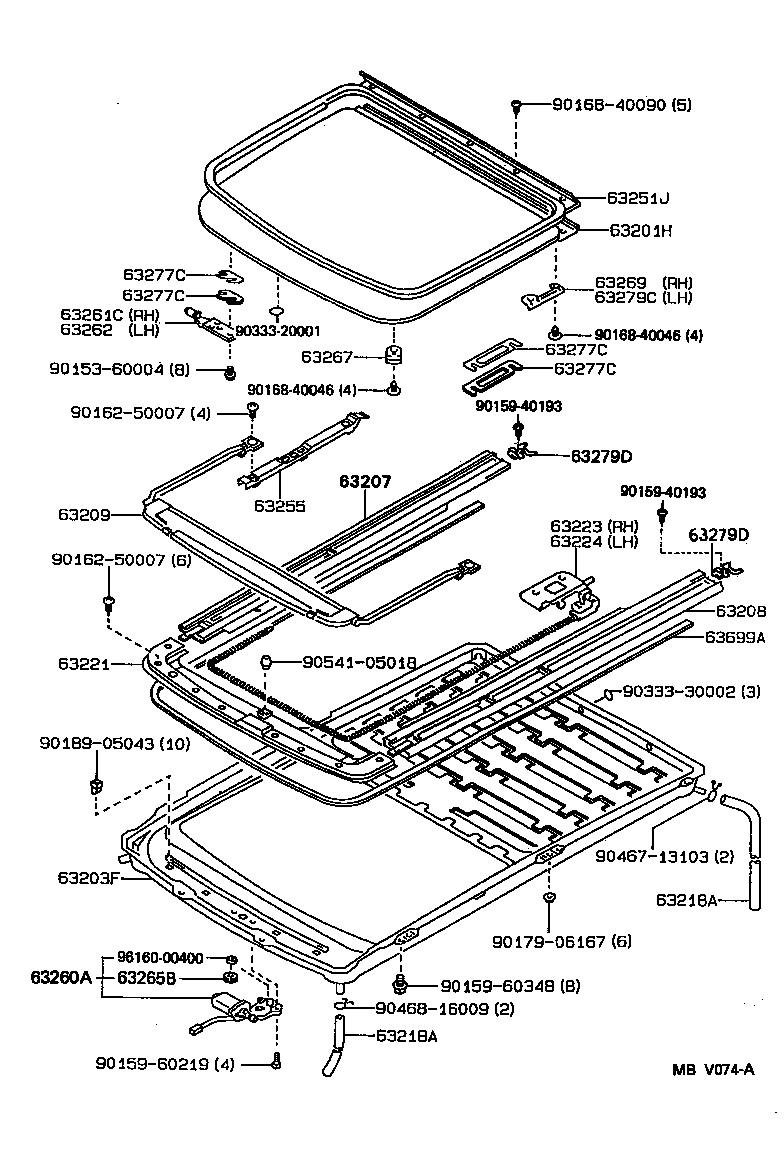

63201H	Panel Sub-assy, Slide Roof
63203F	Housing Sub-assy, Sliding Roof
63207	Rail Sub-assy, Sliding Roof Guide, RH
63208	Rail Sub-assy, Sliding Roof Guide, LH
63209	Panel Sub-assy, Roof Wind Deflector
63218A	Hose(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN)
63221	Casing, Sliding Roof Cable Guide
63223	Cable, Sliding Roof Drive, RH
63224	Cable, Sliding Roof Drive, LH
63251J	Weatherstrip, Sliding Roof, NO.2
63255	Cover, Sliding Roof Guide Rail, RH
63260A	Gear Sub-assy, Sliding Roof Drive
63261C	Shoe, Sliding Roof, Front RH
63262	Shoe, Sliding Roof, Front LH
63265B	Gear, Sliding Roof Drive
63267	Protector, Sliding Roof Weatherstrip
63269	Retainer, Sliding Roof Weatherstrip
63277C	Shim, Sliding Roof Panel
63279C	Retainer, Sliding Roof Weatherstrip, LH
63279D	Stopper, Sliding Roof Guide Rail
63460A	Rack Assy, Roof, RH
63470A	Rack Assy, Roof, LH
63491	Cover, Roof Rack Leg, Front RH
63492	Cover, Roof Rack Leg, Front LH
63493	Cover, Roof Rack Leg, Rear RH
63494	Cover, Roof Rack Leg, Rear LH
63495A	Cover, Roof Rack Leg, Center
63496	Cover, Roof Rack Leg, Center LH
63699A	Seal, Sliding Roof Guide Rail

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
