Toyota Corolla Wagon

1990-09 → 1995-08 · chassis AE95 · catalogue 157510 · Europe

Discontinued model Data version 1996-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Wiper

8 part groups · 2 illustrations

Illustrations

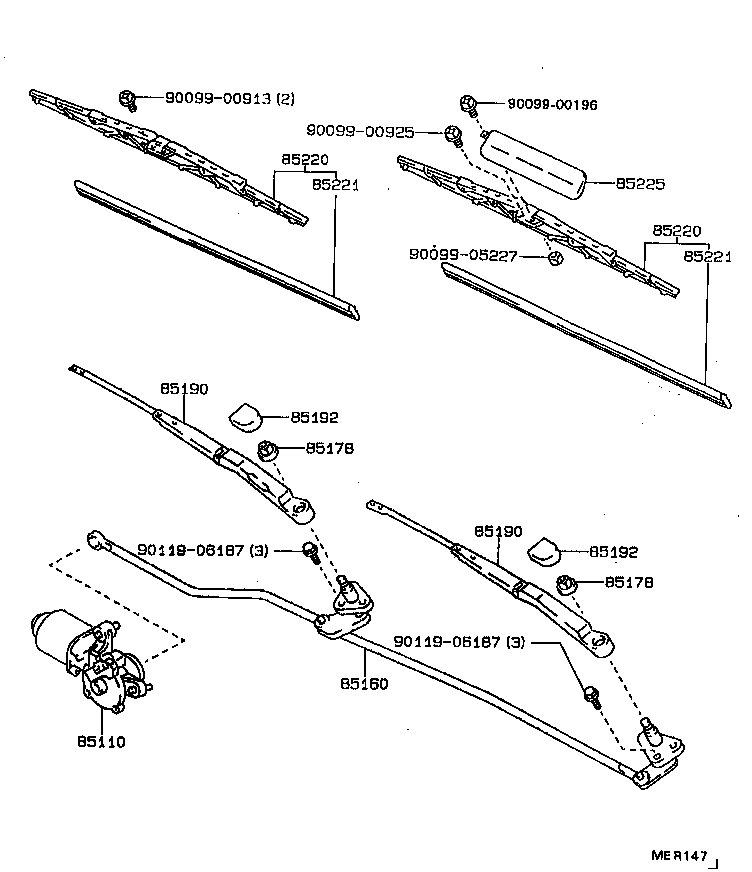

Figure MER066 MER066 1990-09 → 1992-05 Figure MER147 MER147 1990-09 → —

Part groups

PNCDescription
85110 Motor Assy, Windshield Wiper
85160 Link Assy, Windshield Wiper
85178 Nut (FOR FRONT WIPER ARM SETTING)
85190 Arm Assy, Windshield Wiper
85192 Cover, Windshield Wiper Arm
85220 Blade Assy, Windshield Wiper
85221 Blade, Windshield Wiper
85225 Wing, Wiper Blade
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
