Toyota Corolla Wagon

1990-09 → 1995-08 · chassis AE95 · catalogue 157510 · Europe

Discontinued model Data version 1996-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

25 part groups · 3 illustrations

Illustrations

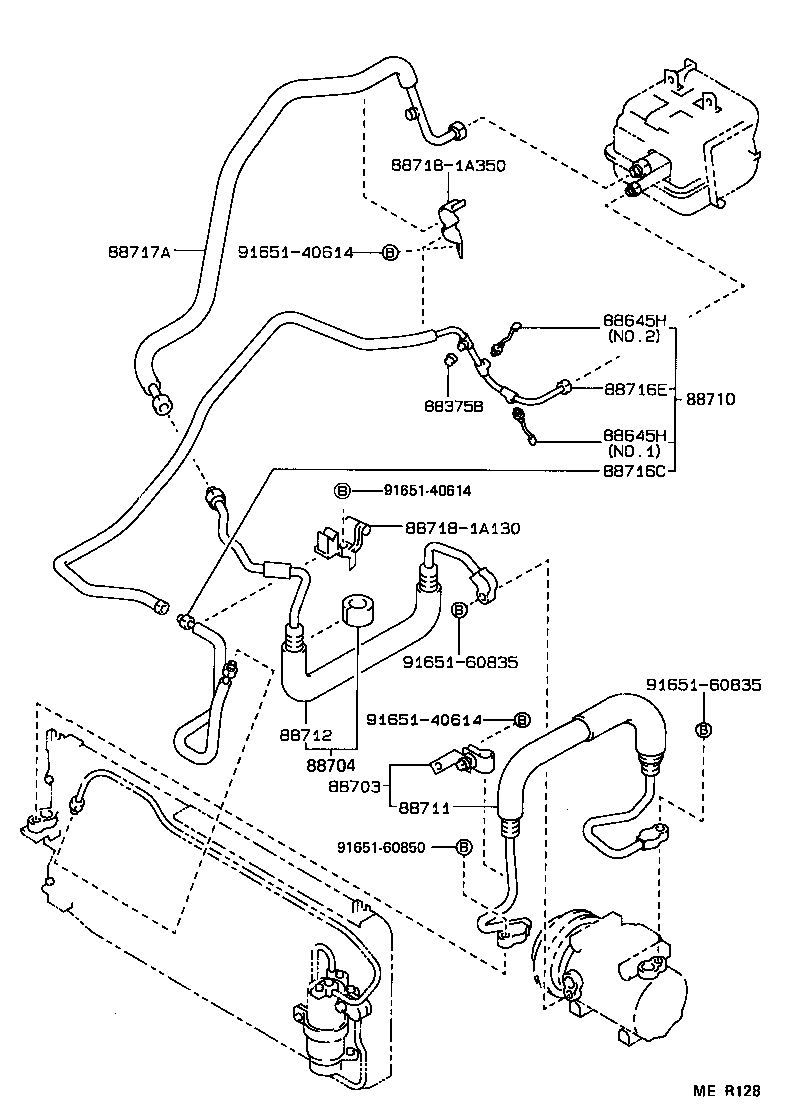

Figure MER129B MER129B 1990-09 → 1992-05 Figure MER126A MER126A 1990-09 → 1992-05 Figure MER128 MER128 1990-09 → 1992-05

Part groups

PNCDescription
88375B Cap, Service Valve, NO.1
88453A Fan, Cooling
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88463 Bracket, Cooler Condenser, NO.1
88467 Cushion, Cooler Condenser, NO.1
88467B Insulator, Cooler Condenser Mounting
88470 Receiver & Dryer Assy, Cooler
88470C Bolt, Fuse
88472 Bracket, Receiver Tank, NO.1
88550 Motor Assy, Blower (FOR CONDENSER)
88590 Blower Assy, W/Shroud
88596C Plate, Caution, NO.2
88645H Switch, Pressure NO.1
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88710 Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88892P Net, Fan Shroud
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
