Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe

Discontinued model Data version 1981-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

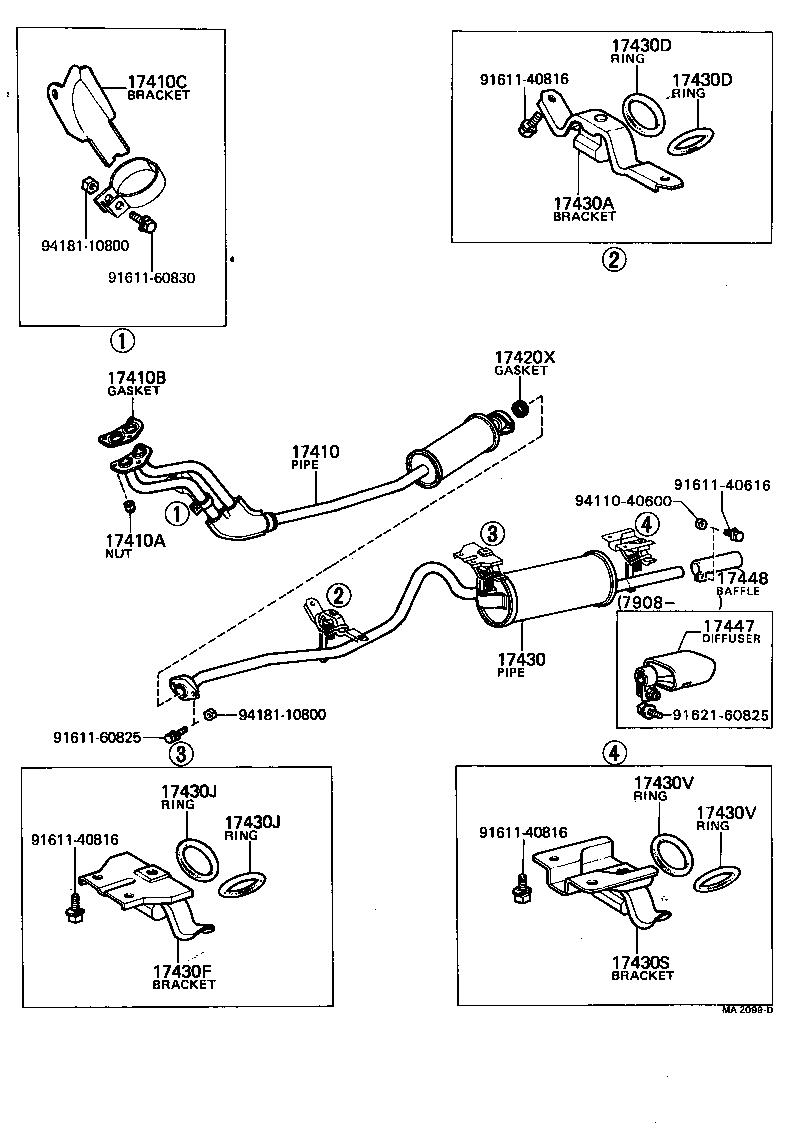

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

94 parts on this figure

Part number	Description	Fitment	Price
17410 — Pipe Assy, Exhaust, Front
17410-13040	Pipe Assy, Exhaust, Front 1978-08 → 1980-12 ended	4KC KE38,55	—
17410-24100	Pipe Assy, Exhaust, Front 1974-08 → 1977-08 ended	3K# KE3#,50	—
17410-24101	Pipe Assy, Exhaust, Front 1977-08 → 1979-02 ended	3K# KE30,35,36,50	—
17410-24101	Pipe Assy, Exhaust, Front 1979-02 → 1981-07 ended	3KH KE30,35 GEN	—
17410-24101	Pipe Assy, Exhaust, Front 1979-02 → 1981-07 ended	3KC,3KH KE36,50	—
17410-24101	Pipe Assy, Exhaust, Front 1979-02 → 1981-07 ended	3KB KE35	—
17410-24220	Pipe Assy, Exhaust, Front 1979-02 → 1979-08 ended	3KC,3KH KE30,35 EUR	—
17410-25060	Pipe Assy, Exhaust, Front 1974-08 → 1978-05 ended	2T TE3#,47,51	—
17410-25060	Pipe Assy, Exhaust, Front 1978-05 → 1979-08 ended	2T TE47,51	—
17410-25060	Pipe Assy, Exhaust, Front 1976-01 → 1979-08 ended	2TB TE51	—
17410-26070	Pipe Assy, Exhaust, Front 1978-05 → 1980-04 ended	2T TE31	—
17410-26070	Pipe Assy, Exhaust, Front 1974-08 → 1980-04 ended	2TB,2TG TE3#,47	—
17410A — Nut, Exhaust Pipe Set Stud Bolt
90170-10199	Nut, Exhaust Pipe Set Stud Bolt 1975-11 → 1977-01 ended	3K#,2T# KE3#,50,TE3#,47,51	—
90179-10010	Nut, Exhaust Pipe Set Stud Bolt 1977-01 → 1981-07 ended	3K#,4KC,2T# KE3#,5#,TE3#,47,51	—
90179-10118	Nut, Exhaust Pipe Set Stud Bolt 1974-08 → 1975-11 ended	3K#,2T# KE3#,TE3#,47	—
17410B — Gasket, Exhaust Pipe
17451-22010	Gasket, Exhaust Pipe 1974-08 → 1980-12 ended	3K#,4KC KE3#,5#	—
17451-22010	Gasket, Exhaust Pipe 1980-12 → 1981-07 ended	3KH KE30	—
17451-41020	Gasket, Exhaust Pipe 1974-08 → 1980-04 ended	2T# TE3#,47,51	—
90917-06020	Gasket, Exhaust Pipe 1980-12 → 1981-07 ended	4KC KE38,55	—
17410C — Bracket, Exhaust Pipe Front (FOR FRONT)
17571-13040	Bracket, Exhaust Pipe Front (FOR FRONT) 1978-08 → 1980-12 ended	4KC KE38,55	—
17571-24040	Bracket, Exhaust Pipe Front (FOR FRONT) 1974-08 → 1977-08 ended	3K# KE3#,50	—
17571-24041	Bracket, Exhaust Pipe Front (FOR FRONT) 1977-08 → 1981-07 ended	3K# KE30,35,36,50	—
17571-25030	Bracket, Exhaust Pipe Front (FOR FRONT) 1974-08 → 1980-04 ended	2T# TE3#,47,51	—
17420X — Gasket, Exhaust Pipe, Center
90917-06001 note	Gasket, Exhaust Pipe, Center 1976-03 → 1977-01 ended	3KH,2T,2TB KE50,TE51	—
90917-06001 note	Gasket, Exhaust Pipe, Center 1977-01 → 1979-08 ended	3KC,3KH,2T,2TB KE50,TE51	—
90917-06001 note	Gasket, Exhaust Pipe, Center 1974-08 → 1981-07 ended	3K#,2T KE30,35,36,50,TE3#,47,51	—
90917-06001	Gasket, Exhaust Pipe, Center 1978-08 → 1981-07 ended	4KC KE38,55	—
90917-06004	Gasket, Exhaust Pipe, Center 1974-08 → 1980-04 ended	2TB,2TG TE3#,47	—
17430 — Pipe Assy, Exhaust, Tail
17405-24040	Pipe Assy, Exhaust, Tail 1977-01 → 1979-08 ended	3KC,3KH,2T,2TB KE50,TE51 ARL,GEN	—
17405-24040	Pipe Assy, Exhaust, Tail 1976-03 → 1977-01 ended	3KH,2T,2TB KE50,TE51	—
17405-24050 note	Pipe Assy, Exhaust, Tail 1977-01 → 1979-08 ended	3KC,3KH,2T,2TB KE50,TE51 EUR	—
17405-24050	Pipe Assy, Exhaust, Tail 1978-08 → 1979-08 ended	4KC KE55 K50	—
17405-24050 note	Pipe Assy, Exhaust, Tail 1976-03 → 1977-01 ended	3KH,2T,2TB KE50,TE51	—
17430-24090	Pipe Assy, Exhaust, Tail 1977-01 → 1981-07 ended	3K# KE30,35 ARL,GEN,SA	—
17430-24090	Pipe Assy, Exhaust, Tail 1974-08 → 1977-01 ended	3K# KE30,35	—
17430-24100	Pipe Assy, Exhaust, Tail 1977-01 → 1980-02 ended	3KC,3KH KE36 ARL,GEN,SA	—
17430-24100	Pipe Assy, Exhaust, Tail 1974-08 → 1977-01 ended	3KC,3KH KE36	—
17430-24140 note	Pipe Assy, Exhaust, Tail 1977-01 → 1978-05 ended	3K# KE30,35 EUR	—
17430-24140 note	Pipe Assy, Exhaust, Tail 1974-08 → 1977-01 ended	3K# KE30,35	—
17430-24150 note	Pipe Assy, Exhaust, Tail 1978-08 → 1981-07 ended	4KC KE38	—
17430-24150 note	Pipe Assy, Exhaust, Tail 1974-08 → 1977-01 ended	3KC,3KH KE36	—
17430-24150 note	Pipe Assy, Exhaust, Tail 1977-01 → 1979-08 ended	3KC,3KH KE36 EUR	—
17430-24310 note	Pipe Assy, Exhaust, Tail 1978-08 → 1981-07 ended	4KC KE55 HT,SED	—
17430-24310 note	Pipe Assy, Exhaust, Tail 1978-05 → 1979-08 ended	3K# KE30,35 EUR	—
17430-25110	Pipe Assy, Exhaust, Tail 1977-01 → 1979-02 ended	2T TE47 GEN	—
17430-25110	Pipe Assy, Exhaust, Tail 1974-08 → 1977-01 ended	2T TE3#,47	—
17430-26080	Pipe Assy, Exhaust, Tail 1977-01 → 1979-08 ended	2T TE31	—
17430-26080	Pipe Assy, Exhaust, Tail 1977-01 → 1979-08 ended	2TB,2TG TE3#,47 GEN,SA	—
17430-26080	Pipe Assy, Exhaust, Tail 1974-08 → 1977-01 ended	2TB,2TG TE47	—
17430-26190 note	Pipe Assy, Exhaust, Tail 1977-01 → 1979-02 ended	2TB,2TG TE47 EUG	—
17430-26190 note	Pipe Assy, Exhaust, Tail 1974-08 → 1977-01 ended	2TB,2TG TE47	—
17430-26200 note	Pipe Assy, Exhaust, Tail 1977-01 → 1979-02 ended	2T TE47 EUG	—
17430-26200 note	Pipe Assy, Exhaust, Tail 1974-08 → 1977-01 ended	2T TE3#,47	—
17430-26590	Pipe Assy, Exhaust, Tail 1979-08 → 1980-04 ended	2T# TE3#	—
17430A — Bracket, Exhaust Tailpipe(FOR FRONT)
17506-24010	Bracket, Exhaust Tailpipe(FOR FRONT) 1974-08 → 1981-07 ended	3K#,2T# KE30,35,TE3#,47	—
17506-24010	Bracket, Exhaust Tailpipe(FOR FRONT) 1978-08 → 1981-07 ended	4KC KE55 HT,SED	—
17506-24020	Bracket, Exhaust Tailpipe(FOR FRONT) 1974-08 → 1980-02 ended	3KC,3KH KE36	—
17506-24020	Bracket, Exhaust Tailpipe(FOR FRONT) 1978-08 → 1981-07 ended	4KC KE38	—
17507-24060	Bracket, Exhaust Tailpipe(FOR FRONT) 1976-03 → 1977-01 ended	3KH,2T,2TB KE50,TE51	—
17507-24060	Bracket, Exhaust Tailpipe(FOR FRONT) 1977-01 → 1979-08 ended	3KC,3KH,2T,2TB KE50,TE51	—
17507-24060	Bracket, Exhaust Tailpipe(FOR FRONT) 1978-08 → 1979-08 ended	4KC KE55 K50	—
17430D — Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
17565-41010	Bolt OR Ring, Exhaust Tailpipe (FOR FRONT) 1976-03 → 1977-01 ended	3KH,2T,2TB KE50,TE51	—
17565-41010	Bolt OR Ring, Exhaust Tailpipe (FOR FRONT) 1977-01 → 1979-08 ended	3KC,3KH,2T,2TB KE50,TE51	—
90301-34172	Bolt OR Ring, Exhaust Tailpipe (FOR FRONT) 1974-08 → 1977-01 ended	3K#,2T# KE3#,TE3#,47	—
90301-34207	Bolt OR Ring, Exhaust Tailpipe (FOR FRONT) 1977-01 → 1979-02 ended	3K#,2T# KE30,35,36,TE3#,47	—
90301-34207	Bolt OR Ring, Exhaust Tailpipe (FOR FRONT) 1979-02 → 1980-04 ended	2T# TE3#	—
90301-34207	Bolt OR Ring, Exhaust Tailpipe (FOR FRONT) 1978-08 → 1981-07 ended	4KC KE38,55 DV,HT,SED,WG	—
90301-34207	Bolt OR Ring, Exhaust Tailpipe (FOR FRONT) 1979-02 → 1981-07 ended	3KH,3KB KE30,35,36 GEN,SA	—
17430F — Bracket, Exhaust Tailpipe(FOR CENTER)
17507-24010	Bracket, Exhaust Tailpipe(FOR CENTER) 1978-08 → 1981-07 ended	4KC KE55 HT,SED	—
17507-24010	Bracket, Exhaust Tailpipe(FOR CENTER) 1974-08 → 1981-07 ended	3K#,2T# KE30,35,TE3#,47	—
17507-24020	Bracket, Exhaust Tailpipe(FOR CENTER) 1978-08 → 1981-07 ended	4KC KE38	—
17507-24020	Bracket, Exhaust Tailpipe(FOR CENTER) 1974-08 → 1980-02 ended	3KC,3KH KE36	—
17430J — Bolt OR Ring, Exhaust Tailpipe(FOR CENTER)
90301-34172	Bolt OR Ring, Exhaust Tailpipe(FOR CENTER) 1974-08 → 1981-07 ended	3K#,2T# KE30,35,36,TE3#,47	—
90301-34207	Bolt OR Ring, Exhaust Tailpipe(FOR CENTER) 1978-08 → 1981-07 ended	4KC KE38,55 DV,HT,SED,WG	—
17430S — Bracket, Exhaust Tailpipe (FOR REAR)
17508-24030	Bracket, Exhaust Tailpipe (FOR REAR) 1974-08 → 1981-07 ended	3K#,2T# KE30,35,TE3#,47	—
17508-24030	Bracket, Exhaust Tailpipe (FOR REAR) 1978-08 → 1981-07 ended	4KC KE55 HT,SED	—
17508-24040	Bracket, Exhaust Tailpipe (FOR REAR) 1975-08 → 1980-02 ended	3KC,3KH KE36	—
17508-24040	Bracket, Exhaust Tailpipe (FOR REAR) 1978-08 → 1981-07 ended	4KC KE38	—
17508-24050	Bracket, Exhaust Tailpipe (FOR REAR) 1976-03 → 1977-01 ended	3KH,2T,2TB KE50,TE51	—
17508-24050	Bracket, Exhaust Tailpipe (FOR REAR) 1977-01 → 1979-08 ended	3KC,3KH,2T,2TB KE50,TE51	—
17508-24050	Bracket, Exhaust Tailpipe (FOR REAR) 1978-08 → 1979-08 ended	4KC KE55 K50	—
17508-36011	Bracket, Exhaust Tailpipe (FOR REAR) 1974-08 → 1975-08 ended	3KH KE36	—
17430V — Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
17565-41010	Bolt OR Ring, Exhaust Tailpipe (FOR REAR) 1976-03 → 1977-01 ended	3KH,2T,2TB KE50,TE51	—
17565-41010	Bolt OR Ring, Exhaust Tailpipe (FOR REAR) 1978-08 → 1979-08 ended	4KC KE55 K50	—
17565-41010	Bolt OR Ring, Exhaust Tailpipe (FOR REAR) 1977-01 → 1979-08 ended	3KC,3KH,2T,2TB KE50,TE51	—
90301-34172	Bolt OR Ring, Exhaust Tailpipe (FOR REAR) 1974-08 → 1981-07 ended	3K#,2T# KE30,35,36,TE3#,47	—
90301-34207	Bolt OR Ring, Exhaust Tailpipe (FOR REAR) 1978-08 → 1981-07 ended	4KC KE38,55 DV,HT,SED,WG	—
17447 — Diffuser, Exhaust Gas
17406-15010	Diffuser, Exhaust Gas 1979-08 → 1980-04 ended	2T# TE3#	—
17448 — Baffle, Tailpipe
17448-22010 note	Baffle, Tailpipe 1974-08 → 1978-11 ended	3KH,3KB KE30,35 LHD	—
17448-22010 note	Baffle, Tailpipe 1978-11 → 1979-08 ended	3KH,3KB KE30,35 EUG	—
17448-25010 note	Baffle, Tailpipe 1974-08 → 1977-01 ended	3KH KE36,50 LHD	—
17448-25010	Baffle, Tailpipe 1976-03 → 1977-01 ended	2T,2TB TE51	—
17448-25010 note	Baffle, Tailpipe 1977-01 → 1979-08 ended	3KH KE36 LHD	—
17448-25010	Baffle, Tailpipe 1979-04 → 1979-08 ended	2T# TE3#	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
