Toyota Corolla/Trueno
1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe
Discontinued model
Data version 1981-12

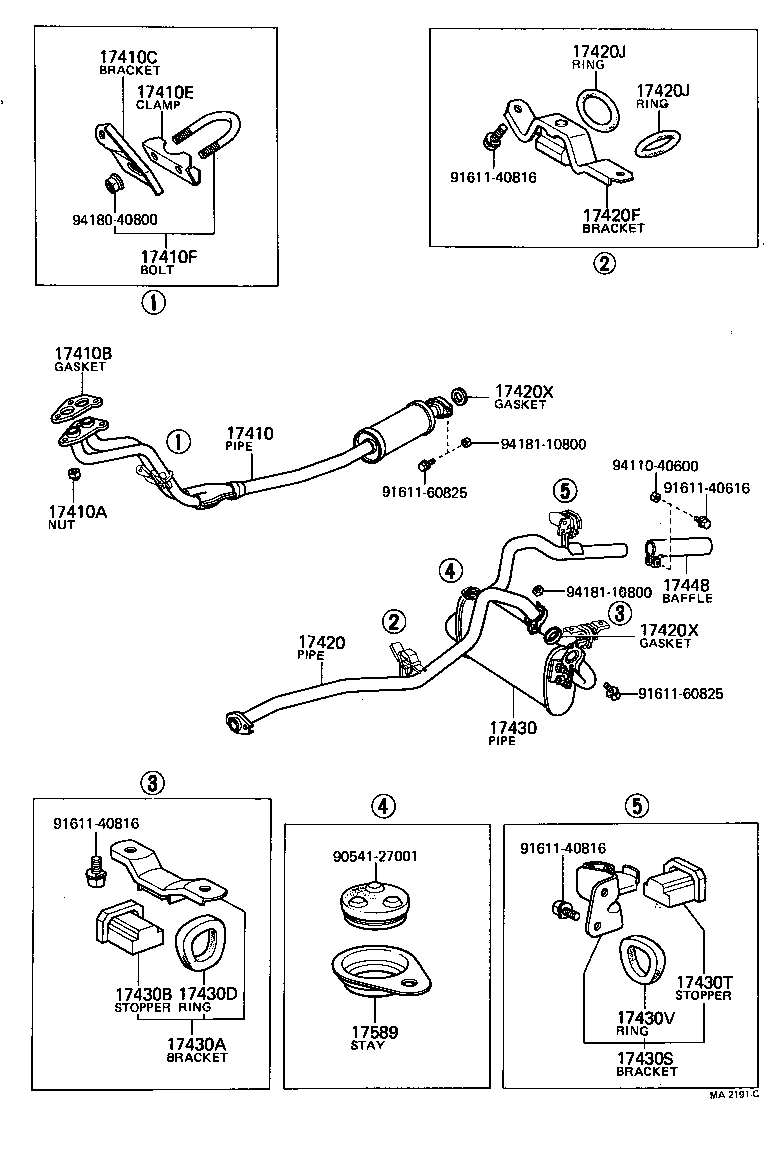

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17410 — Pipe Assy, Exhaust, Front | ||||
| 17410-13040 |
Pipe Assy, Exhaust, Front
1978-08 → 1980-12
ended
|
4KC KE38,55 | — | |
| 17410-24100 |
Pipe Assy, Exhaust, Front
1974-08 → 1977-08
ended
|
3K# KE3#,50 | — | |
| 17410-24101 |
Pipe Assy, Exhaust, Front
1977-08 → 1979-02
ended
|
3K# KE30,35,36,50 | — | |
| 17410-24101 |
Pipe Assy, Exhaust, Front
1979-02 → 1981-07
ended
|
3KH KE30,35 GEN | — | |
| 17410-24101 |
Pipe Assy, Exhaust, Front
1979-02 → 1981-07
ended
|
3KC,3KH KE36,50 | — | |
| 17410-24101 |
Pipe Assy, Exhaust, Front
1979-02 → 1981-07
ended
|
3KB KE35 | — | |
| 17410-24220 |
Pipe Assy, Exhaust, Front
1979-02 → 1979-08
ended
|
3KC,3KH KE30,35 EUR | — | |
| 17410-25060 |
Pipe Assy, Exhaust, Front
1974-08 → 1978-05
ended
|
2T TE3#,47,51 | — | |
| 17410-25060 |
Pipe Assy, Exhaust, Front
1978-05 → 1979-08
ended
|
2T TE47,51 | — | |
| 17410-25060 |
Pipe Assy, Exhaust, Front
1976-01 → 1979-08
ended
|
2TB TE51 | — | |
| 17410-26070 |
Pipe Assy, Exhaust, Front
1978-05 → 1980-04
ended
|
2T TE31 | — | |
| 17410-26070 |
Pipe Assy, Exhaust, Front
1974-08 → 1980-04
ended
|
2TB,2TG TE3#,47 | — | |
| 17410A — Nut, Exhaust Pipe Set Stud Bolt | ||||
| 90170-10199 |
Nut, Exhaust Pipe Set Stud Bolt
1975-11 → 1977-01
ended
|
3K#,2T# KE3#,50,TE3#,47,51 | — | |
| 90179-10010 |
Nut, Exhaust Pipe Set Stud Bolt
1977-01 → 1981-07
ended
|
3K#,4KC,2T# KE3#,5#,TE3#,47,51 | — | |
| 90179-10118 |
Nut, Exhaust Pipe Set Stud Bolt
1974-08 → 1975-11
ended
|
3K#,2T# KE3#,TE3#,47 | — | |
| 17410B — Gasket, Exhaust Pipe | ||||
| 17451-22010 |
Gasket, Exhaust Pipe
1974-08 → 1980-12
ended
|
3K#,4KC KE3#,5# | — | |
| 17451-22010 |
Gasket, Exhaust Pipe
1980-12 → 1981-07
ended
|
3KH KE30 | — | |
| 17451-41020 |
Gasket, Exhaust Pipe
1974-08 → 1980-04
ended
|
2T# TE3#,47,51 | — | |
| 90917-06020 |
Gasket, Exhaust Pipe
1980-12 → 1981-07
ended
|
4KC KE38,55 | — | |
| 17410C — Bracket, Exhaust Pipe Front (FOR FRONT) | ||||
| 17571-13040 |
Bracket, Exhaust Pipe Front (FOR FRONT)
1978-08 → 1980-12
ended
|
4KC KE38,55 | — | |
| 17571-24040 |
Bracket, Exhaust Pipe Front (FOR FRONT)
1974-08 → 1977-08
ended
|
3K# KE3#,50 | — | |
| 17571-24041 |
Bracket, Exhaust Pipe Front (FOR FRONT)
1977-08 → 1981-07
ended
|
3K# KE30,35,36,50 | — | |
| 17571-25030 |
Bracket, Exhaust Pipe Front (FOR FRONT)
1974-08 → 1980-04
ended
|
2T# TE3#,47,51 | — | |
| 17410E — Clamp NO.1, Exhaust Pipe Front (FOR FRONT) | ||||
| 90917-04019 |
Clamp NO.1, Exhaust Pipe Front (FOR FRONT)
1974-08 → 1980-12
ended
|
3K#,4KC KE3#,5# | — | |
| 90917-04019 |
Clamp NO.1, Exhaust Pipe Front (FOR FRONT)
1980-12 → 1981-07
ended
|
3KH KE30 | — | |
| 17410F — Bolt OR Ring, Exhaust Pipe Front (FOR FRONT) | ||||
| 90117-08199 |
Bolt OR Ring, Exhaust Pipe Front (FOR FRONT)
1978-08 → 1980-12
ended
|
4KC KE38,55 | — | |
| 90118-08136 |
Bolt OR Ring, Exhaust Pipe Front (FOR FRONT)
1974-08 → 1981-07
ended
|
3K# KE30,35,36,50 | — | |
| 17420 — Pipe Assy, Exhaust, Center | ||||
| 17403-24030 |
Pipe Assy, Exhaust, Center
1976-03 → 1977-01
ended
|
3KH,2T,2TB KE50,TE51 | — | |
| 17403-24030 |
Pipe Assy, Exhaust, Center
1977-01 → 1979-08
ended
|
3KC,3KH,2T,2TB KE50,TE51 ARL,GEN | — | |
| 17403-24040 note |
Pipe Assy, Exhaust, Center
1976-03 → 1977-01
ended
|
3KH,2T,2TB KE50,TE51 | — | |
| 17403-24040 note |
Pipe Assy, Exhaust, Center
1978-08 → 1979-08
ended
|
4KC KE55 K50 | — | |
| 17403-24040 note |
Pipe Assy, Exhaust, Center
1977-01 → 1979-08
ended
|
3KC,3KH,2T,2TB KE50,TE51 EUR | — | |
| 17456-24040 |
Pipe Assy, Exhaust, Center
1974-08 → 1975-11
ended
|
3K#,2T KE30,35,TE3#,47 | — | |
| 17456-24050 |
Pipe Assy, Exhaust, Center
1974-08 → 1975-11
ended
|
3KC,3KH KE36 | — | |
| 17456-26010 |
Pipe Assy, Exhaust, Center
1974-08 → 1975-11
ended
|
2TB,2TG TE47 | — | |
| 17420F — Bracket, Exhaust Pipe, Center | ||||
| 17506-24010 |
Bracket, Exhaust Pipe, Center
1976-03 → 1977-01
ended
|
3KH,2T,2TB KE50,TE51 | — | |
| 17506-24010 |
Bracket, Exhaust Pipe, Center
1977-01 → 1979-08
ended
|
3KC,3KH,2T,2TB KE50,TE51 | — | |
| 17506-24010 |
Bracket, Exhaust Pipe, Center
1977-08 → 1979-08
ended
|
4KC KE55 K50 | — | |
| 17420J — Bolt OR Ring, Exhaust Pipe Center | ||||
| 90301-34172 |
Bolt OR Ring, Exhaust Pipe Center
1976-03 → 1977-01
ended
|
3KH,2T,2TB KE50,TE51 | — | |
| 90301-34207 |
Bolt OR Ring, Exhaust Pipe Center
1977-01 → 1979-08
ended
|
3KC,3KH,2T,2TB KE50,TE51 | — | |
| 90301-34207 |
Bolt OR Ring, Exhaust Pipe Center
1978-08 → 1979-08
ended
|
4KC KE55 K50 | — | |
| 17420X — Gasket, Exhaust Pipe, Center | ||||
| 90917-06001 note |
Gasket, Exhaust Pipe, Center
1976-03 → 1977-01
ended
|
3KH,2T,2TB KE50,TE51 | — | |
| 90917-06001 note |
Gasket, Exhaust Pipe, Center
1977-01 → 1979-08
ended
|
3KC,3KH,2T,2TB KE50,TE51 | — | |
| 90917-06001 note |
Gasket, Exhaust Pipe, Center
1974-08 → 1981-07
ended
|
3K#,2T KE30,35,36,50,TE3#,47,51 | — | |
| 90917-06001 |
Gasket, Exhaust Pipe, Center
1978-08 → 1981-07
ended
|
4KC KE38,55 | — | |
| 90917-06004 |
Gasket, Exhaust Pipe, Center
1974-08 → 1980-04
ended
|
2TB,2TG TE3#,47 | — | |
| 17430 — Pipe Assy, Exhaust, Tail | ||||
| 17405-24040 |
Pipe Assy, Exhaust, Tail
1977-01 → 1979-08
ended
|
3KC,3KH,2T,2TB KE50,TE51 ARL,GEN | — | |
| 17405-24040 |
Pipe Assy, Exhaust, Tail
1976-03 → 1977-01
ended
|
3KH,2T,2TB KE50,TE51 | — | |
| 17405-24050 note |
Pipe Assy, Exhaust, Tail
1977-01 → 1979-08
ended
|
3KC,3KH,2T,2TB KE50,TE51 EUR | — | |
| 17405-24050 |
Pipe Assy, Exhaust, Tail
1978-08 → 1979-08
ended
|
4KC KE55 K50 | — | |
| 17405-24050 note |
Pipe Assy, Exhaust, Tail
1976-03 → 1977-01
ended
|
3KH,2T,2TB KE50,TE51 | — | |
| 17430-24090 |
Pipe Assy, Exhaust, Tail
1974-08 → 1977-01
ended
|
3K# KE30,35 | — | |
| 17430-24090 |
Pipe Assy, Exhaust, Tail
1977-01 → 1981-07
ended
|
3K# KE30,35 ARL,GEN,SA | — | |
| 17430-24100 |
Pipe Assy, Exhaust, Tail
1974-08 → 1977-01
ended
|
3KC,3KH KE36 | — | |
| 17430-24100 |
Pipe Assy, Exhaust, Tail
1977-01 → 1980-02
ended
|
3KC,3KH KE36 ARL,GEN,SA | — | |
| 17430-24140 note |
Pipe Assy, Exhaust, Tail
1977-01 → 1978-05
ended
|
3K# KE30,35 EUR | — | |
| 17430-24140 note |
Pipe Assy, Exhaust, Tail
1974-08 → 1977-01
ended
|
3K# KE30,35 | — | |
| 17430-24150 note |
Pipe Assy, Exhaust, Tail
1978-08 → 1981-07
ended
|
4KC KE38 | — | |
| 17430-24150 note |
Pipe Assy, Exhaust, Tail
1974-08 → 1977-01
ended
|
3KC,3KH KE36 | — | |
| 17430-24150 note |
Pipe Assy, Exhaust, Tail
1977-01 → 1979-08
ended
|
3KC,3KH KE36 EUR | — | |
| 17430-24310 note |
Pipe Assy, Exhaust, Tail
1978-08 → 1981-07
ended
|
4KC KE55 HT,SED | — | |
| 17430-24310 note |
Pipe Assy, Exhaust, Tail
1978-05 → 1979-08
ended
|
3K# KE30,35 EUR | — | |
| 17430-25110 |
Pipe Assy, Exhaust, Tail
1977-01 → 1979-02
ended
|
2T TE47 GEN | — | |
| 17430-25110 |
Pipe Assy, Exhaust, Tail
1974-08 → 1977-01
ended
|
2T TE3#,47 | — | |
| 17430-26080 |
Pipe Assy, Exhaust, Tail
1977-01 → 1979-08
ended
|
2TB,2TG TE3#,47 GEN,SA | — | |
| 17430-26080 |
Pipe Assy, Exhaust, Tail
1974-08 → 1977-01
ended
|
2TB,2TG TE47 | — | |
| 17430-26080 |
Pipe Assy, Exhaust, Tail
1977-01 → 1979-08
ended
|
2T TE31 | — | |
| 17430-26190 note |
Pipe Assy, Exhaust, Tail
1977-01 → 1979-02
ended
|
2TB,2TG TE47 EUG | — | |
| 17430-26190 note |
Pipe Assy, Exhaust, Tail
1974-08 → 1977-01
ended
|
2TB,2TG TE47 | — | |
| 17430-26200 note |
Pipe Assy, Exhaust, Tail
1977-01 → 1979-02
ended
|
2T TE47 EUG | — | |
| 17430-26200 note |
Pipe Assy, Exhaust, Tail
1974-08 → 1977-01
ended
|
2T TE3#,47 | — | |
| 17430-26590 |
Pipe Assy, Exhaust, Tail
1979-08 → 1980-04
ended
|
2T# TE3# | — | |
| 17430A — Bracket, Exhaust Tailpipe(FOR FRONT) | ||||
| 17506-24010 |
Bracket, Exhaust Tailpipe(FOR FRONT)
1978-08 → 1981-07
ended
|
4KC KE55 HT,SED | — | |
| 17506-24010 |
Bracket, Exhaust Tailpipe(FOR FRONT)
1974-08 → 1981-07
ended
|
3K#,2T# KE30,35,TE3#,47 | — | |
| 17506-24020 |
Bracket, Exhaust Tailpipe(FOR FRONT)
1974-08 → 1980-02
ended
|
3KC,3KH KE36 | — | |
| 17506-24020 |
Bracket, Exhaust Tailpipe(FOR FRONT)
1978-08 → 1981-07
ended
|
4KC KE38 | — | |
| 17507-24060 |
Bracket, Exhaust Tailpipe(FOR FRONT)
1978-08 → 1979-08
ended
|
4KC KE55 K50 | — | |
| 17507-24060 |
Bracket, Exhaust Tailpipe(FOR FRONT)
1977-01 → 1979-08
ended
|
3KC,3KH,2T,2TB KE50,TE51 | — | |
| 17507-24060 |
Bracket, Exhaust Tailpipe(FOR FRONT)
1976-03 → 1977-01
ended
|
3KH,2T,2TB KE50,TE51 | — | |
| 17430B — Cushion, Exhaust Tailpipe(FOR FRONT) | ||||
| 17591-45010 |
Cushion, Exhaust Tailpipe(FOR FRONT)
1976-03 → 1977-01
ended
|
3KH,2T,2TB KE50,TE51 | — | |
| 17591-45010 |
Cushion, Exhaust Tailpipe(FOR FRONT)
1977-01 → 1979-08
ended
|
3KC,3KH,2T,2TB KE50,TE51 | — | |
| 17591-45010 |
Cushion, Exhaust Tailpipe(FOR FRONT)
1978-08 → 1979-08
ended
|
4KC KE55 K50 | — | |
| 17430D — Bolt OR Ring, Exhaust Tailpipe (FOR FRONT) | ||||
| 17565-41010 |
Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
1976-03 → 1977-01
ended
|
3KH,2T,2TB KE50,TE51 | — | |
| 17565-41010 |
Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
1977-01 → 1979-08
ended
|
3KC,3KH,2T,2TB KE50,TE51 | — | |
| 90301-34172 |
Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
1974-08 → 1977-01
ended
|
3K#,2T# KE3#,TE3#,47 | — | |
| 90301-34207 |
Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
1979-02 → 1981-07
ended
|
3KH,3KB KE30,35,36 GEN,SA | — | |
| 90301-34207 |
Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
1978-08 → 1981-07
ended
|
4KC KE38,55 DV,HT,SED,WG | — | |
| 90301-34207 |
Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
1977-01 → 1979-02
ended
|
3K#,2T# KE30,35,36,TE3#,47 | — | |
| 90301-34207 |
Bolt OR Ring, Exhaust Tailpipe (FOR FRONT)
1979-02 → 1980-04
ended
|
2T# TE3# | — | |
| 17430S — Bracket, Exhaust Tailpipe (FOR REAR) | ||||
| 17508-24030 |
Bracket, Exhaust Tailpipe (FOR REAR)
1974-08 → 1981-07
ended
|
3K#,2T# KE30,35,TE3#,47 | — | |
| 17508-24030 |
Bracket, Exhaust Tailpipe (FOR REAR)
1978-08 → 1981-07
ended
|
4KC KE55 HT,SED | — | |
| 17508-24040 |
Bracket, Exhaust Tailpipe (FOR REAR)
1975-08 → 1980-02
ended
|
3KC,3KH KE36 | — | |
| 17508-24040 |
Bracket, Exhaust Tailpipe (FOR REAR)
1978-08 → 1981-07
ended
|
4KC KE38 | — | |
| 17508-24050 |
Bracket, Exhaust Tailpipe (FOR REAR)
1976-03 → 1977-01
ended
|
3KH,2T,2TB KE50,TE51 | — | |
| 17508-24050 |
Bracket, Exhaust Tailpipe (FOR REAR)
1977-01 → 1979-08
ended
|
3KC,3KH,2T,2TB KE50,TE51 | — | |
| 17508-24050 |
Bracket, Exhaust Tailpipe (FOR REAR)
1978-08 → 1979-08
ended
|
4KC KE55 K50 | — | |
| 17508-36011 |
Bracket, Exhaust Tailpipe (FOR REAR)
1974-08 → 1975-08
ended
|
3KH KE36 | — | |
| 17430T — Cushion, Exhaust Tailpipe (FOR REAR) | ||||
| 17591-45010 |
Cushion, Exhaust Tailpipe (FOR REAR)
1976-03 → 1977-01
ended
|
3KH,2T,2TB KE50,TE51 | — | |
| 17591-45010 |
Cushion, Exhaust Tailpipe (FOR REAR)
1977-01 → 1979-08
ended
|
3KC,3KH,2T,2TB KE50,TE51 | — | |
| 17591-45010 |
Cushion, Exhaust Tailpipe (FOR REAR)
1978-08 → 1979-08
ended
|
4KC KE55 K50 | — | |
| 17430V — Bolt OR Ring, Exhaust Tailpipe (FOR REAR) | ||||
| 17565-41010 |
Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
1976-03 → 1977-01
ended
|
3KH,2T,2TB KE50,TE51 | — | |
| 17565-41010 |
Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
1978-08 → 1979-08
ended
|
4KC KE55 K50 | — | |
| 17565-41010 |
Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
1977-01 → 1979-08
ended
|
3KC,3KH,2T,2TB KE50,TE51 | — | |
| 90301-34172 |
Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
1974-08 → 1981-07
ended
|
3K#,2T# KE30,35,36,TE3#,47 | — | |
| 90301-34207 |
Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
1978-08 → 1981-07
ended
|
4KC KE38,55 DV,HT,SED,WG | — | |
| 17448 — Baffle, Tailpipe | ||||
| 17448-22010 note |
Baffle, Tailpipe
1974-08 → 1978-11
ended
|
3KH,3KB KE30,35 LHD | — | |
| 17448-22010 note |
Baffle, Tailpipe
1978-11 → 1979-08
ended
|
3KH,3KB KE30,35 EUG | — | |
| 17448-25010 note |
Baffle, Tailpipe
1974-08 → 1977-01
ended
|
3KH KE36,50 LHD | — | |
| 17448-25010 |
Baffle, Tailpipe
1976-03 → 1977-01
ended
|
2T,2TB TE51 | — | |
| 17448-25010 note |
Baffle, Tailpipe
1977-01 → 1979-08
ended
|
3KH KE36 LHD | — | |
| 17448-25010 |
Baffle, Tailpipe
1979-04 → 1979-08
ended
|
2T# TE3# | — | |
| 17589 — Stay, Exhaust Pipe | ||||
| 17589-26010 |
Stay, Exhaust Pipe
1976-03 → 1977-01
ended
|
3KH,2T,2TB KE50,TE51 | — | |
| 17589-26010 |
Stay, Exhaust Pipe
1978-08 → 1979-08
ended
|
4KC KE55 K50 | — | |
| 17589-26010 |
Stay, Exhaust Pipe
1977-01 → 1980-04
ended
|
3KC,3KH,2T,2TB KE50,TE3#,51 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
