Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe

Discontinued model Data version 1981-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

17 part groups · 4 illustrations

Illustrations

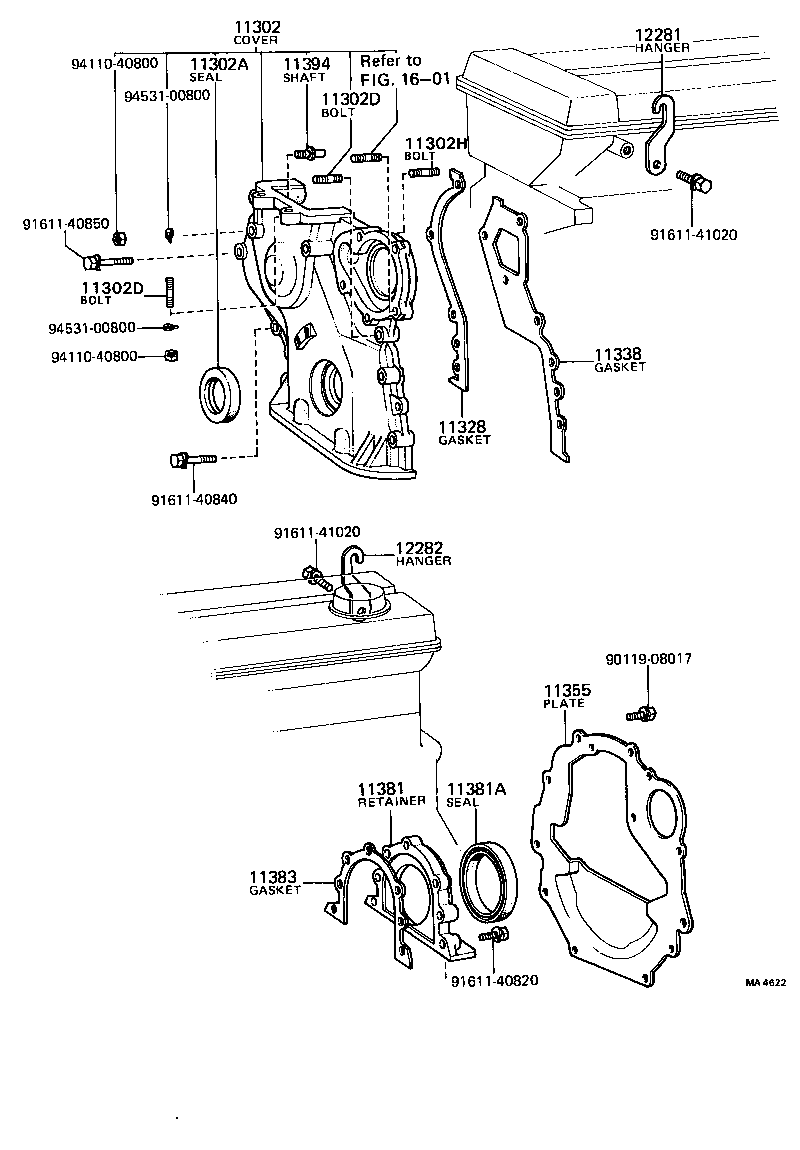

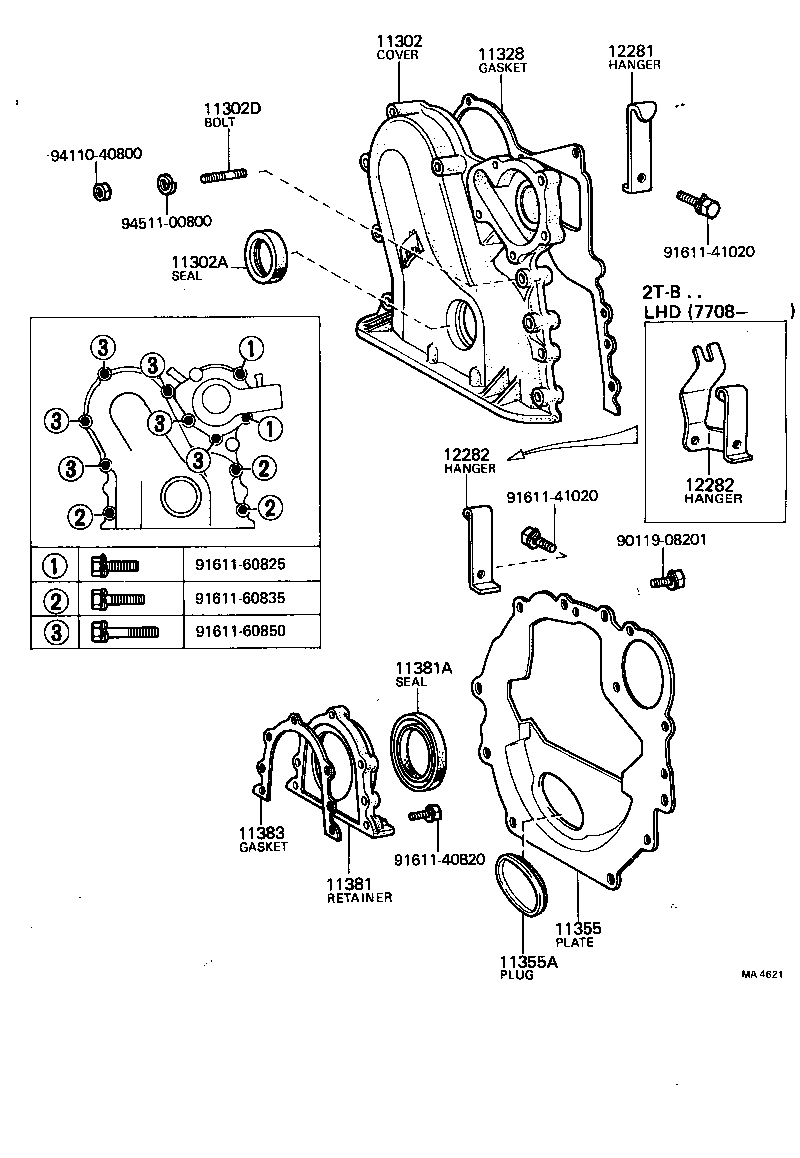

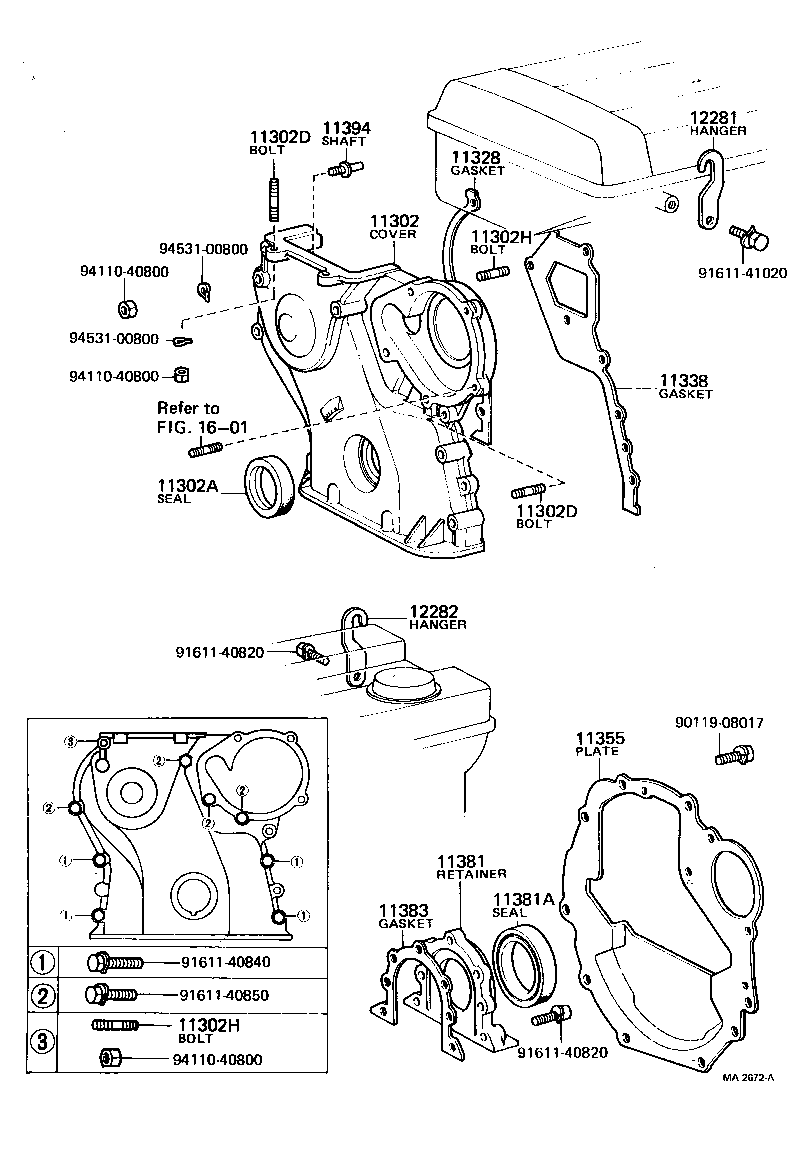

Figure MA2064H MA2064H 1974-08 → — Figure MA4621 MA4621 1974-08 → 1980-04 Figure MA4622 MA4622 1974-08 → 1976-11 Figure MA2672A MA2672A 1976-11 → 1979-02

Part groups

PNCDescription
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11302D Bolt, Stud(FOR TIMING GEAR COVER)
11302H Bolt, Stud(FOR TIMING GEAR COVER)
11311 Plate, Front End
11312 Gasket, Front End Plate
11328 Gasket, Timing Gear OR Chain Cover
11338 Gasket, Timing Chain Cover, NO.2
11355 Plate, Rear End
11355A Plug, Hole(FOR REAR END PLATE)
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11381B Bolt, Stud(FOR ENGINE REAR OIL SEAL RETAINER)
11383 Gasket, Engine Rear Oil Seal Retainer
11394 Shaft, Chain Tenshioner
12281 Hanger, Engine, NO.1
12282 Hanger, Engine, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
