Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe

Discontinued model Data version 1981-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

6 part groups · 3 illustrations

Illustrations

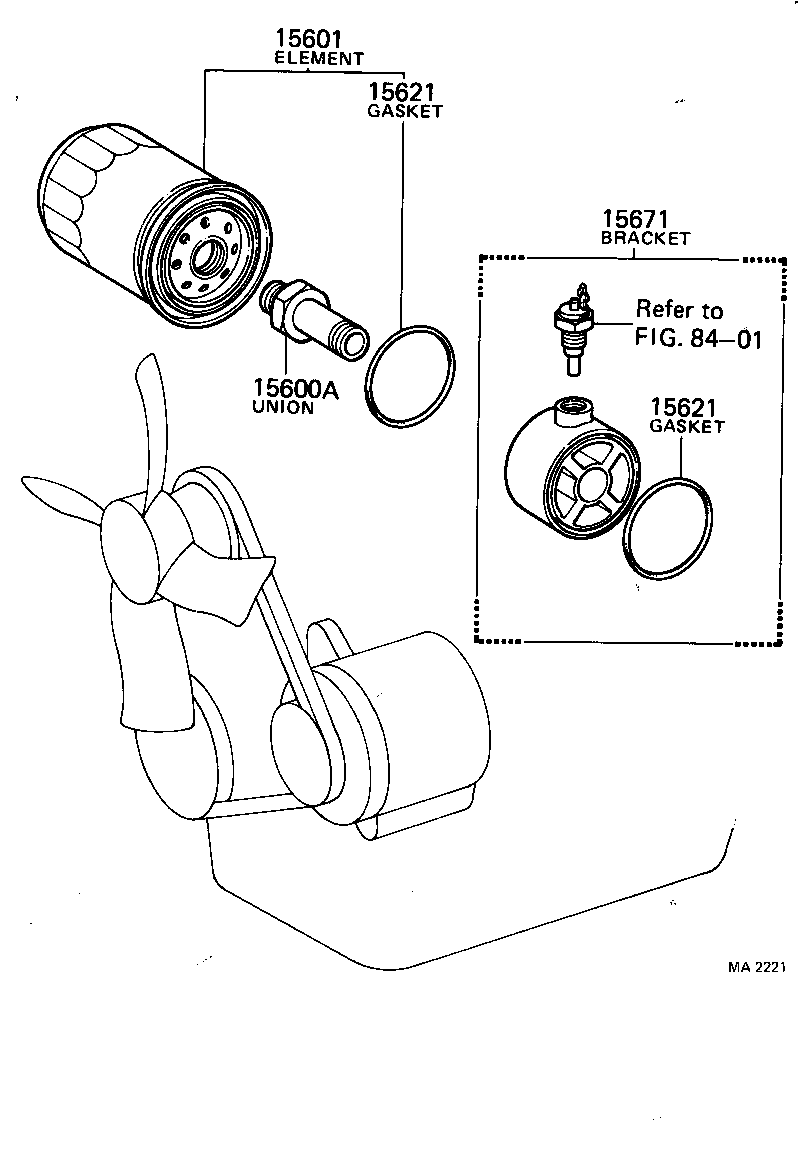

Figure MA0428D MA0428D 1974-08 → — Figure MA0428D MA0428D 1974-08 → — Figure MA2221 MA2221 1976-03 → 1978-05

Part groups

PNCDescription
15600A Union(FOR OIL FILTER)
15601 Filter Sub-assy, Oil
15609 Bracket Sub-assy, Oil Filter
15621 Gasket, Oil Filter Body
15671 Bracket, Oil Filter
15691 Gasket, Oil Filter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
