Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe

Discontinued model Data version 1981-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

17 part groups · 13 illustrations

Illustrations

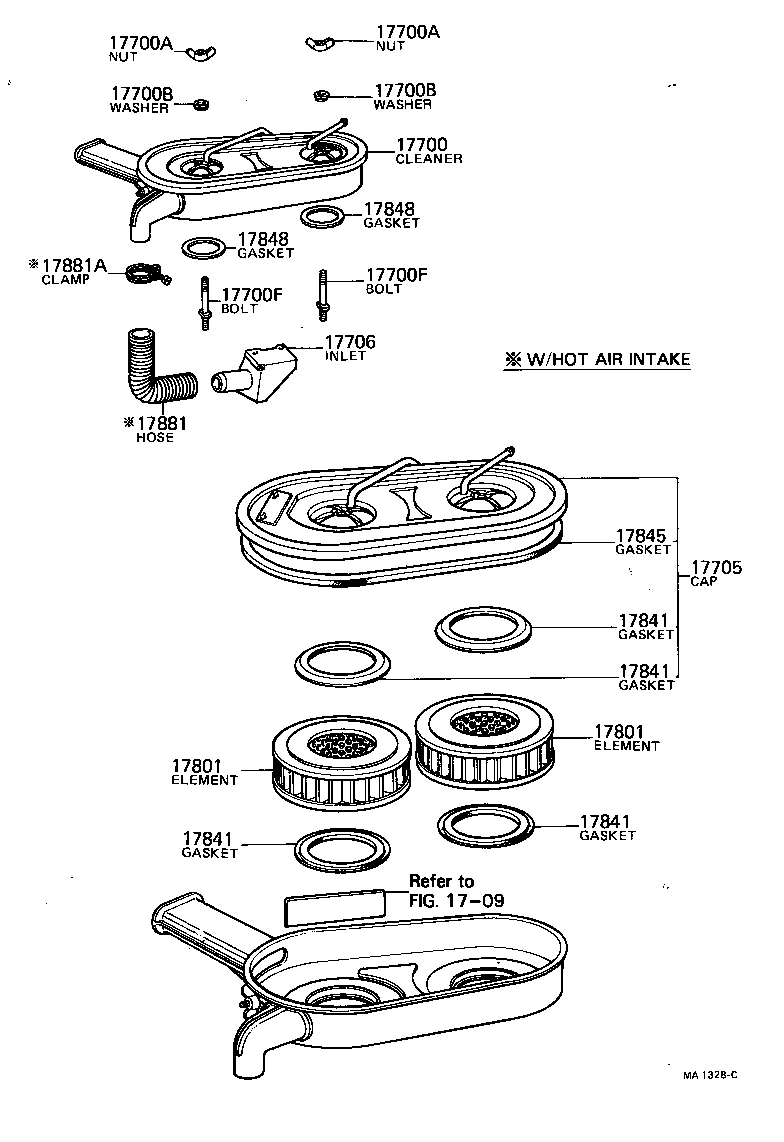

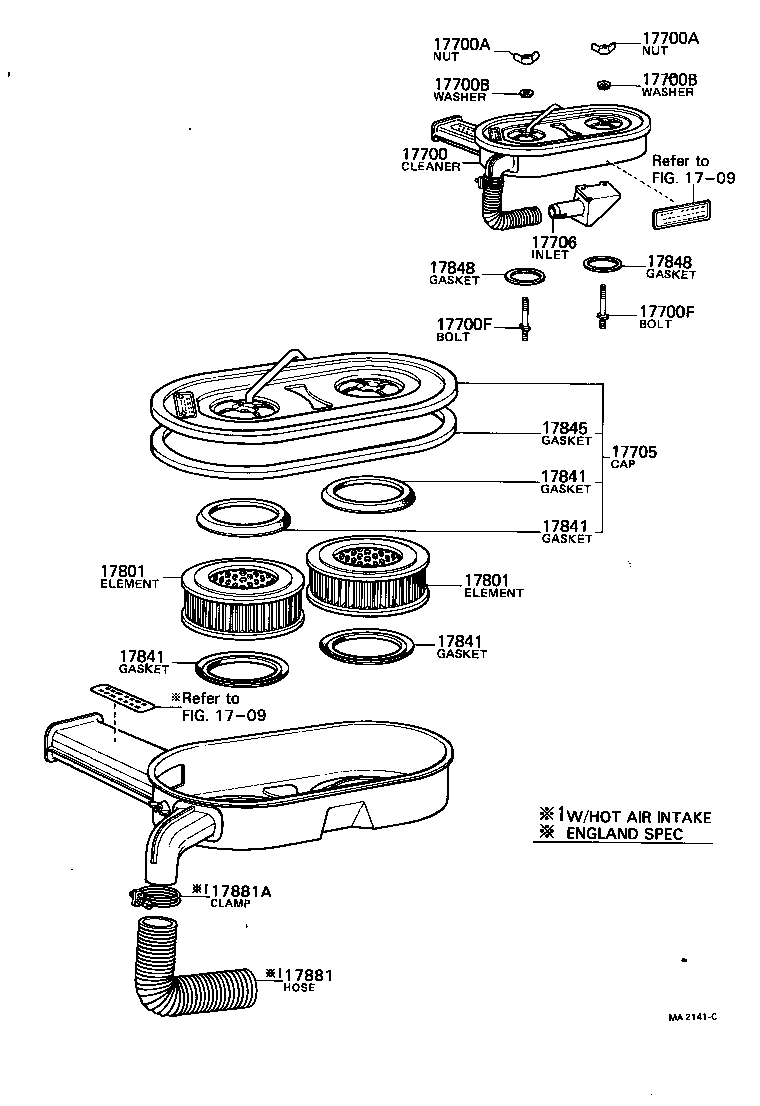

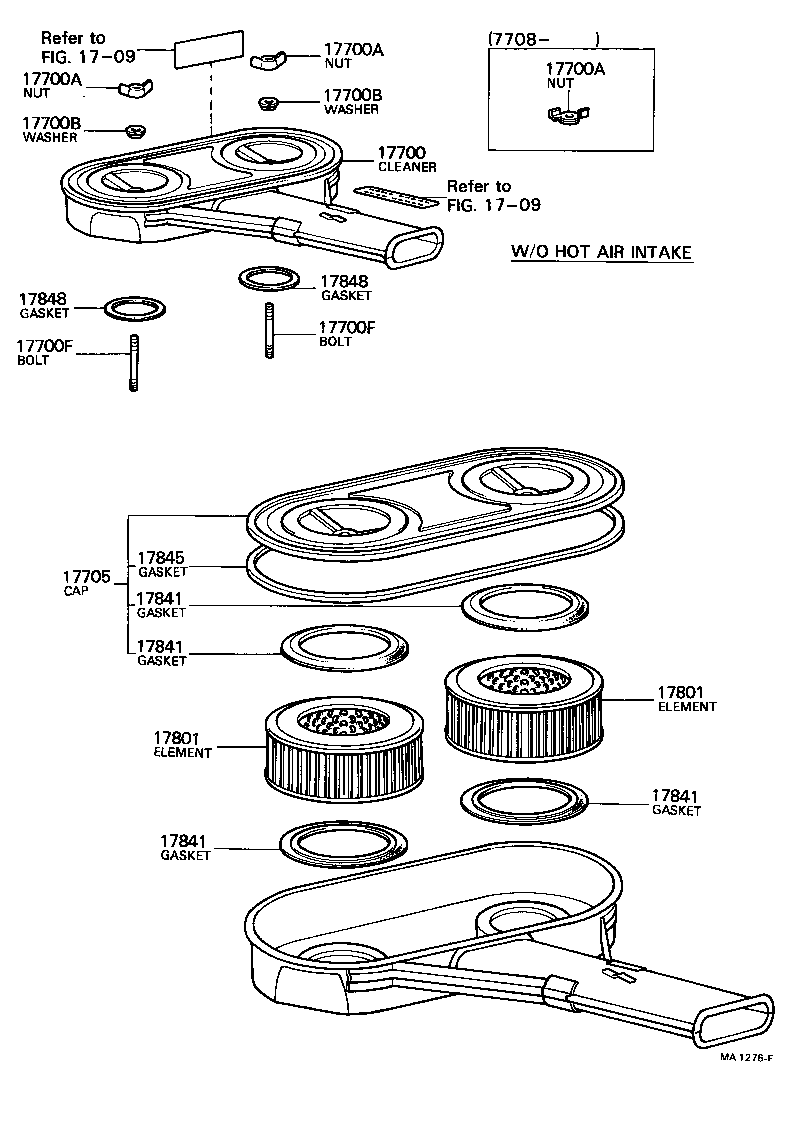

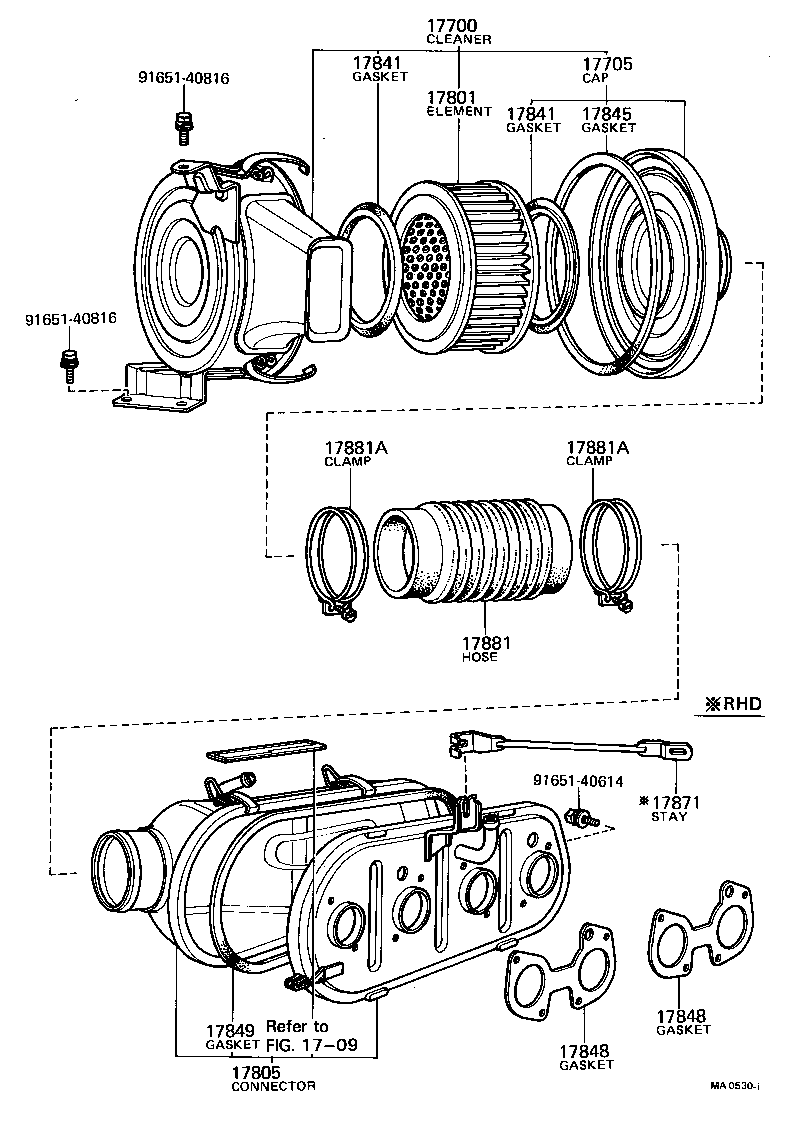

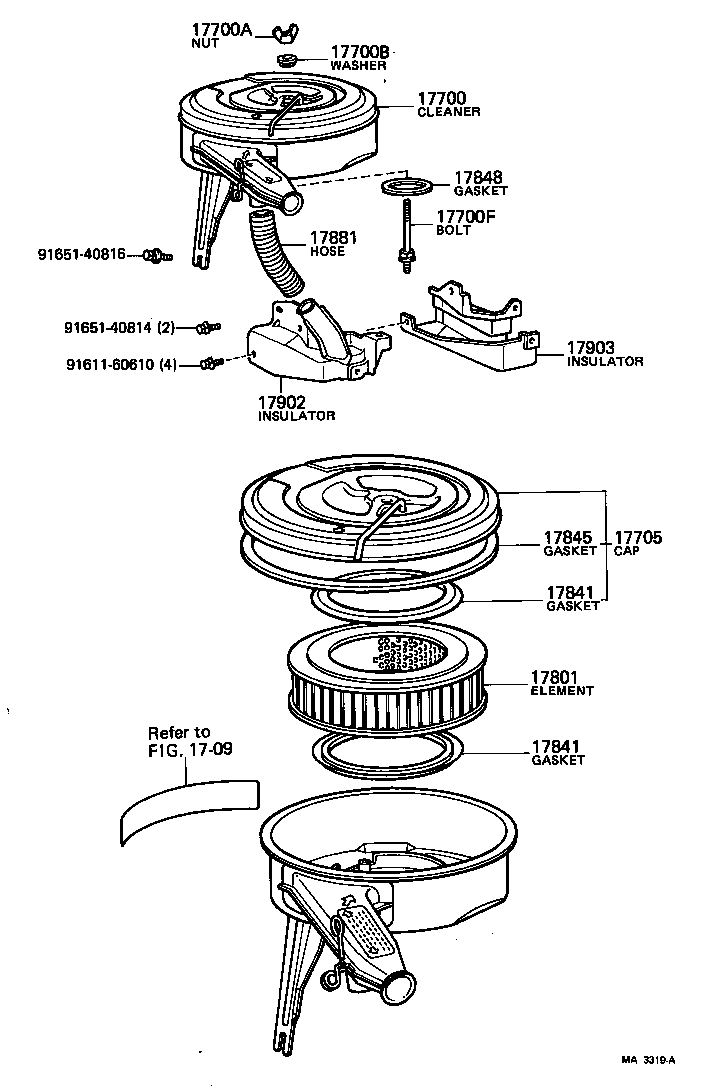

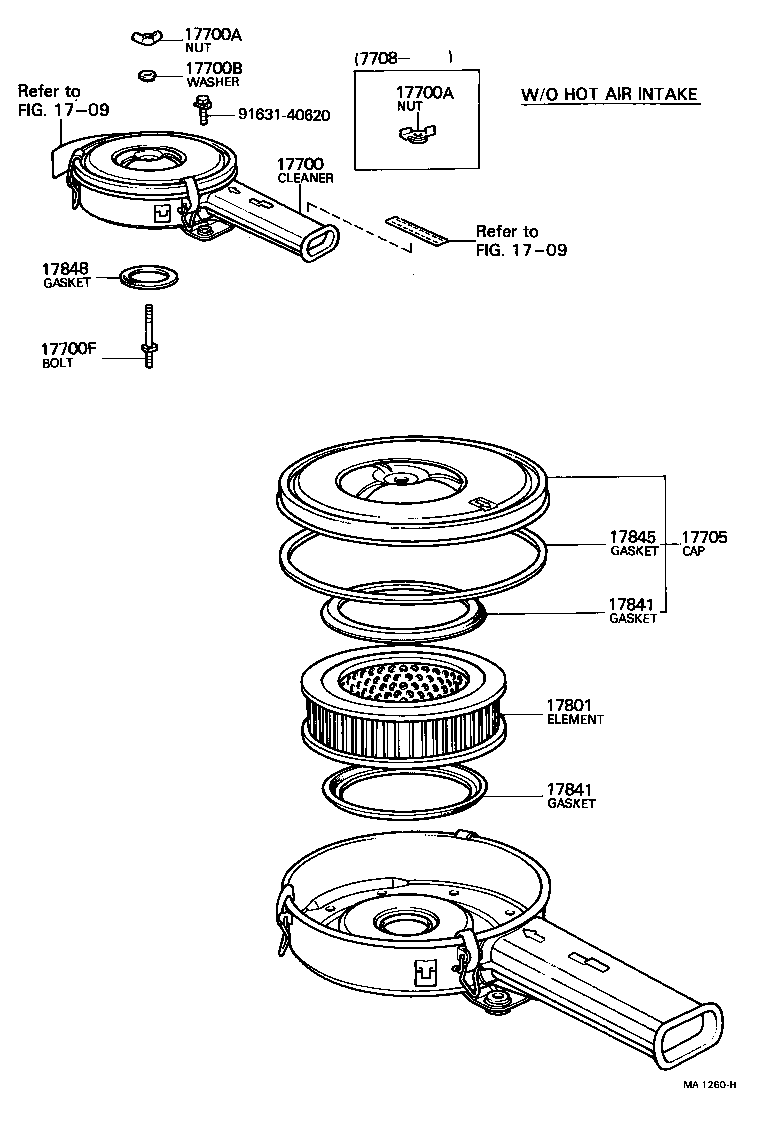

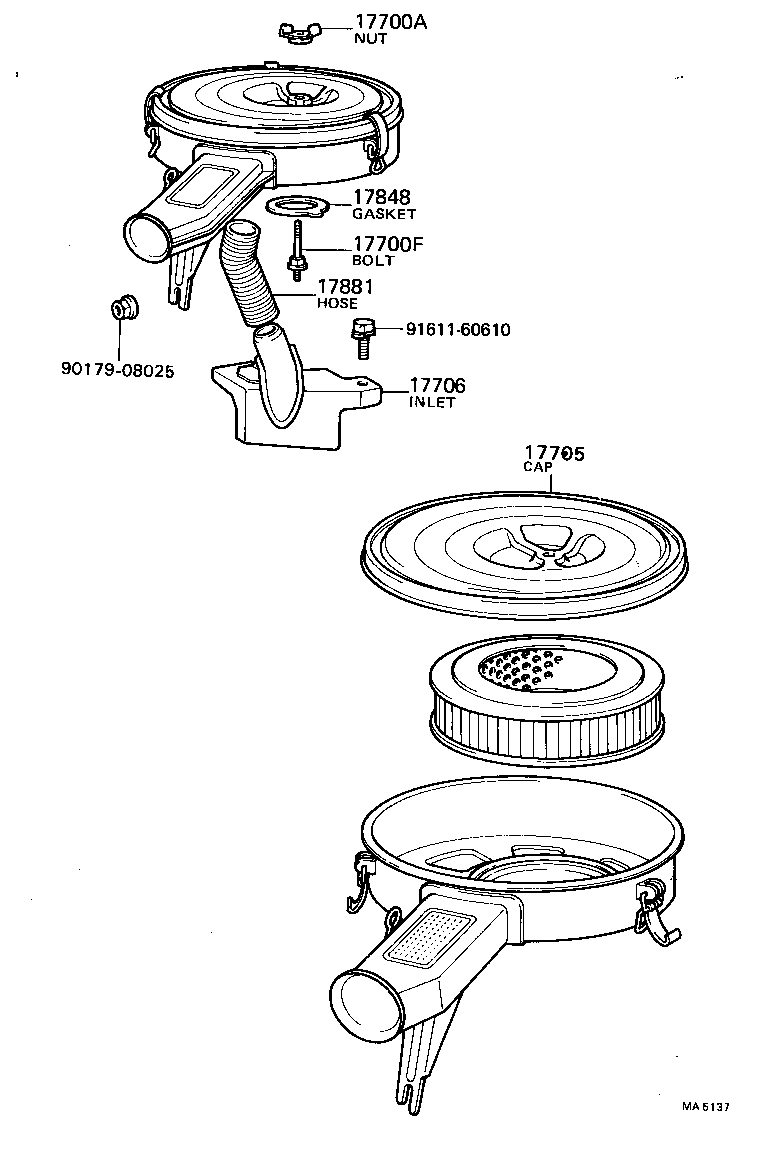

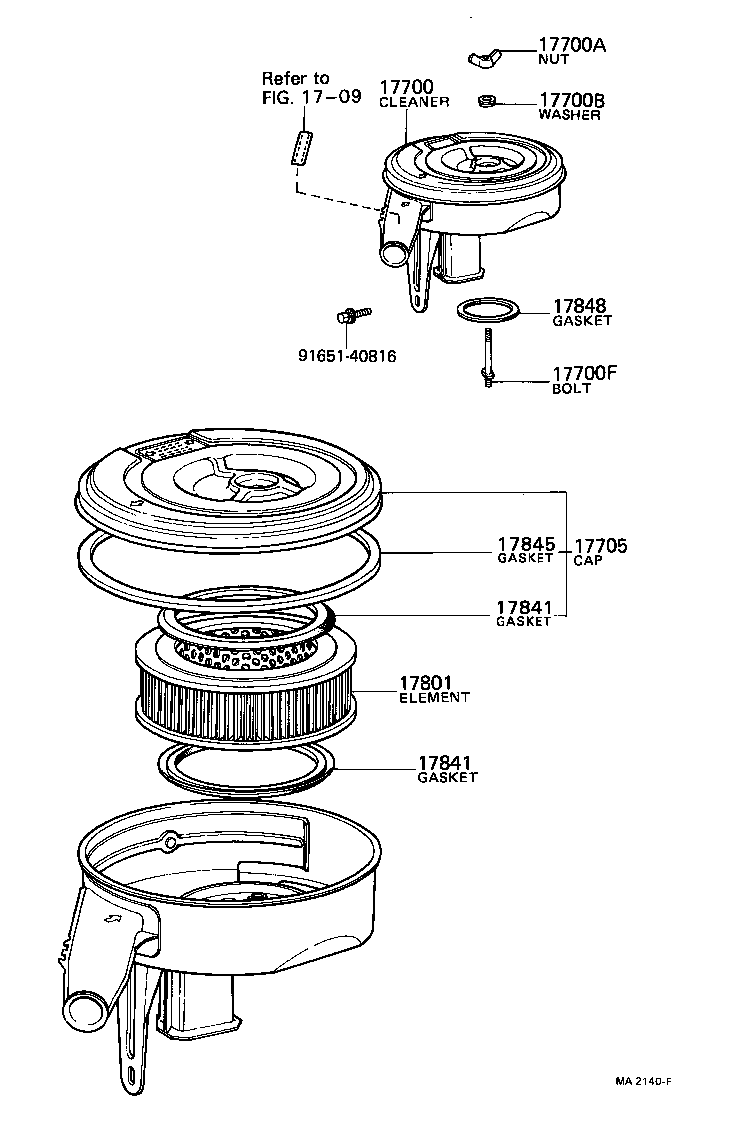

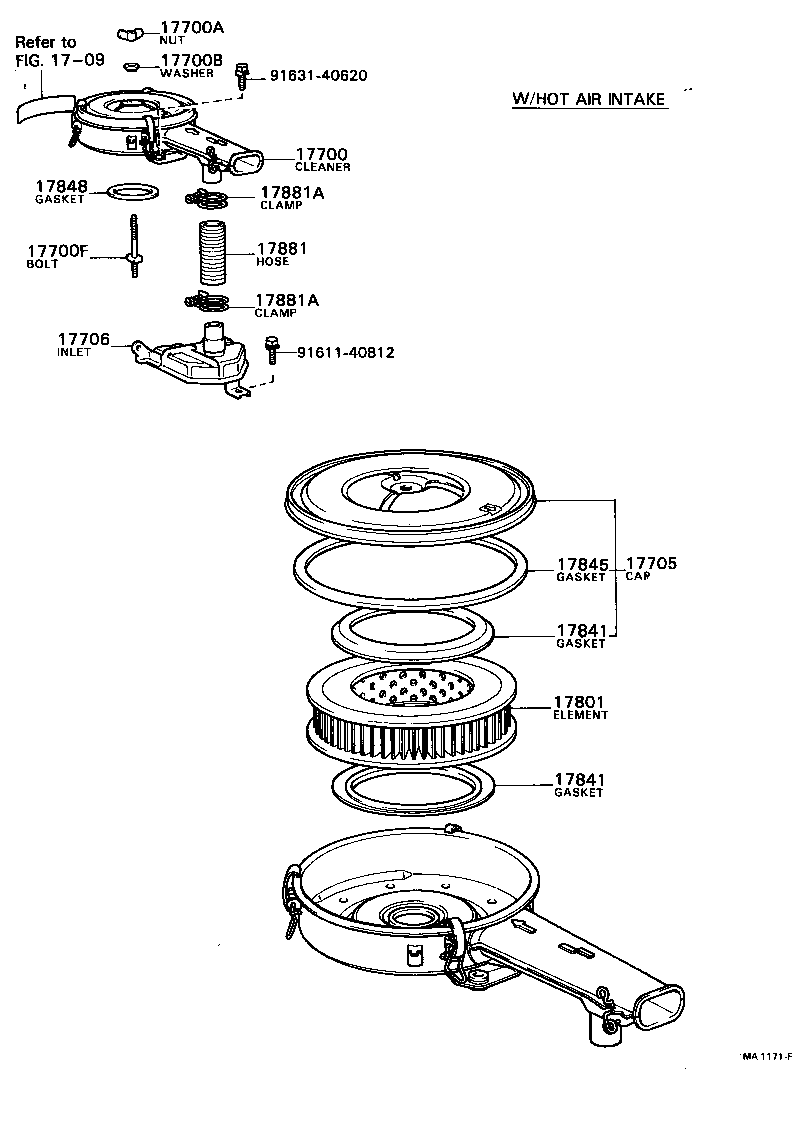

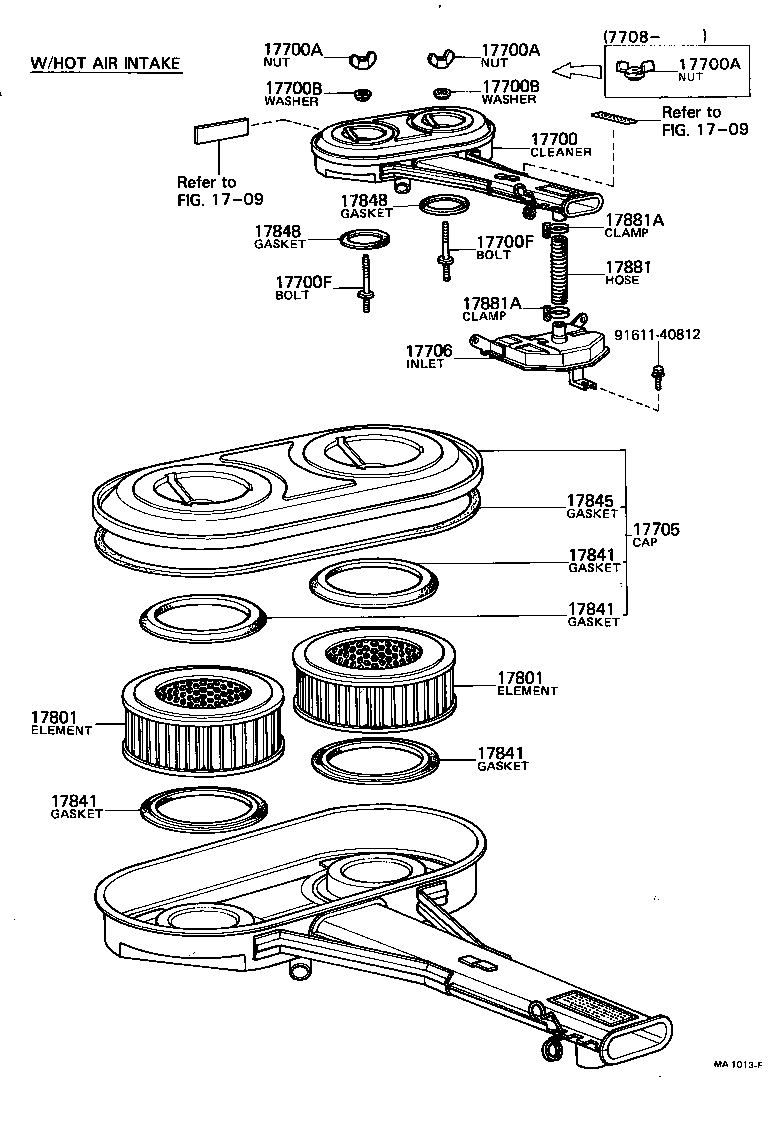

Figure MA1327B MA1327B 1974-08 → 1975-11 Figure MA1328C MA1328C 1974-08 → 1975-11 Figure MA2140F MA2140F 1975-11 → 1978-08 Figure MA2140F MA2140F 1975-11 → — Figure MA2140F MA2140F 1978-08 → 1980-12 Figure MA5137 MA5137 1980-12 → — Figure MA3319A MA3319A 1978-08 → 1979-08 Figure MA2141C MA2141C 1975-11 → 1979-08 Figure MA1260H MA1260H 1974-08 → 1980-04 Figure MA1171F MA1171F 1974-08 → 1980-04 Figure MA1276F MA1276F 1974-08 → 1980-04 Figure MA1013F MA1013F 1974-08 → 1980-04 Figure MA0530I MA0530I 1974-08 → 1979-02

Part groups

PNCDescription
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700B Washer, Seal(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17705 Cap Sub-assy, Air Cleaner
17706 Inlet Sub-assy, Air Cleaner, NO.2
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17841 Gasket, Filter Element
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17849 Gasket, Intake Air Connector
17871 Stay, Air Connector
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17902 Inlet Sub-assy, Hot Air Intake, NO.1
17903 Inlet Sub-assy, Hot Air Intake, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
