Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe

Discontinued model Data version 1981-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

13 part groups · 11 illustrations

Illustrations

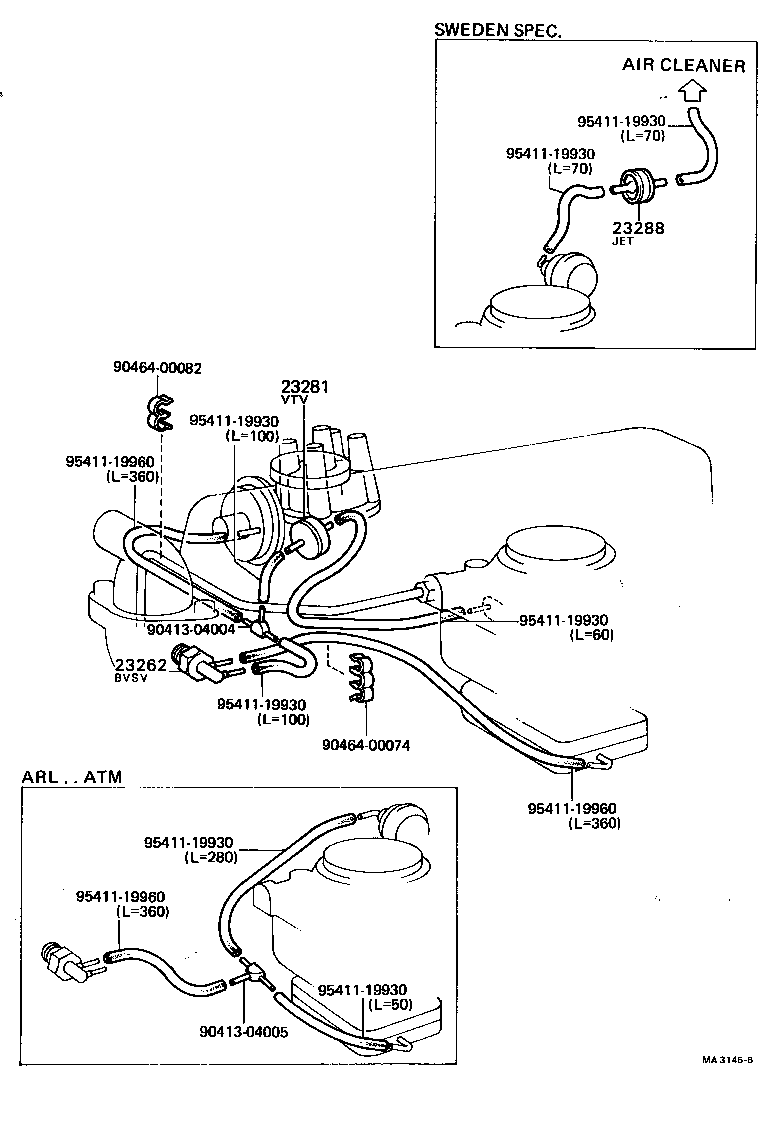

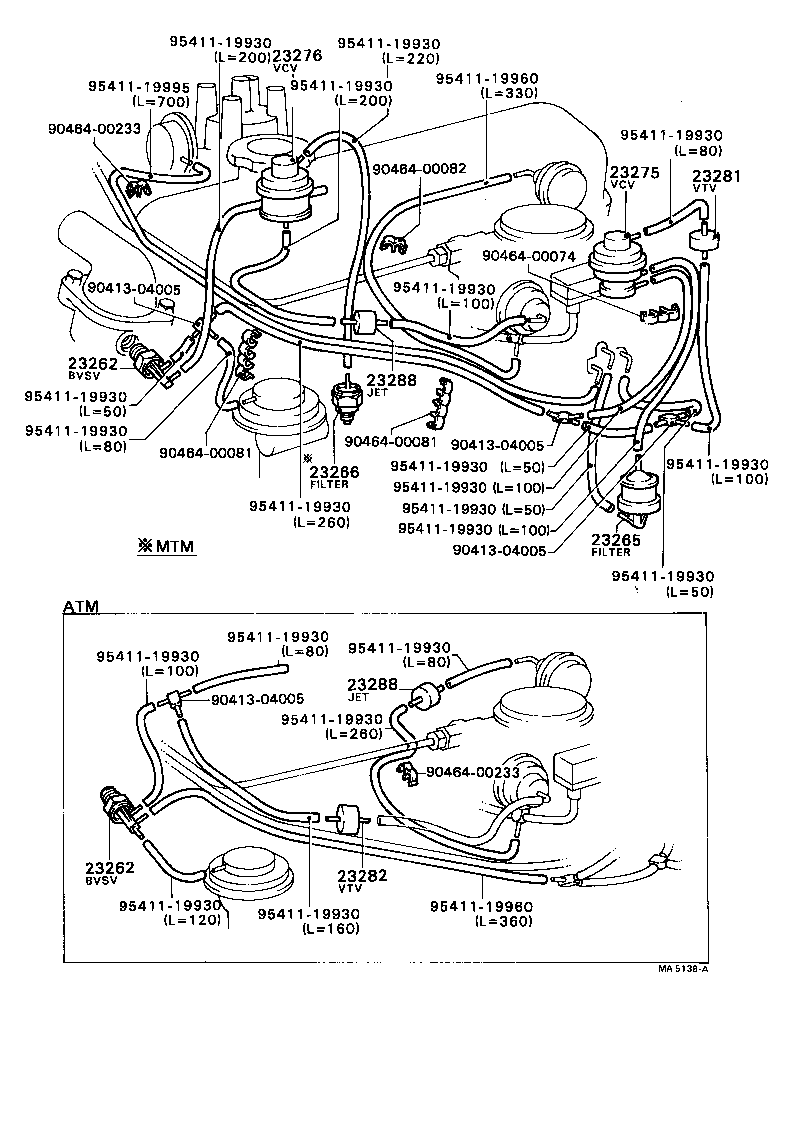

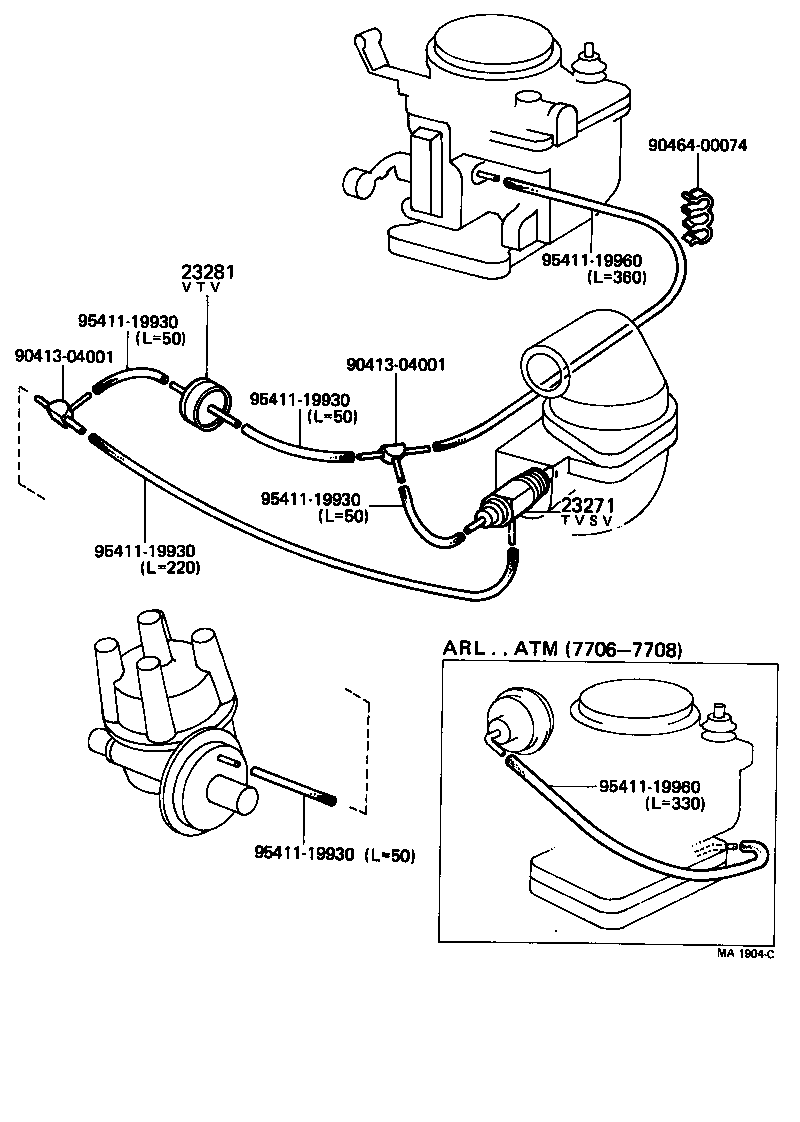

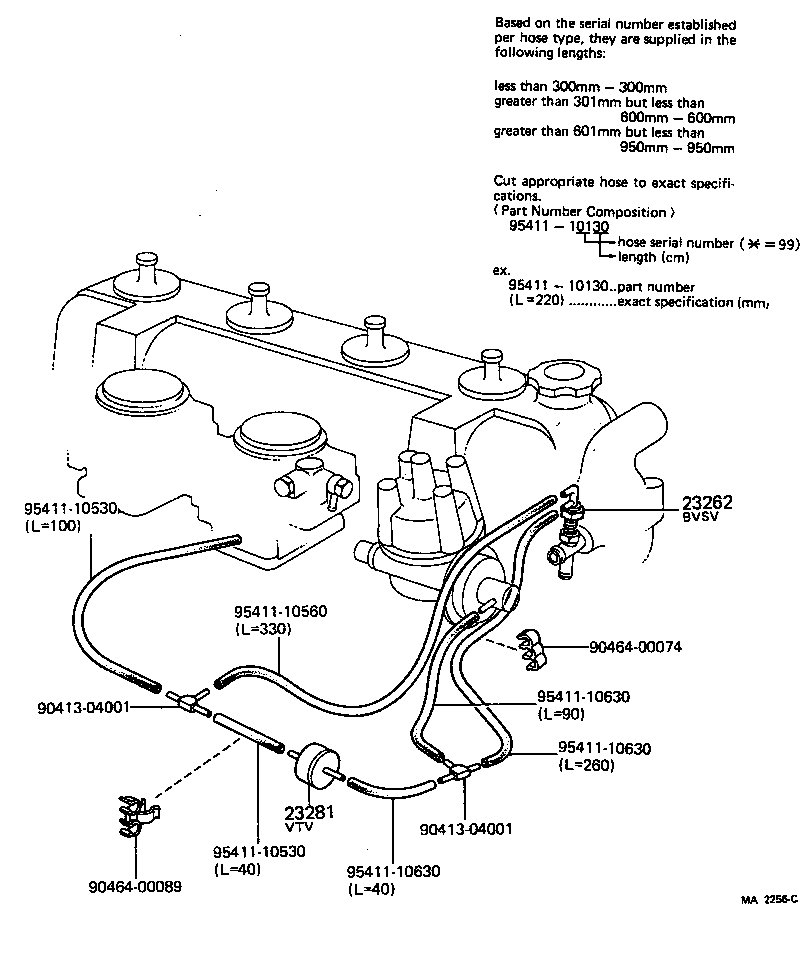

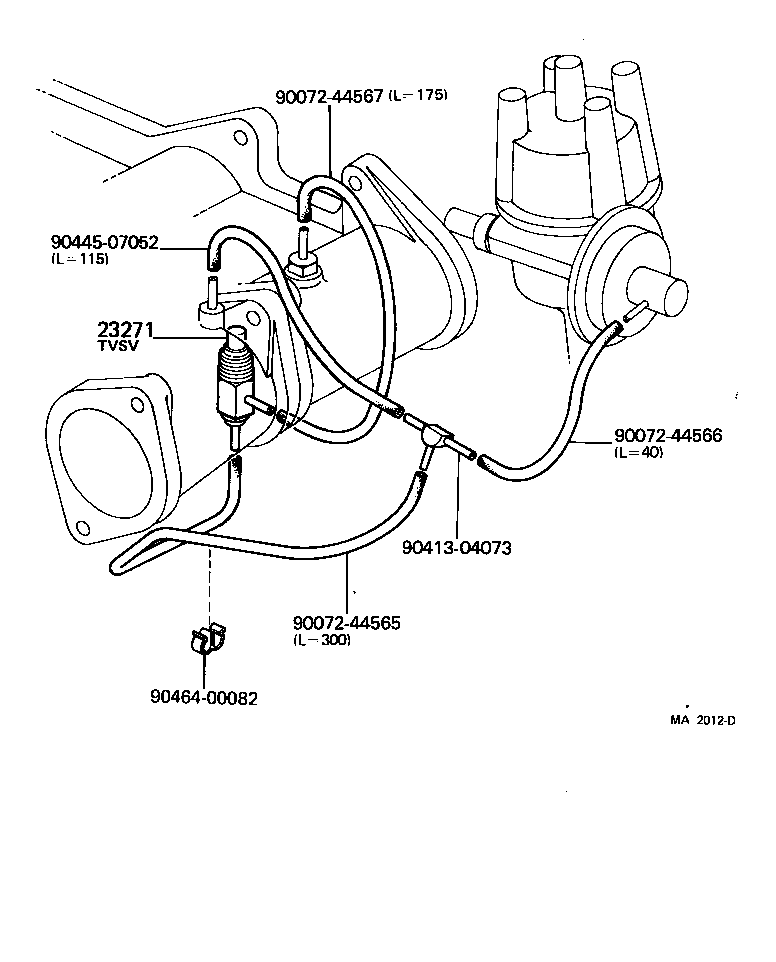

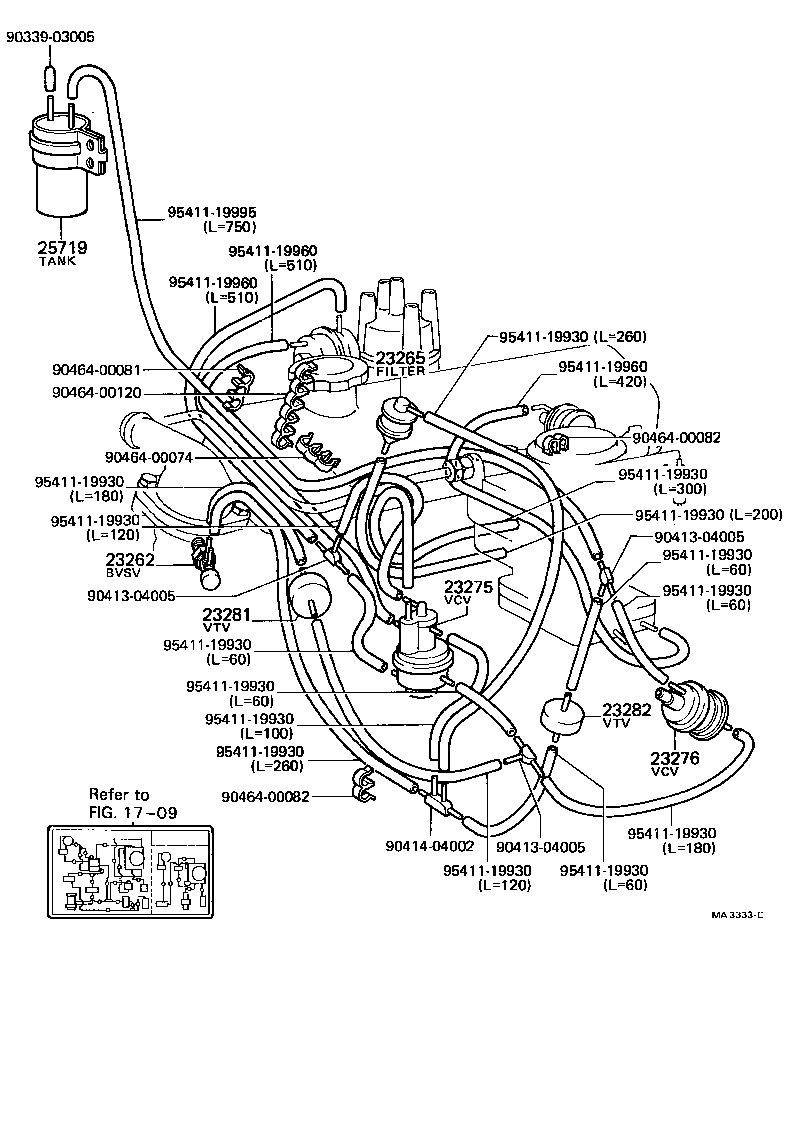

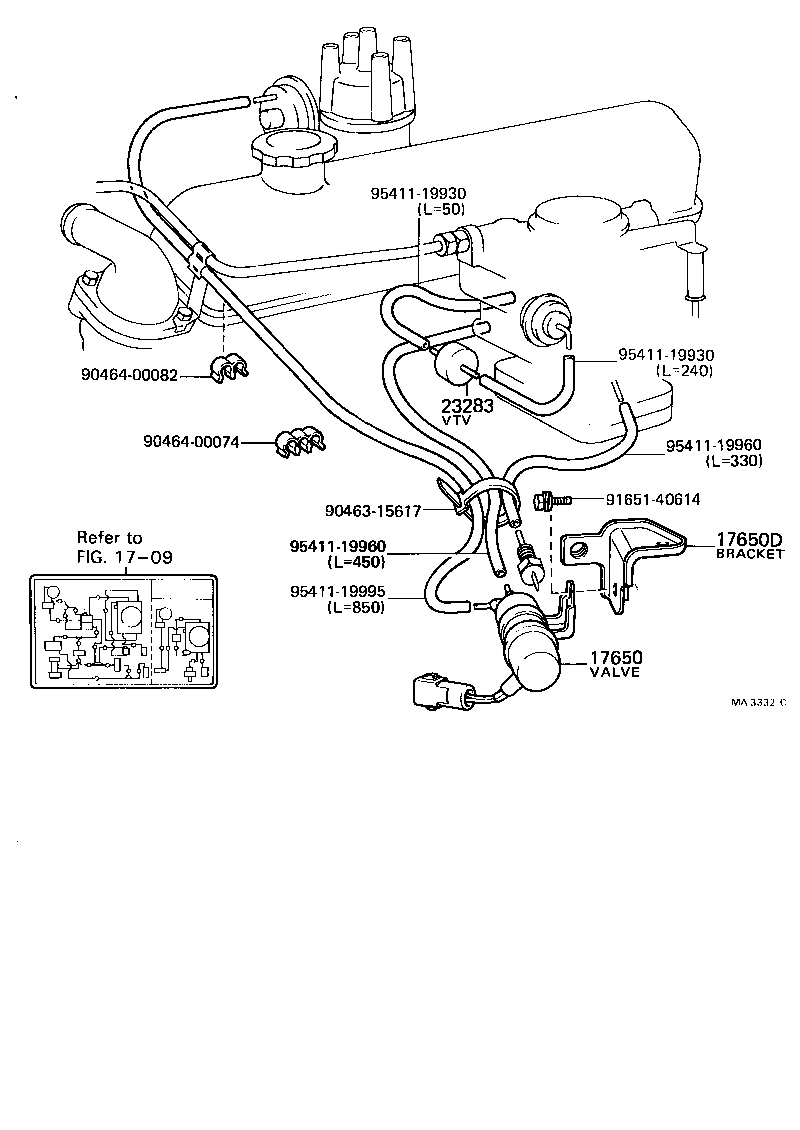

Figure MA9501 MA9501 1974-08 → — Figure MA1904C MA1904C 1975-08 → 1977-08 Figure MA3145B MA3145B 1977-08 → 1979-08 Figure MA2239C MA2239C 1975-11 → — Figure MA3332C MA3332C 1978-08 → 1980-12 Figure MA3333C MA3333C 1978-08 → 1980-12 Figure MA5138A MA5138A 1980-12 → — Figure MA9501 MA9501 1974-08 → — Figure MA3146 MA3146 1977-10 → 1979-08 Figure MA2256C MA2256C 1976-03 → 1979-08 Figure MA2012D MA2012D 1977-01 → 1979-02

Part groups

PNCDescription
17650 Valve Assy, Vacuum Switching
17650D Bracket, Vacuum Switching Valve
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23266 Filter, Gas, NO.2
23271 Valve, Thermostatic Vacuum Switching, NO.1
23275 Valve, Vacuum Control, NO.1
23276 Valve, Vacuum Control, NO.2
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23283 Valve, Vacuum Transmitting, NO.3
23288 Jet, NO.1
25719 Tank, Vacuum Surge
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
