Factory parts data · Europe

Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe

Discontinued model Data version 1981-12

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Carburetor Assembly

7 part groups · 7 illustrations

Illustrations

Figure MF1502

MF1502 1974-08 → —

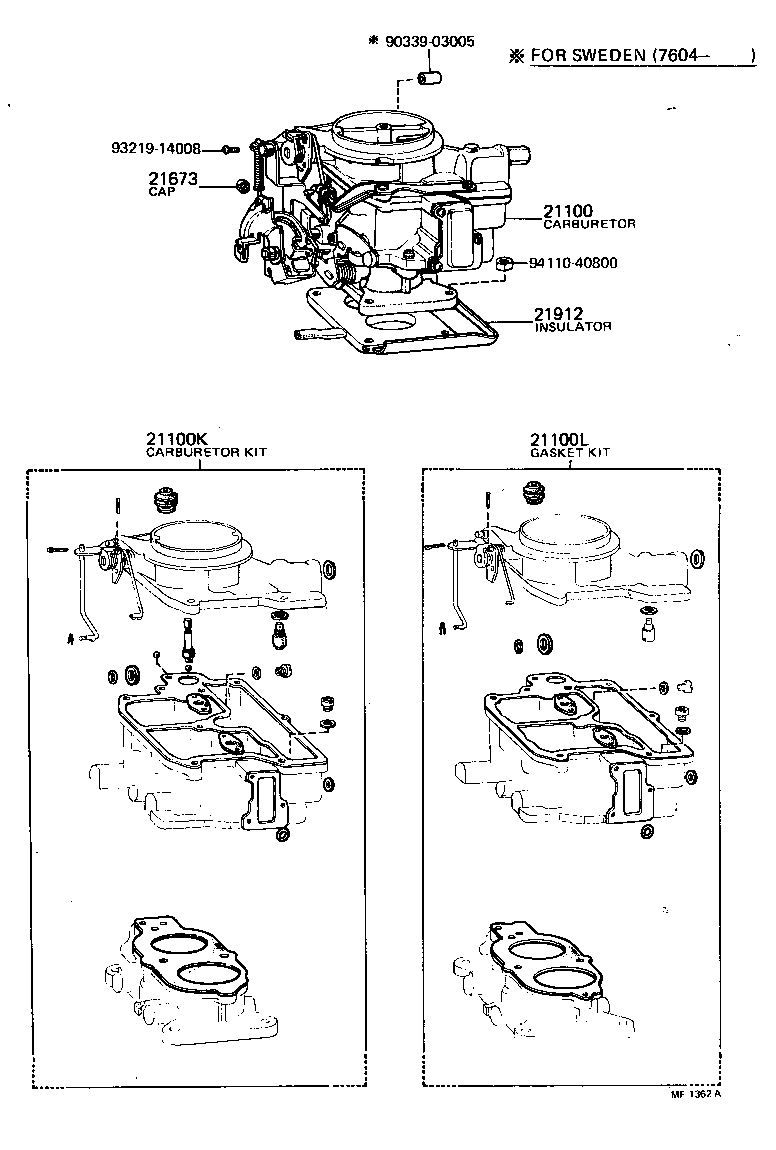

Figure MF1362A

MF1362A 1975-08 → —

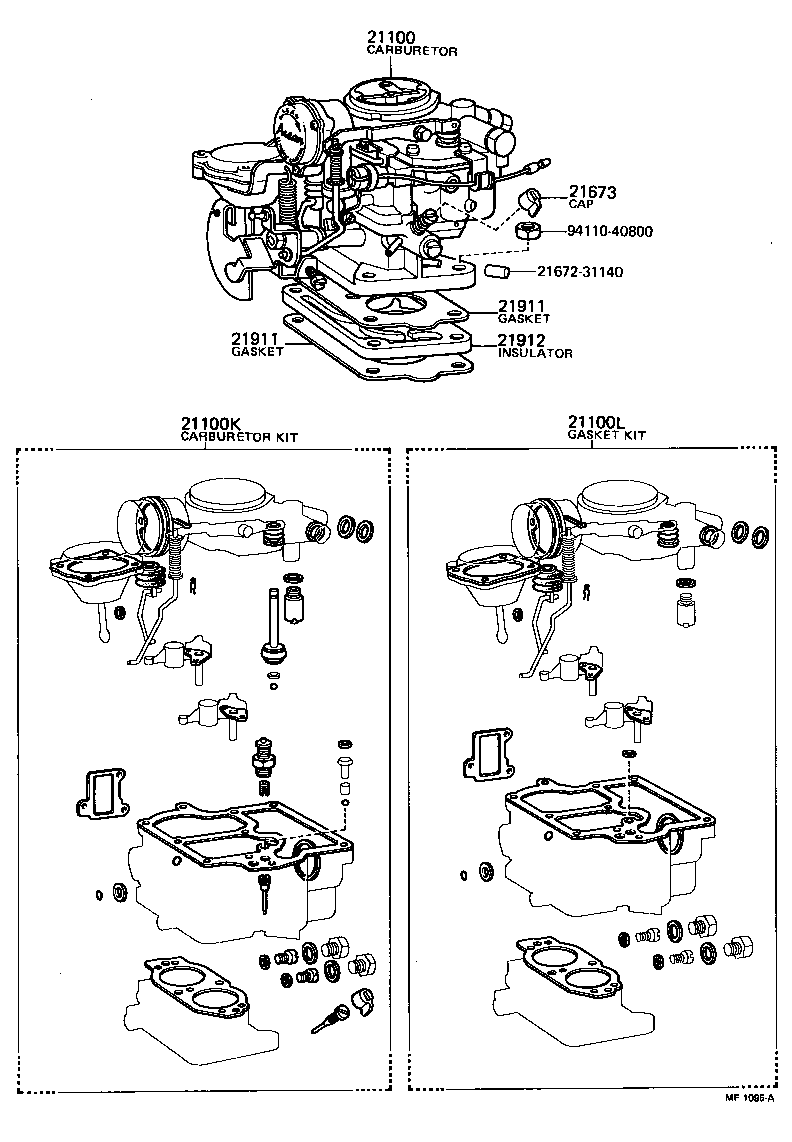

Figure MF1095A

MF1095A 1974-08 → 1975-11

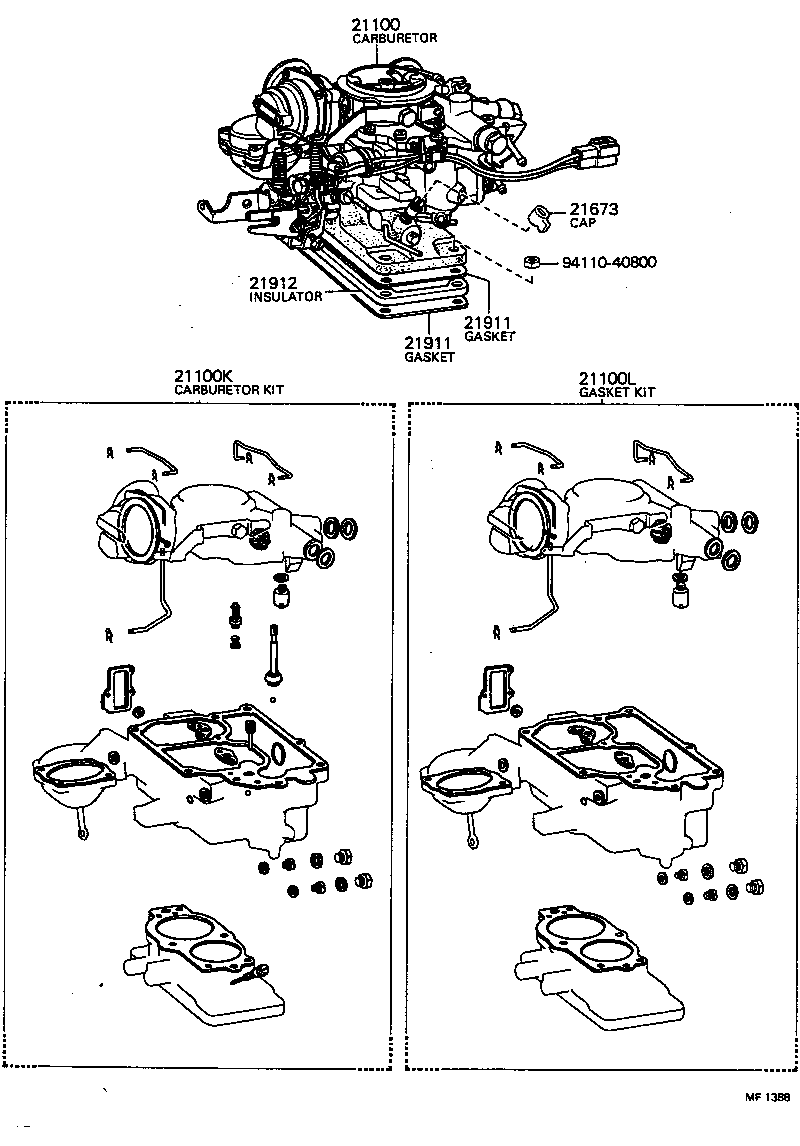

Figure MF1388

MF1388 1975-11 → 1980-04

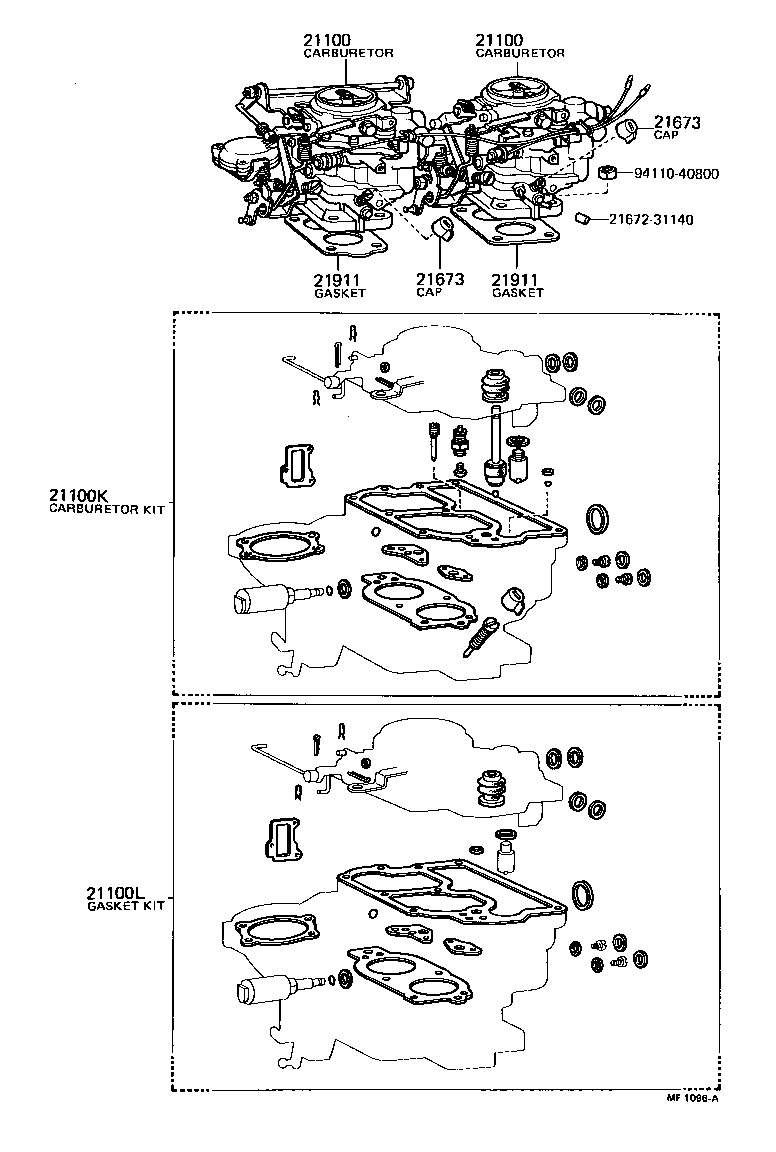

Figure MF1096A

MF1096A 1974-08 → 1975-11

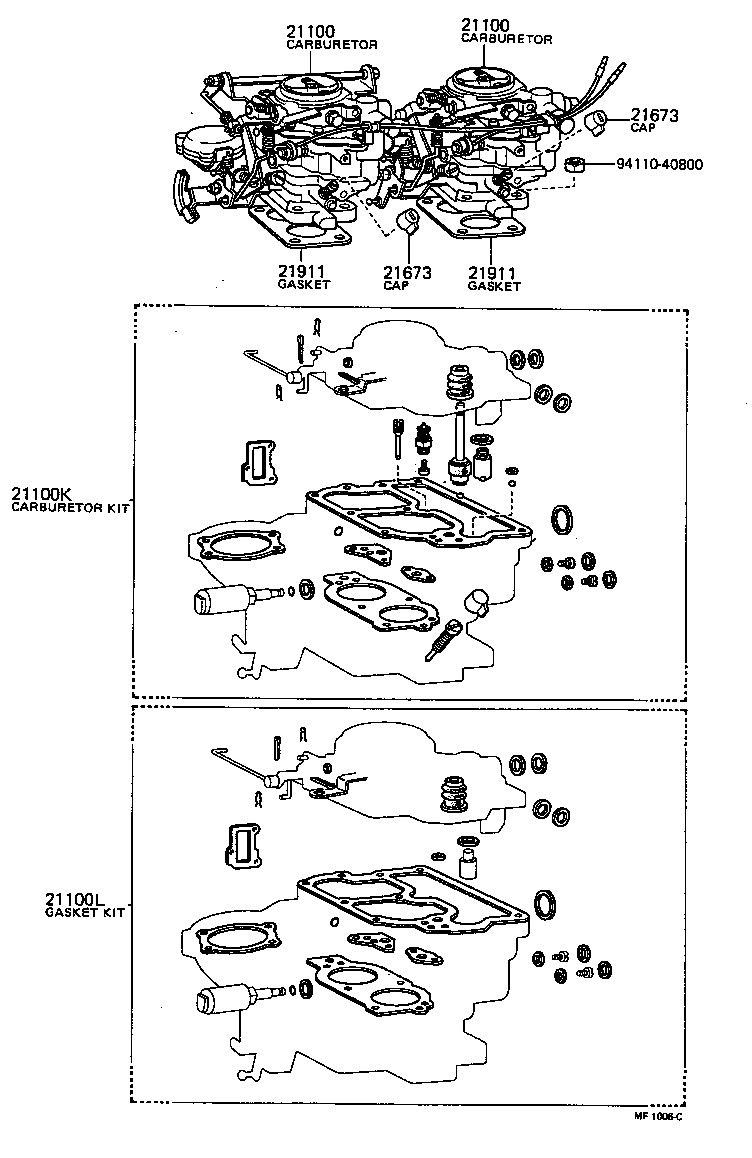

Figure MF1006C

MF1006C 1975-11 → 1980-04

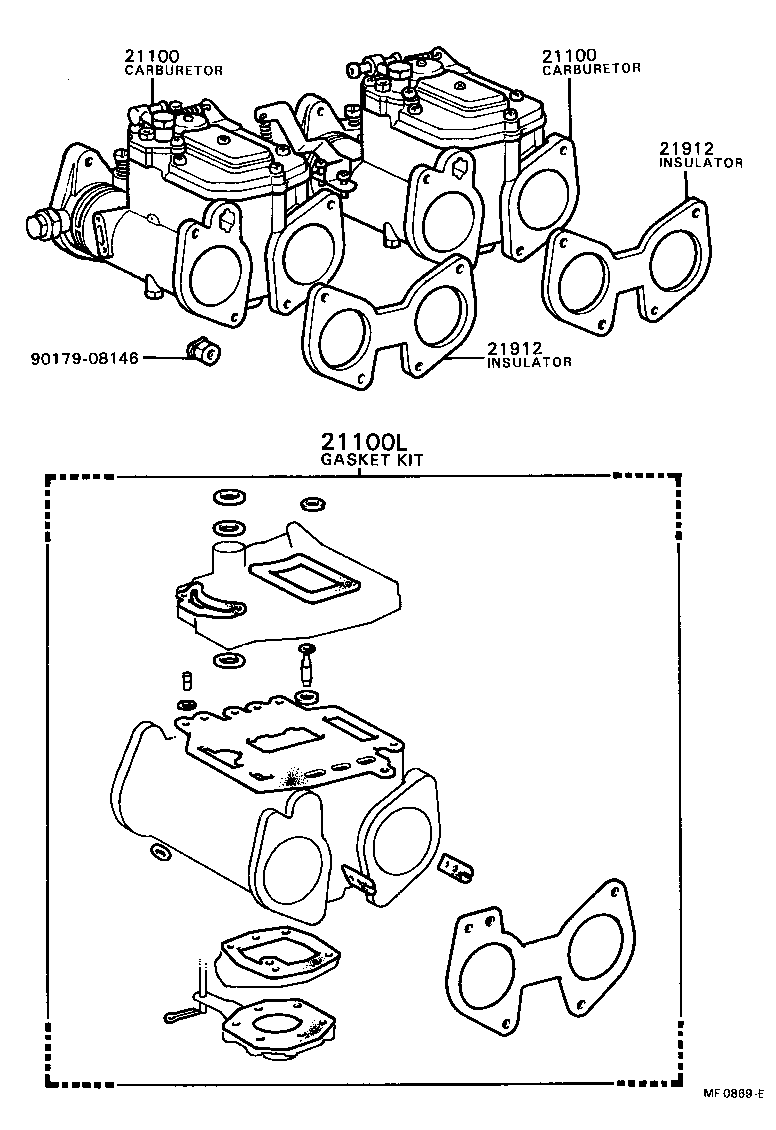

Figure MF0869E

MF0869E 1974-08 → 1979-02

Part groups

PNC	Description
21100	Carburetor Assy
21100K	Carburetor Kit
21100L	Gasket Kit, Carburetor
21392A	Clamp, Choke Wire
21673	Cap, Idle Limit
21911	Gasket, Carburetor
21912	Insulator, Carburetor Heat

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
