Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe

Discontinued model Data version 1981-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Carburetor

224 part groups · 14 illustrations

Illustrations

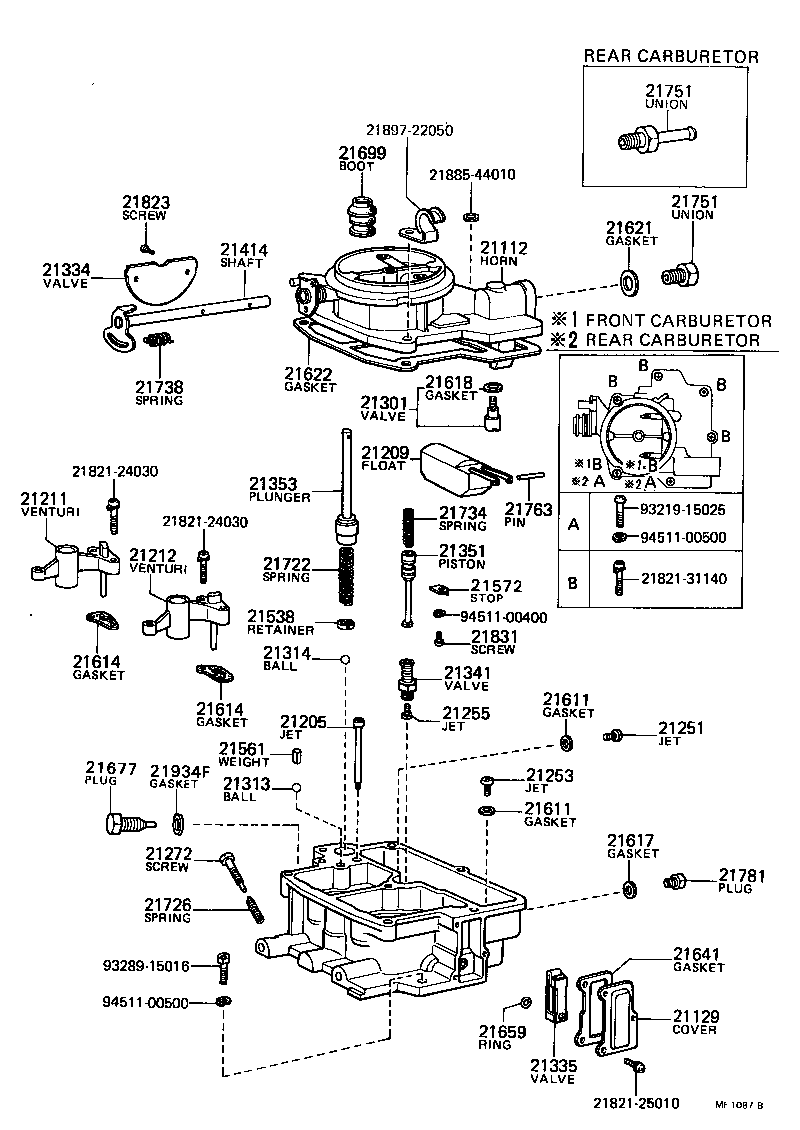

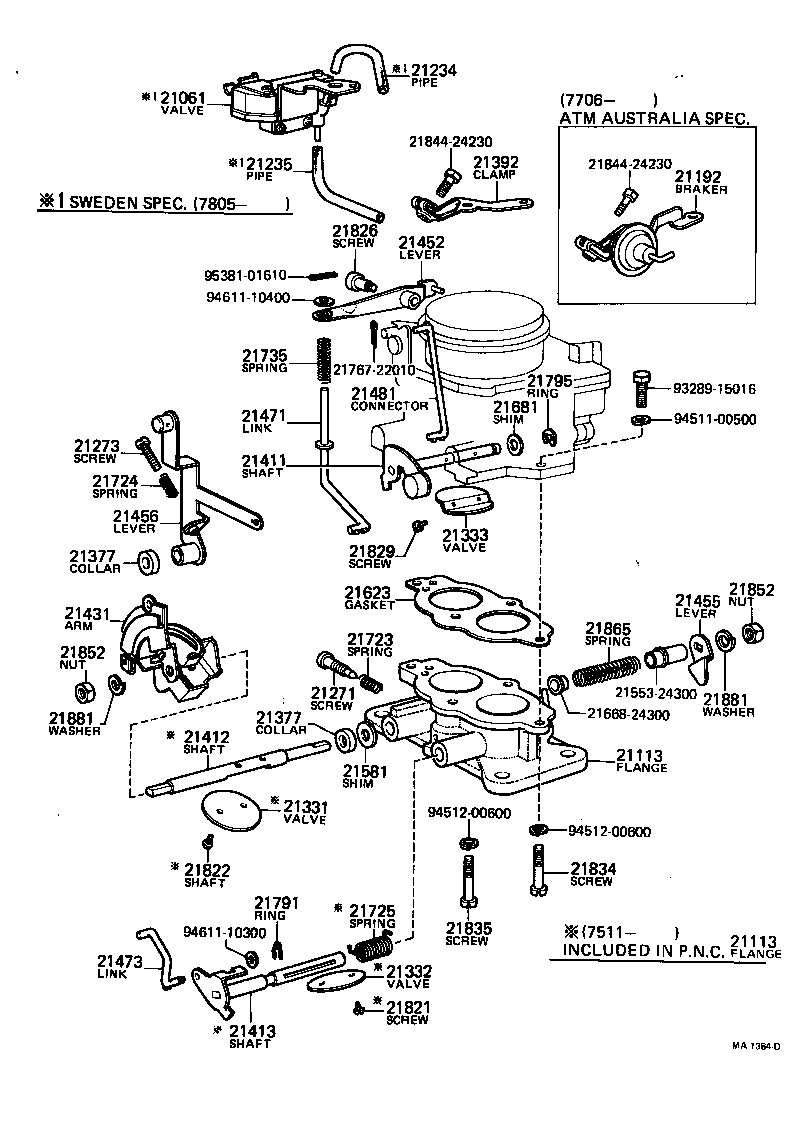

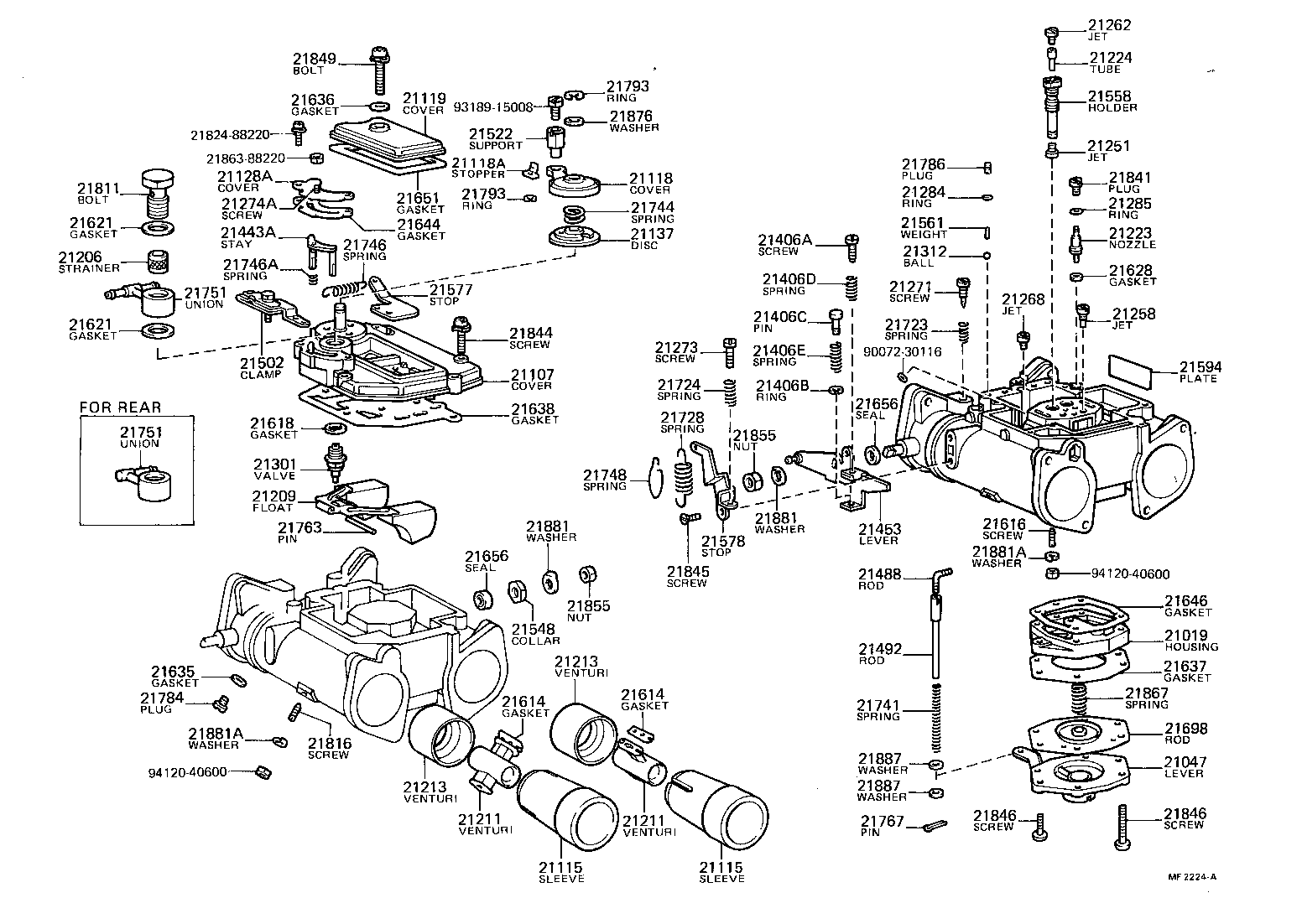

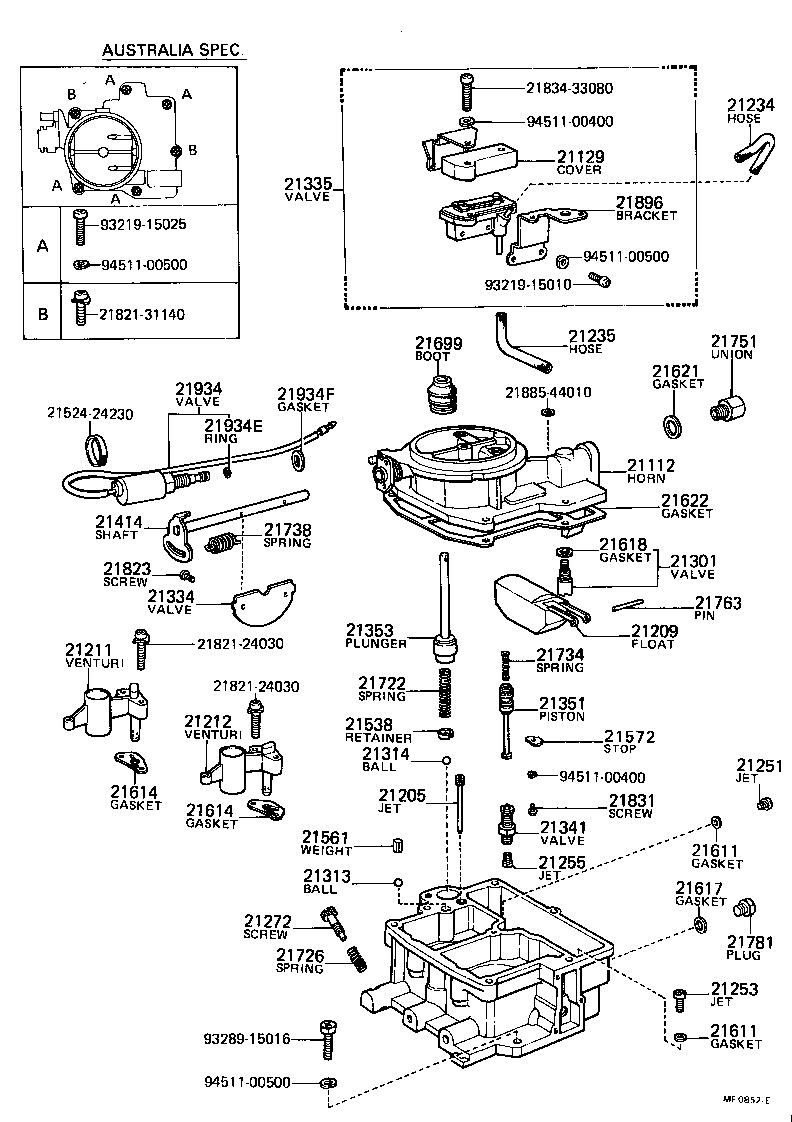

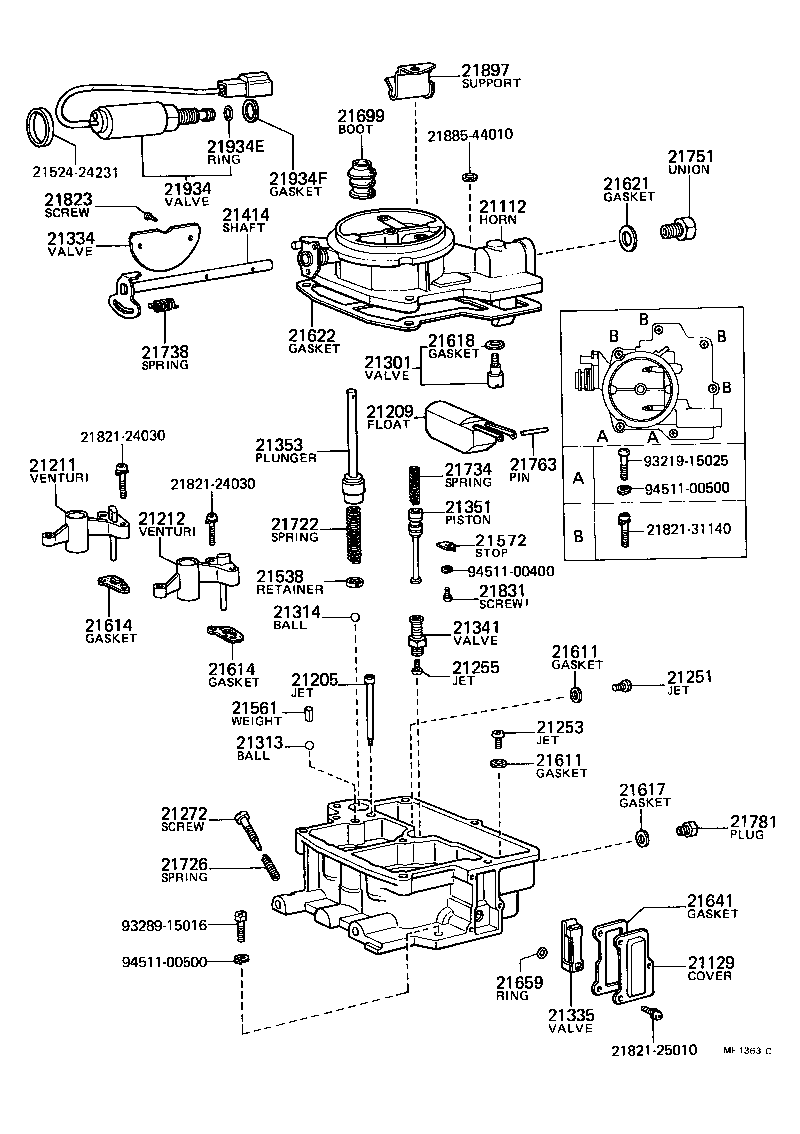

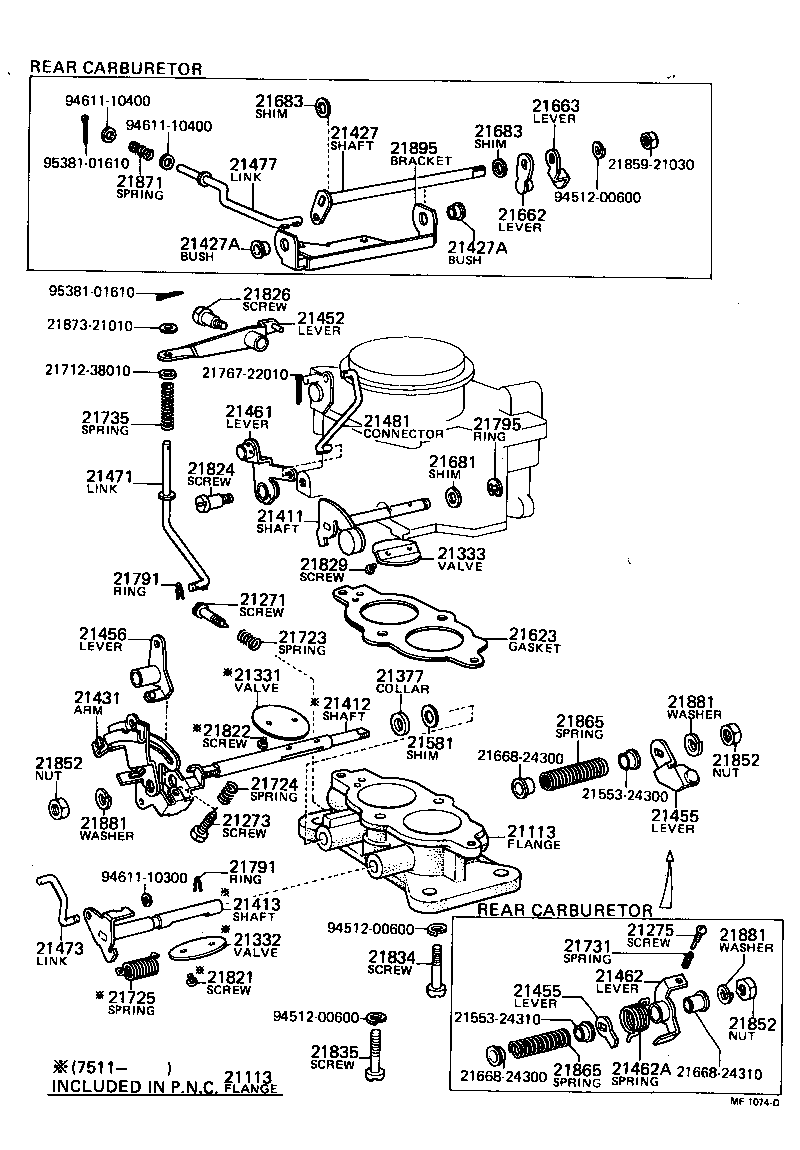

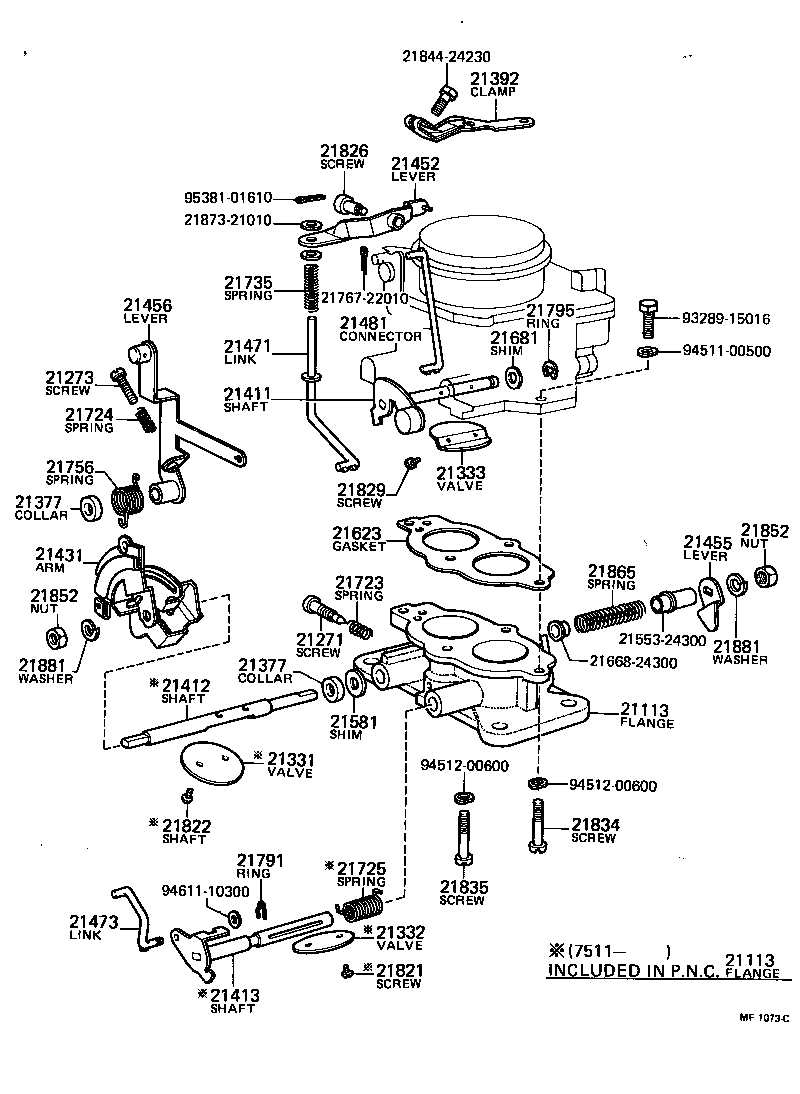

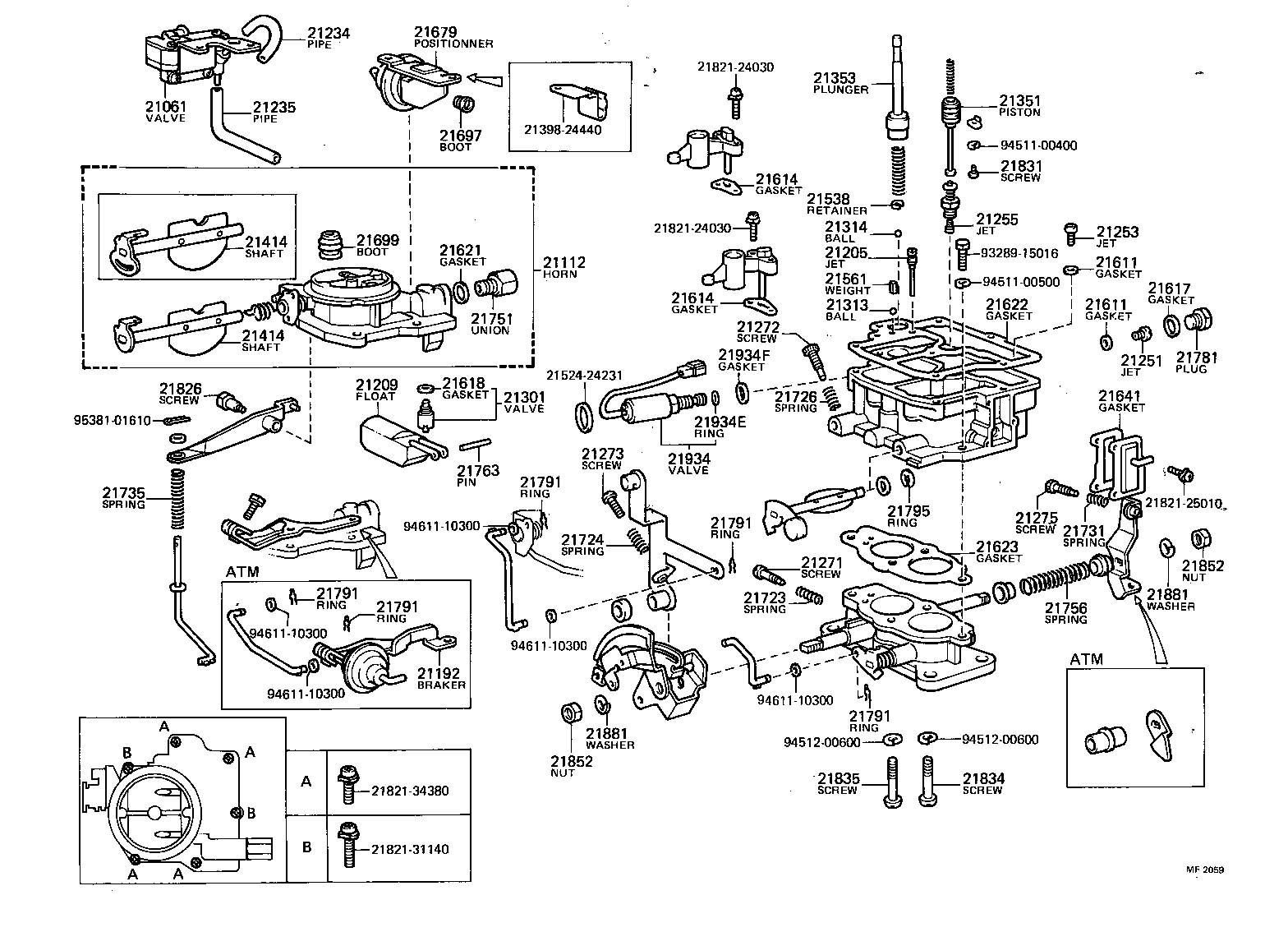

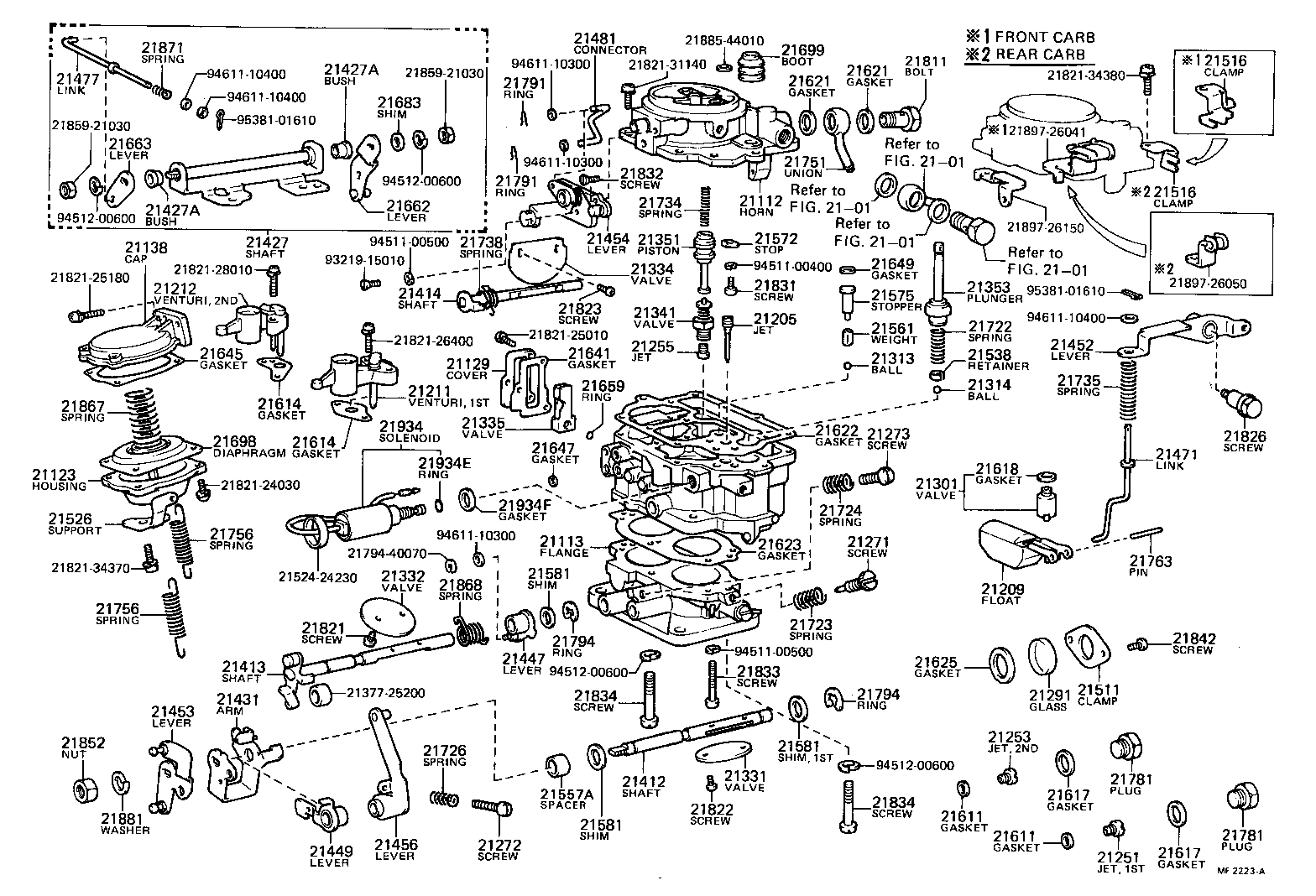

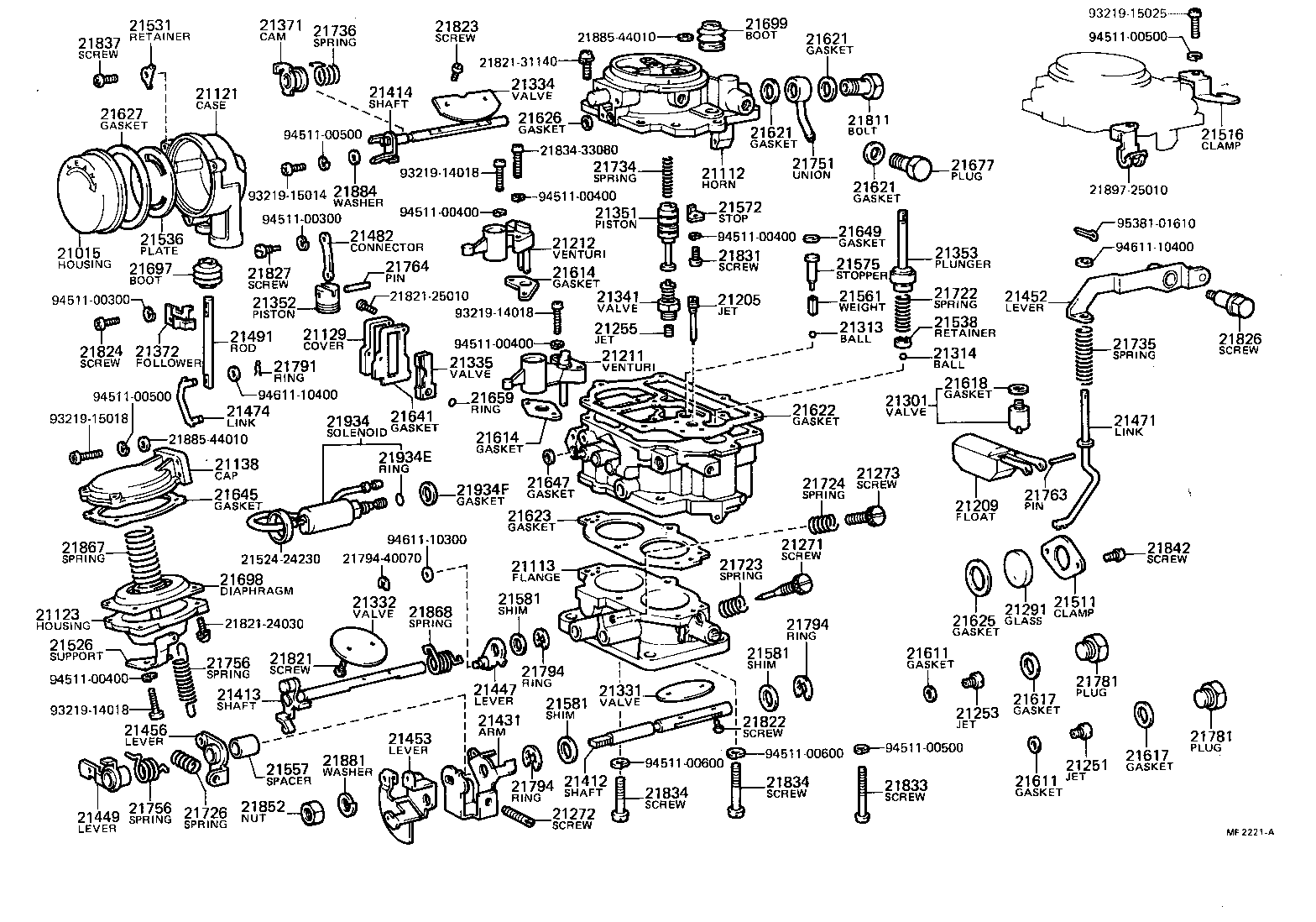

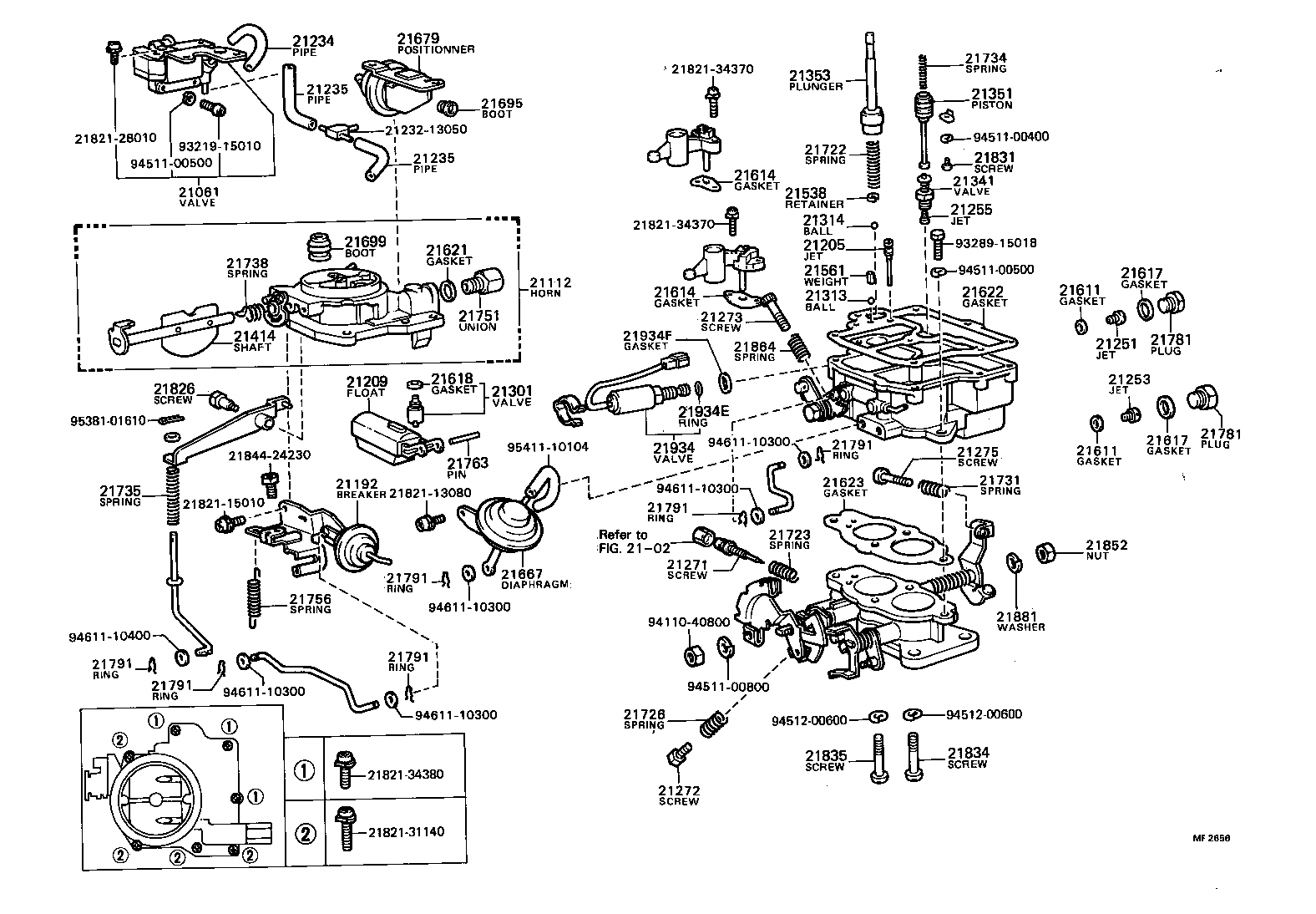

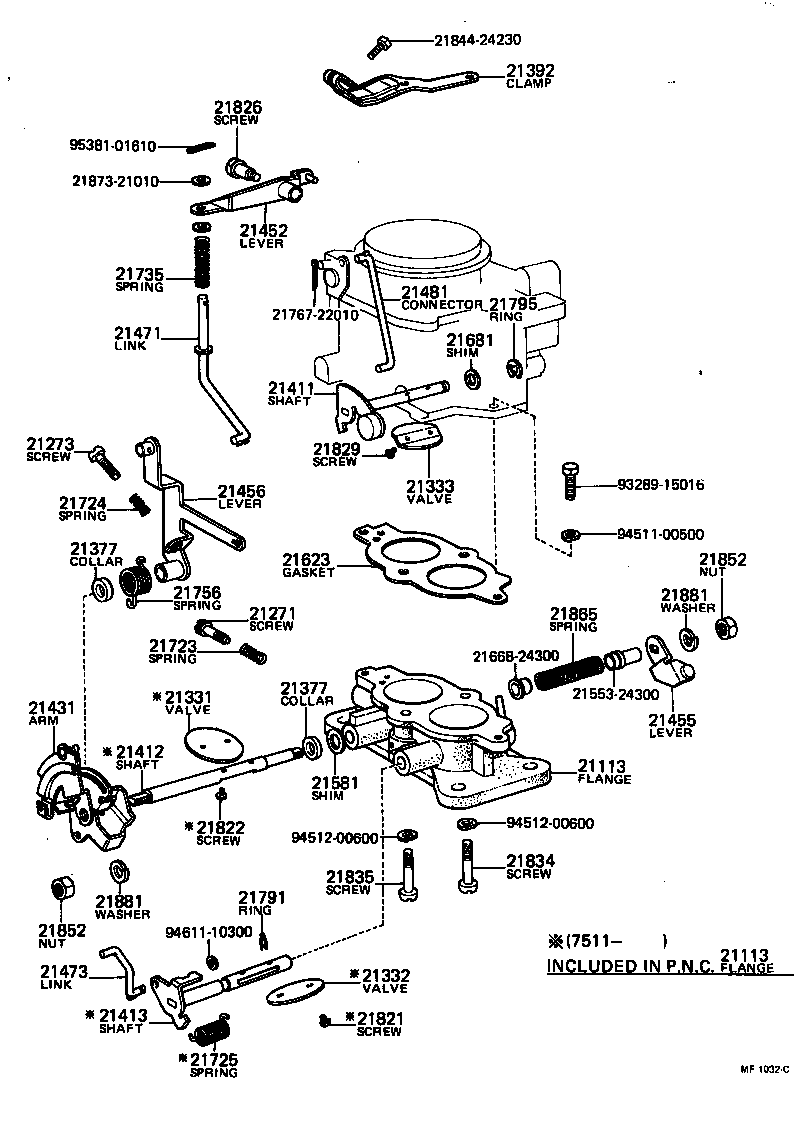

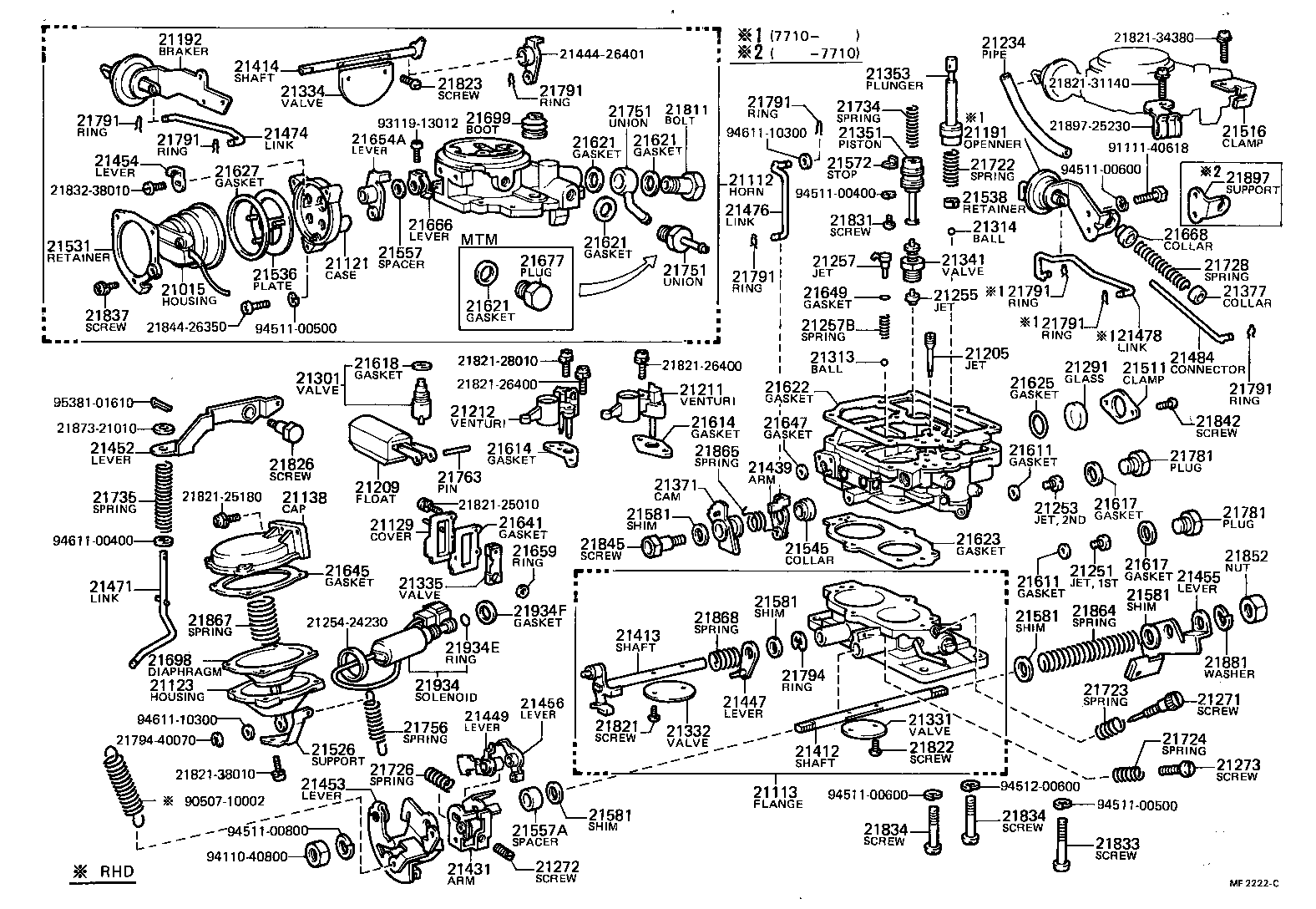

Figure MF1086B MF1086B 1974-08 → — Figure MF1073C MF1073C 1974-08 → — Figure MF0852E MF0852E 1974-08 → 1976-09 Figure MF1032C MF1032C 1974-08 → 1976-09 Figure MF1087B MF1087B 1974-08 → 1979-08 Figure MF1074D MF1074D 1974-08 → 1979-08 Figure MF1363C MF1363C 1975-08 → 1979-08 Figure MA1364D MA1364D 1975-08 → 1979-08 Figure MF2059 MF2059 1978-08 → 1980-12 Figure MF2656 MF2656 1980-12 → — Figure MF2221A MF2221A 1974-08 → 1975-11 Figure MF2222C MF2222C 1975-11 → 1980-04 Figure MF2223A MF2223A 1974-08 → 1980-04 Figure MF2224A MF2224A 1974-08 → 1979-02

Part groups

PNCDescription
21015 Housing Sub-assy, Coil
21019 Housing Sub-assy, Diaphragm
21047 Lever Sub-assy, Pump
21061 Valve Sub-assy, Thermostatic
21107 Cover Sub-assy, Bowl
21112 Horn, Air
21113 Flange, Carburetor
21115 Sleeve, Carburetor
21118 Cover, Carburetor Starter
21118A Stopper, Fast Idle
21119 Cover, Jet Chamber
21121 Case, Thermostat
21123 Housing, Diaphragm
21128A Cover, Float Adjust Chamber
21129 Cover(FOR THERMOSTATIC VALVE)
21137 Disc, Carburetor Starter
21138 Cap, Diaphragm
21191 Opener
21192 Breaker
21205 Jet Sub-assy, Slow
21206 Strainer Sub-assy
21209 Float Sub-assy
21211 Venturi, 1ST Small
21212 Venturi, 2ND Small
21213 Venturi, 1ST Large
21223 Nozzle, Pump
21224 Tube, Main Air Bleed
21234 Pipe OR Hose
21235 Pipe OR Hose, Connecting
21251 Jet, 1ST Main
21253 Jet, 2ND Main
21255 Jet, Power
21257 Jet, Pump
21257B Spring(FOR PUMP JET)
21258 Jet, Slow
21262 Jet, Main Air Bleed
21268 Jet, Starter
21271 Screw, Idle Adjusting
21272 Screw, 1ST Idle Adjusting
21273 Screw, Throttle Adjusting
21274A Screw, Float Adjust
21275 Screw, Adjusting
21284 Ring, O(FOR PASSAGE PLUG)
21285 Ring, O(FOR PUMP NOZZLE PLUG)
21291 Glass, Level Gage
21301 Valve Sub-assy, Needle
21312 Ball, Steel
21313 Ball, Steel, NO.1(FOR DISCHARGE WEIGHT)
21314 Ball, Steel, NO.2(FOR PUMP PLUNGER)
21331 Valve, 1ST Throttle
21332 Valve, 2ND Throttle
21333 Valve, High Speed
21334 Valve, Choke
21335 Valve, Thermostatic
21341 Valve, Power
21351 Piston, Power
21352 Piston, Vacuum
21353 Plunger, Pump
21371 Cam, 1ST Idle
21372 Follower, 1ST Idle Cam
21377 Collar(FOR 2ND THROTTLE SHAFT)
21392 Clamp, Choke Wire
21406A Screw, 1ST Throttle
21406B Ring, E(FOR 1ST THROTTLE)
21406C Pin, 1ST Throttle
21406D Spring, Compression, NO.1(FOR 1ST THROTTLE)
21406E Spring, Compression, NO.2 (FOR 1ST THROTTLE)
21411 Shaft, High Speed
21412 Shaft, 1ST Throttle
21413 Shaft, 2ND Throttle
21414 Shaft, Choke
21427 Shaft, Choke Connector
21427A Bush, Shaft Choke Connector
21431 Arm, 1ST Throttle Shaft
21439 Arm, 1ST Idle
21443A Stay, Float Adjust
21447 Lever, Diaphragm
21449 Lever, 2ND Kick
21452 Lever, Pump
21453 Lever, 1ST Throttle
21454 Lever, Choke
21455 Lever, Throttle
21456 Lever, 1ST Throttle Idle Adjusting, NO.1
21461 Lever, 1ST Idle
21462 Lever, Slow Adjusting
21462A Screw, Slow Adjusting
21471 Link, Pump Connecting
21473 Link, Throttle Shaft
21474 Link, Connecting
21476 Link, 1ST Idle
21477 Link, Choke Lever
21478 Link, Connecting
21481 Connector, 1ST Idle
21482 Connector, Piston
21484 Connector(FOR OPENER)
21488 Rod, Diaphragm Connecting
21491 Rod, Sliding
21492 Rod, Pump
21502 Clamp Sub-assy, Choke Wire
21511 Clamp, Level Gage
21516 Clamp, Connector
21522 Support, Wire
21526 Support, Back Spring
21531 Retainer, Coil Housing
21536 Plate, Coil Housing
21538 Retainer, Ball Check
21545 Collar, 1ST Idle Cam
21548 Collar, Throttle Lever
21557 Spacer(FOR 1ST IDLE CAM)
21557A Spacer, NO.2
21558 Holder, Main Jet
21561 Weight, Pump Discharge
21572 Stop, Power Piston
21575 Stopper, B(FOR DISCHARGE WEIGHT)
21577 Stop, Starter Back Spring
21578 Stop, Throttle Return Spring
21581 Shim, 1ST Throttle Shaft
21594 Plate, Float Chamber
21611 Gasket, Main Jet
21614 Gasket, Venturi
21616 Screw, Small Venturi Set
21617 Gasket, Main Passage Plug
21618 Gasket, Needle Valve Seat
21621 Gasket, Union Nipple
21622 Gasket, Air Horn
21623 Gasket, Body Flange
21625 Gasket, Level Gage
21626 Gasket, Case
21627 Gasket, Coil Housing
21628 Gasket, Pump Jet Screw
21635 Gasket, Slow Passage Plug
21636 Gasket, Float Chamber Plug
21637 Gasket, Pump Cylinder
21638 Gasket, Bowl Lever
21641 Gasket(FOR THERMOSTATIC VALVE COVER)
21644 Gasket, Float Adjust Chamber Cover
21645 Gasket, Diaphragm, Cap
21646 Gasket, Diaphragm Housing, NO.1
21647 Gasket, Diaphragm Housing Cap
21649 Gasket(FOR PUMP DISCHARGE WEIGHT STOPPER)
21651 Gasket, Jet Chamber Cover
21654A Lever, Relief
21656 Seal, Throttle Shaft
21659 Ring, O(FOR THERMOSTATIC VALVE)
21662 Lever, Choke Connector Shaft, NO.1
21663 Lever, Choke Connector Shaft, NO.2
21666 Lever, Throttle Shaft
21667 Diaphragm
21668 Collar
21677 Plug
21679 Positioner
21681 Shim(FOR HIGH SPEED SHAFT)
21683 Shim, Choke Connector Shaft
21695 Boot(FOR DASH POT)
21697 Boot(FOR SLIDING ROD)
21698 Diaphragm
21699 Boot(FOR PUMP PLUNGER)
21722 Spring, Pump Damping
21723 Spring, Idle Adjusting
21724 Spring, Throttle Adjusting
21725 Spring, 2ND Throttle Back
21726 Spring, 1ST Idle Adjusting
21728 Spring, Throttle Valve Return
21731 Spring, Dash Pot OR Positioner Adjusting
21734 Spring, Power Piston
21735 Spring, Pump Arm
21736 Spring, 1ST Idle Cam
21738 Spring, Choke Valve Relief
21741 Spring, Pump
21744 Spring, Carburetor Starter Disc
21746 Spring, Starter Back
21746A Spring, Float Adjust
21748 Damper, Throttle Return Spring
21751 Union, Nipple
21756 Spring, Back(FOR THROTTLE SHAFT)
21763 Pin, Float Lever
21764 Pin, Piston(FOR VACUUM PISTON)
21767 Pin, Diaphragm Rod
21781 Plug, Main Passage(FOR CARBURETOR JET)
21784 Plug, Slow Passage
21786 Plug, Pump Passage
21791 Ring, Snap, NO.1(FOR CARBURETOR LINK)
21793 Ring, Carburetor Starter Snap
21794 Ring, Retainer, NO.1(FOR THROTTLE SHAFT)
21795 Ring, Retainer, NO.2(FOR HIGH SPEED SHAFT)
21811 Bolt, Union Nipple
21816 Screw, Small Venturi Set, NO.1
21821 Screw, 2ND Throttle Valve Set
21822 Screw, 1ST Throttle Valve Set
21823 Screw, Choke, Valve Set
21824 Screw, Set(FOR 1ST IDLE CAM FOLLOWER SET)
21826 Screw, Pump Arm Set
21827 Screw, Connector Set
21829 Screw, High Speed Valve Set
21831 Screw, Power Piston Stop
21832 Screw(FOR CHOKE LEVER ADAPTER SET)
21833 Screw, Set, NO.1(FOR CARBURETOR BODY SET)
21834 Screw, Set, NO.2(FOR CARBURETOR BODY SET)
21835 Screw, Set, NO.3(FOR CARBURETOR BODY SET)
21837 Screw, Coil Housing Set
21841 Plug, Pump Nozzle
21842 Screw, Set(FOR CARBURETOR LEVEL GAGE CLAMP SET)
21844 Screw, Choke Lever
21845 Screw(FOR LEVER SET)
21846 Screw, Diaphragm Housing Set
21849 Bolt, Chamber Cover Wing
21852 Nut, Throttle Lever Set
21855 Nut, Throttle Shaft
21864 Spring(FOR 1ST THROTTLE ARM)
21865 Spring
21867 Spring, Diaphragm
21868 Spring, Diaphragm Relief
21871 Spring, Choke Connecting Link
21876 Washer, Carburetor Starter
21881 Washer, Lock(FOR THROTTLE SHAFT)
21881A Washer, Lock, NO.2
21884 Washer, Thermostat Case Set
21887 Washer(FOR CONNECTING LINK SETTING)
21895 Bracket, Choke Connector Shaft
21896 Bracket, Thermostatic Valve
21897 Support, Front(FOR CHOKE SHAFT)
21934 Solenoid, Throttle Valve
21934E Ring, O(FOR SOLENOID VALVE)
21934F Gasket
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
