Fuel Pump & Pipe

13 part groups · 4 illustrations

Illustrations

Figure MF8026B

MF8026B 1974-08 → 1979-11

Figure MF2249

MF2249 1979-11 → —

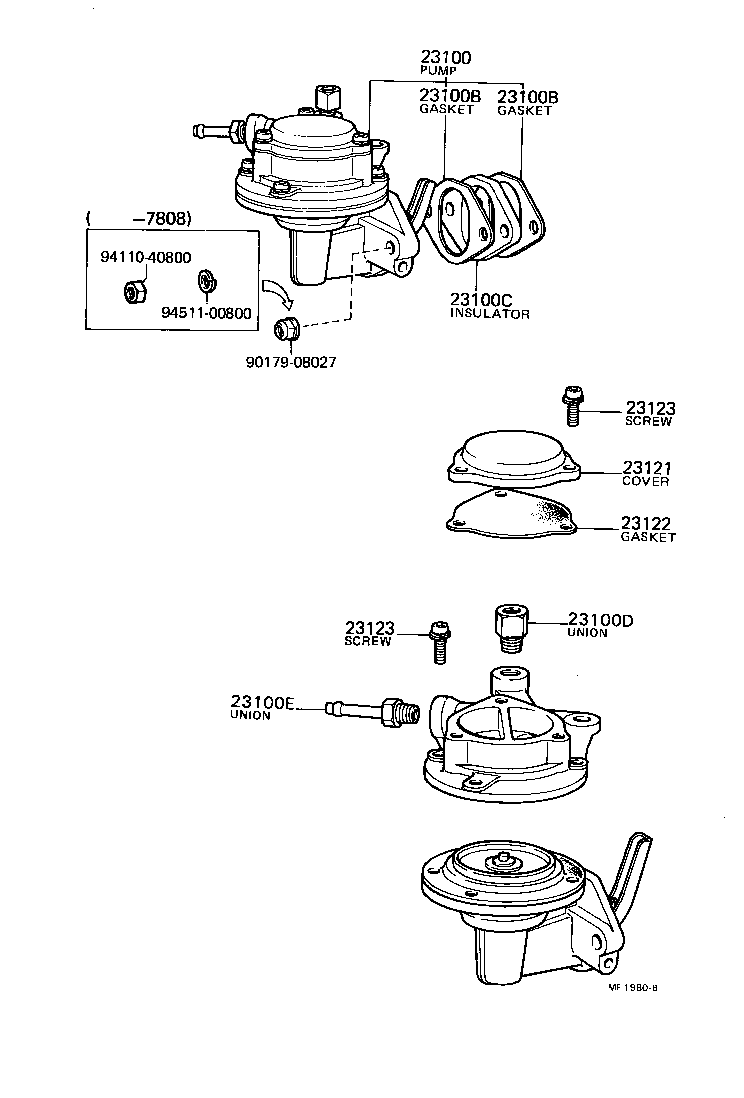

Figure MF1980B

MF1980B 1978-08 → —

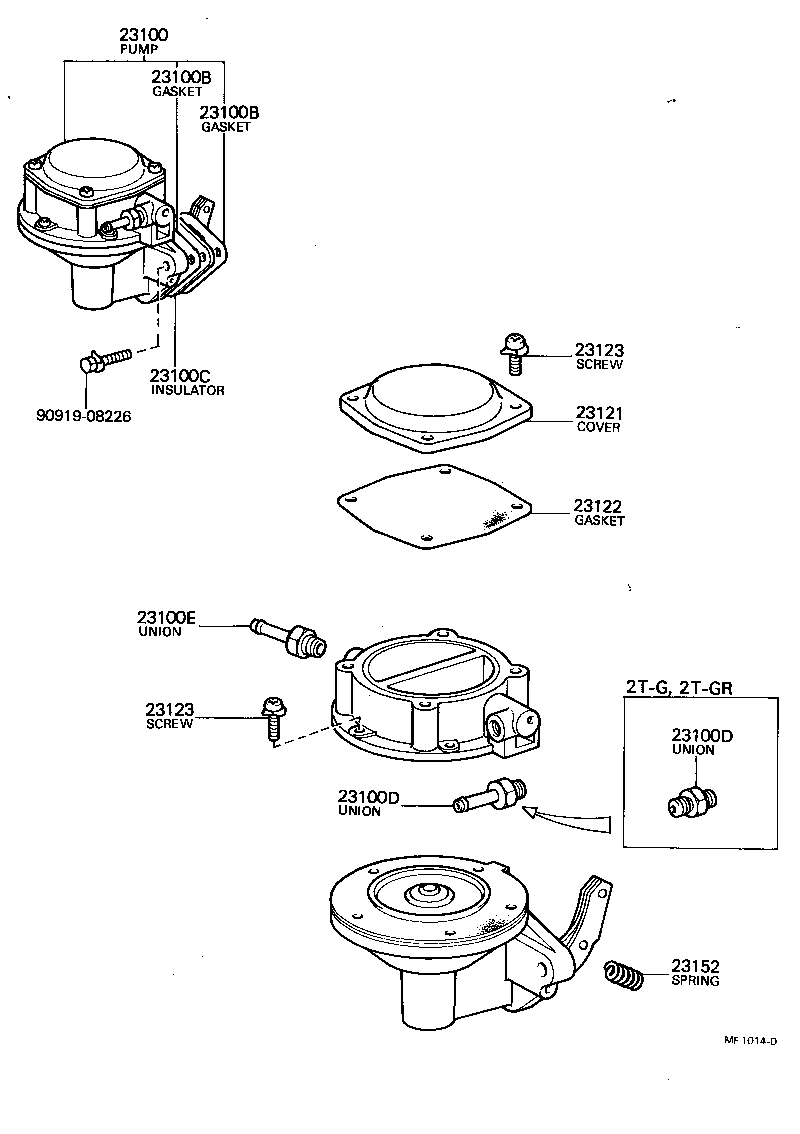

Figure MF1014D

MF1014D 1974-08 → 1980-04

Part groups

PNC	Description
23100	Pump Assy, Fuel
23100B	Gasket, Fuel Pump
23100C	Insulator, Fuel Pump
23100D	Union, Nipple(FOR FUEL OUTLET)
23100E	Union, Nipple(FOR FUEL INLET)
23104	Valve Sub-assy
23121	Cover, Fuel Pump
23122	Gasket, Fuel Pump Cover
23123	Screw, Cover Set, NO.1
23141	Packing, Valve
23142	Retainer, Valve
23143	Screw, Valve Retainer Set
23152	Spring, Rocker Arm

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
