Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe

Discontinued model Data version 1981-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Housing & Transmission Case (MTM)

30 part groups · 6 illustrations

Illustrations

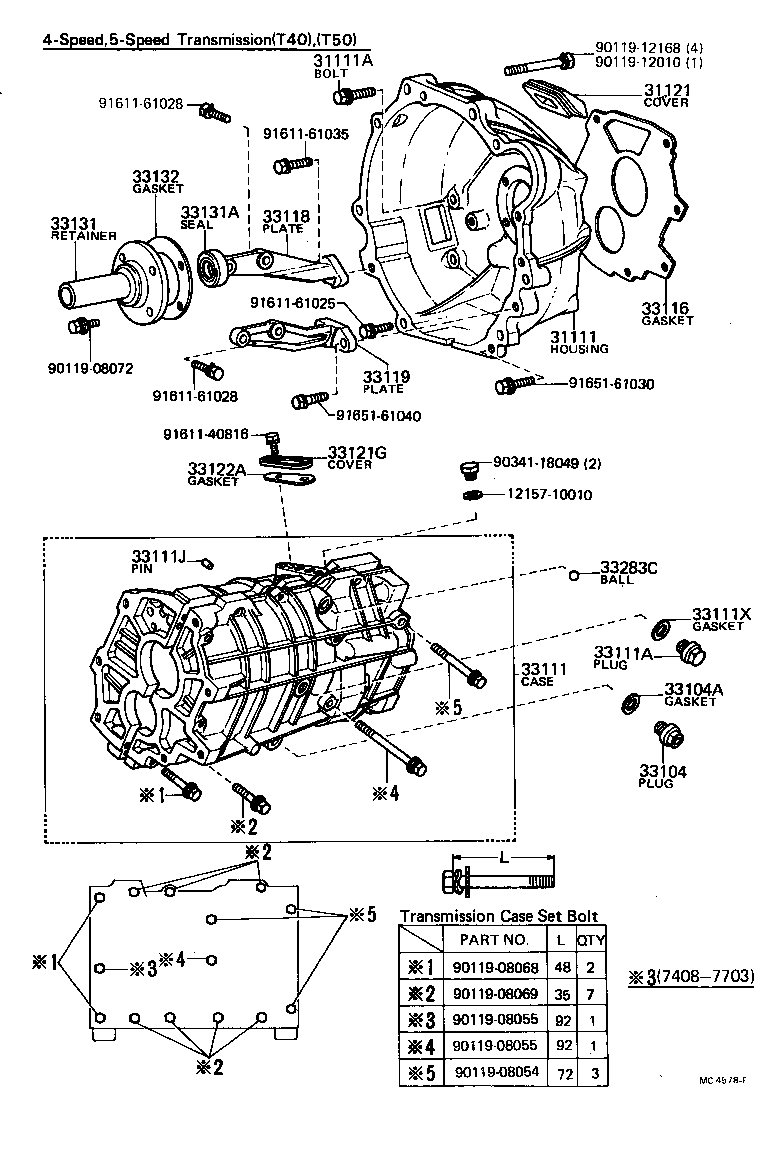

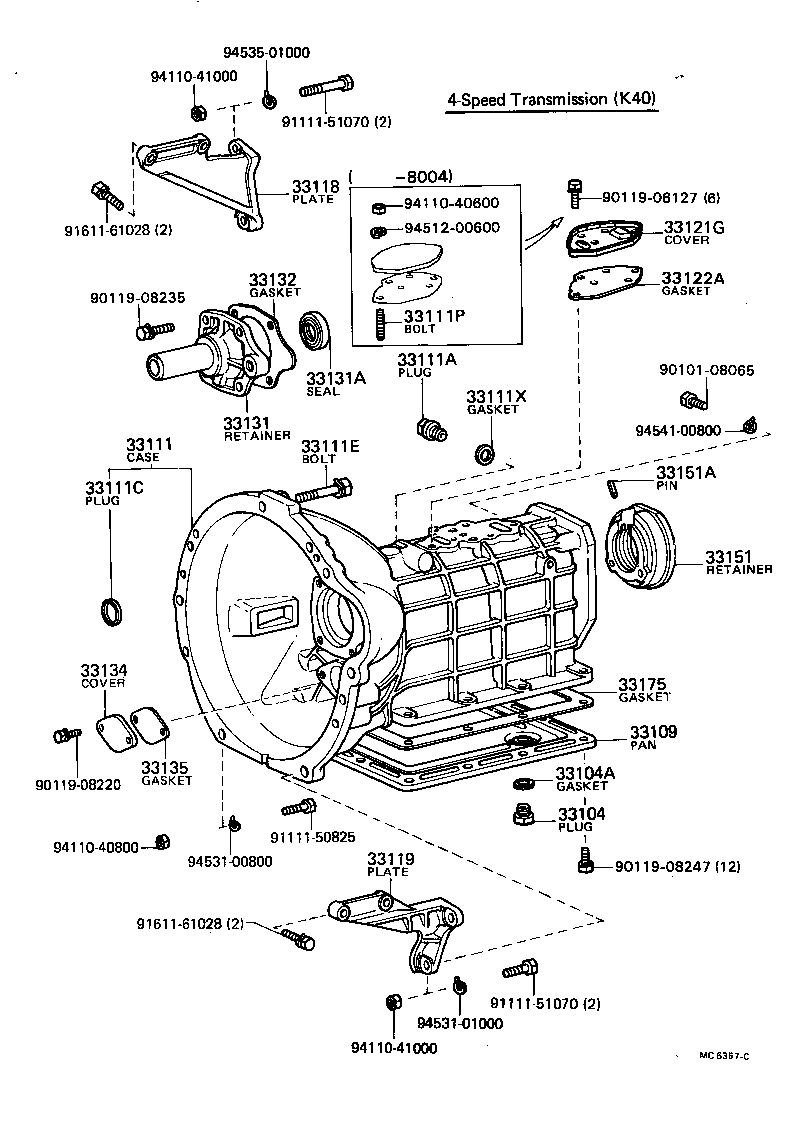

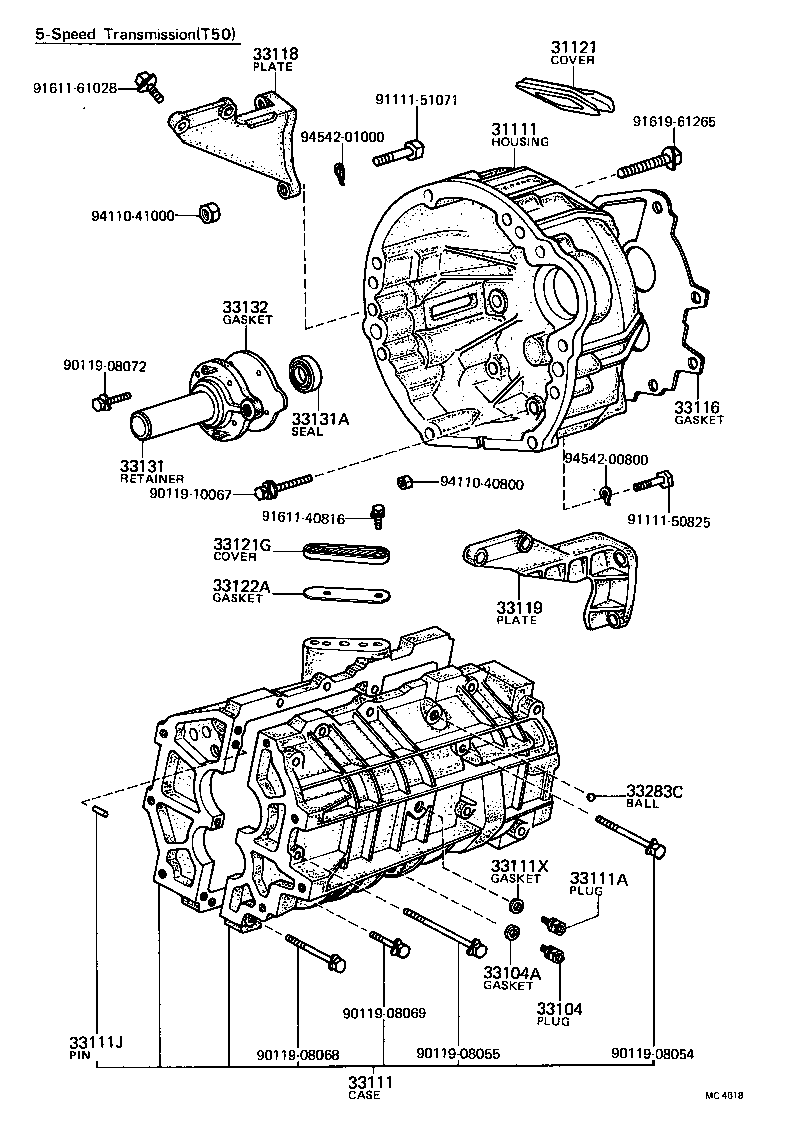

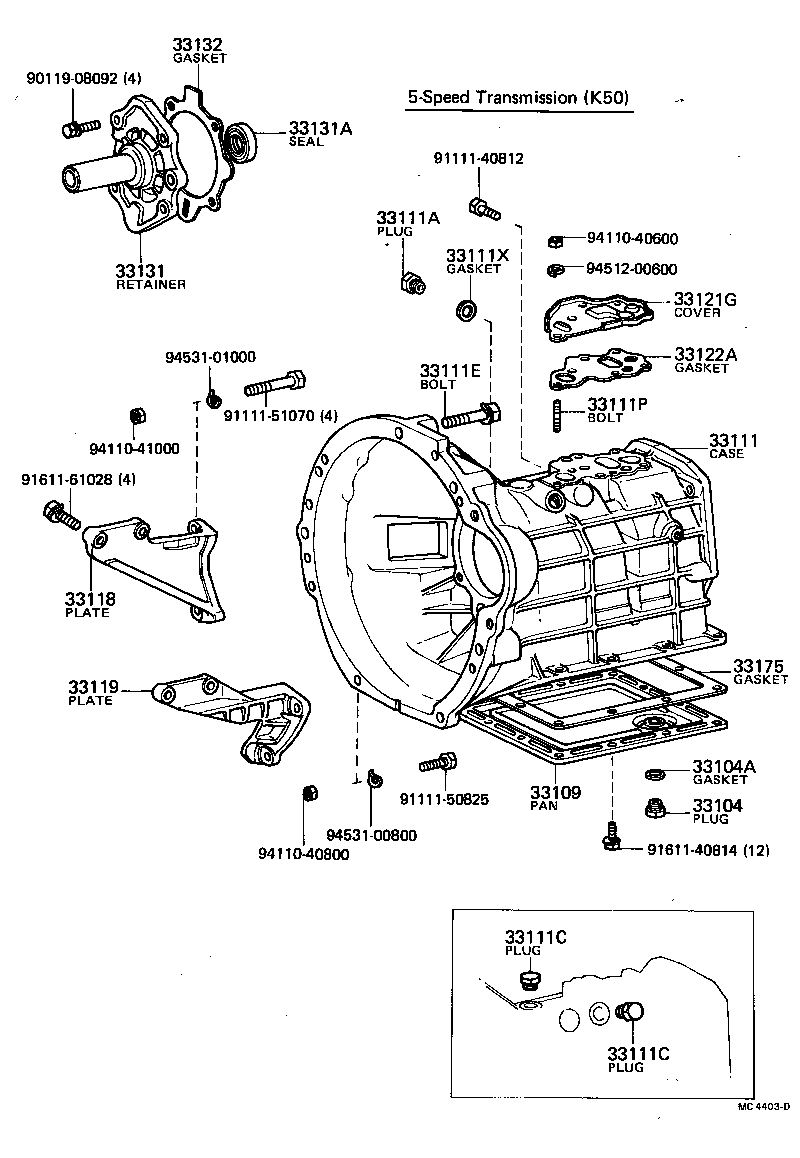

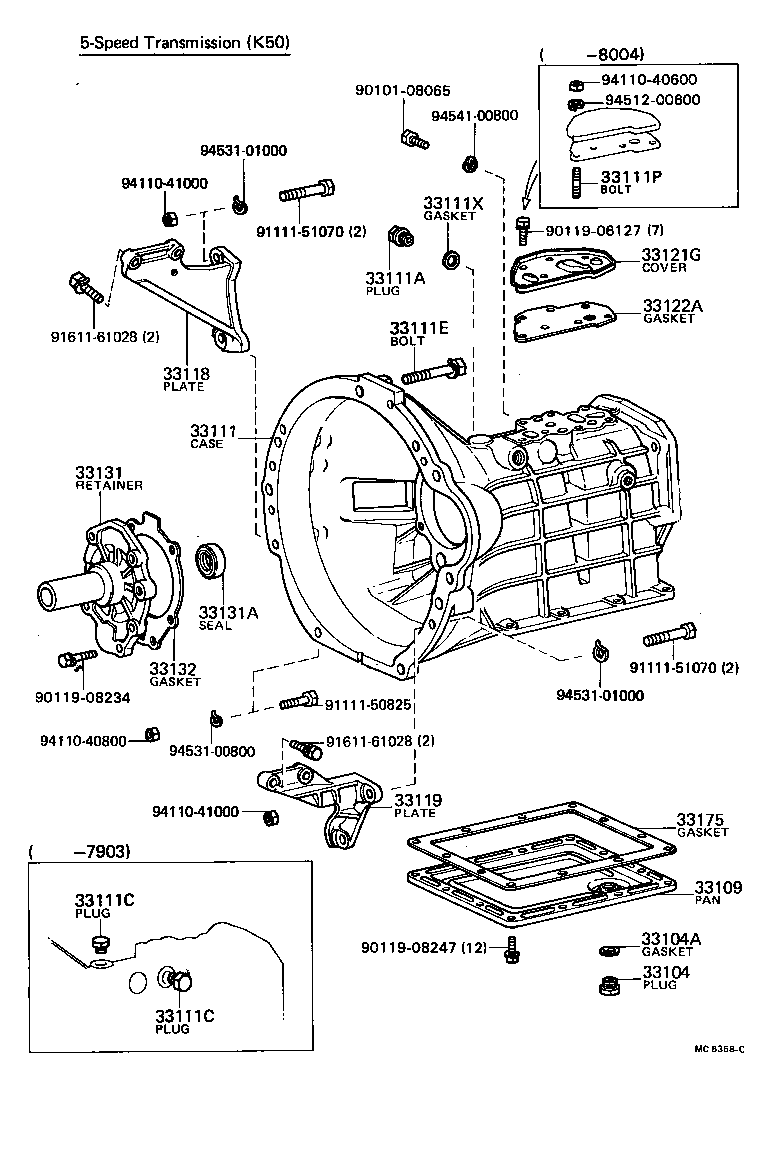

Figure MC4642D MC4642D 1974-08 → 1979-01 Figure MC6357C MC6357C 1979-01 → — Figure MC4618 MC4618 1974-08 → 1976-06 Figure MC4403D MC4403D 1976-06 → 1979-01 Figure MC6358C MC6358C 1979-01 → — Figure MC4578F MC4578F 1974-08 → 1980-04

Part groups

PNCDescription
31111 Housing, Clutch
31111A Bolt(FOR CLUTCH HOUSING & TRANSMISSION CASE SETTING)
31121 Cover, Clutch Housing, NO.1
33104 Plug Sub-assy, Drain(MTM)
33104A Gasket, Drain Plug(MTM)
33109 Pan Sub-assy, Transmission Oil(MTM)
33109B Bolt(FOR MANUAL TRANSMISSION OIL PAN SETTING)
33111 Case, Manual Transmission
33111A Plug, Manual Transmission Case
33111C Plug(FOR TRANSMISSION CASE)
33111E Bolt(FOR TRANSMISSION CASE & ENGINE SETTING)
33111J Pin, Straight(FOR MANUAL TRANSMISSION CASE)
33111P Bolt, Stud(FOR TRANSMISSION CASE COVER SETTING)
33111V Bolt(FOR FRONT BEARING RETAINER SETTING)
33111W Bolt(FOR COUNTERSHAFT COVER SETTING)
33111X Gasket, Transmission Case Plug
33116 Gasket, Manual Transmission Case
33118 Plate, Stiffener, RH(MTM)
33119 Plate, Stiffener, LH(MTM)
33121G Cover, Manual Transmission Case
33122A Gasket, Manual Transmission Case Cover
33131 Retainer, Bearing, Front(MTM)
33131A Seal, Oil(FOR TRANSMISSION FRONT BEARING RETAINER)
33132 Gasket, Front Bearing Retainer(MTM)
33134 Cover, Transmission Countershaft
33135 Gasket, Countershaft Cover(MTM)
33151 Retainer, Output Shaft Rear Bearing(MTM)
33151A Pin, Slotted Spring(FOR OUTPUT SHAFT REAR BEARING RETAINER)
33175 Gasket, Manual Transmission Oil Pan
33283C Ball, Reverse Restrict
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
