Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe

Discontinued model Data version 1981-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Torque Converter, Front Oil Pump & Chain (ATM)

19 part groups · 2 illustrations

Illustrations

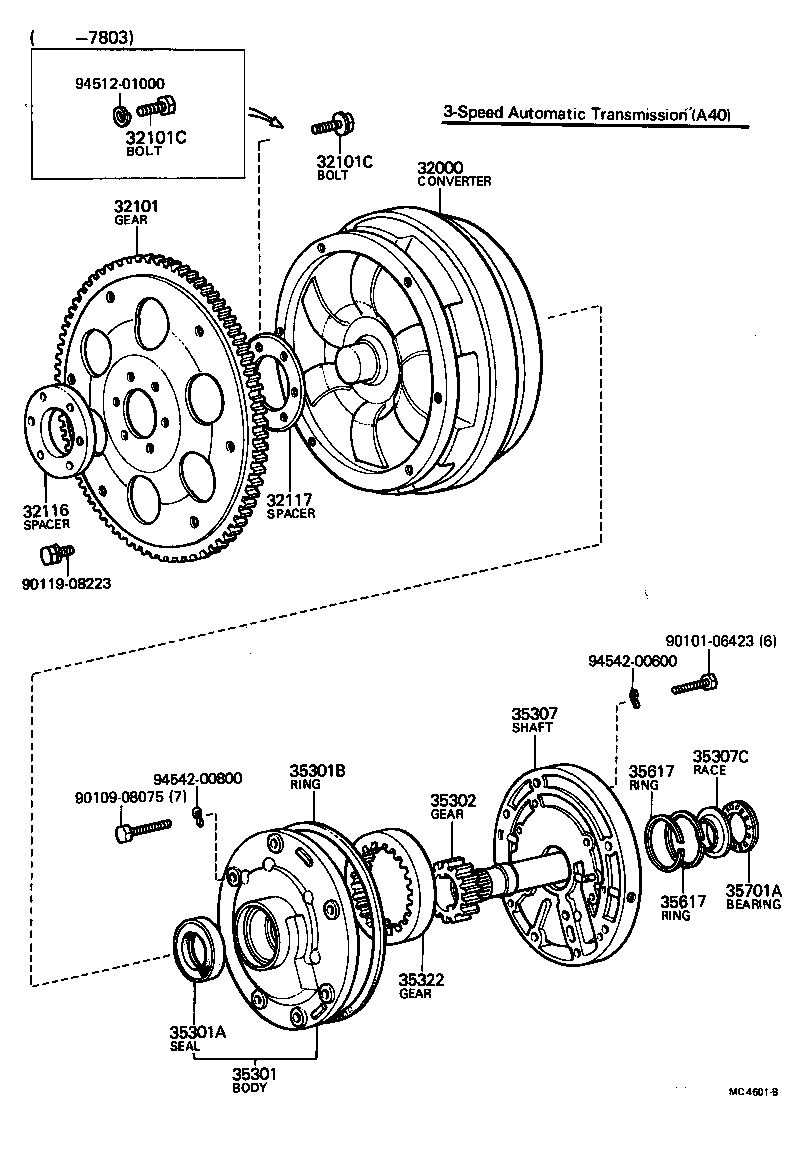

Figure MC4600A MC4600A 1974-08 → 1979-08 Figure MC4601B MC4601B 1975-12 → 1980-04

Part groups

PNCDescription
32000 Converter Assy, Torque
32101 Gear Sub-assy, Drive Plate & Ring
32101C Bolt, Hexagon(FOR DRIVE PLATE SETTING)
32116 Spacer, Drive Plate, Front
32117 Spacer, Drive Plate, Rear
35301 Body Sub-assy, Front Oil Pump
35301A Seal, Oil (FOR FRONT OIL PUMP)
35301B Ring, O (FOR FRONT OIL PUMP BODY)
35301C Bush, Bimetal Formed (FOR FRONT OIL PUMP BODY)
35302 Gear Sub-assy, Front Oil Pump Drive
35302A Bush, Bimetal Formed (FOR FRONT OIL PUMP DRIVE GEAR)
35307 Shaft Sub-assy, Stator
35307A Bush, Bimetal Formed (FOR STATOR SHAFT)
35307B Ring, Shaft Snap (FOR STATOR SHAFT)
35307C Race, Thrust Bearing (FOR STATOR SHAFT)
35313 Gasket, Front Oil Pump Cover
35322 Gear, Front Oil Pump Driven
35617 Ring, Clutch Drum Oil Seal
35701A Bearing, Thrust (FOR INPUT SHAFT FRONT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
