Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe

Discontinued model Data version 1981-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transmission Case & Oil Pan (ATM)

24 part groups · 2 illustrations

Illustrations

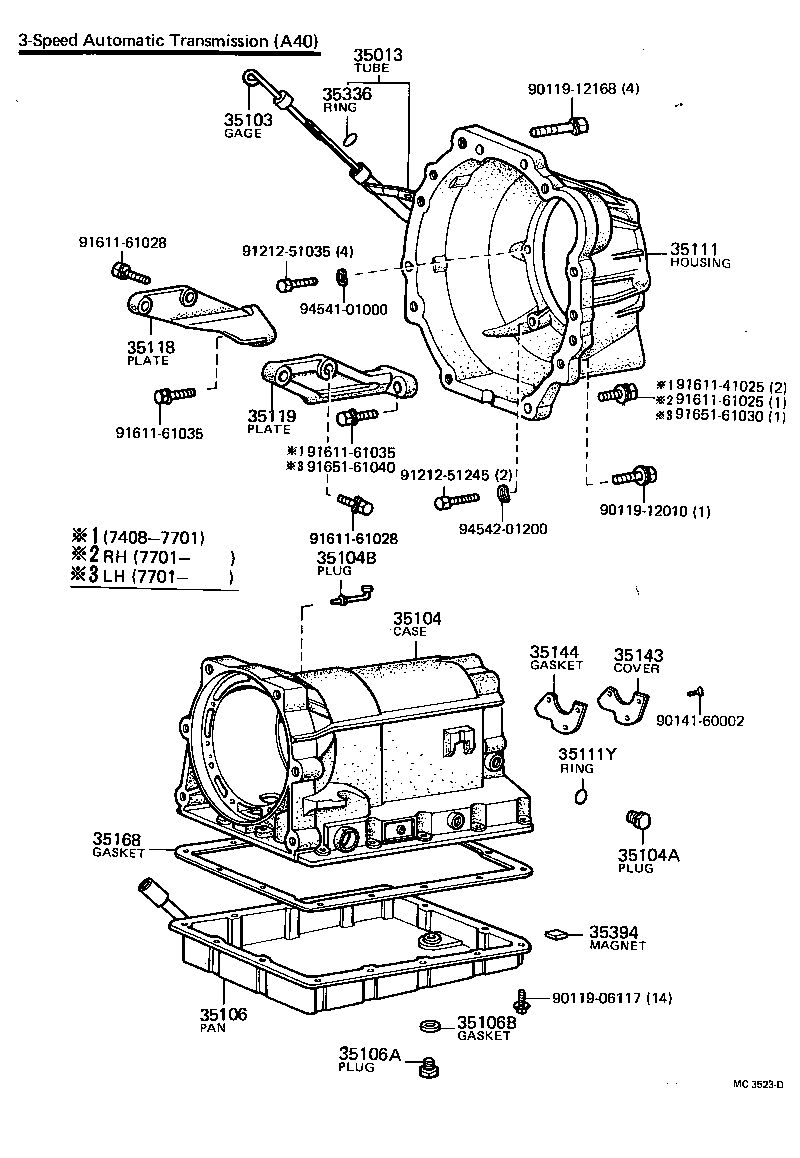

Figure MC4755A MC4755A 1974-08 → 1979-08 Figure MC3523D MC3523D 1975-12 → 1980-04

Part groups

PNCDescription
33111D Bush, Bimetal Formed(FOR TRANSMISSION CASE)
33111H Ball(FOR THROTTLE RELAY VALVE)
35013 Tube Sub-assy, Transmission Oil Filler
35103 Gage Sub-assy, Transmission Oil Level
35104 Case Sub-assy, Automatic Transmission
35104A Plug, Automatic Transmission Case
35104B Plug, Breather, NO.1 (ATM)
35106 Pan Sub-assy, Automatic Transmission Oil
35106A Plug Sub-assy, Drain (ATM)
35106B Gasket, Drain Plug (ATM)
35106C Bolt, Stud (FOR AUTOMATIC TRANSMISSION OIL PAN SETTING)
35111 Housing, Automatic Transmission
35111B Bolt (FOR TRANSMISSION HOUSING & ENGINE SETTING)
35111Y Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
35118 Plate, Stifener, RH (ATM)
35119 Plate, Stifener, LH (ATM)
35143 Cover, Transmission Case, Rear
35144 Gasket, Transmission Case Rear Cover
35163 Plate, Transmission Oil Pan Flange, NO.1
35164 Plate, Transmission Oil Pan Flange, NO.2
35168 Gasket, Automatic Transmission Oil Pan
35194 Cover, Transmission Case Dust
35336 Ring, O (FOR TRANSMISSION OIL FILLER TUBE)
35394 Magnet, Oil Cleaner (FOR TRANSMISSION)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
