Toyota Corolla/Trueno
1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe
Discontinued model
Data version 1981-12

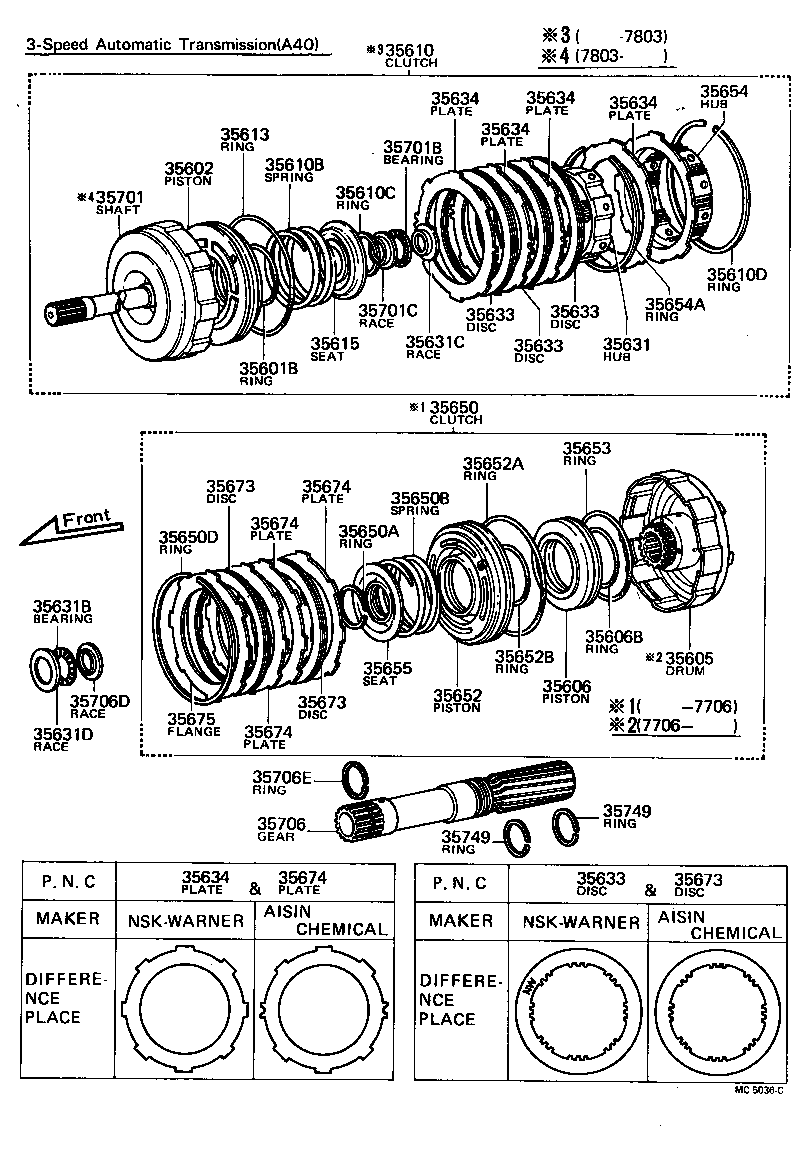

Brake Band & Multiple Disc Clutch (ATM)
58 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 35601 | Drum Sub-assy, Clutch |
| 35601A | Bush, Bimetal Formed (FOR CLUTCH DRUM) |
| 35601B | Ring, O (FOR FRONT CLUTCH DRUM) |
| 35602 | Piston Sub-assy, Front Clutch |
| 35603 | Flange Sub-assy, Clutch, W/Low Sun Gear |
| 35605 | Drum Sub-assy, Rear Clutch W/2ND Sun Gear |
| 35606 | Piston Sub-assy, Rear Clutch |
| 35606B | Ring (FOR REAR CLUTCH PISTON INNER) |
| 35610 | Clutch Assy, Front Multiple Disc |
| 35610B | Spring, Compression (FOR FRONT CLUTCH PISTON RETURN) |
| 35610C | Ring, Shaft Snap (FOR FRONT CLUTCH PISTON RETURN SPRING) |
| 35610D | Ring, Hole Snap (FOR FRONT MULTIPLE DISC CLUTCH) |
| 35613 | Ring, Clutch Piston Oil Seal, Outer |
| 35615 | Seat, Clutch Piston Return Spring |
| 35616 | Washer, Clutch Drum Thrust |
| 35631 | Hub, Clutch(FOR MULTIPLE DISC CLUTCH) |
| 35631B | Bearing, Thrust(FOR FRONT CLUTCH HUB) |
| 35631C | Race, Thrust Bearing(FOR FRONT CLUTCH HUB FRONT) |
| 35631D | Race, Thrust Bearing(FOR FRONT CLUTCH HUB REAR) |
| 35633 | Disc, Clutch (FOR FRONT CLUTCH) |
| 35634 | Plate, Front Clutch |
| 35636 | Retainer, Clutch Flange |
| 35650 | Clutch Assy, Rear Multiple Disc |
| 35650A | Ring, Shaft Snap (FOR REAR CLUTCH PISTON RETURN SPRING) |
| 35650B | Spring, Compression (FOR REAR CLUTCH PISTON RETURN) |
| 35650D | Ring, Hole Snap (FOR REAR MULTIPLE DISC CLUTCH) |
| 35652 | Piston, Rear Clutch, NO.2 |
| 35652A | Ring (FOR REAR CLUTCH OUTER) |
| 35652B | Ring (FOR REAR CLUTCH PISTON INNER) |
| 35653 | Ring, Rear Clutch Oil Seal, Outer |
| 35654 | Hub, Rear Clutch |
| 35654A | Ring, Hole Snap (FOR REAR CLUTCH HUB) |
| 35655 | Seat, Rear Clutch Piston Return Spring |
| 35673 | Disc, Rear Clutch |
| 35674 | Plate, Rear Clutch |
| 35675 | Flange, Rear Clutch |
| 35701 | Shaft Sub-assy, Input |
| 35701B | Bearing, Thrust Needle Roller (FOR INPUT SHAFT REAR) |
| 35701C | Race, Thrust Bearing (FOR INPUT SHAFT REAR) |
| 35701D | Ring (FOR INPUT SHAFT) |
| 35706 | Gear Sub-assy, Planetary Sun |
| 35706D | Race, Thrust Bearing (FOR SUN GEAR FRONT) |
| 35706E | Ring, Shaft Snap (FOR SUN GEAR FRONT) |
| 35716 | Washer, Low Sun Gear Thrust, NO.1 |
| 35749 | Ring, Sun Gear Shaft Oil Seal |
| 35803 | Strut Sub-assy, Low Brake Band Apply |
| 35804 | Strut Sub-assy, Low Brake Band Anchor |
| 35810 | Band Assy, Transmission Brake (FOR FRONT) |
| 35810A | Pin, W/Hole Straight (FOR BRAKE BAND) |
| 35820B | Spring, Compression (FOR LOW SERVO PISTON INNER) |
| 35820C | Washer, Plate (FOR LOW SERVO PISTON RETURN SPRING) |
| 35820D | Spring, Compression (FOR LOW SERVO PISTON RETURN) |
| 35821 | Piston, Low Servo |
| 35821C | Spring, Low Servo Piston Spring Lock Retainer |
| 35821D | Ring, E (FOR LOW SERVO PISTON SPRING LOCK) |
| 35822 | Rod, Low Servo Piston |
| 35823 | Ring, Servo Piston |
| 35838 | Bolt, Brake Band Anchor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
