Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe

Discontinued model Data version 1981-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Propeller Shaft & Universal Joint

15 part groups · 8 illustrations

Illustrations

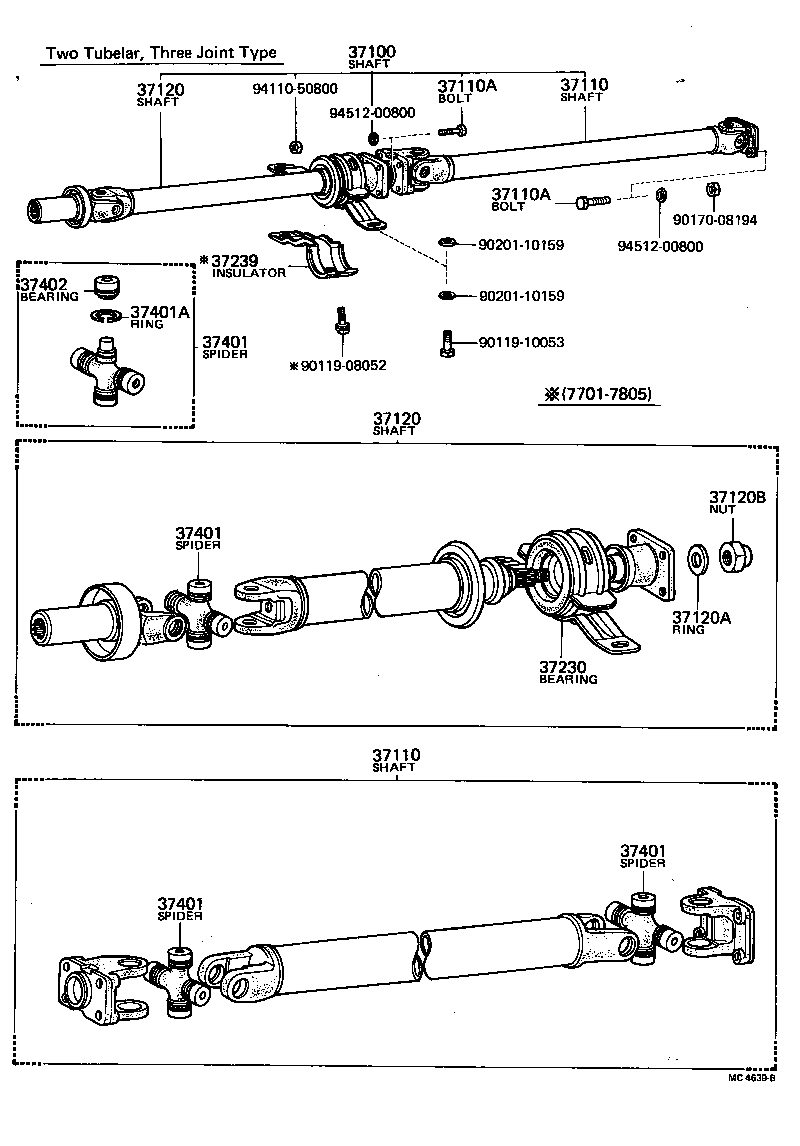

Figure MC4482A MC4482A 1974-08 → 1977-08 Figure MC4482A MC4482A 1974-08 → 1979-08 Figure MC4482A MC4482A 1977-08 → 1978-05 Figure MC4482A MC4482A 1978-05 → 1979-08 Figure MC4482A MC4482A 1979-08 → — Figure MC4639B MC4639B 1977-01 → 1977-08 Figure MC4639B MC4639B 1977-08 → 1979-08 Figure MC4639B MC4639B 1978-05 → 1979-08

Part groups

PNCDescription
37100 Shaft Assy, Propeller W/Center Bearing
37101A Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
37110 Shaft Assy, Propeller
37110A Bolt (FOR PROPELLER SHAFT)
37120 Shaft Assy, Propeller Intermediate
37120A Washer, Plate (FOR PROPELLER INTERMEDIATE SHAFT SET)
37120B Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
37230 Bearing Assy, Center Support, NO.1
37239 Insulator, Center Support Bearing Heat
37302 Yoke Sub-assy, Universal Joint Sleeve
37315 Yoke, Universal Joint Flange
37331 Cover, Sliding Shaft Dust
37401 Spider Kit, Universal Joint
37401A Ring, Hole Snap (FOR SPIDER BEARING)
37402 Bearing Sub-assy, Universal Joint Spider
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
