Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe

Discontinued model Data version 1981-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Axle Hub

8 part groups · 4 illustrations

Illustrations

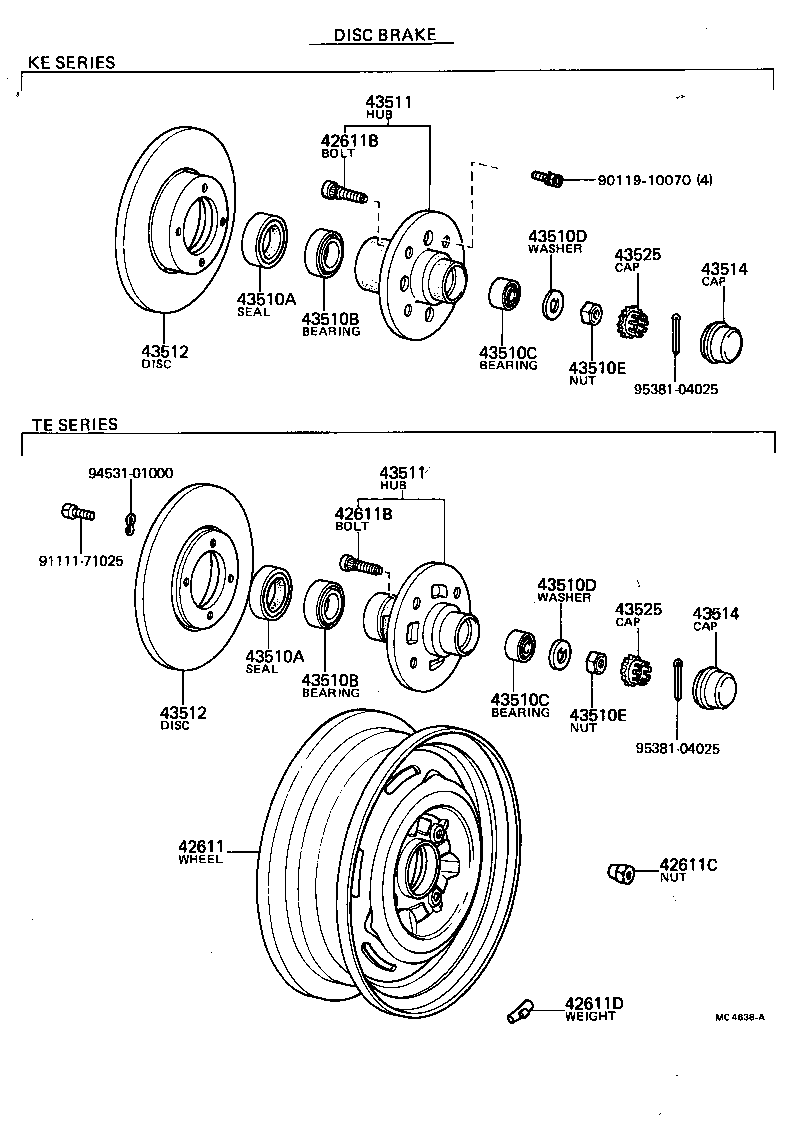

Figure MC3316B MC3316B 1974-08 → 1978-07 Figure MC3316B MC3316B 1978-07 → — Figure MC4638A MC4638A 1974-08 → 1978-07 Figure MC4638A MC4638A 1978-07 → —

Part groups

PNCDescription
42611 Wheel, Disc
42611C Nut, Hub (FOR FRONT AXLE)
42611D Weight, Balance(FOR FRONT DISC WHEEL)
43501 Drum Sub-assy, Front Brake
43501A Piece, Balance (FOR FRONT BRAKE DRUM)
43501B Bolt, Set (FOR FRONT BRAKE DRUM SETTING)
43510 Hub And Brake Drum Assy, Front Axle, RH
43520 Hub And Brake Drum Assy, Front Axle, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
