Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe

Discontinued model Data version 1981-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

38 part groups · 8 illustrations

Illustrations

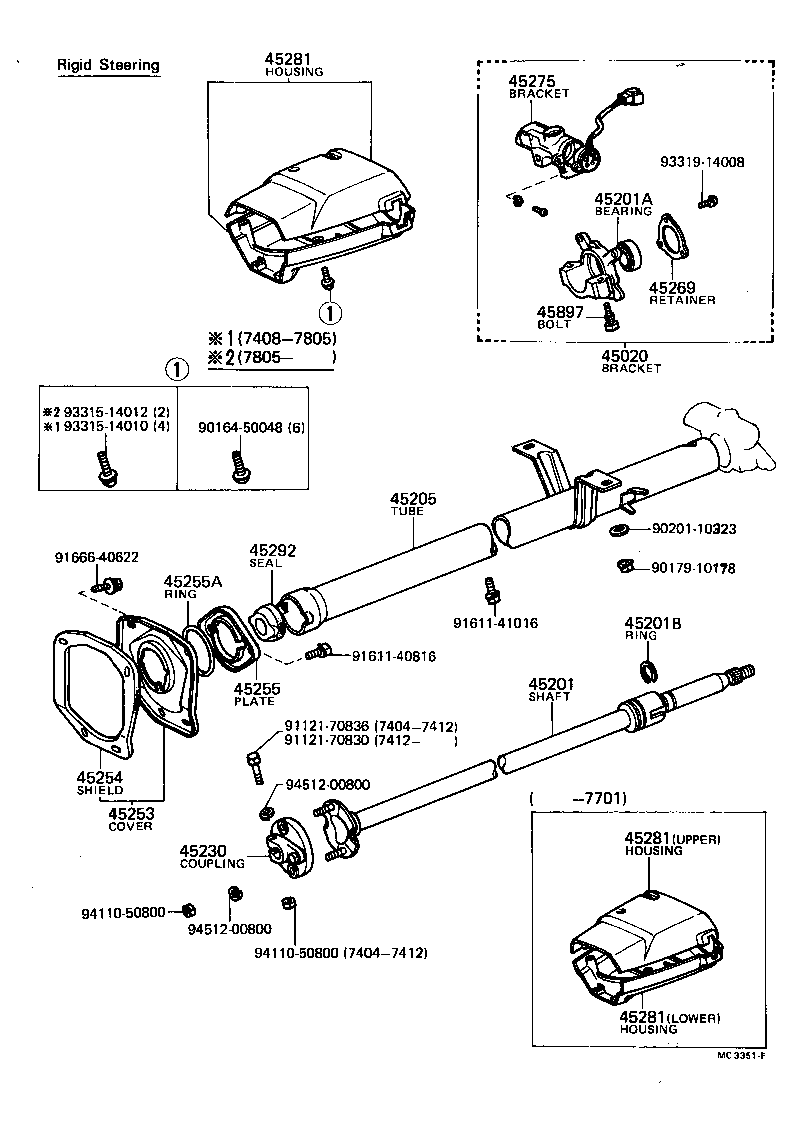

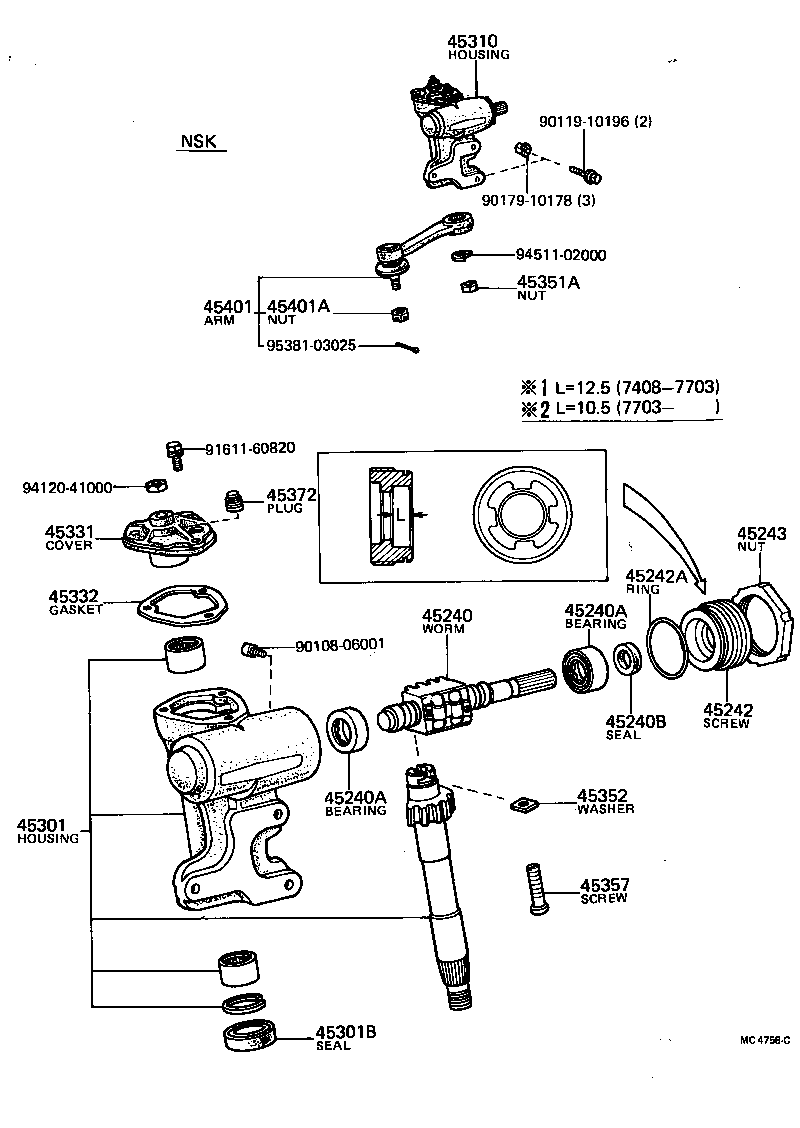

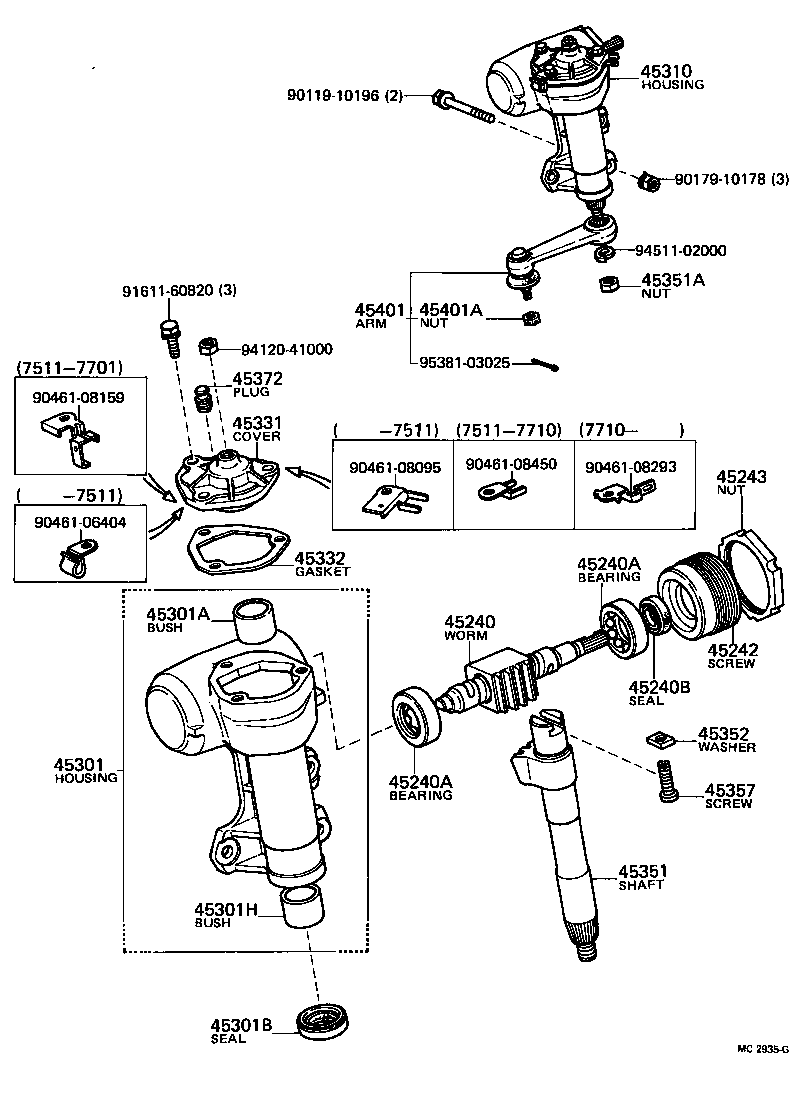

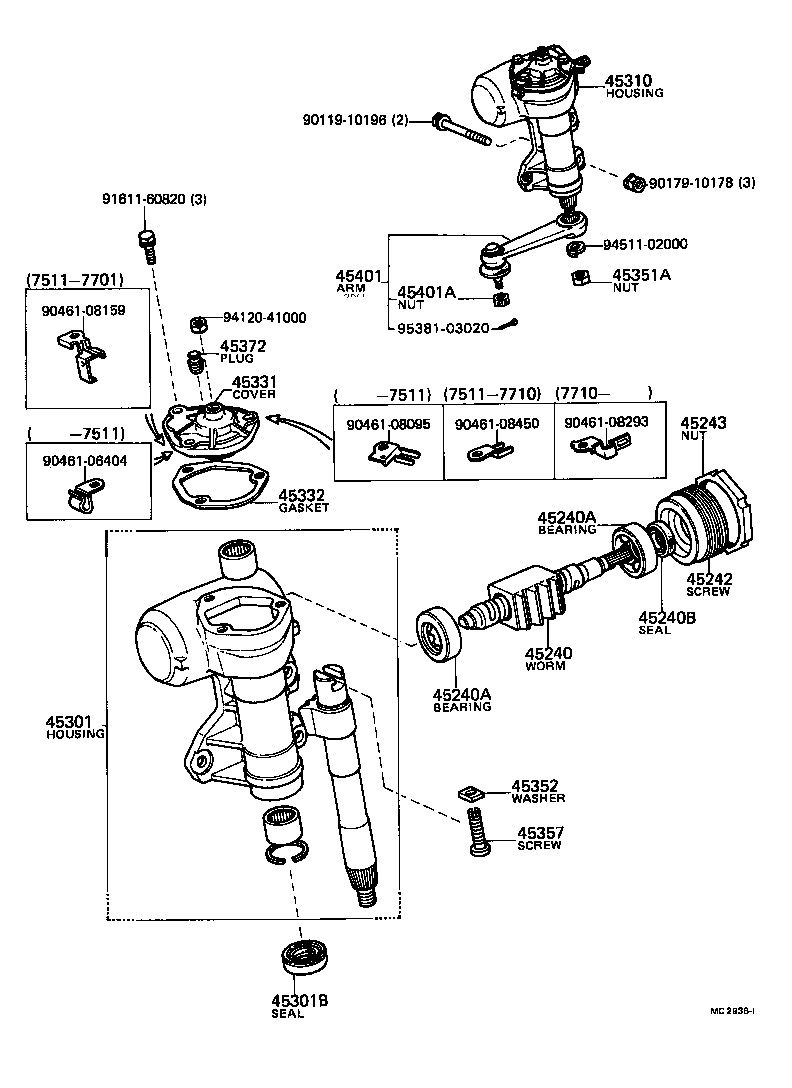

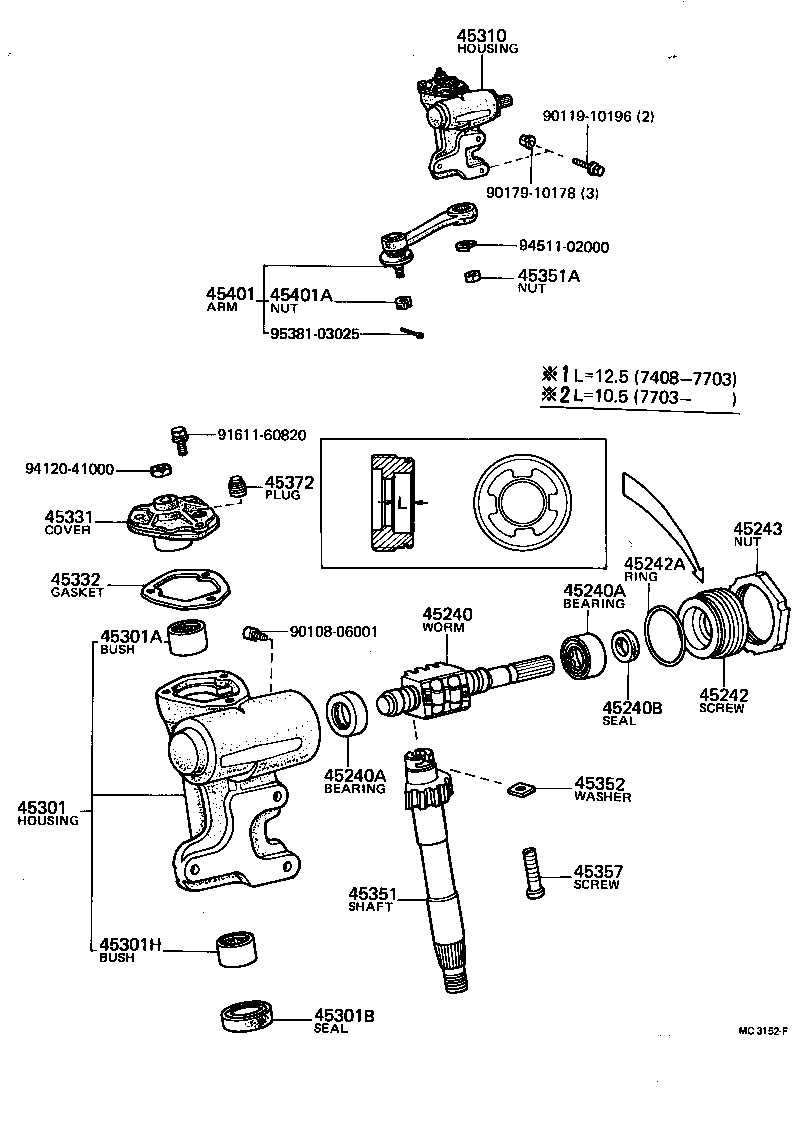

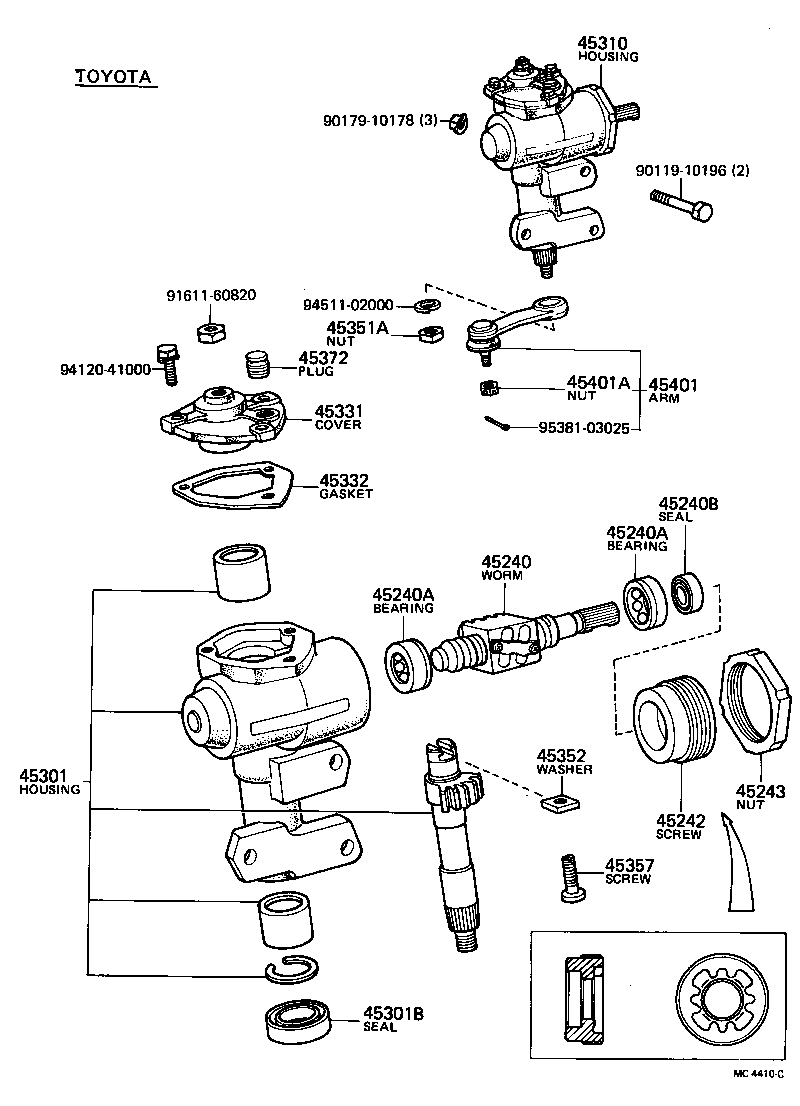

Figure MC3350G MC3350G 1974-08 → — Figure MC3351F MC3351F 1974-08 → — Figure MC2935G MC2935G 1974-08 → 1979-12 Figure MC3152F MC3152F 1974-08 → 1980-02 Figure MC2936I MC2936I 1974-08 → 1979-12 Figure MC2936I MC2936I 1979-12 → — Figure MC4758C MC4758C 1974-08 → 1979-08 Figure MC4410C MC4410C 1976-08 → 1979-08

Part groups

PNCDescription
45020 Bracket Assy, Steering Column Upper W/Switch
45201 Shaft Sub-assy, Steering Main
45201A Bearing(FOR STEERING MAIN SHAFT)
45201B Ring, Shaft Snap(FOR STEERING MAIN SHAFT)
45201E Plug, Plate(FOR STEERING MAIN SHAFT)
45205 Tube Sub-assy, Steering Column
45230 Coupling Assy, Flexible
45240 Worm Assy, Steering
45240A Bearing(FOR STEERING WORM)
45240B Seal, Oil(FOR STEERING WORM)
45242 Screw, Worm Bearing Adjusting
45242A Ring, O(FOR WORM BEARING ADJUSTING SCREW)
45243 Nut, Worm Bearing Adjusting Screw Lock
45253 Cover, Steering Column Hole
45254 Shield, Steering Column Hole
45255 Plate, Steering Column Hole Cover
45255A Grommet OR Ring, O(FOR STEERING COLUMN CLAMP)
45269 Retainer, Main Shaft Bearing
45275 Bracket, Steering Column, Upper
45281 Housing, Steering Column
45292 Seal, Main Shaft Lower Dust
45301 Housing Sub-assy, Steering Gear
45301A Bush OR Bearing, Sector Shaft, NO.1
45301B Seal, Oil(FOR SECTOR SHAFT)
45301H Bush OR Bearing, Sector Shaft, NO.2
45310 Housing Assy, Steering Gear
45331 Cover, Sector Shaft End
45332 Gasket, Sector Shaft End Cover
45351 Shaft, Steering Sector
45351A Nut, Hexagon(FOR SECTOR SHAFT TO PITMAN ARM SETTING)
45352 Washer, Sector Shaft Thrust
45357 Screw, Sector Shaft Adjusting
45372 Plug, Steering Gear Housing Oil
45401 Arm Sub-assy, Pitman
45401A Nut, Castle(FOR PITMAN ARM)
45807 Bracket Sub-assy, Steering Column Upper Support
45877 Wedge, Caster(FOR STEERING COLUMN TUBE SETTING)
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
