Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe

Discontinued model Data version 1981-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Master Cylinder

42 part groups · 16 illustrations

Illustrations

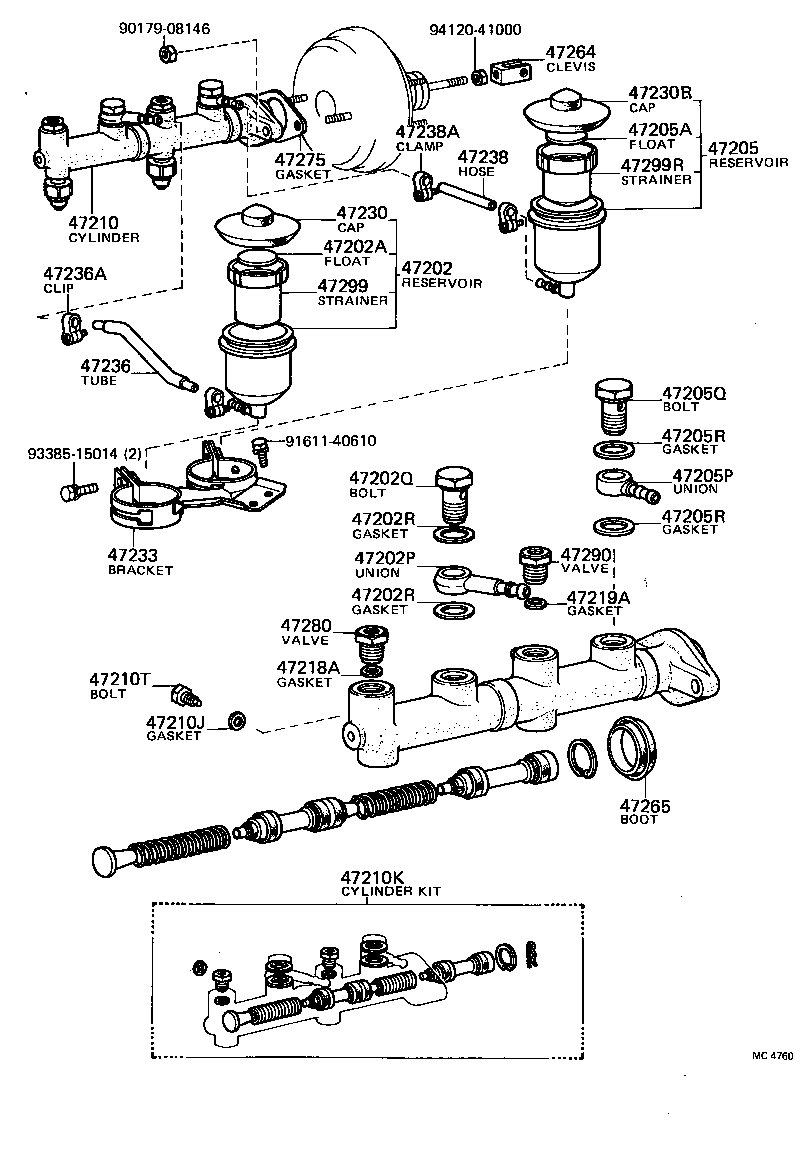

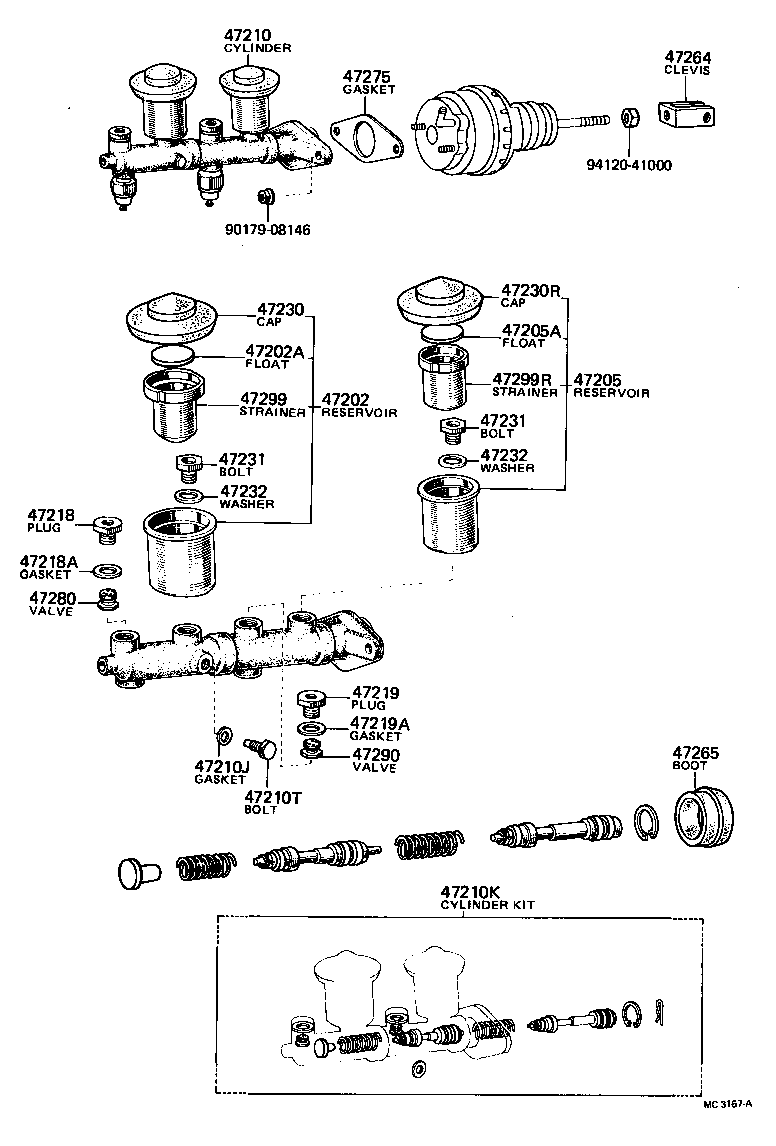

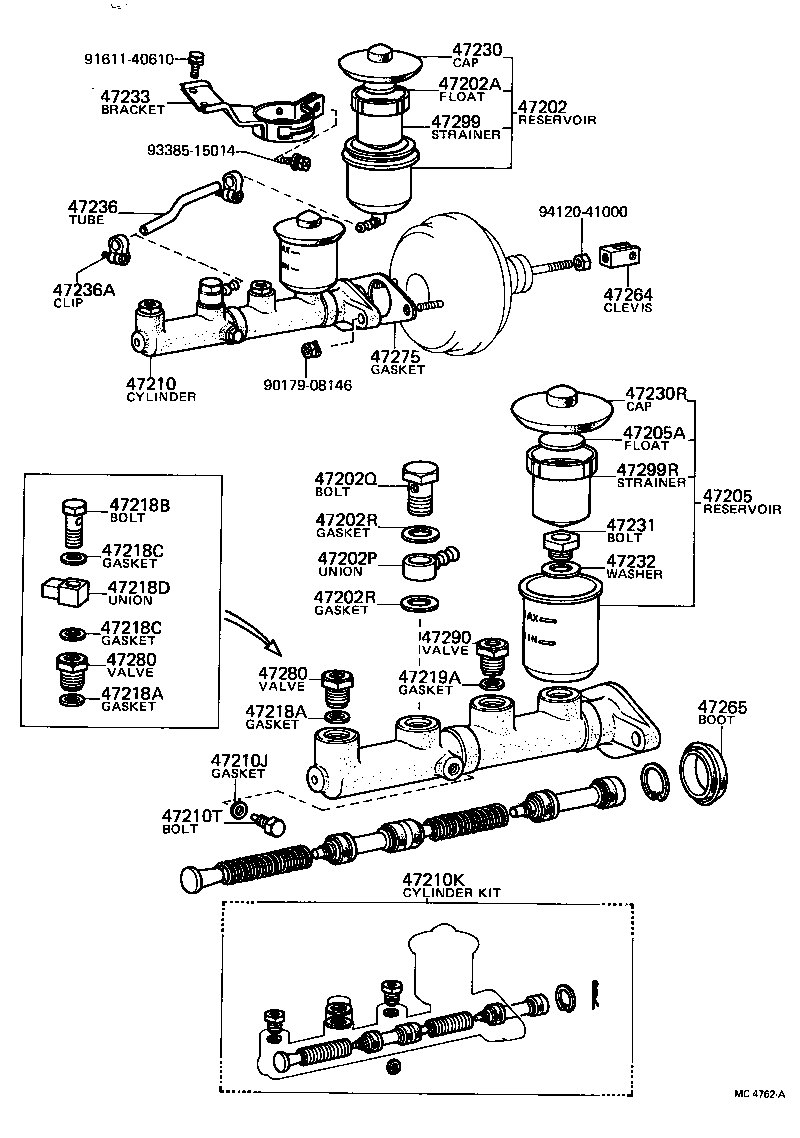

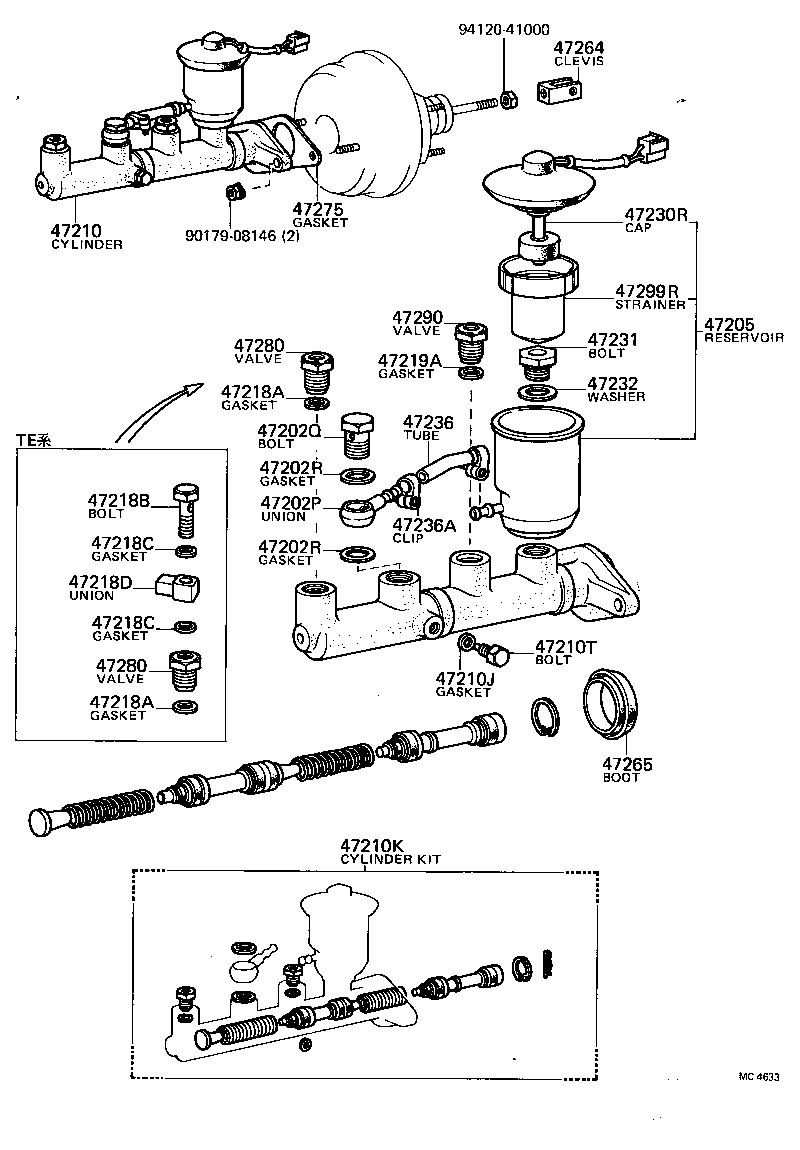

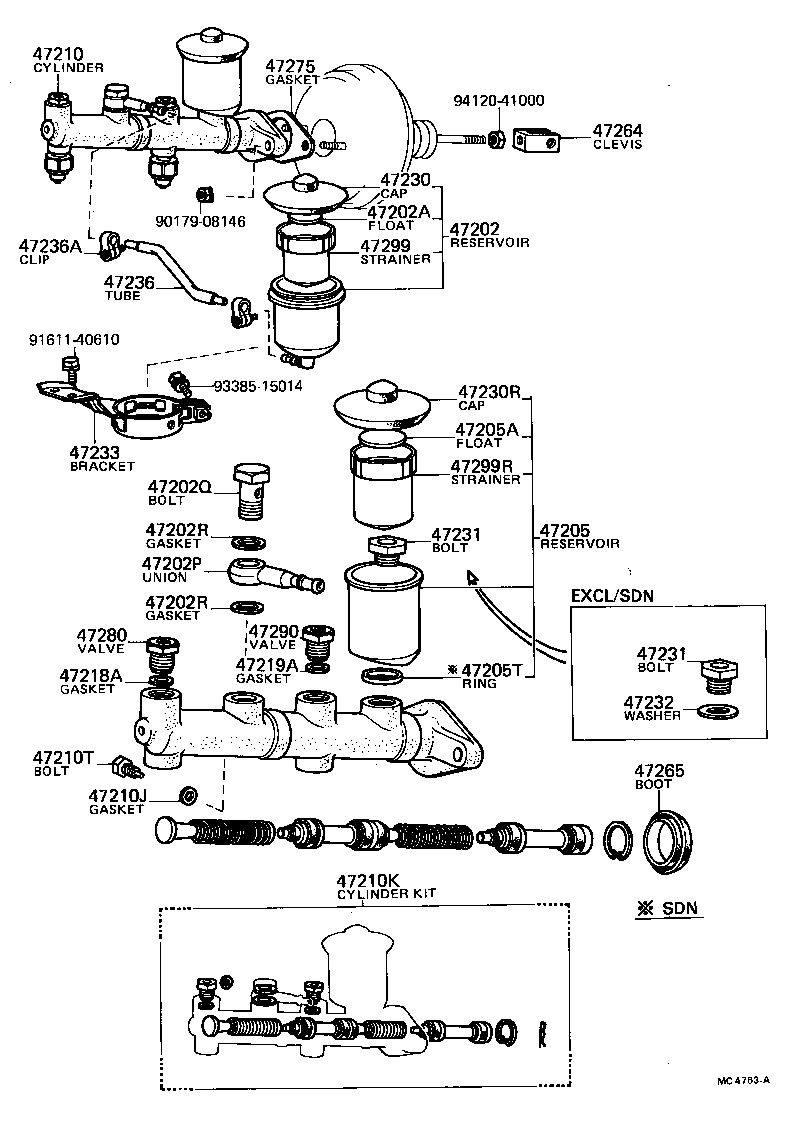

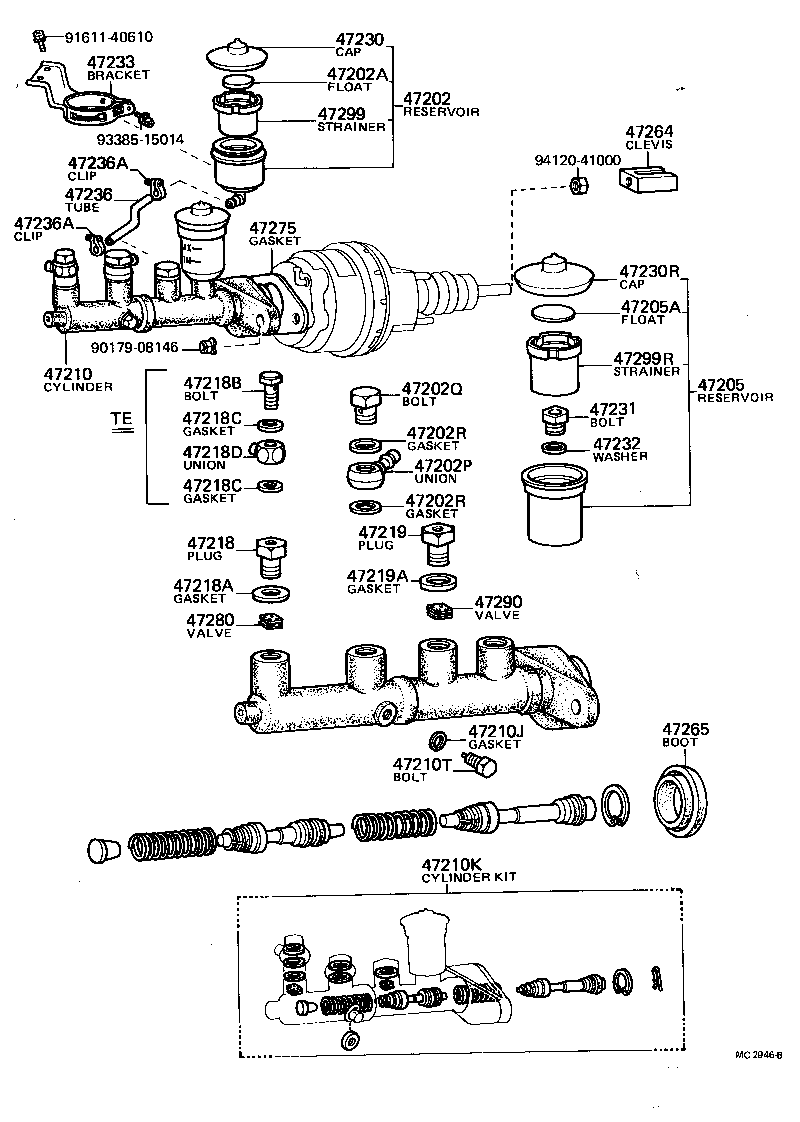

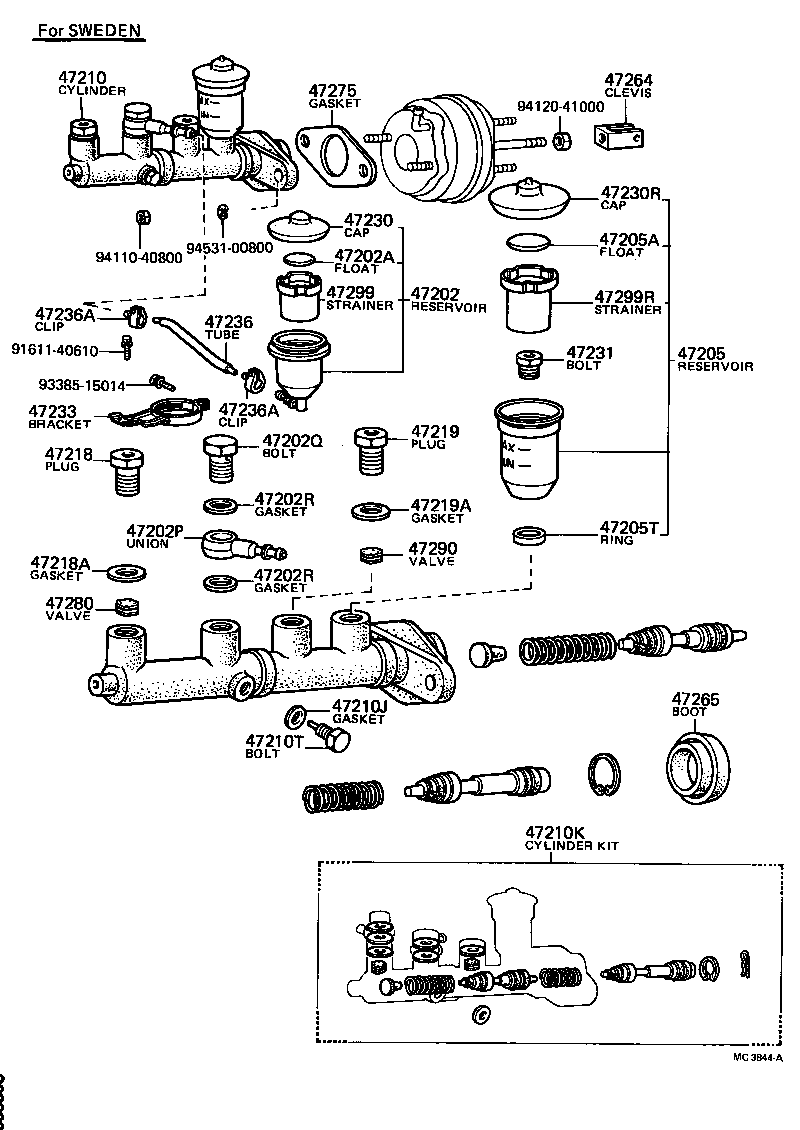

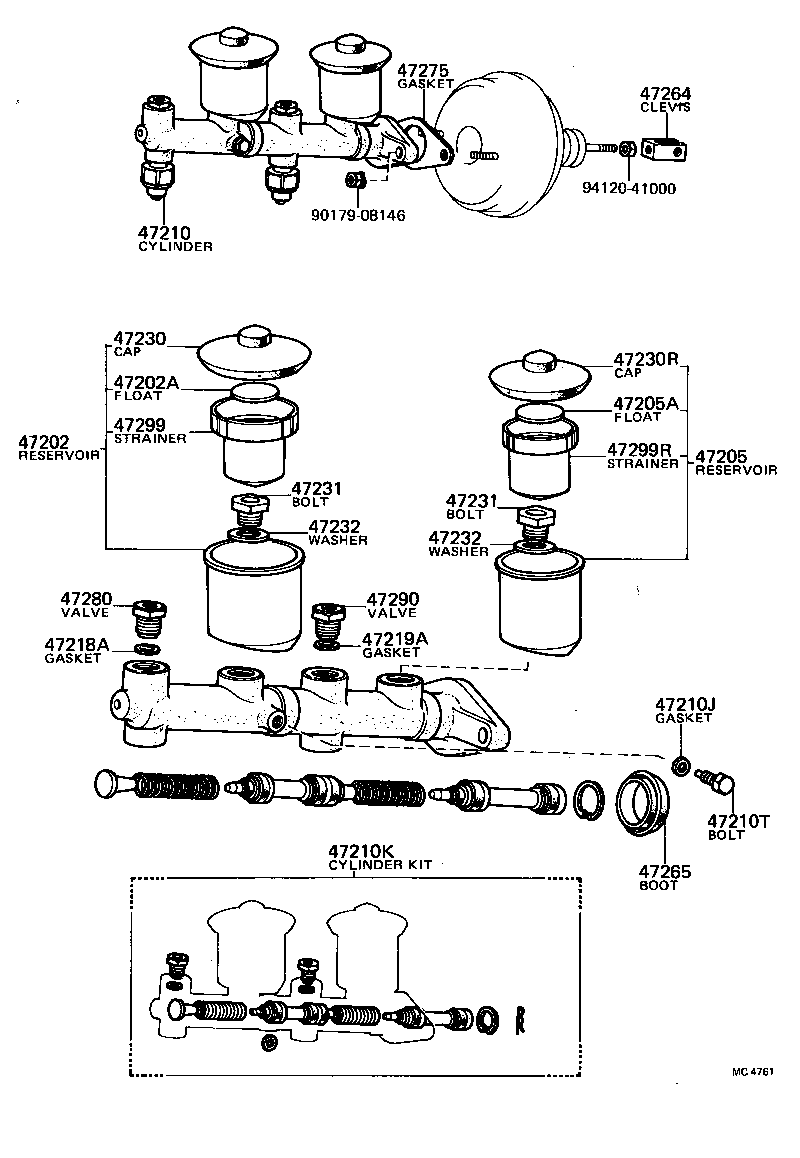

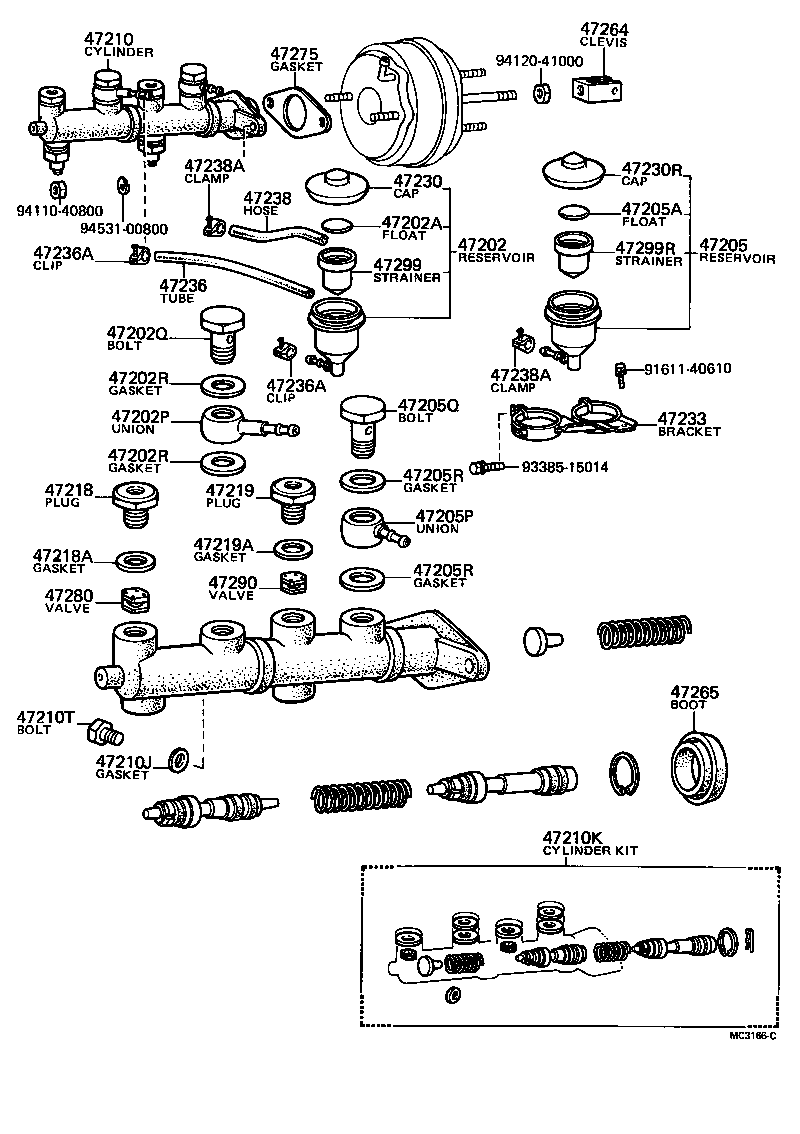

Figure MC3174B MC3174B 1974-08 → 1978-07 Figure MC3174B MC3174B 1978-07 → — Figure MC2946B MC2946B 1974-08 → 1977-01 Figure MC4762A MC4762A 1977-01 → 1977-07 Figure MC4762A MC4762A 1977-07 → 1978-07 Figure MC4762A MC4762A 1977-07 → 1978-07 Figure MC4762A MC4762A 1978-07 → 1979-08 Figure MC4762A MC4762A 1979-08 → — Figure MC4633 MC4633 1977-07 → 1979-08 Figure MC3844A MC3844A 1974-09 → 1975-08 Figure MC3844A MC3844A 1975-08 → 1977-01 Figure MC4763A MC4763A 1977-01 → 1980-02 Figure MC3166C MC3166C 1974-08 → 1977-01 Figure MC4760 MC4760 1977-01 → 1979-08 Figure MC3167A MC3167A 1974-08 → 1977-01 Figure MC4761 MC4761 1977-01 → 1979-08

Part groups

PNCDescription
47202 Reservoir Sub-assy, Brake Master Cylinder
47202A Float, Master Cylinder Reservoir
47202P Union, Reservoir(FOR BRAKE MASTER CYLINDER SIDE)
47202Q Bolt, Reservoir Union(FOR BRAKE MASTER CYLINDER SIDE)
47202R Gasket, Reservoir Union(FOR BRAKE MASTER CYLINDER SIDE)
47205 Reservoir Set, Brake Master Cylinder(FOR REAR SIDE)
47205A Float, Brake Master Cylinder Reservoir(FOR REAR SIDE)
47205P Union, Reservoir(FOR BRAKE MASTER CYLINDER REAR SIDE)
47205Q Bolt, Rsvr Union, NO.2(FOR BRAKE MASTER CYLINDER RR SIDE)
47205R Gasket, Reservoir Union(FOR BRAKE MASTER CYLINDER REAR SIDE)
47205T Ring(FOR BRAKE MASTER CYLINDER RESERVOIR, NO.2)
47210 Cylinder Assy, Master, W/O Booster
47210J Gasket(FOR MASTER CYLINDER)
47210K Cylinder Kit, Brake Master
47210T Bolt(FOR BRAKE MASTER CYLINDER)
47218 Plug, Master Cylinder Fluid Outlet
47218A Gasket(FOR FLUID OUTLET PLUG)
47218B Bolt, Union(FOR MASTER CYLINDER FLUID OUTLET)
47218C Gasket(FOR MASTER CYLINDER FLUID OUTLET)
47218D Union(FOR MASTER CYLINDER FLUID OUTLET)
47219 Plug, Master Cylinder Fluid Outlet(FOR REAR SIDE)
47219A Gasket(FOR FLUID OUTLET PLUG REAR SIDE)
47230 Cap Assy, Brake Master Cylinder Reservoir Filler
47230R Cap Assy, Reservoir, NO.2(FOR REAR SIDE)
47231 Bolt, Brake Master Cylinder Reservoir Set
47232 Washer, Brake Reservoir Set Bolt
47233 Bracket, Reservoir
47236 Tube, Reservoir Brake
47236A Clip(FOR RESERVOIR TUBE)
47238 Hose, Master Cylinder Bridge
47238A Clamp, Hose(FOR MASTER CYLINDER BRIDGE HOSE)
47261 Rod, Master Cylinder Push
47264 Clevis, Master Cylinder Push Rod
47265 Boot, Master Cylinder
47275 Gasket, Brake Master Cylinder
47276 Bracket, Brake Master Cylinder
47278 Gasket, Brake Master Cylinder Bracket
47280 Valve Assy, Brake Master Cylinder Outlet Check
47280A Spring, Compression
47290 Valve Assy, Master Cylinder Outlet(FOR REAR SIDE)
47299 Strainer, Brake Master Cylinder Reservoir
47299R Strainer, Master Cylinder Reservoir, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
