Toyota Corolla/Trueno
1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe
Discontinued model
Data version 1981-12

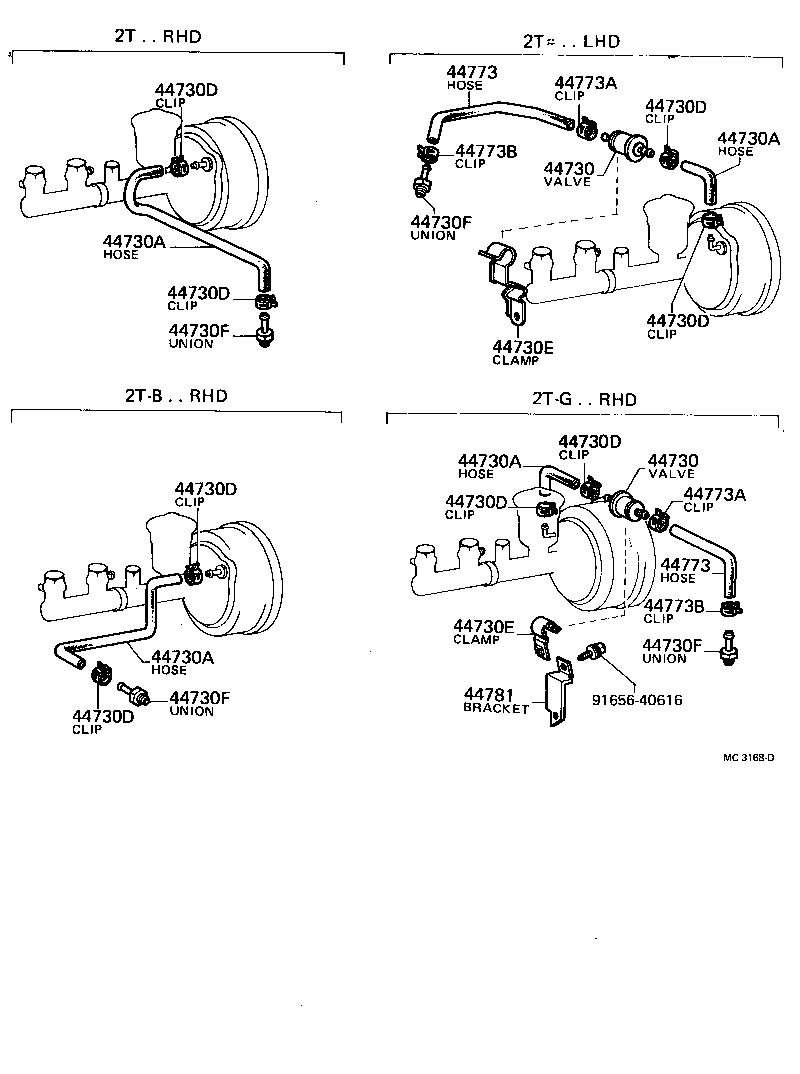

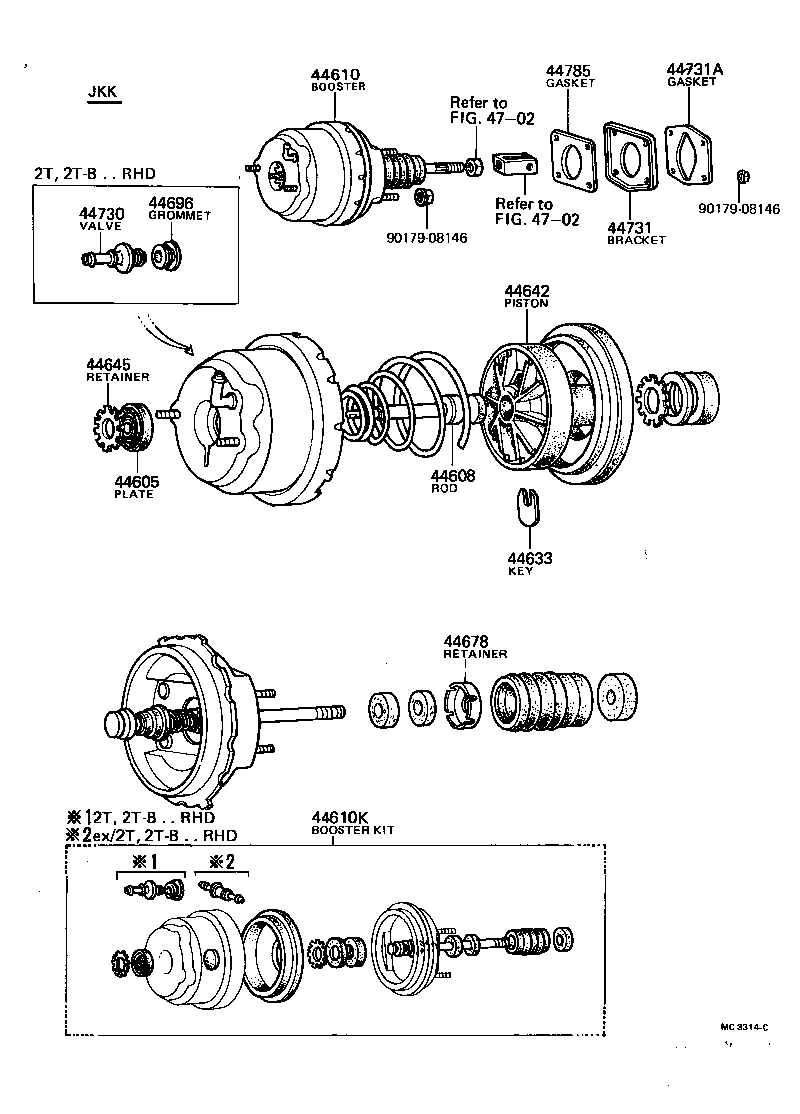

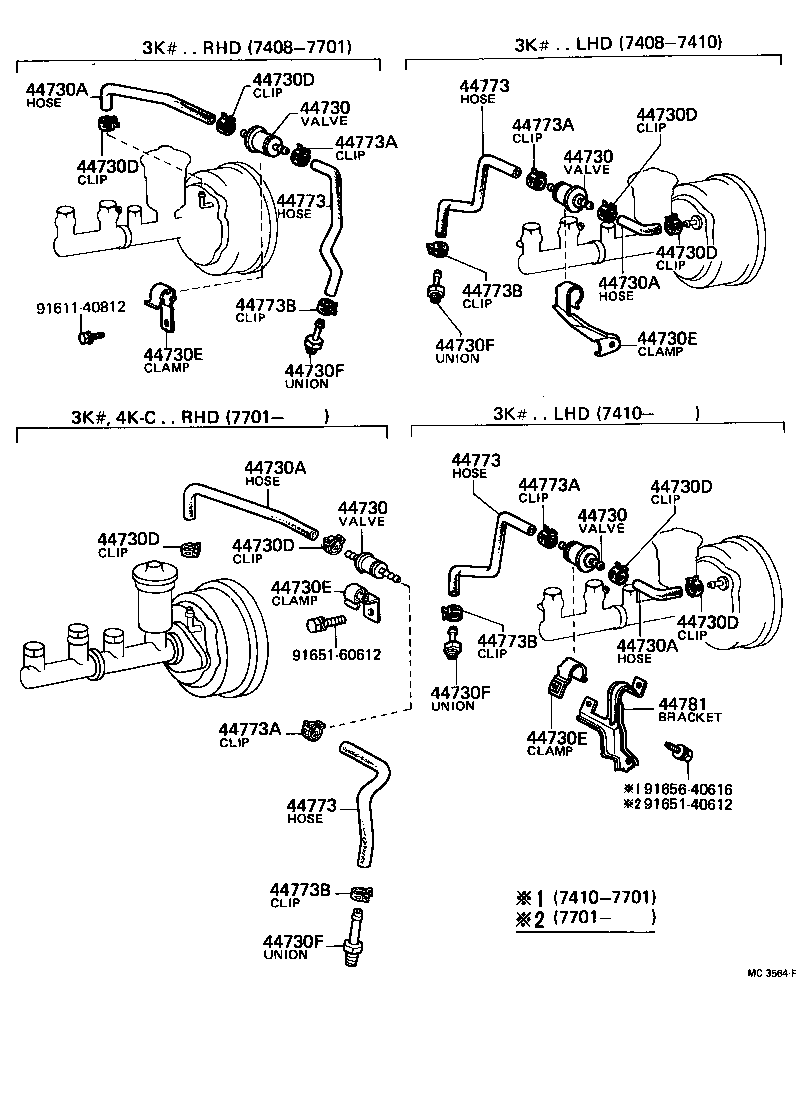

Brake Booster & Vacuum Tube
31 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 44605 | Plate & Seal Sub-assy, Booster |
| 44608 | Push Rod Sub-assy, Booster |
| 44610 | Booster Assy, Brake |
| 44610K | Booster Kit, Brake |
| 44626 | Retainer, Booster Rod Cup |
| 44633 | Key, Booster Valve Plunger |
| 44642 | Piston, Brake Booster |
| 44643 | Retainer, Diaphragm |
| 44645 | Retainer, Booster Push Rod Seal |
| 44657A | Ring, Snap(FOR BOOSTER AIR VALVE STOPPER) |
| 44657B | Washer, Plate(FOR BOOSTER AIR VALVE STOPPER) |
| 44662 | Retainer, Reaction, NO.1 |
| 44662B | Lever, Reaction |
| 44662C | Plate, Reaction, NO.1 |
| 44669 | Ring, Circular Internal(FOR AIR CLEANER ELEMENT STOPPER) |
| 44678 | Retainer, Booster Air Cleaner |
| 44683 | Connector, Booster Body |
| 44683A | Lock, Connector |
| 44696 | Grommet, Check Valve |
| 44730 | Valve Assy, Vacuum Check(FOR BRAKE) |
| 44730A | Hose, Vacuum, NO.1 |
| 44730D | Clip(FOR VACUUM HOSE, NO.1) |
| 44730E | Clamp, Vacuum Check Valve |
| 44730F | Union, Vacuum Hose(FOR MANIFOLD SIDE) |
| 44731 | Bracket, Brake Booster, Front |
| 44731A | Gasket, Brake Booster Bracket |
| 44773 | Hose, Vacuum, NO.2 |
| 44773A | Clip, NO.1(FOR VACUUM HOSE, NO.2) |
| 44773B | Clip, NO.2(FOR VACUUM HOSE, NO.2) |
| 44781 | Bracket, Hose |
| 44785 | Gasket, Brake Booster |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
