Toyota Corolla/Trueno
1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe
Discontinued model
Data version 1981-12

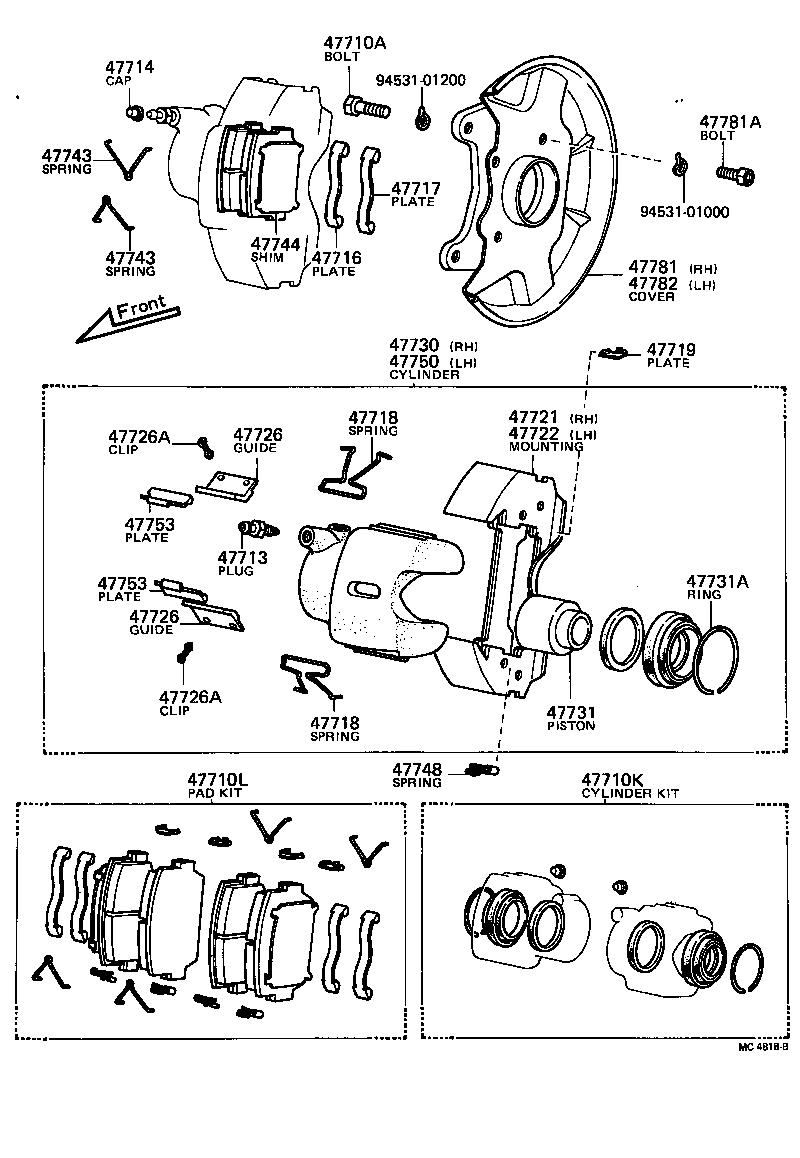

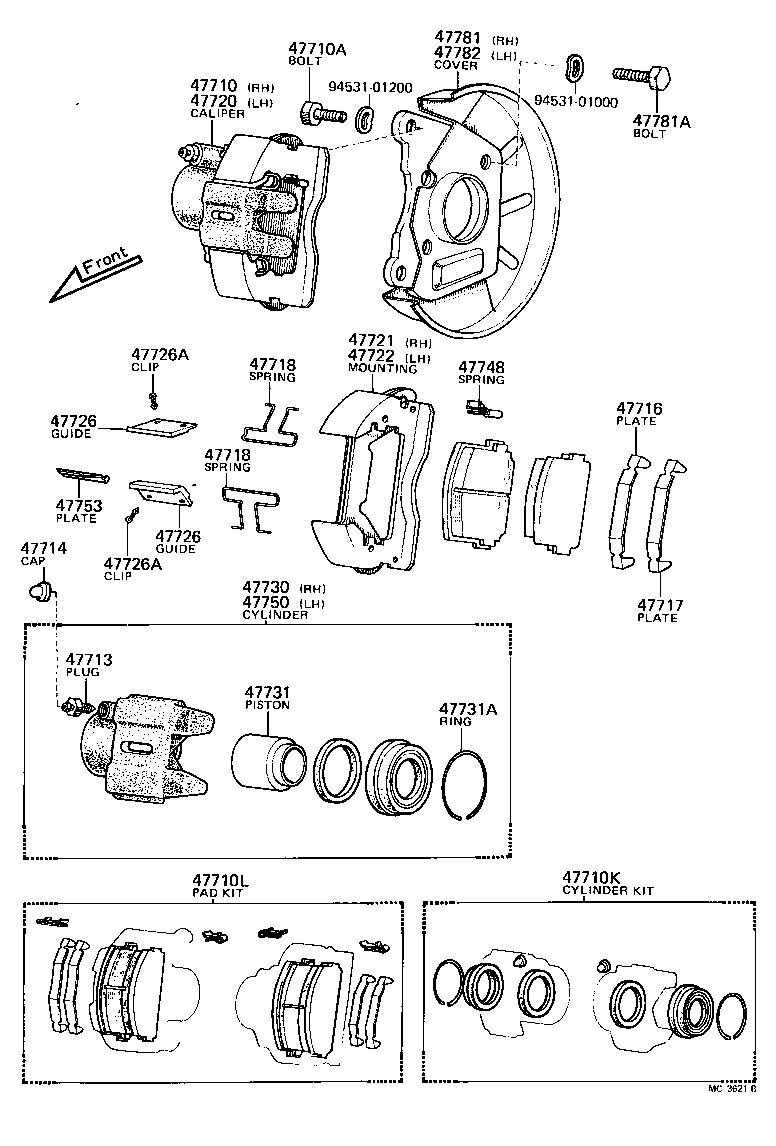

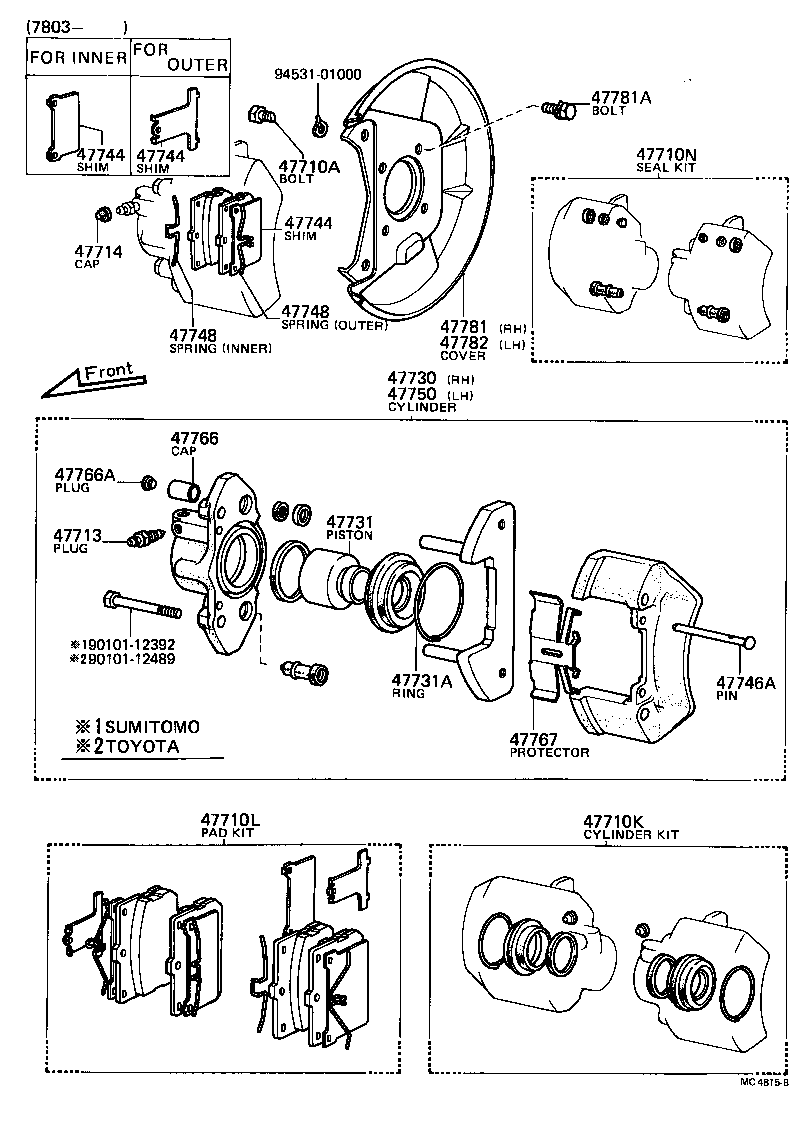

Front Disc Brake Caliper & Dust Cover
34 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 04465 | Pad Kit, Disc Brake, Front |
| 04945 | Shim Kit, Anti Squeal, Front |
| 04947 | Fitting Kit, Disc Brake, Front |
| 47710 | Caliper Assy, Disc Brake, Front, RH |
| 47710A | Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER) |
| 47710K | Cylinder Kit, Disc Brake, Front |
| 47710L | Pad Kit, Disc Brake, Front |
| 47710N | Seal Kit, Disc Brake, Front |
| 47713 | Plug, Bleeder(FOR FRONT DISC BRAKE) |
| 47714 | Cap, Bleeder Plug(FOR FRONT DISC BRAKE) |
| 47716 | Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE) |
| 47717 | Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE) |
| 47718 | Spring, Front Disc Brake Cylinder Support |
| 47719 | Plate, Front Disc Brake Pad Guide |
| 47720 | Caliper Assy, Disc Brake, Front, LH |
| 47721 | Mounting, Front Disc Brake Cylinder, RH |
| 47722 | Mounting, Front Disc Brake Cylinder, LH |
| 47726 | Guide, Front Disc Brake Cylinder |
| 47726A | Clip(FOR FRONT DISC BRAKE CYLINDER) |
| 47730 | Cylinder Assy, Front Disc Brake, RH |
| 47731 | Piston, Front Disc Brake |
| 47731A | Ring, Set(FOR FRONT DISC BRAKE PISTON) |
| 47743 | Spring, Anti-rattle, NO.2(FOR FRONT DISC BRAKE) |
| 47744 | Shim, Anti-squeal, NO.1(FOR FRONT DISC BRAKE) |
| 47746A | Pin, W/Hole(FOR DISC BRAKE PAD, FRONT) |
| 47748 | Spring, Anti-rattle, NO.1(FOR FRONT DISC BRAKE) |
| 47750 | Cylinder Assy, Disc Brake, LH |
| 47753 | Plate, Cylinder Guide |
| 47766 | Cap, Torque Plate Pin, Front(MAIN PIN) |
| 47766A | Plug, Hole(FOR TORQUE PLATE FRONT PIN CAP) |
| 47767 | Protector, Disc Brake Pad |
| 47781 | Cover, Disc Brake Dust, Front RH |
| 47781A | Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) |
| 47782 | Cover, Disc Brake Dust, Front LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
