Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe

Discontinued model Data version 1981-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

26 part groups · 7 illustrations

Illustrations

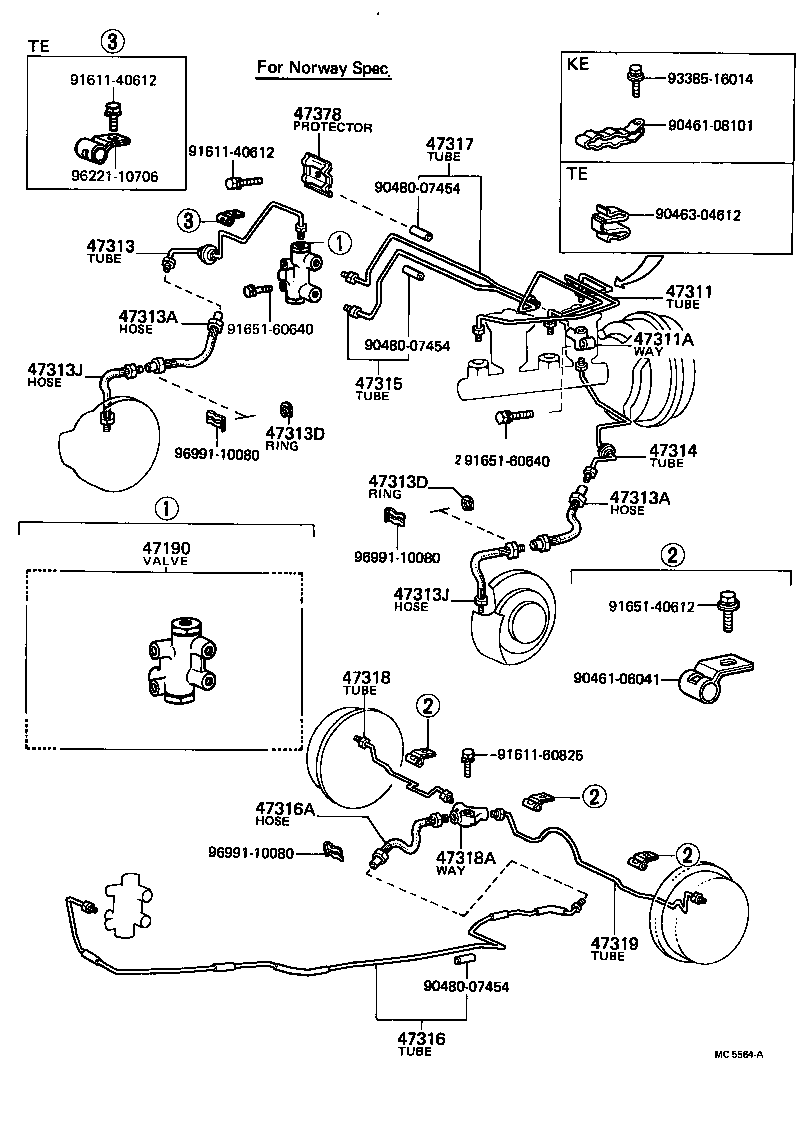

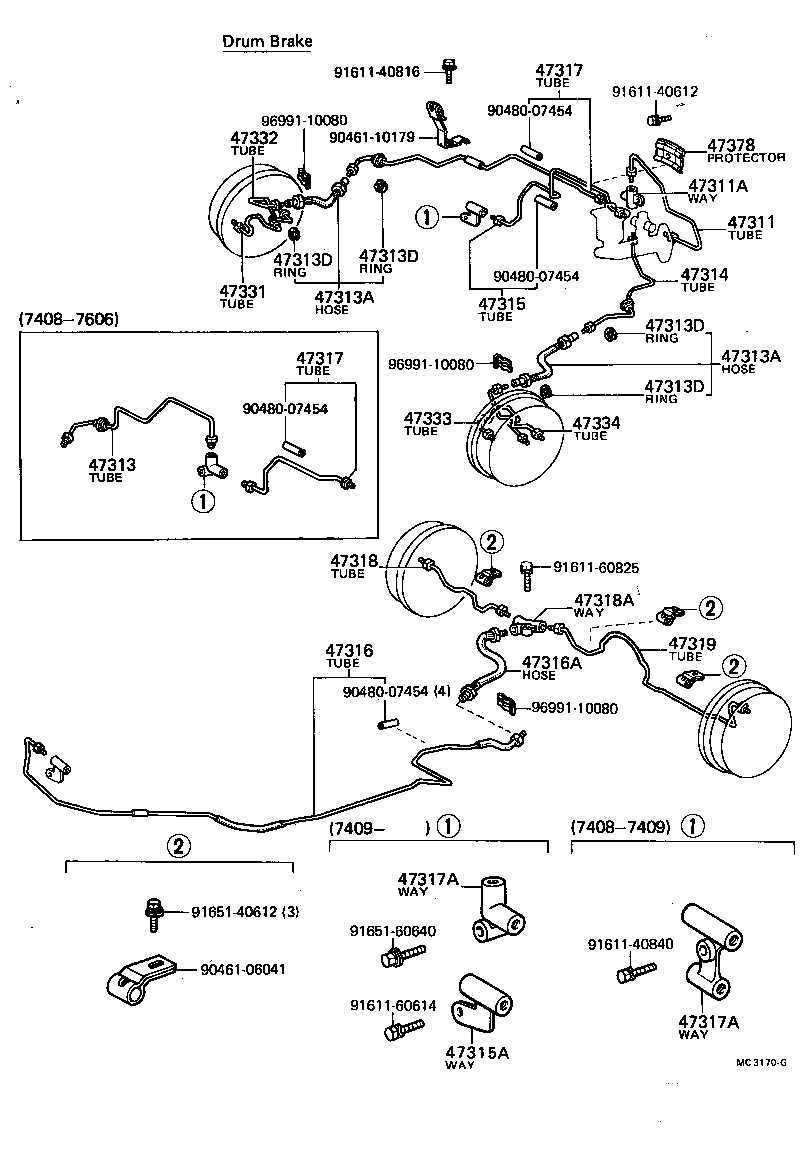

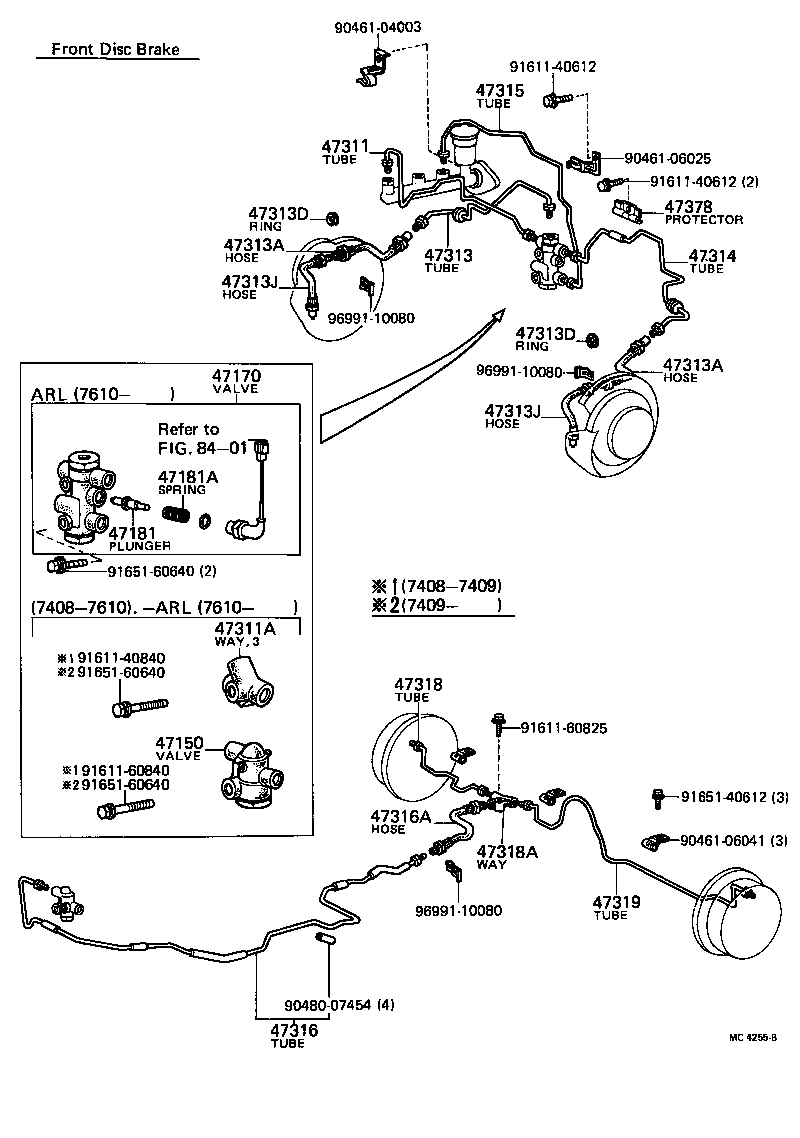

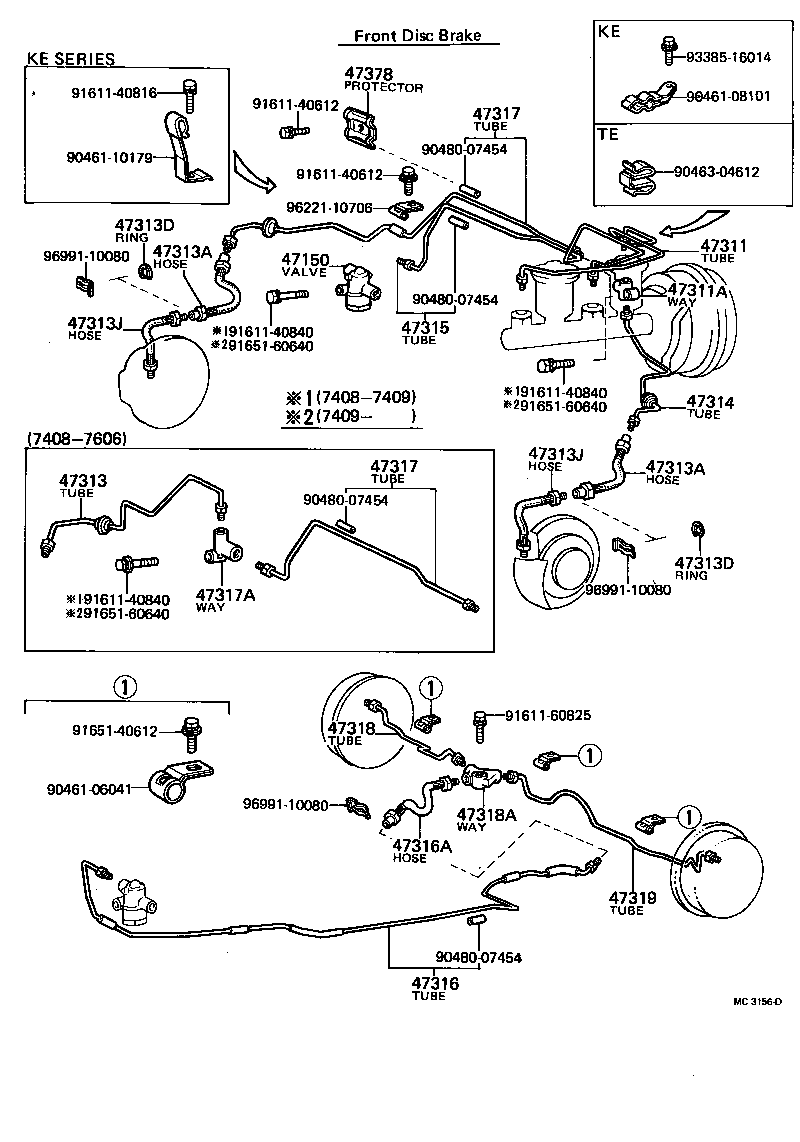

Figure MC3169E MC3169E 1974-08 → 1978-07 Figure MC3169E MC3169E 1978-07 → — Figure MC3170G MC3170G 1974-08 → 1980-02 Figure MC4255B MC4255B 1974-08 → 1978-07 Figure MC4255B MC4255B 1978-07 → — Figure MC3156D MC3156D 1974-08 → 1980-02 Figure MC5564A MC5564A 1978-02 → 1979-08

Part groups

PNCDescription
47150 Valve Assy, Proportioning
47170 Valve Assy, Brake Combination
47181 Plunger, Differential Switch
47181A Spring, Compression(FOR DIFFERENTIAL VALVE SWITCH)
47190 Valve Assy, Proportioning & By-pass
47311 Tube, Front Brake, NO.1
47311A Way(FOR FRONT BRAKE TUBE)
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313D Ring, E(FOR FRONT FLEXIBLE HOSE SETTING)
47313J Hose, Flexible, NO.2(FOR FRONT)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47315A Way OR Union(FOR REAR BRAKE TUBE)
47316 Tube, Front Brake, NO.6
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47317 Tube, Front Brake, NO.7
47317A Way(FOR BRAKE TUBE)
47318 Tube, Front Brake, NO.8
47318A Way(FOR REAR RH BRAKE TUBE)
47319 Tube, Front Brake, NO.9
47331 Tube, Rear Brake, NO.10
47332 Tube, Rear Brake, NO.11
47333 Tube, Rear Brake, NO.12
47334 Tube, Rear Brake, NO.13
47378 Protector, Brake Tube
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
