Toyota Corolla/Trueno
1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe
Discontinued model
Data version 1981-12

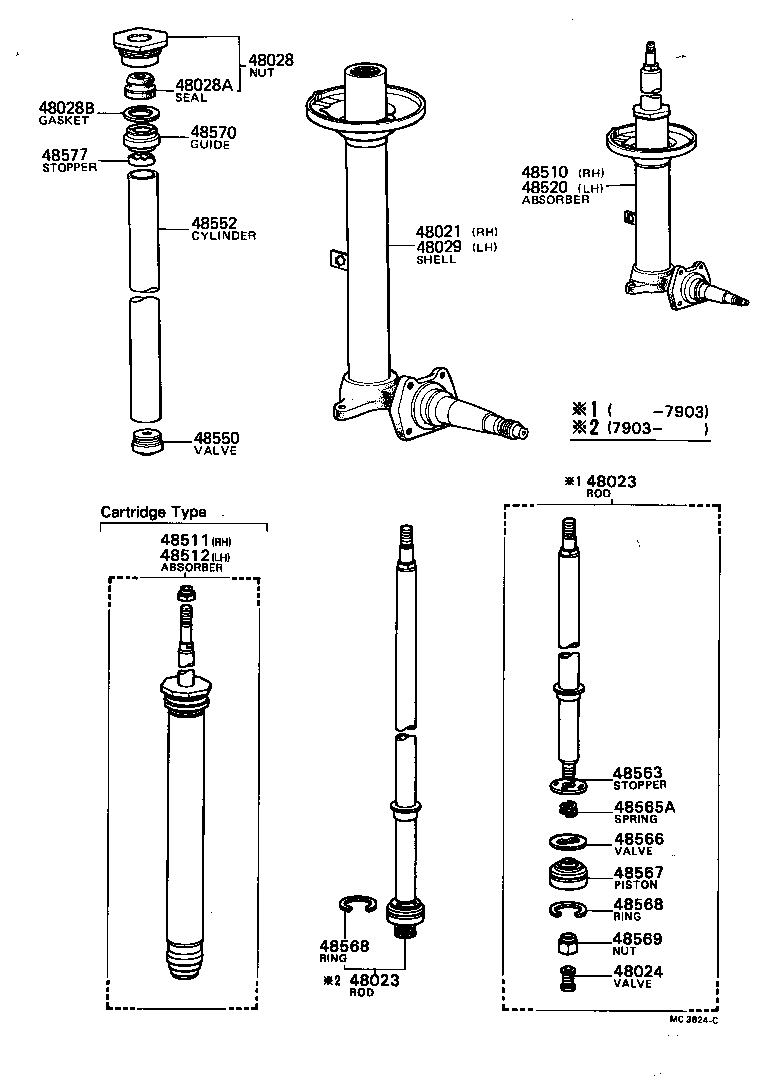

Front Spring & Shock Absorber
47 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 48021 | Shell Sub-assy, W/Steering Knuckle, RH |
| 48023 | Rod Sub-assy, Shock Absorber Piston (FOR FRONT) |
| 48024 | Valve Sub-assy, Shock Absorber Piston |
| 48024A | Collar, Absorber Piston Valve |
| 48024B | Spring, Shock Absorber Piston Valve |
| 48028 | Nut Sub-assy, Shock Absorber Ring |
| 48028A | Seal, Oil(FOR SHOCK ABSORBER RING NUT) |
| 48028B | Gasket(FOR SHOCK ABSORBER RING NUT) |
| 48029 | Shell Sub-assy, W/Steering Knuckle, LH |
| 48073 | Bracket Sub-assy, Strut Bar, RH |
| 48074 | Bracket Sub-assy, Strut Bar, LH |
| 48131 | Spring, Front Coil, RH |
| 48132 | Spring, Front Coil, LH |
| 48308 | Seat Sub-assy, Bumper Front |
| 48331 | Bumper, Front Spring, NO.1 |
| 48471 | Seat, Front Spring, Upper |
| 48510 | Absorber Assy, Shock, Front RH |
| 48511 | Absorber, Shock Front, RH(FOR CARTRIDGE TYPE) |
| 48512 | Absorber, Shock Front, LH(FOR CARTRIDGE TYPE) |
| 48520 | Absorber Assy, Shock, Front LH |
| 48550 | Valve Assy, Shock Absorber Base |
| 48552 | Cylinder, Shock Absorber(FOR FRONT) |
| 48559 | Cover, Shock Absorber, Dust |
| 48563 | Stopper, Non-return Valve |
| 48565A | Spring, Conical |
| 48566 | Valve, Shock Absorber Non-return |
| 48567 | Piston, Shock Absorber |
| 48568 | Ring, Shock Absorber Piston |
| 48569 | Nut, Shock Absorber Piston |
| 48570 | Guide Assy, Shock Absorber Rod |
| 48577 | Stopper, Shock Absorber Rebound |
| 48660 | Bar Assy, Strut, RH |
| 48660A | Bolt(FOR STRUT BAR SETTING) |
| 48670 | Bar Assy, Strut, LH |
| 48674 | Cushion, Strut Bar |
| 48674B | Collar(FOR STRUT BAR CUSHION) |
| 48680 | Support Assy, Front Suspension |
| 48680A | Nut(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) |
| 48680D | Seal, Dust(FOR FRONT SUSPENSION SUPPORT) |
| 48684 | Cover, Bearing Dust |
| 48811 | Bar, Stabilizer, Front |
| 48815 | Bush, Front Stabilizer Bar, NO.1 |
| 48817 | Cushion, Front Stabilizer |
| 48817A | Retainer, Cushion, NO.1(FOR FRONT STABILIZER BAR) |
| 48817C | Collar(FOR STABILIZER BAR) |
| 48817D | Bolt(FOR FRONT STABILIZER) |
| 48824 | Bracket, Stabilizer, Front |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
