Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe

Discontinued model Data version 1981-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

16 part groups · 8 illustrations

Illustrations

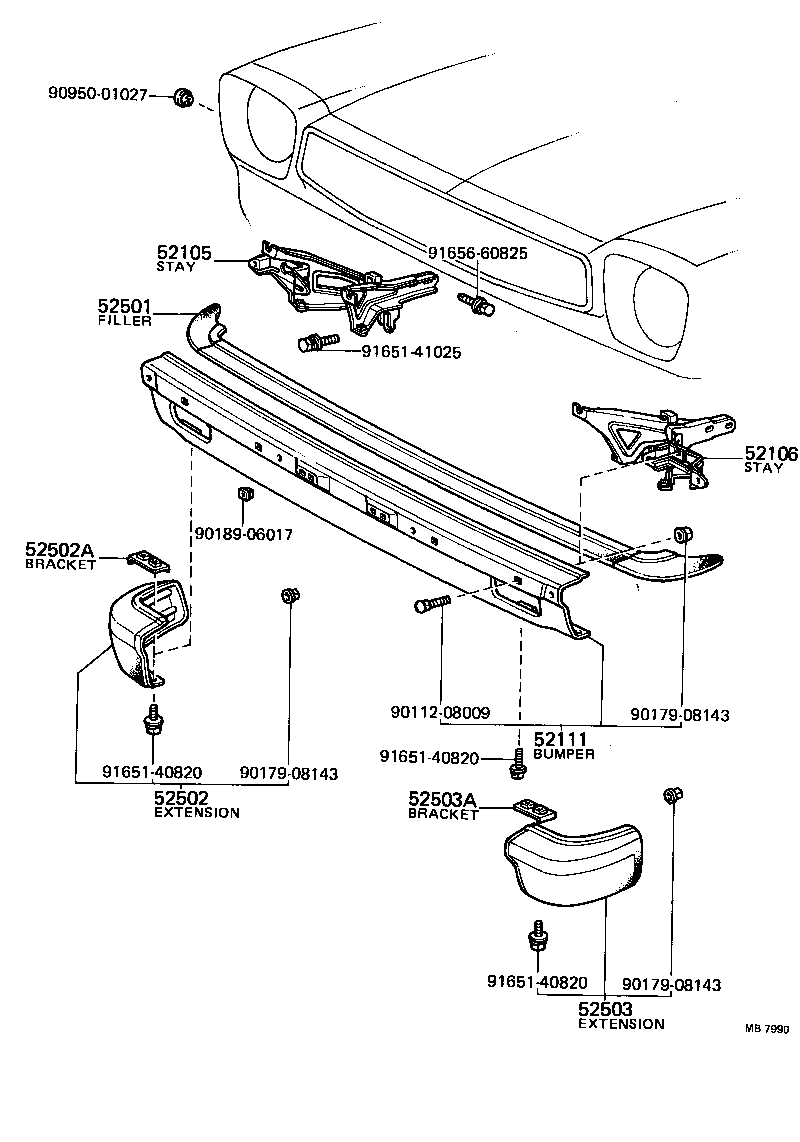

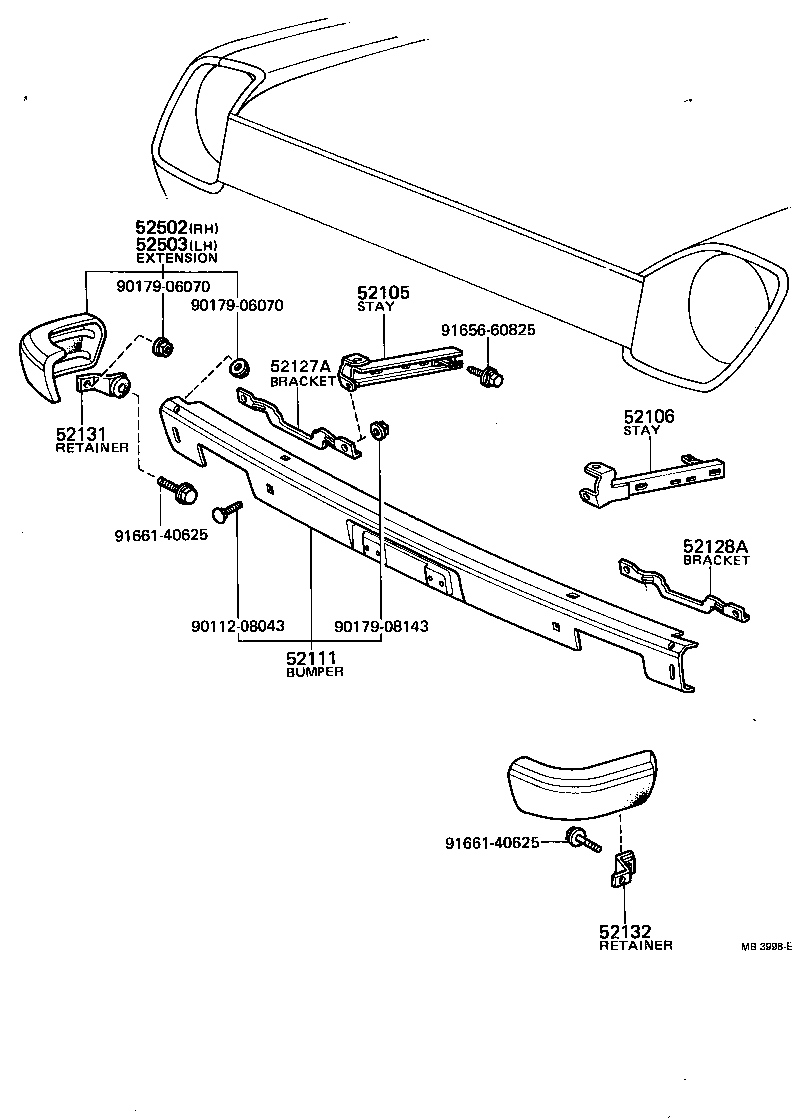

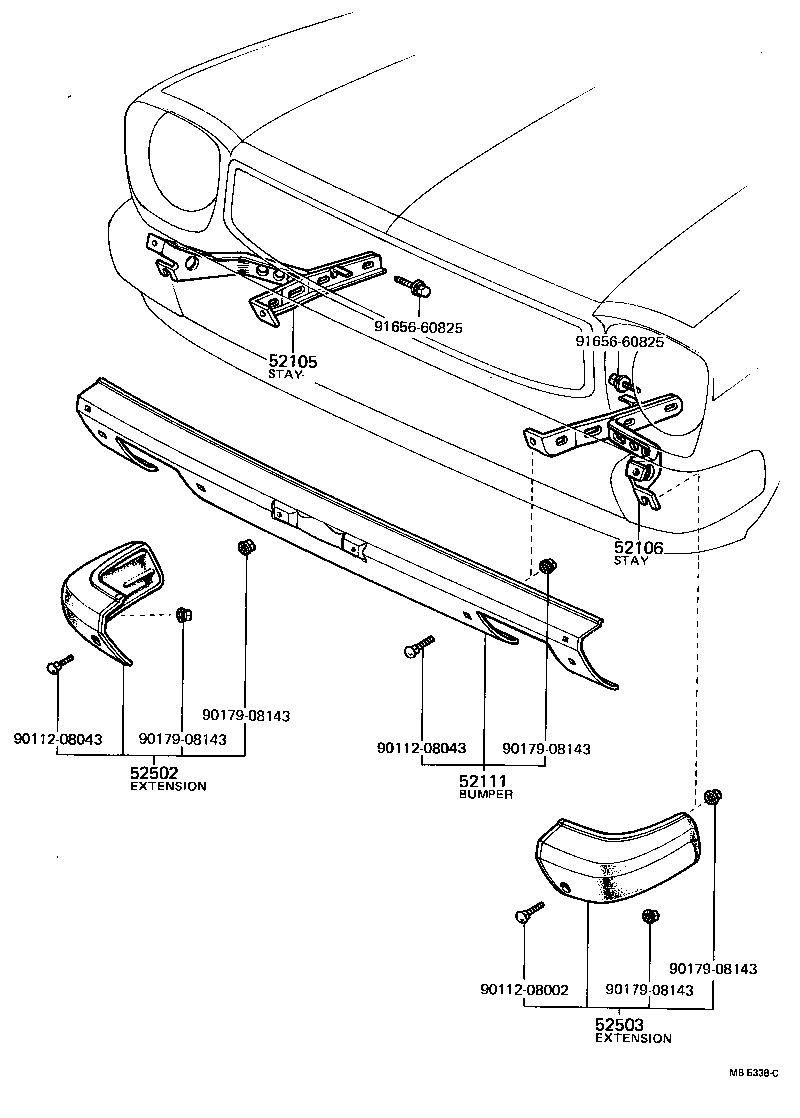

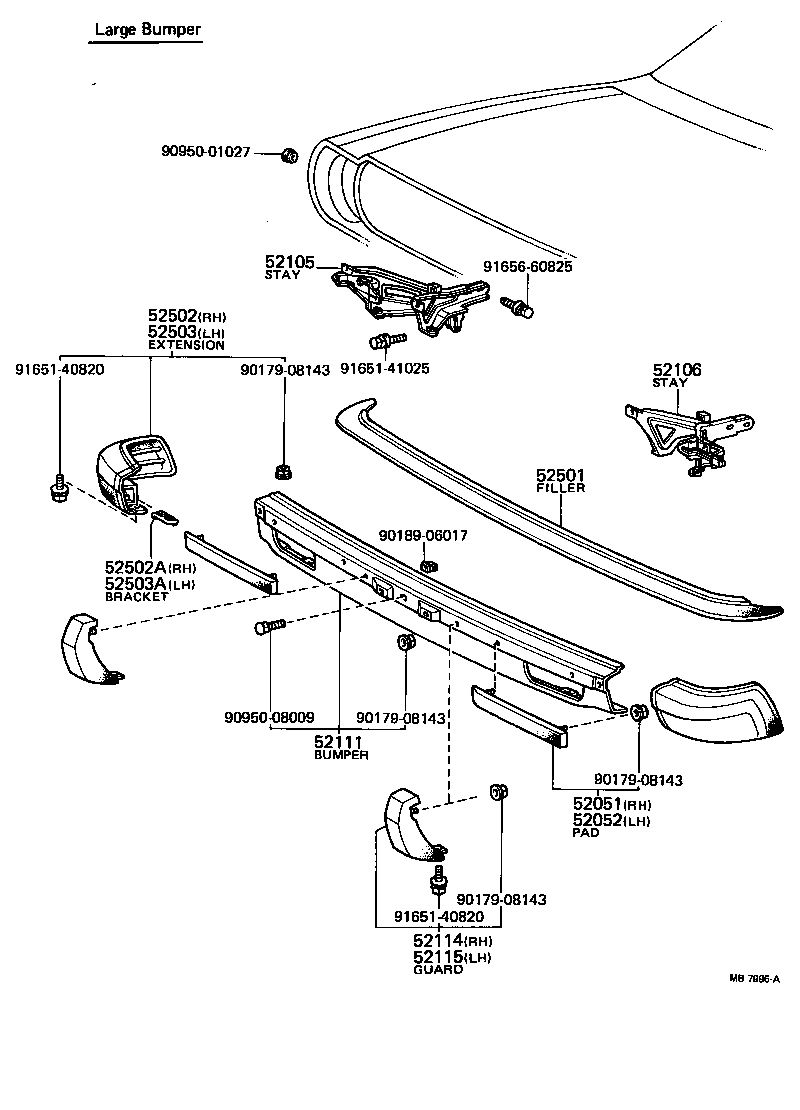

Figure MB8002A MB8002A 1974-08 → 1979-04 Figure MB8002A MB8002A 1979-04 → — Figure MB7990 MB7990 1979-04 → 1980-04 Figure MB7996A MB7996A 1978-05 → 1979-08 Figure MB7996A MB7996A 1978-07 → 1979-08 Figure MB7996A MB7996A 1979-04 → 1980-04 Figure MB3998E MB3998E 1974-08 → 1979-08 Figure MB5338C MB5338C 1976-03 → 1979-08

Part groups

PNCDescription
52051 Pad Sub-assy, Front Bumper, RH
52052 Pad Sub-assy, Front Bumper, LH
52105 Stay Sub-assy, Front Bumper, RH
52106 Stay Sub-assy, Front Bumper, LH
52111 Bumper Assy, Front
52114 Guard, Bumper, Front RH
52115 Guard, Bumper, Front LH
52127A Bracket, Front Turn Signal Lamp, RH
52128A Bracket, Front Turn Signal Lamp, LH
52131 Retainer, Front Bumper Side, RH
52132 Retainer, Front Bumper Side, LH
52501 Filler Sub-assy, Front Bumper
52502 Extension Sub-assy, Front Bumper, RH
52502A Bracket, Front Bumper Extension Mounting, RH
52503 Extension Sub-assy, Front Bumper, LH
52503A Bracket, Front Bumper Extension Mounting, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
