Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe

Discontinued model Data version 1981-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

15 part groups · 9 illustrations

Illustrations

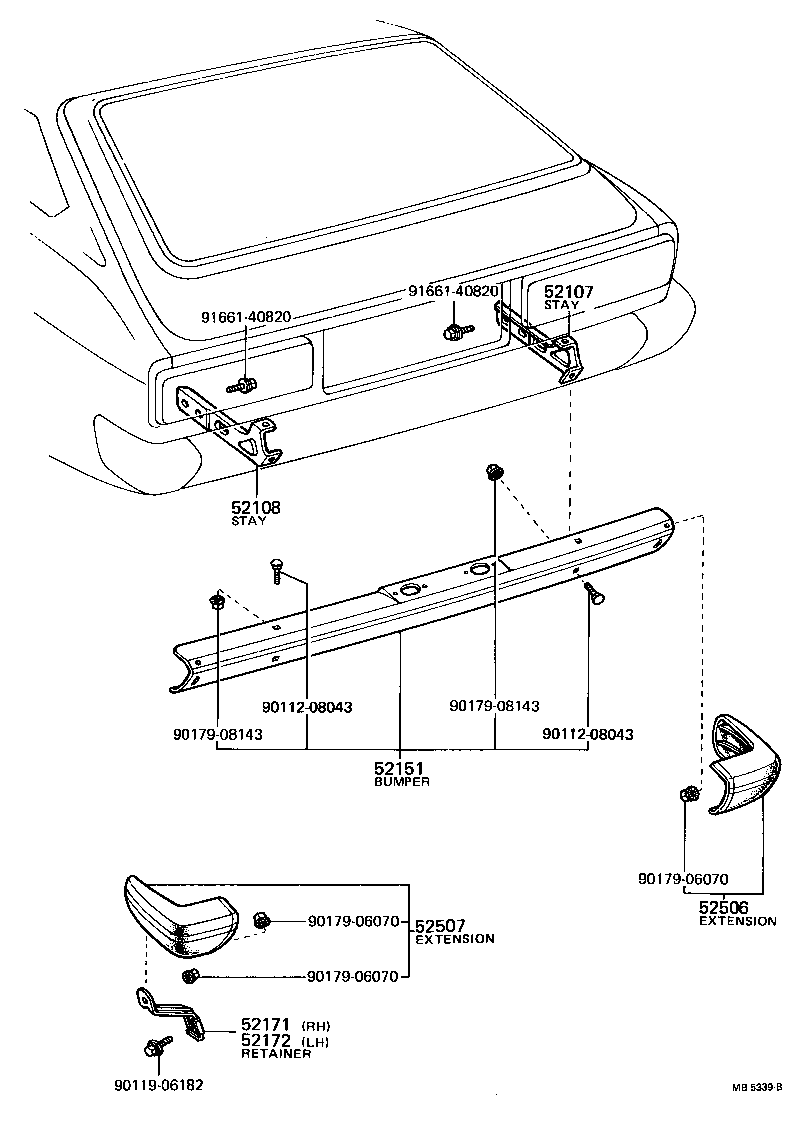

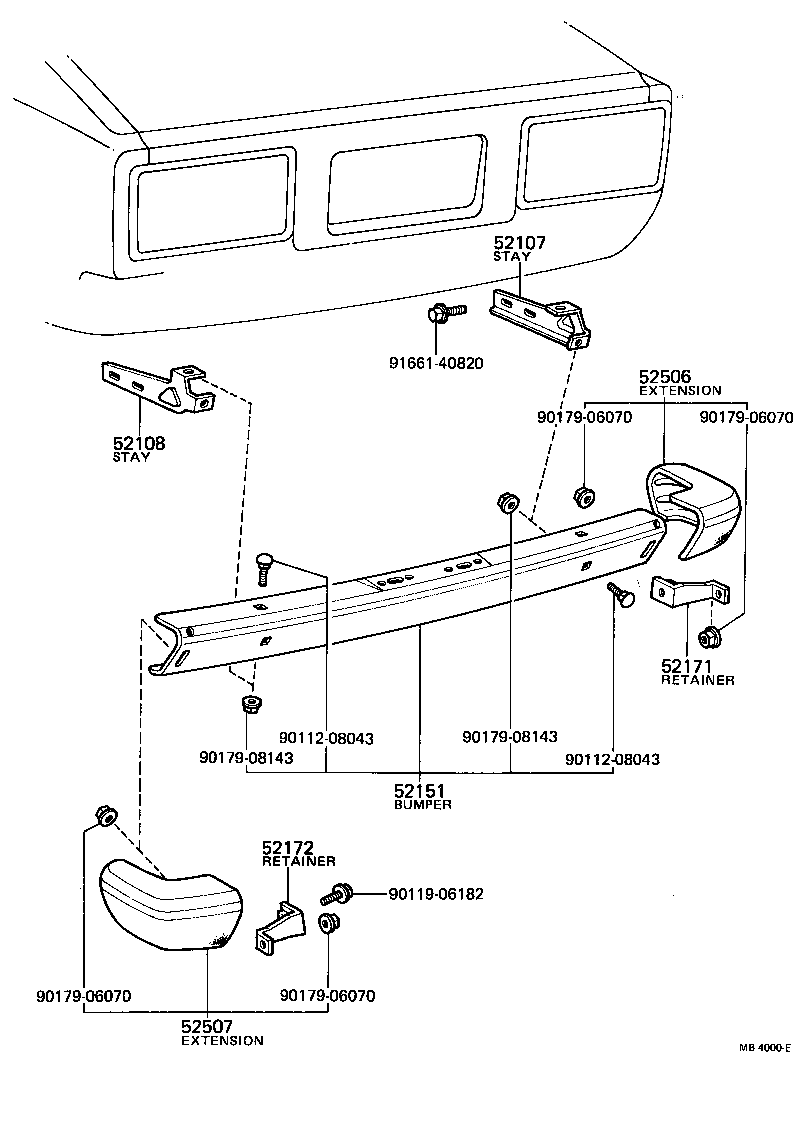

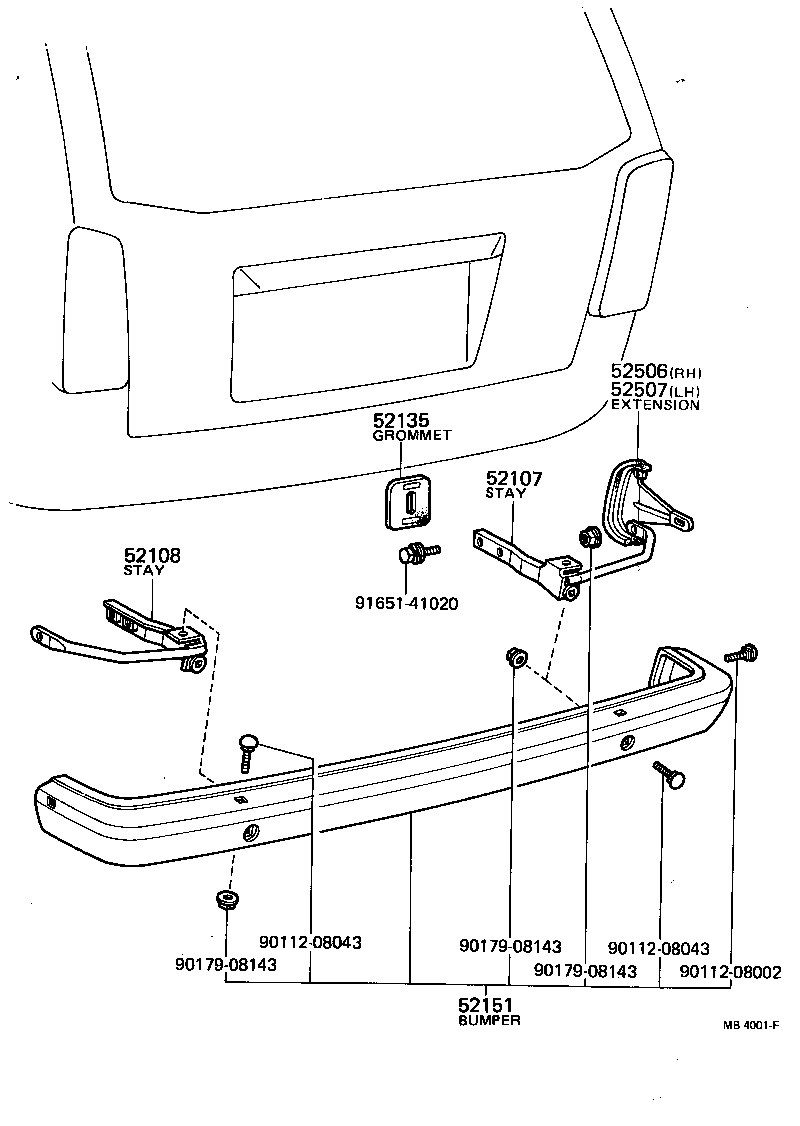

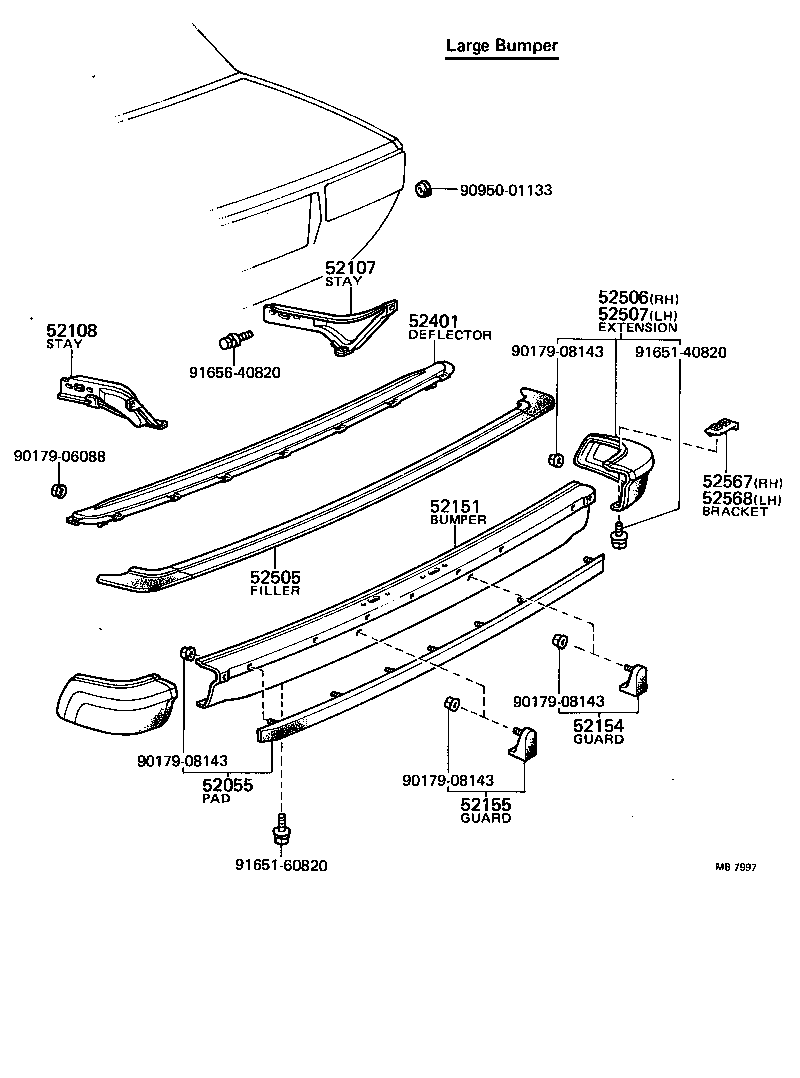

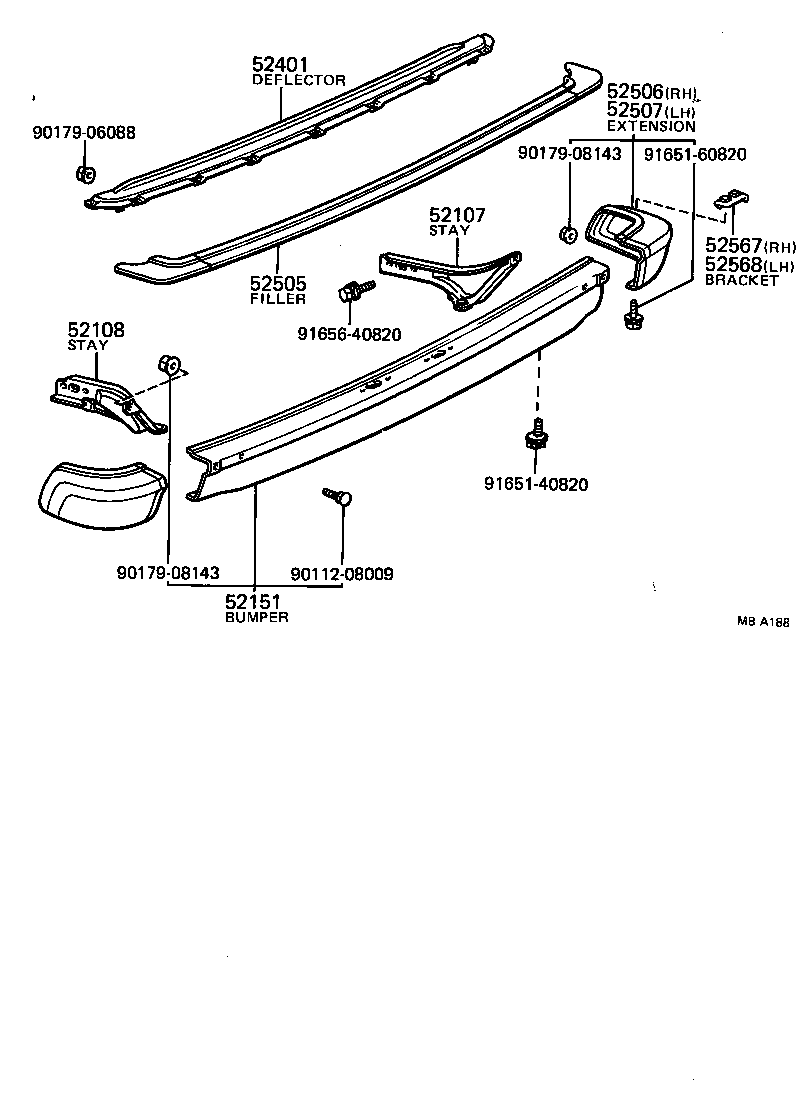

Figure MB8003B MB8003B 1974-08 → 1979-04 Figure MB8003B MB8003B 1979-04 → — Figure MBA188 MBA188 1979-04 → 1980-04 Figure MB7997 MB7997 1978-05 → 1979-08 Figure MB7997 MB7997 1978-07 → 1979-08 Figure MB7997 MB7997 1979-04 → 1980-04 Figure MB4000E MB4000E 1974-08 → 1979-08 Figure MB5339B MB5339B 1976-03 → 1979-08 Figure MB4001F MB4001F 1974-08 → —

Part groups

PNCDescription
52055 Pad Sub-assy, Rear Bumper
52107 Stay Sub-assy, Rear Bumper, RH
52108 Stay Sub-assy, Rear Bumper, LH
52135 Grommet, Rear Bumper Stay
52151 Bumper Assy, Rear
52154 Guard, Bumper, Rear RH
52155 Guard, Bumper, Rear LH
52171 Retainer, Rear Bumper Side, RH
52172 Retainer, Rear Bumper Side, LH
52401 Deflector, Rear Bumper Stone
52505 Filler Sub-assy, Rear Bumper
52506 Extension Sub-assy, Rear Bumper, RH
52507 Extension Sub-assy, Rear Bumper, LH
52567 Bracket, Rear Bumper Extension, RH
52568 Bracket, Rear Bumper Extension, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
