Toyota Corolla/Trueno
1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe
Discontinued model
Data version 1981-12

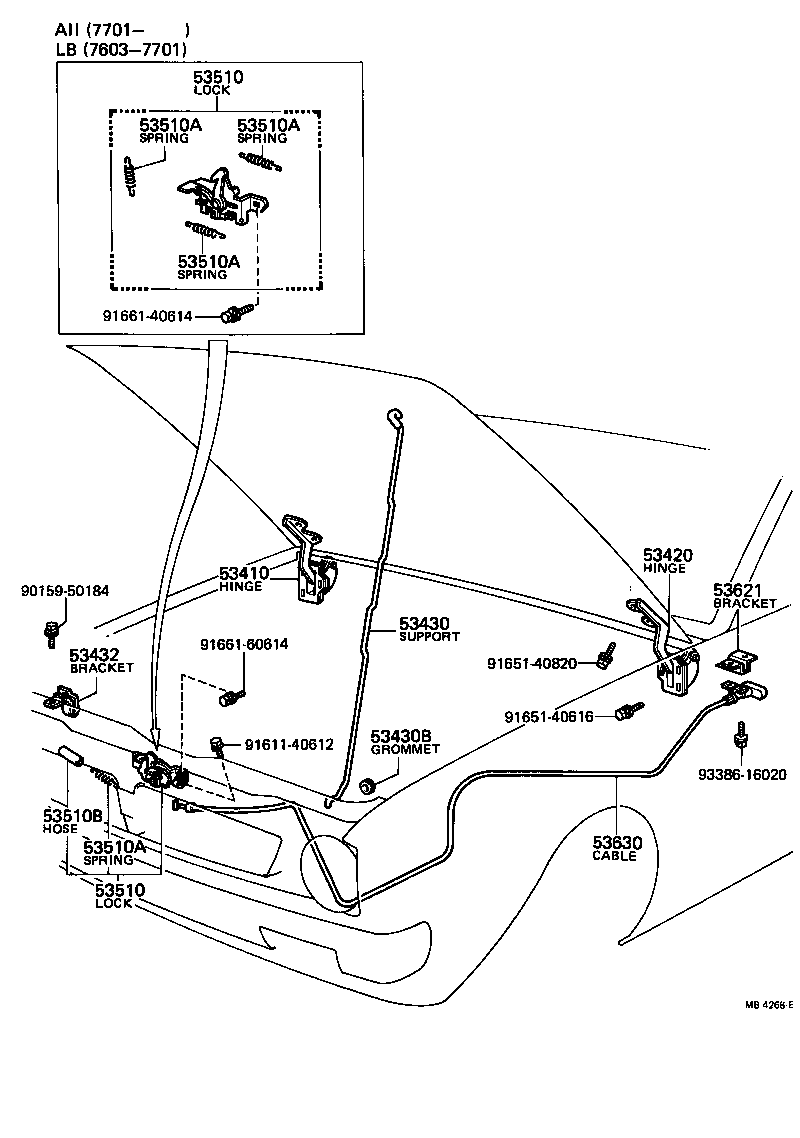

Hood Lock & Hinge
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53410 | Hinge Assy, Hood, RH |
| 53420 | Hinge Assy, Hood, LH |
| 53430 | Support Assy, Hood |
| 53430B | Grommet(FOR HOOD SUPPORT) |
| 53432 | Bracket, Hood Support Clamp |
| 53510 | Lock Assy, Hood |
| 53510A | Spring, Tension(FOR HOOD LOCK) |
| 53510B | Hose(FOR HOOD LOCK) |
| 53621 | Bracket, Hood Lock Control Cable |
| 53630 | Cable Assy, Hood Lock Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
