Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe

Discontinued model Data version 1981-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

34 part groups · 16 illustrations

Illustrations

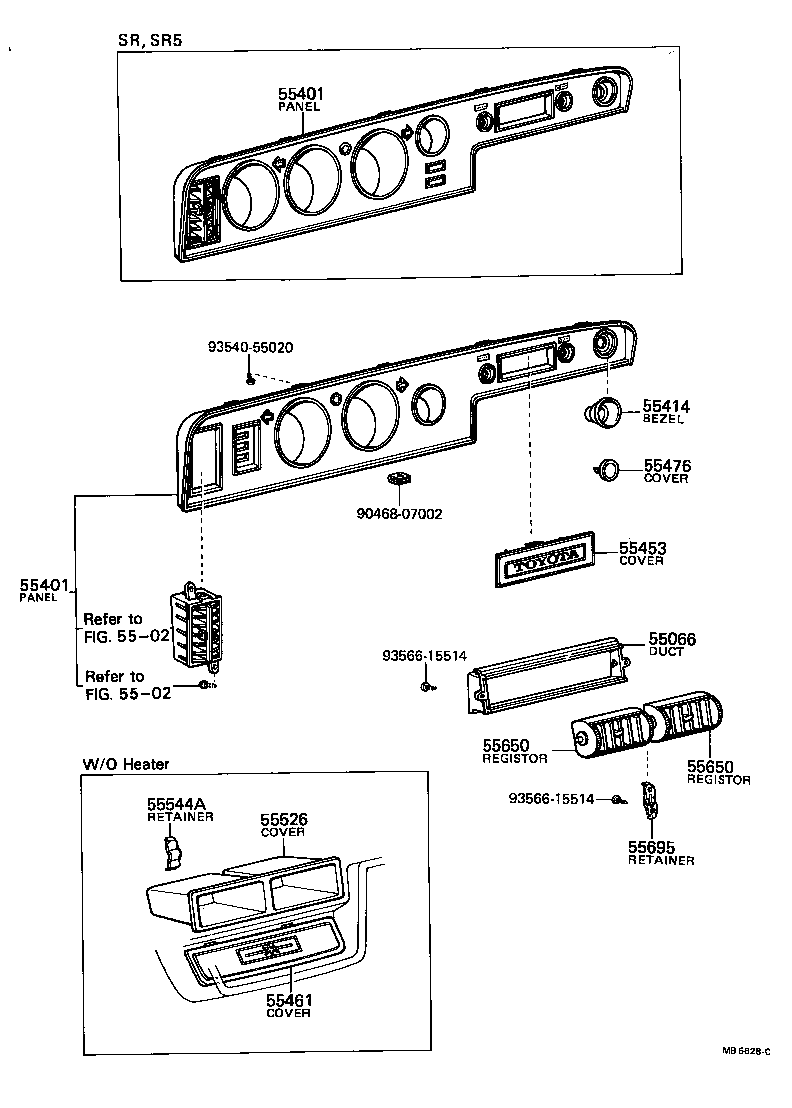

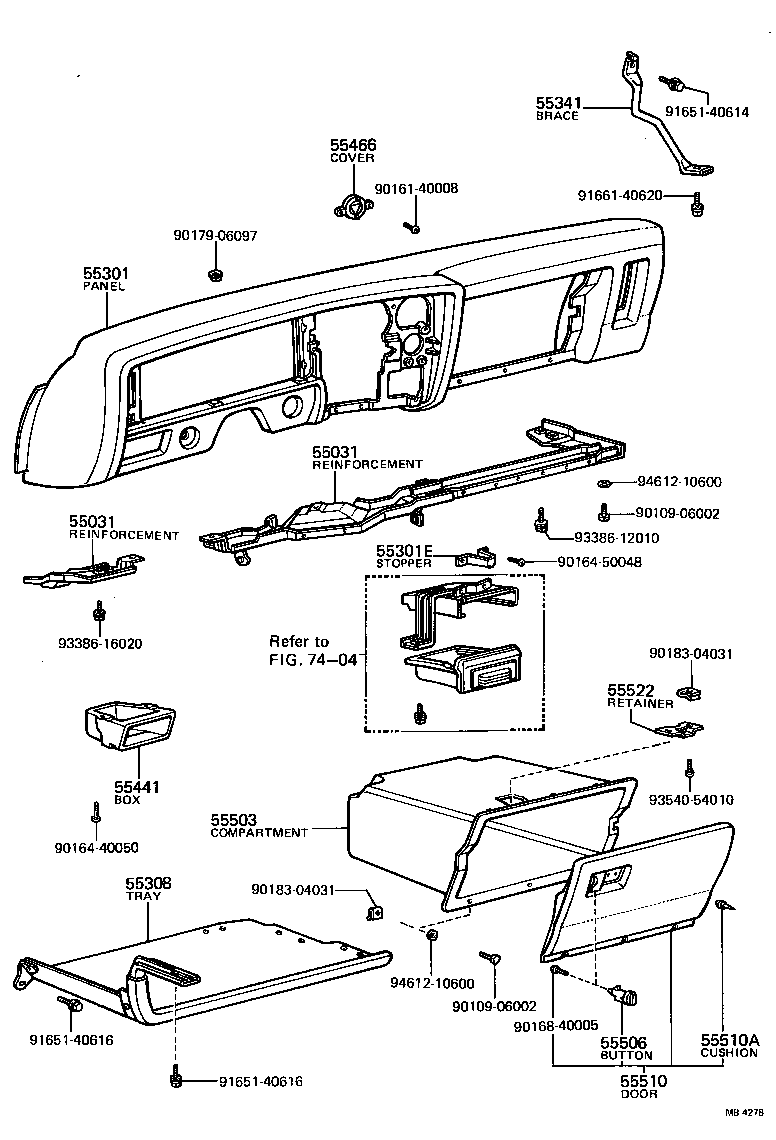

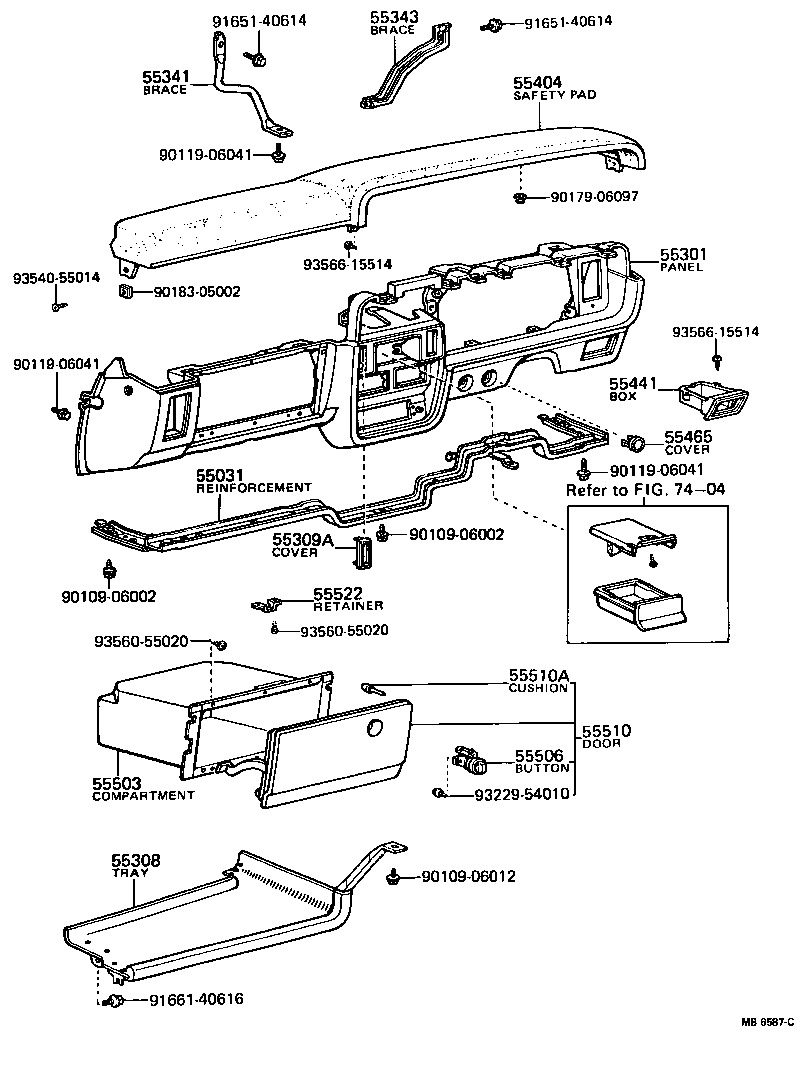

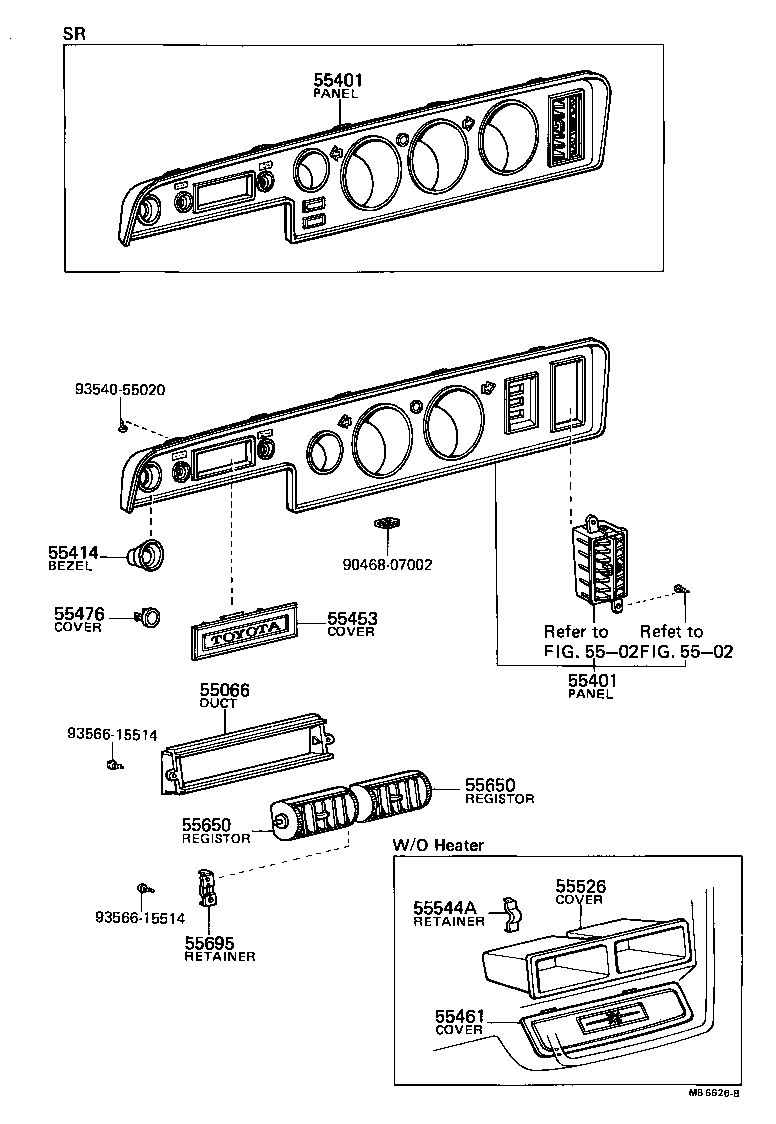

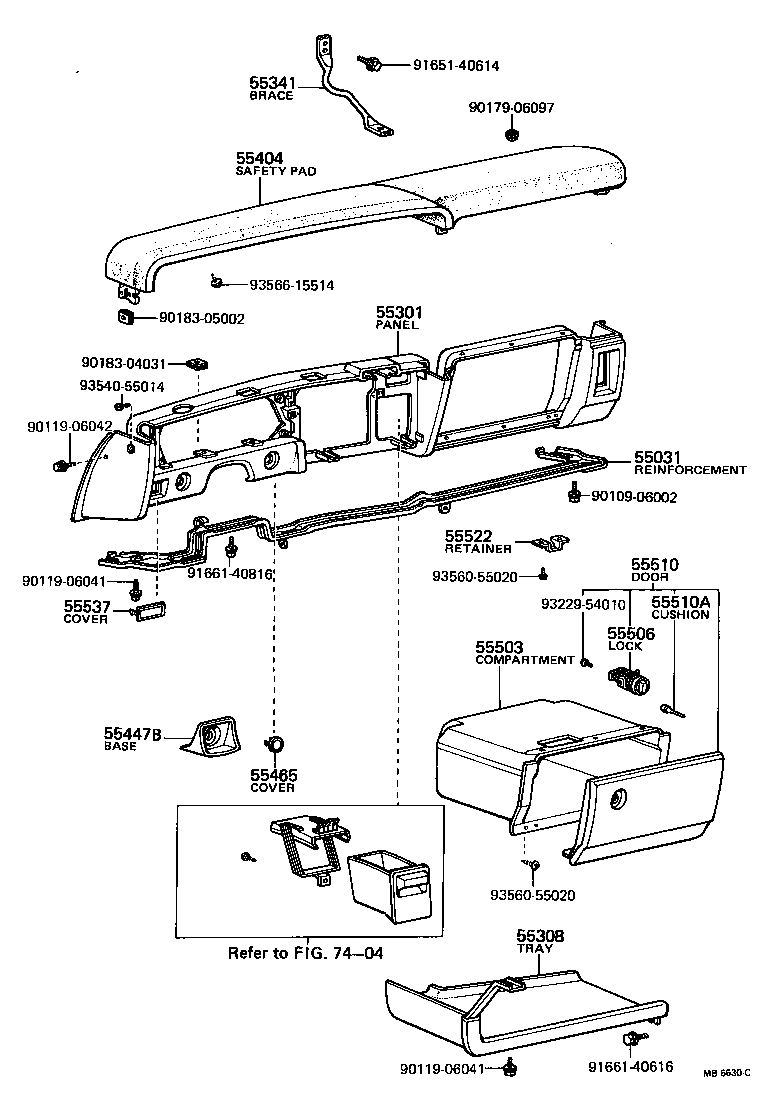

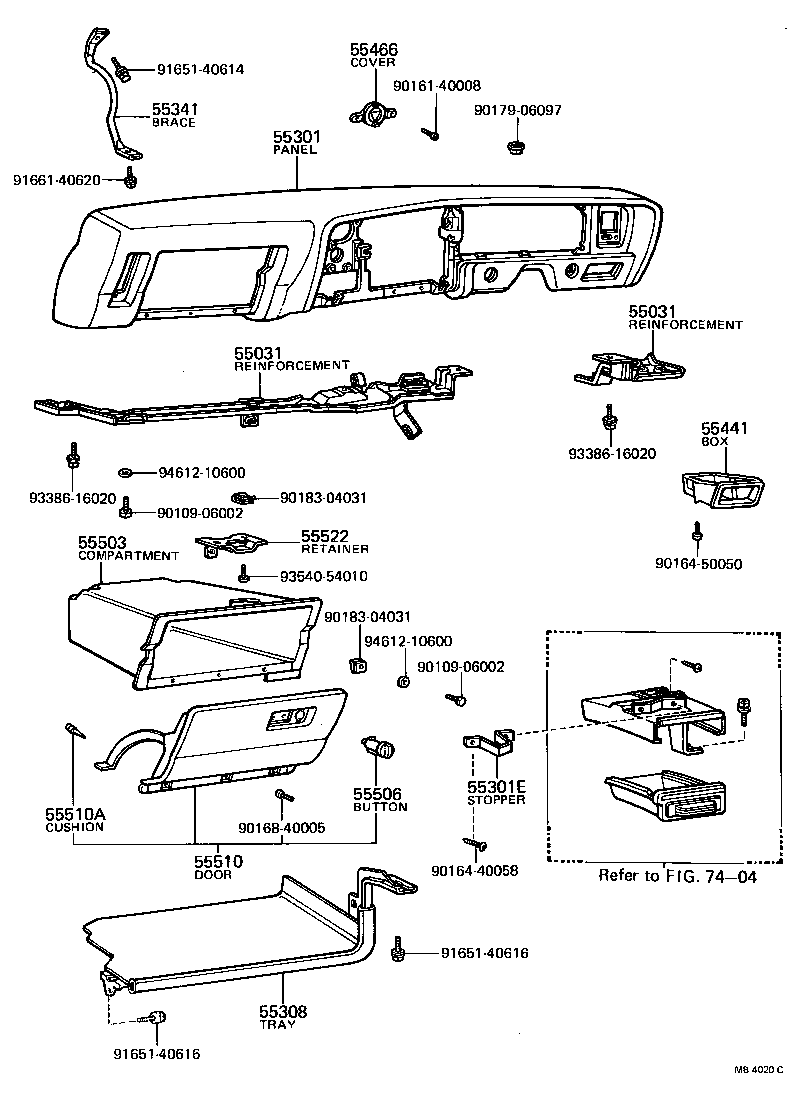

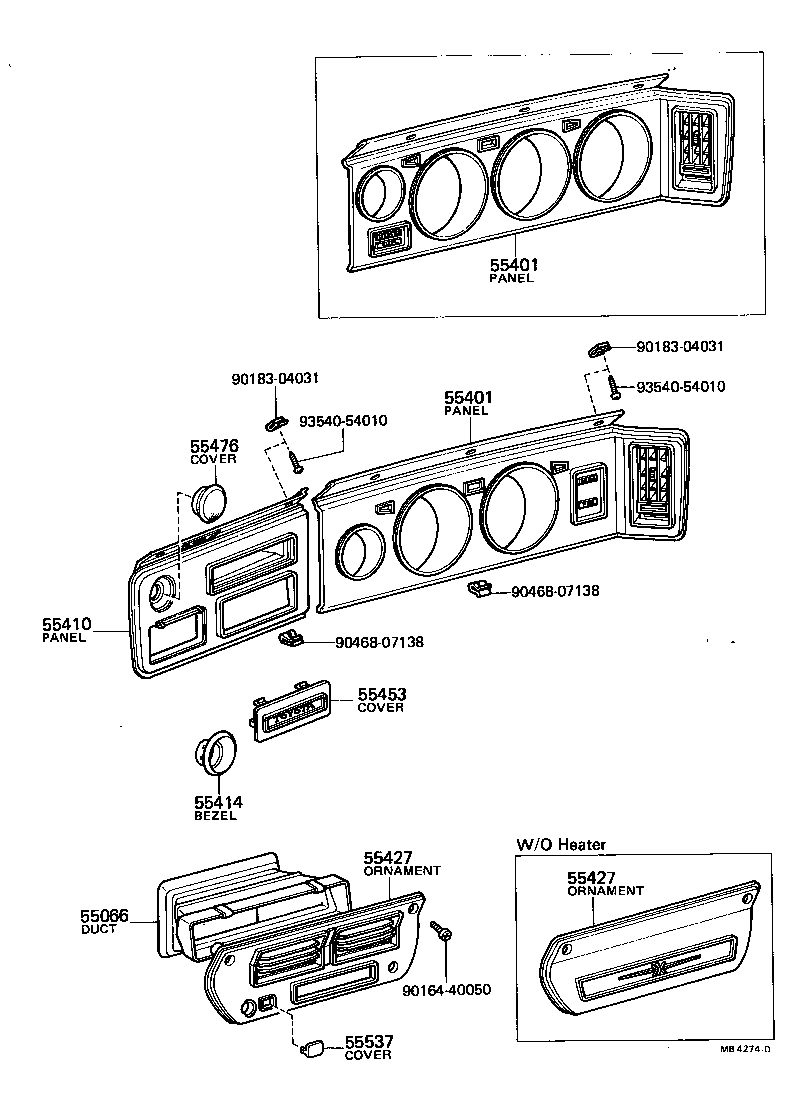

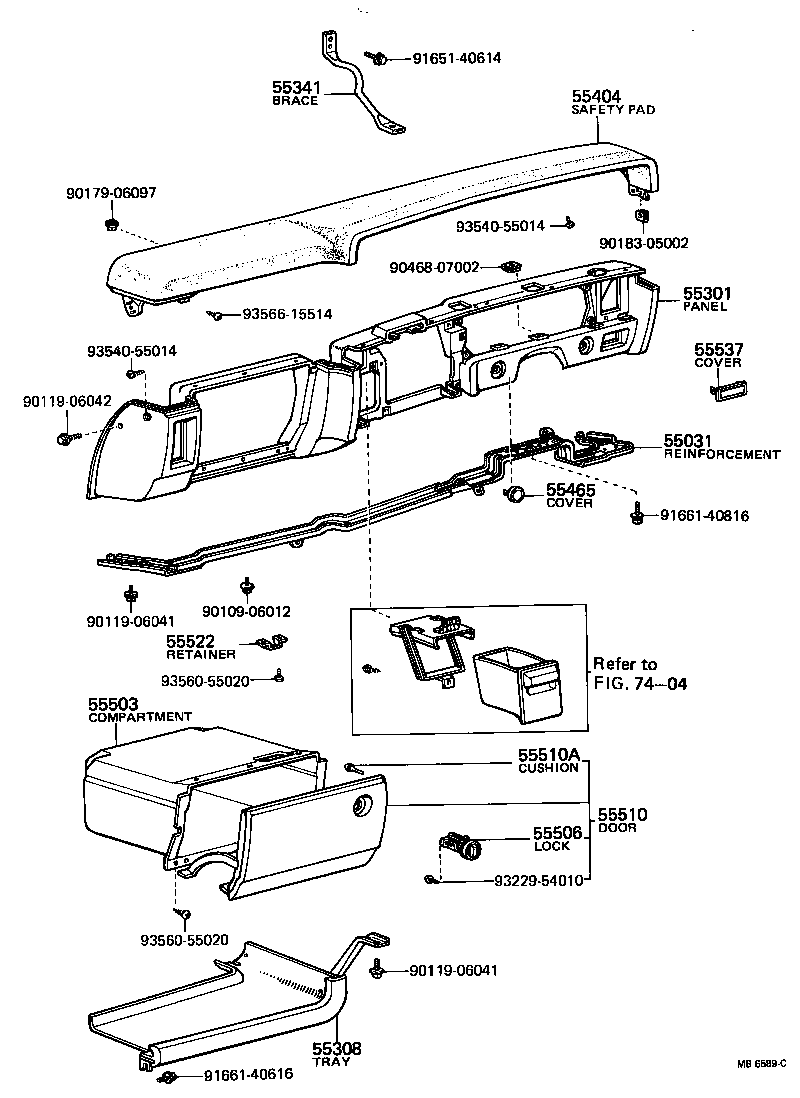

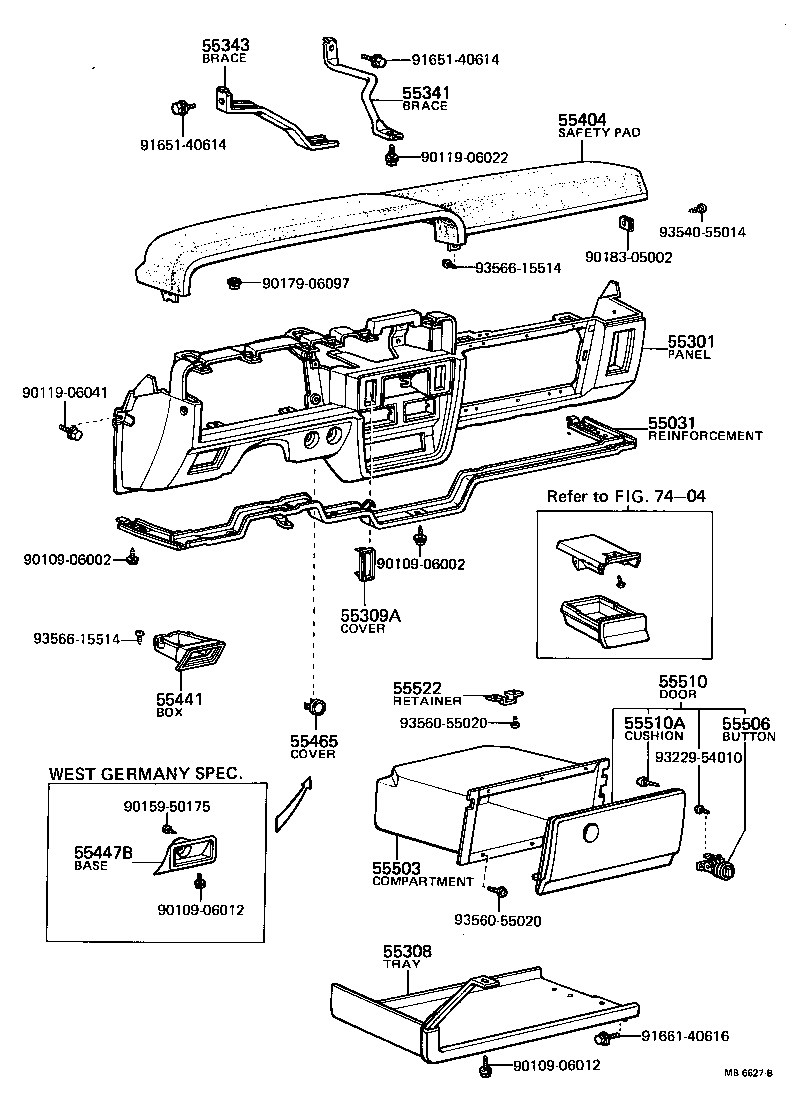

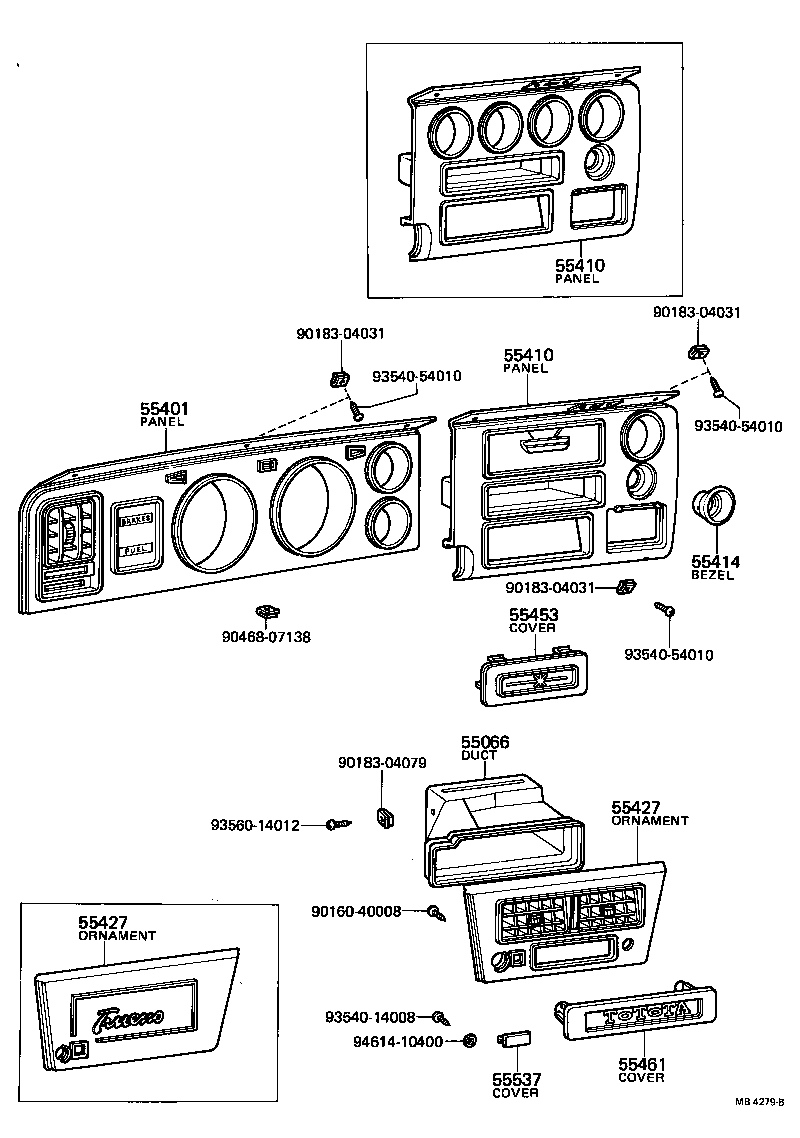

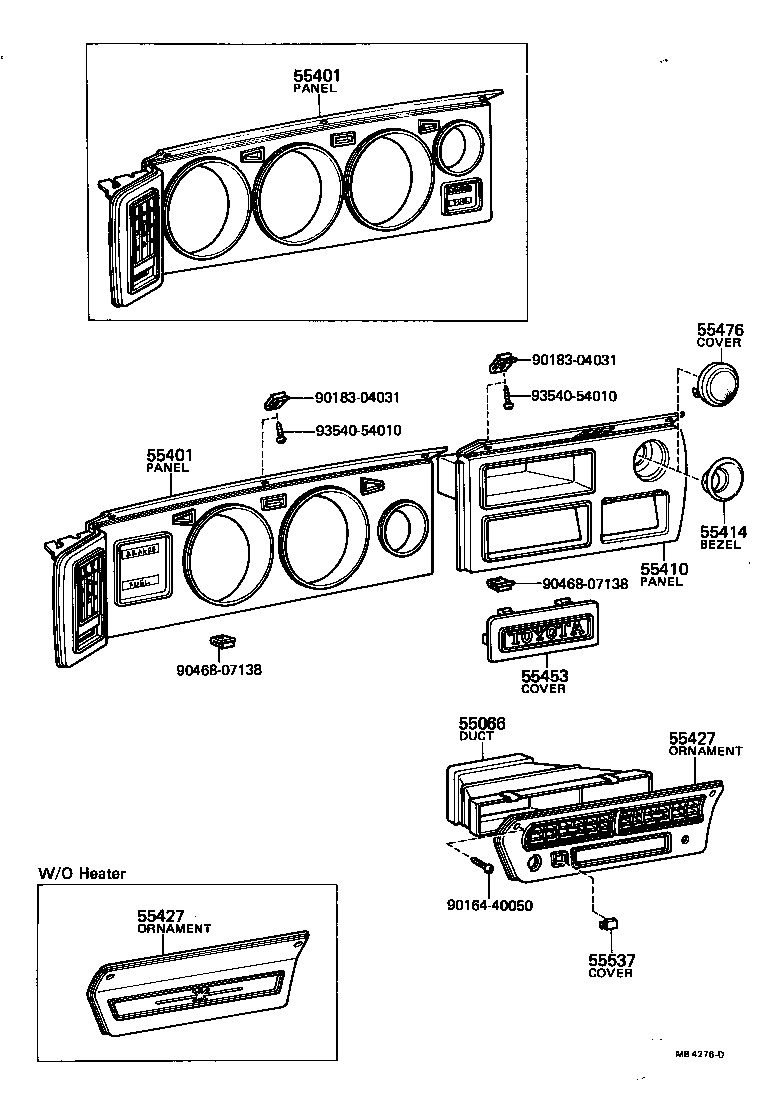

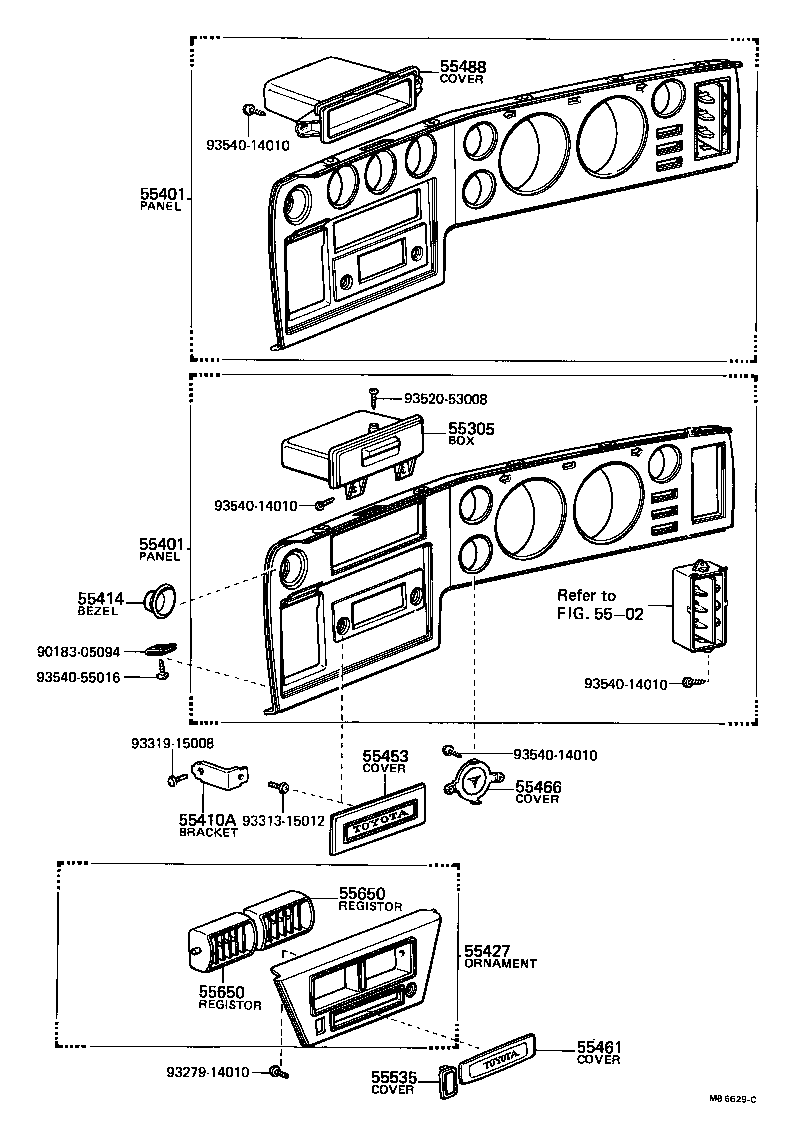

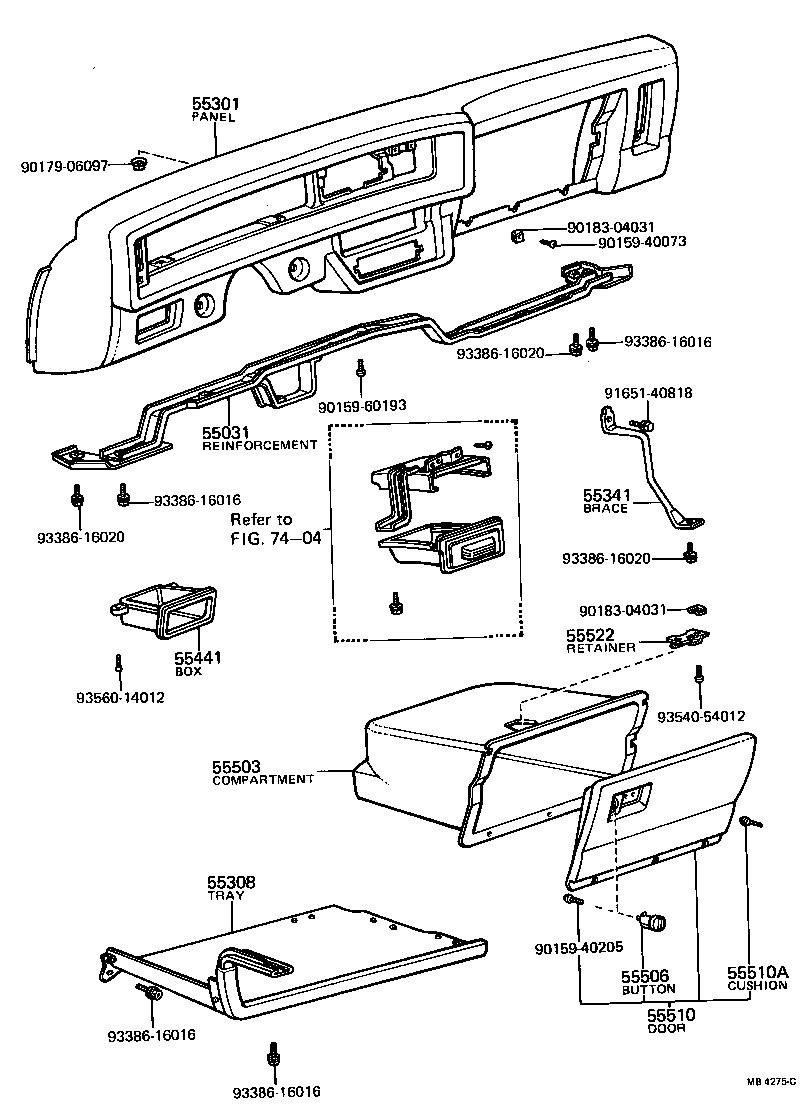

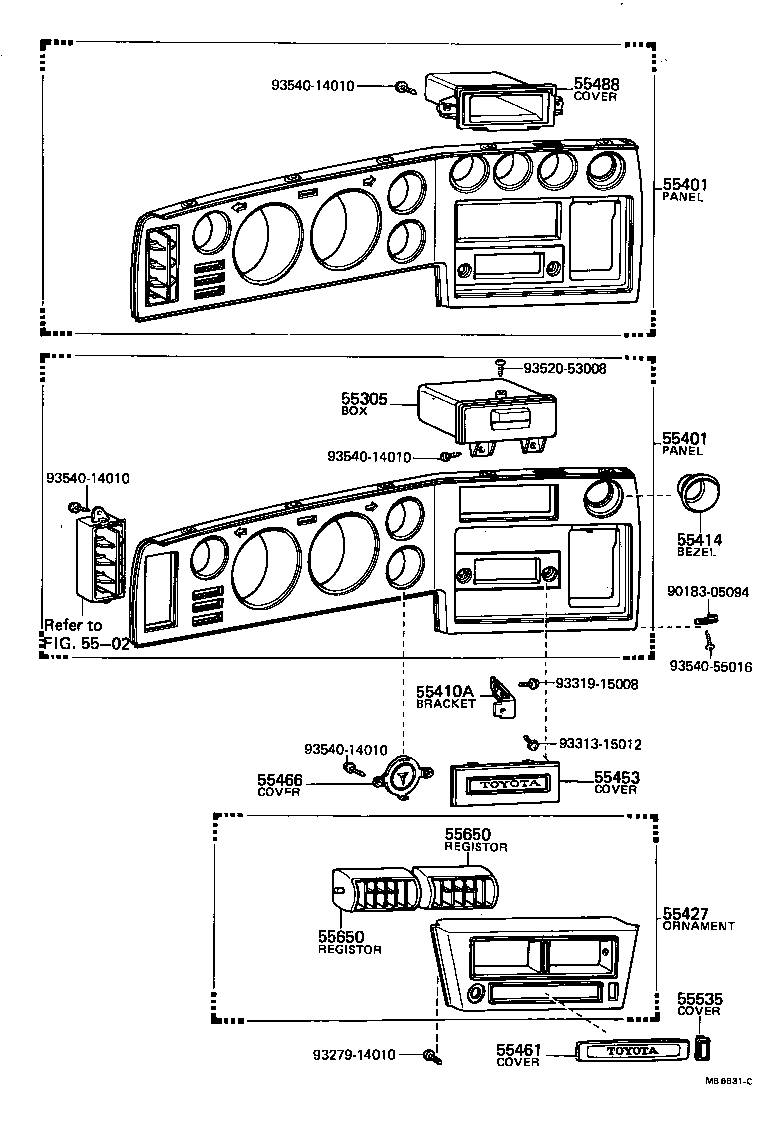

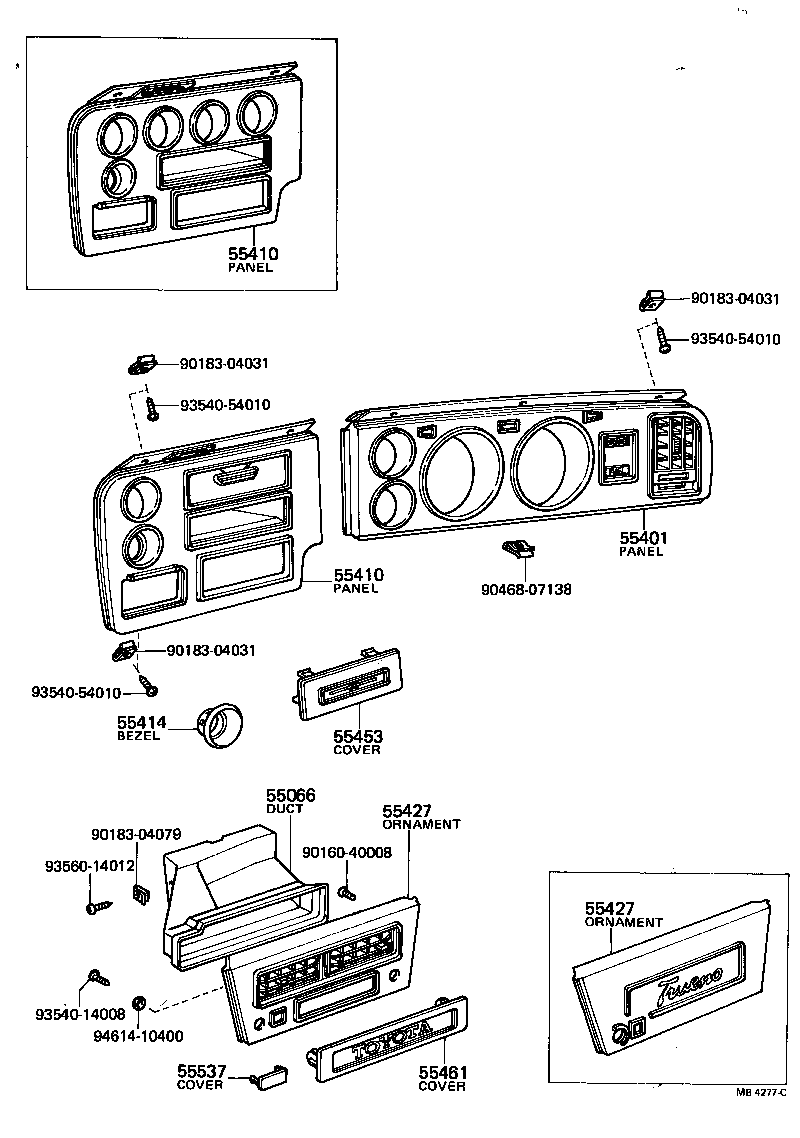

Figure MB4016A MB4016A 1974-08 → 1977-01 Figure MB4274D MB4274D 1974-08 → 1977-01 Figure MB4275C MB4275C 1974-08 → 1977-01 Figure MB4276D MB4276D 1974-08 → 1977-01 Figure MB4020C MB4020C 1974-08 → 1977-01 Figure MB4277C MB4277C 1974-08 → 1977-01 Figure MB4278 MB4278 1974-08 → 1977-01 Figure MB4279B MB4279B 1974-08 → 1977-01 Figure MB6587C MB6587C 1977-01 → — Figure MB6626B MB6626B 1977-01 → — Figure MB6627B MB6627B 1977-01 → 1980-02 Figure MB6628C MB6628C 1977-01 → 1980-02 Figure MB6589C MB6589C 1977-01 → 1979-08 Figure MB6629C MB6629C 1977-01 → 1979-08 Figure MB6630C MB6630C 1977-01 → 1979-08 Figure MB6631C MB6631C 1977-01 → 1979-08

Part groups

PNCDescription
55031 Reinforcement, Instrument Panel, NO.1
55066 Duct Sub-assy, Air Outlet, Center
55301 Panel Sub-assy, Instrument
55301E Stopper, Instrument Cluster Finish Panel, Center
55305 Box Sub-assy, Instrument Panel, Center
55308 Tray Sub-assy, Instrument Panel Under
55309A Cover, Base Switch Hole, NO.1
55341 Brace, Instrument Panel, NO.1
55343 Brace, Instrument Panel, NO.3
55401 Panel Sub-assy, Instrument Cluster Finish
55404 Safety Pad Sub-assy, Instrument Panel, Upper
55410 Panel Assy, Instrument Cluster Finish, NO.2
55410A Bracket, Instrument Cluster Finish Panel, NO.2
55414 Bezel, Cigar Lighter Hole
55427 Ornament, Instrument Panel, Center
55441 Box, Instrument Panel
55447B Base, Choke Knob Hole
55453 Cover, Radio Tuner Opening
55461 Cover, Heater Control Hole
55465 Cover, Instrument Hole
55466 Cover, Clock Hole
55476 Cover, Cigarette Lighter Hole
55488 Cover, Stereo Opening
55503 Compartment Sub-assy, Glove
55506 Button Sub-assy, Glove Compartment Door Lock
55510 Door Assy, Glove Compartment
55510A Cushion(FOR GLOVE COMPARTMENT DOOR)
55522 Retainer, Glove Compartment Male
55526 Cover, Instrument Panel Register Opening
55535 Cover, Warning Lamp Hole
55537 Cover, Rear Window Defogger Switch Hole
55544A Retainer, Instrument Panel Hole Cover
55650 Register Assy, Instrument Panel, NO.1
55695 Retainer, Air Guide Blade Case, Center NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
