Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe

Discontinued model Data version 1981-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Ventilator

9 part groups · 6 illustrations

Illustrations

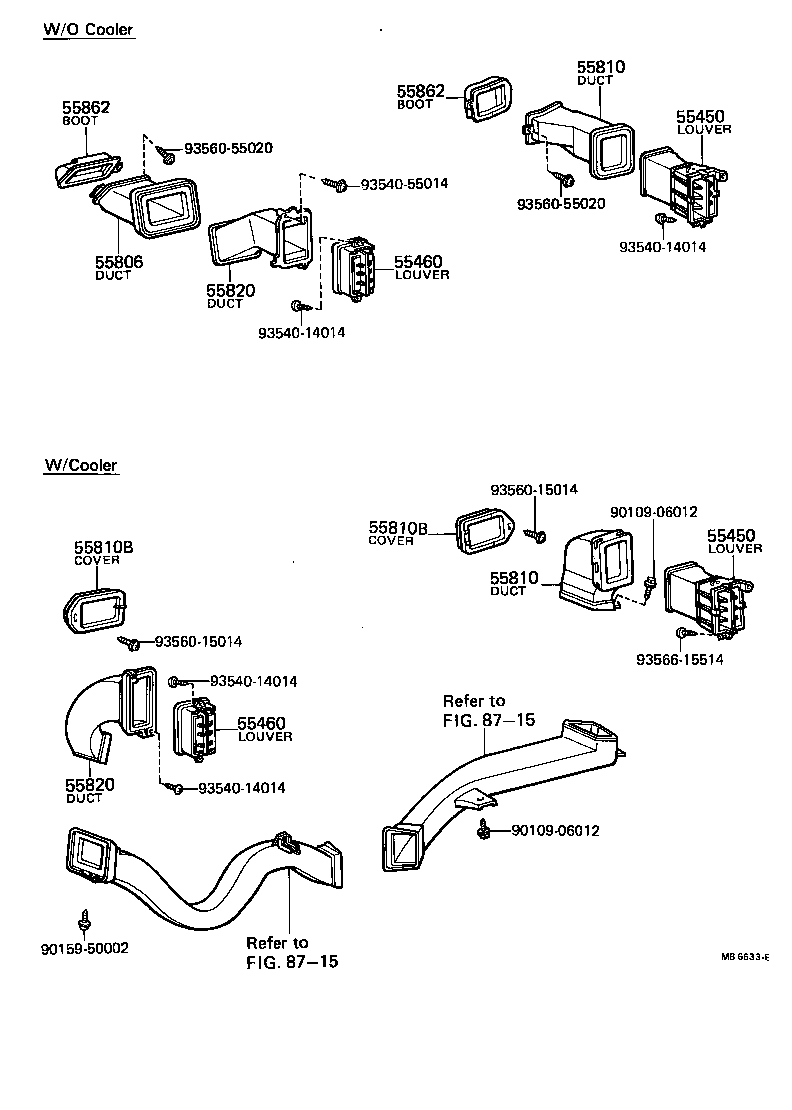

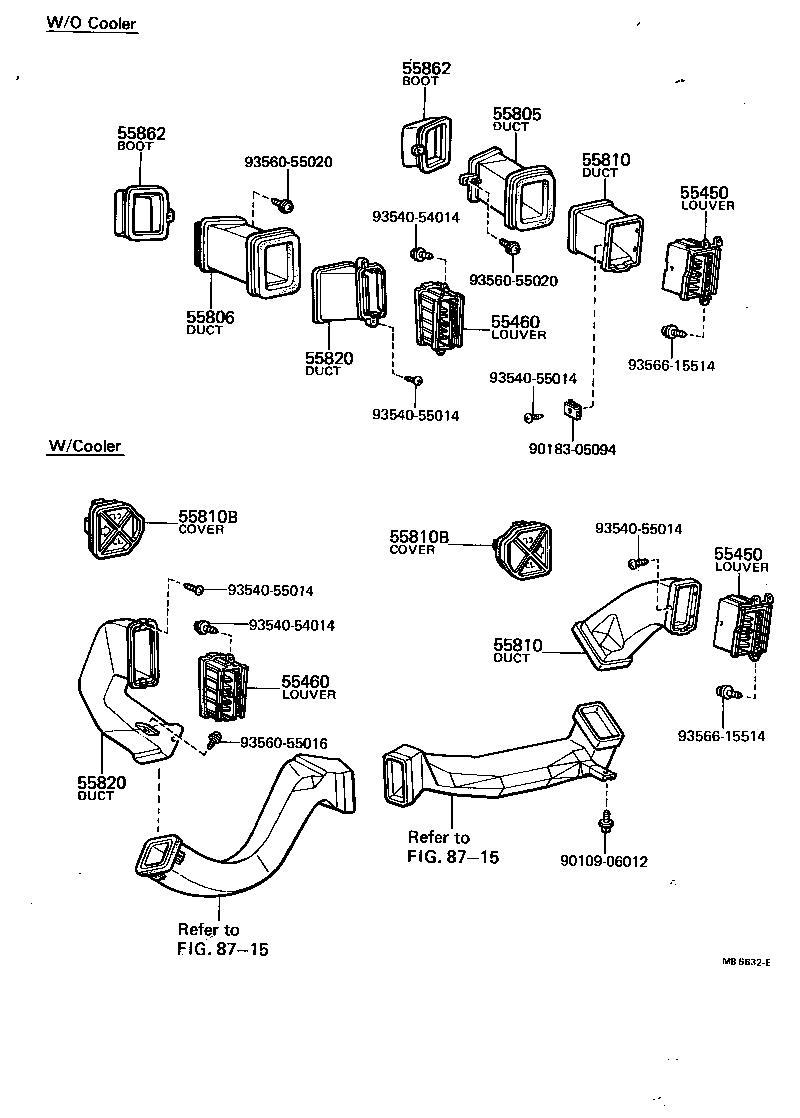

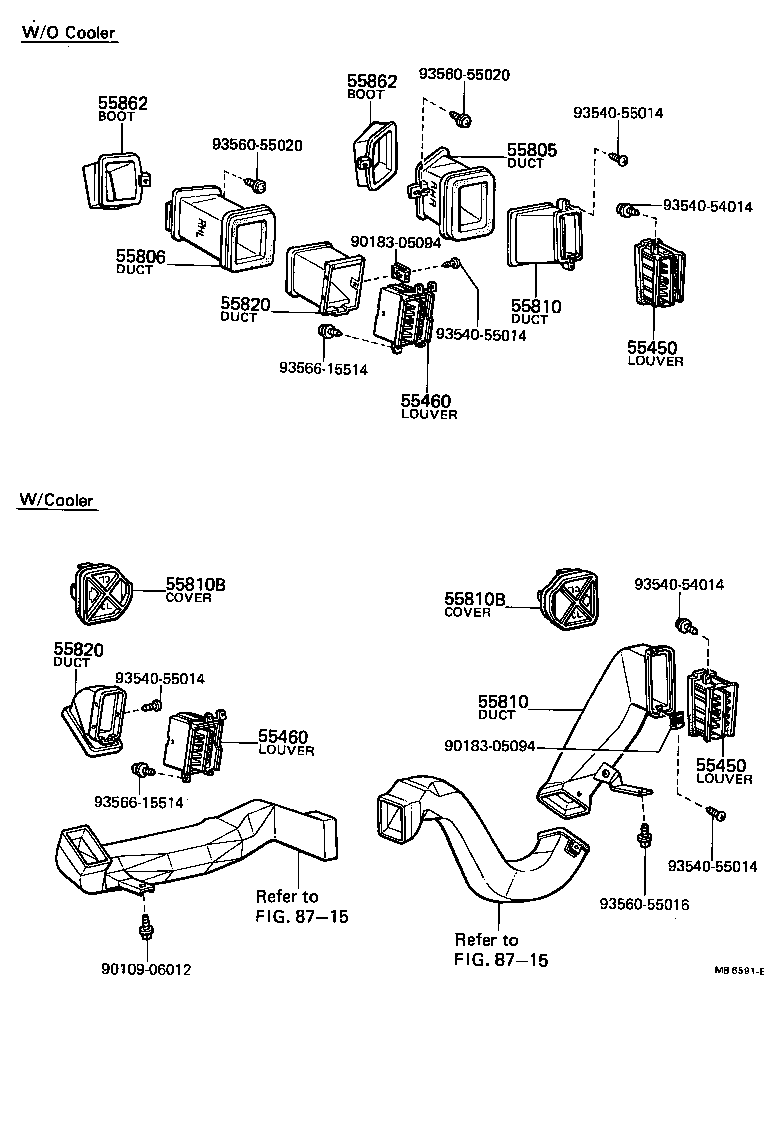

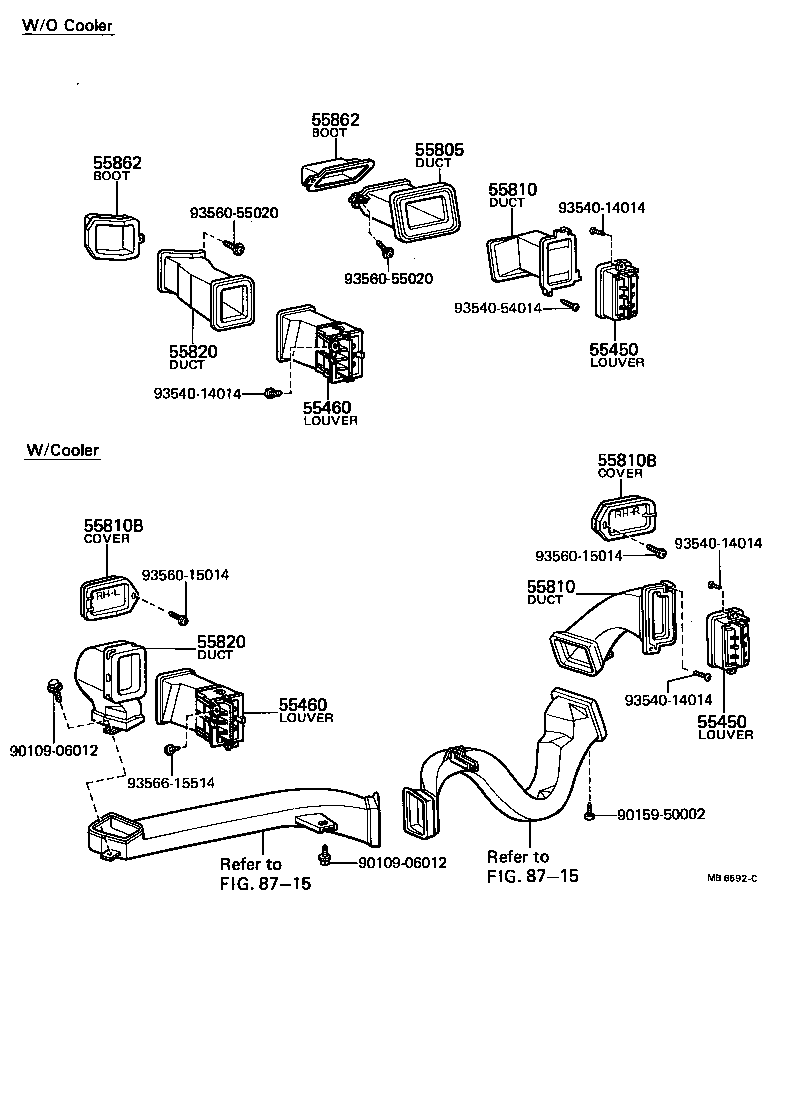

Figure MB4022A MB4022A 1974-08 → 1977-01 Figure MB4280B MB4280B 1974-08 → 1977-01 Figure MB6591E MB6591E 1977-01 → — Figure MB6632E MB6632E 1977-01 → — Figure MB6592C MB6592C 1977-01 → 1979-08 Figure MB6633E MB6633E 1977-01 → 1979-08

Part groups

PNCDescription
55450 Louver Assy, Side Ventilator, RH
55460 Louver Assy, Side Ventilator, LH
55805 Duct Sub-assy, Side Ventilator, NO.2 RH
55806 Duct Sub-assy, Side Ventilator, NO.2 LH
55810 Duct Assy, Side Ventilator, RH
55810B Cover, Side Ventilator
55820 Duct Assy, Side Ventilator, LH
55862 Boot, Side Ventilator
55887 Knob, Side Ventilator Butterfly Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
