Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe

Discontinued model Data version 1981-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat

9 part groups · 2 illustrations

Illustrations

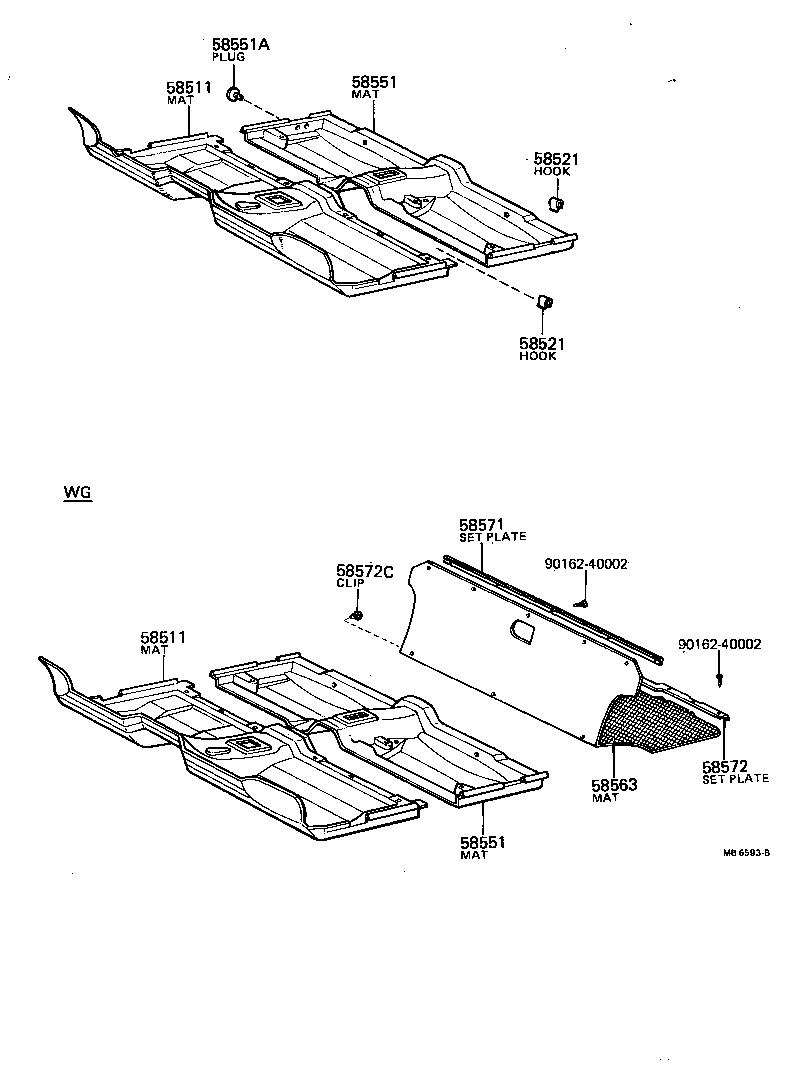

Figure MB5343A MB5343A 1974-08 → 1977-01 Figure MB6593B MB6593B 1977-01 → —

Part groups

PNCDescription
58511 Mat, Floor, Front
58521 Hook, Male, NO.1
58527 Mat, Center Floor Crossmember
58551 Mat, Floor, Rear
58551A Plug, Hole(FOR FLOOR MAT, REAR)
58563 Mat, Rear Floor
58571 Set Plate, Rear Floor Mat, Front
58572 Set Plate, Rear Floor Mat, Rear
58572C Clip, Rear Floor Mat Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
