Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe

Discontinued model Data version 1981-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

13 part groups · 5 illustrations

Illustrations

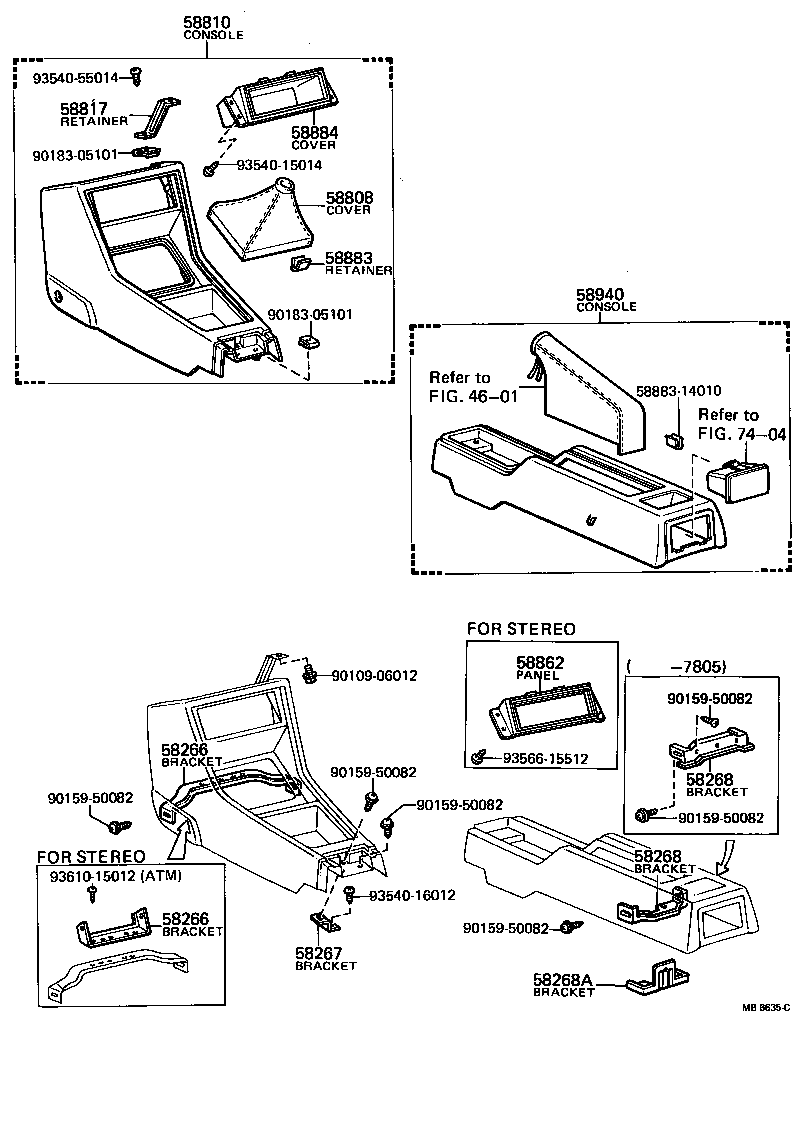

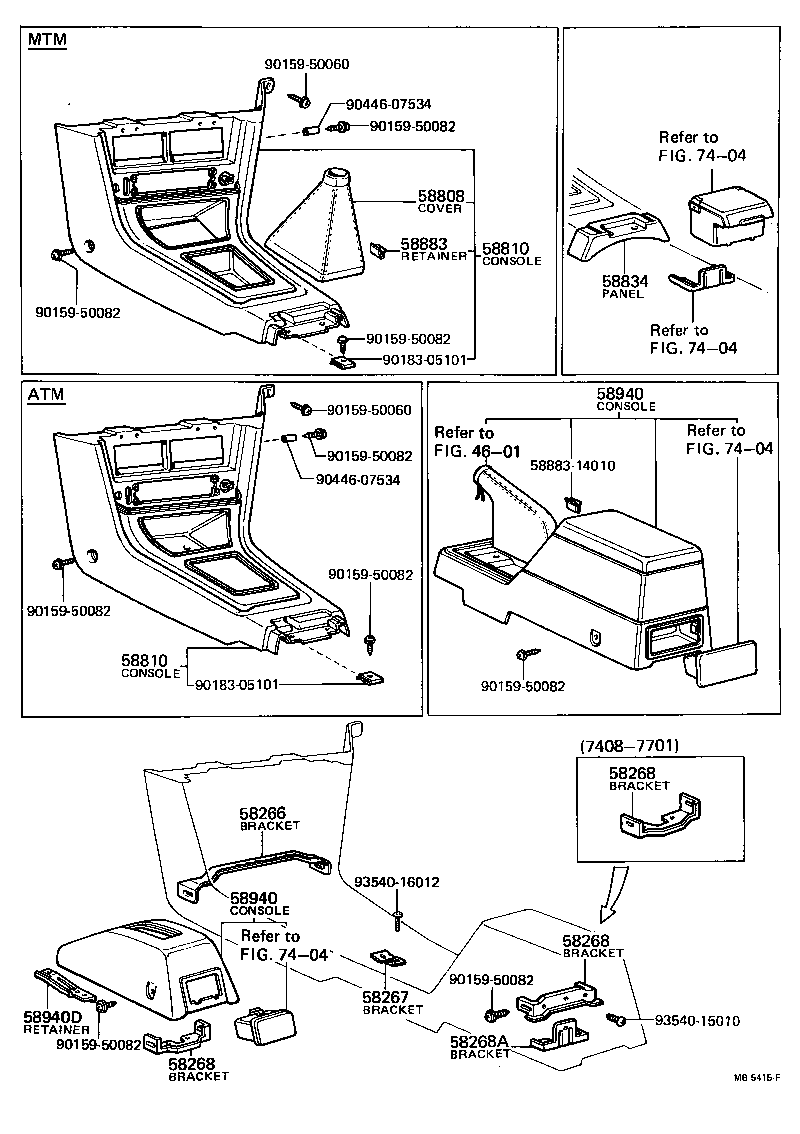

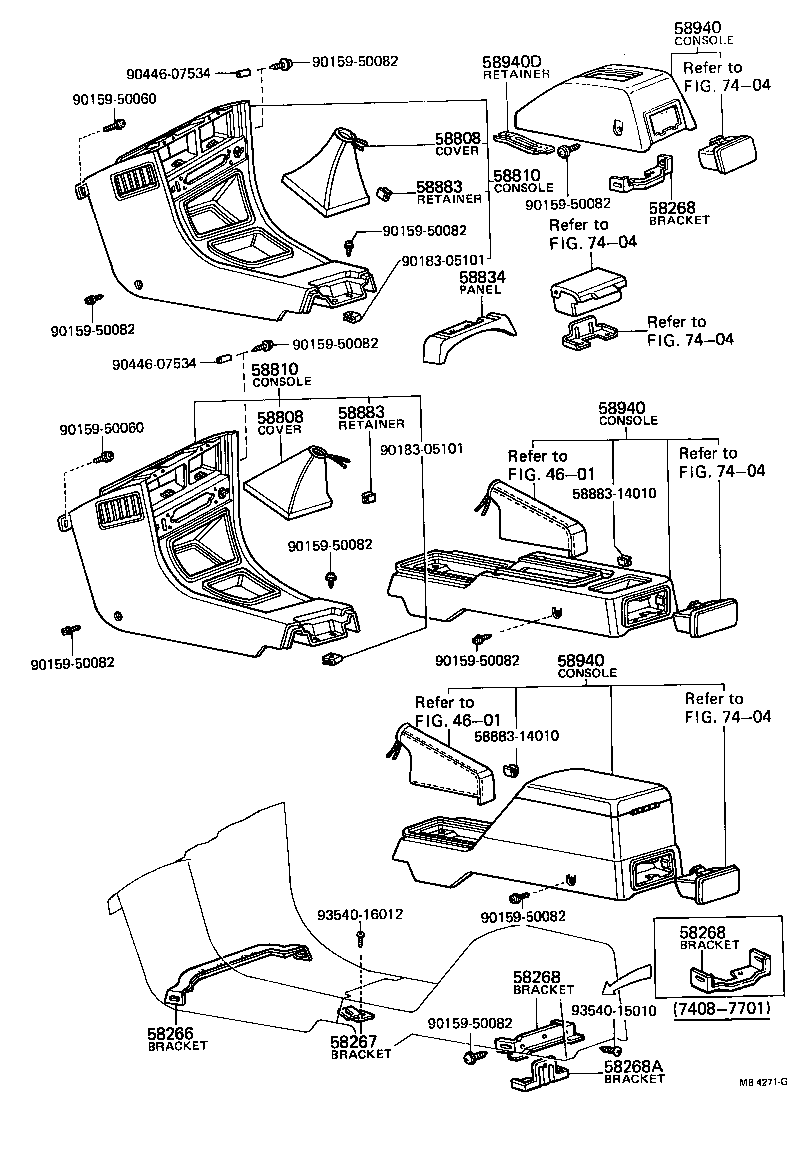

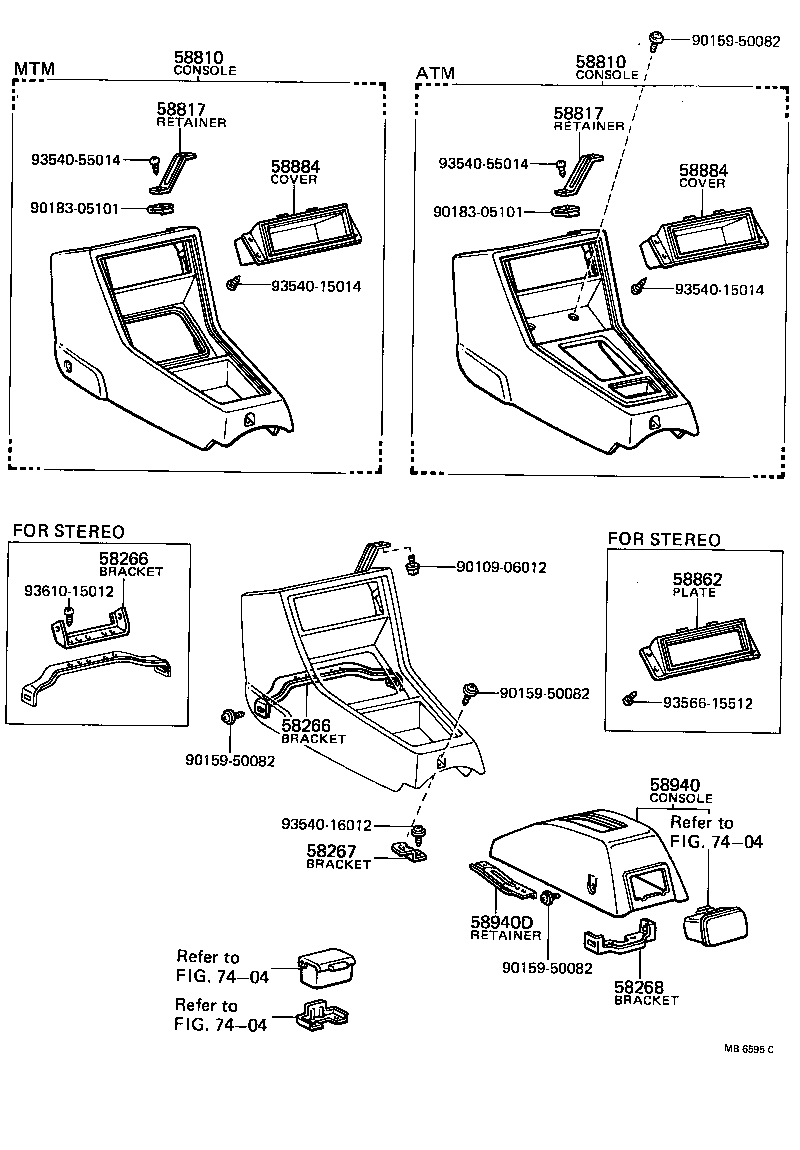

Figure MB4270C MB4270C 1974-08 → 1977-01 Figure MB6595C MB6595C 1977-01 → — Figure MB6635C MB6635C 1977-01 → 1980-04 Figure MB4271G MB4271G 1974-08 → 1979-08 Figure MB5415F MB5415F 1976-03 → 1979-08

Part groups

PNCDescription
58266 Bracket, Console Box Support, Front
58267 Bracket, Console Box Support, Center
58268 Bracket, Console Box Support, Rear
58268A Bracket, Console Box Support, NO.2
58808 Cover Sub-assy, Shifting Hole
58810 Console Assy
58817 Retainer, Console Panel
58834 Panel, Console End
58862 Plate, Console Finish
58883 Retainer, Shifting Hole Cover
58884 Cover, Stereo Opening
58940 Console Assy, Rear
58940D Retainer, Parking Brake Hole Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
