Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe

Discontinued model Data version 1981-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Side Ventilator

6 part groups · 3 illustrations

Illustrations

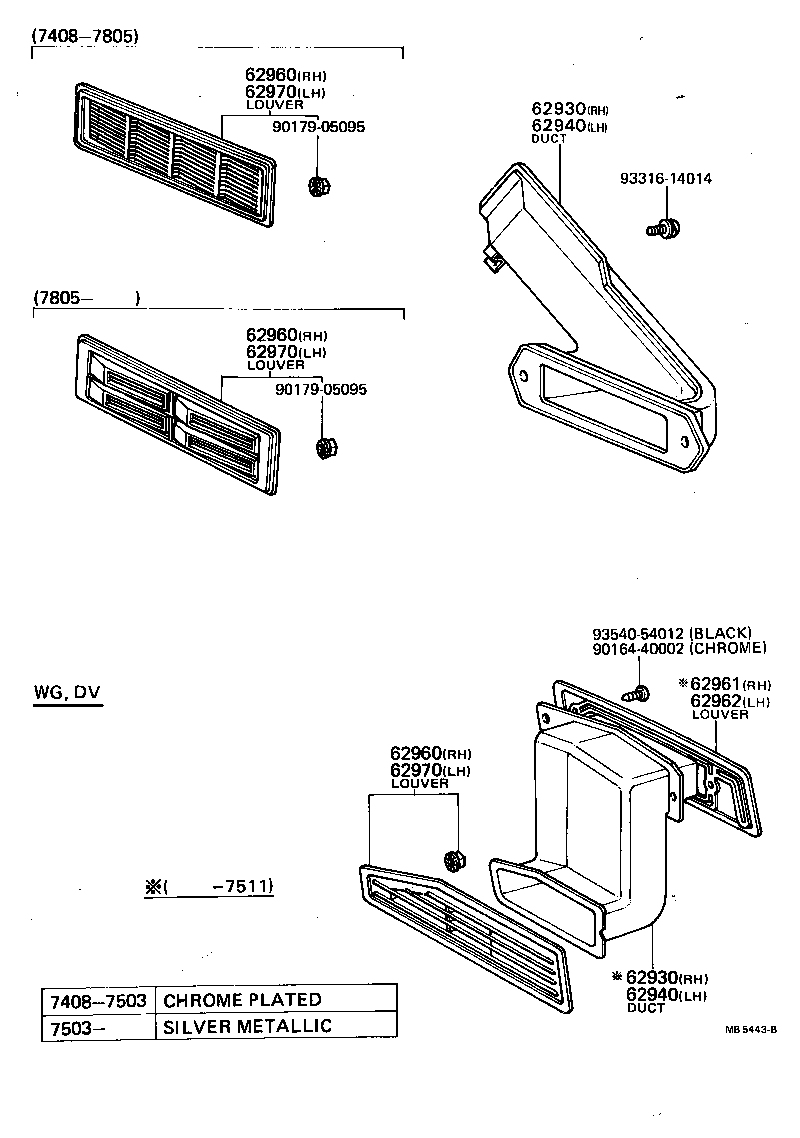

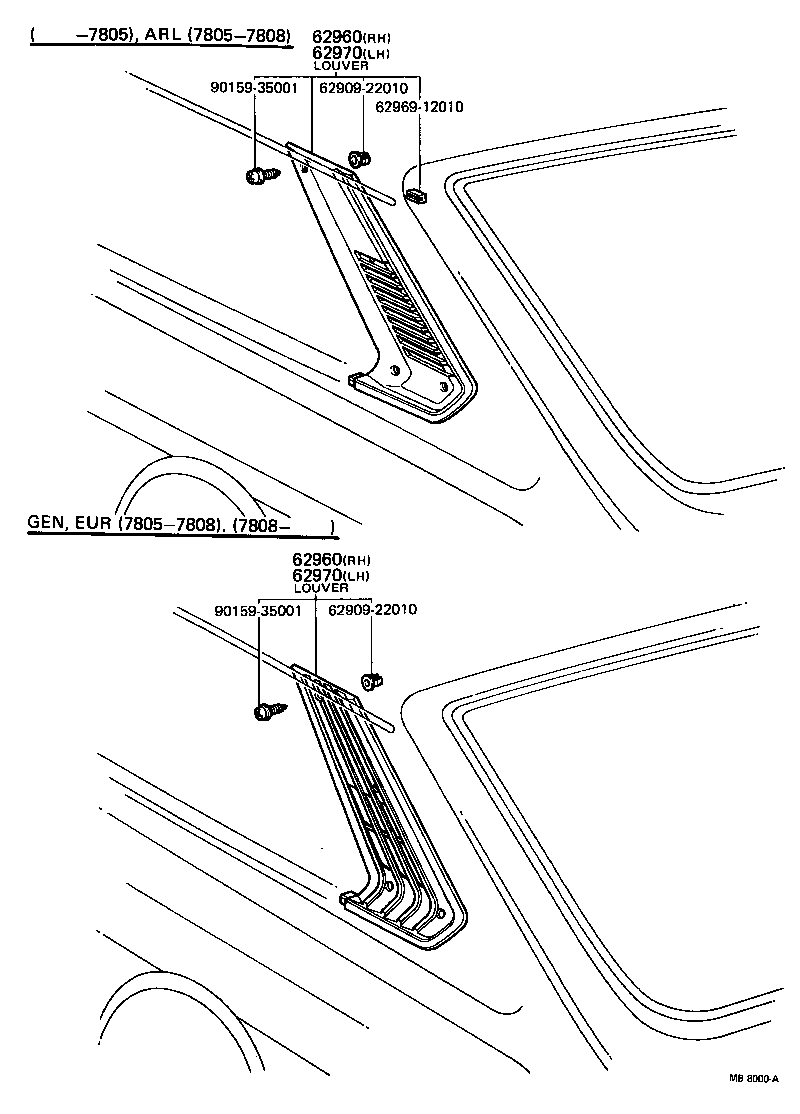

Figure MB5554D MB5554D 1974-08 → — Figure MB5443B MB5443B 1974-08 → — Figure MB8000A MB8000A 1976-03 → 1979-08

Part groups

PNCDescription
62930 Duct Assy, Roof Side Vent, RH
62940 Duct Assy, Roof Side Vent, LH
62960 Louver Assy, Roof Side Vent, RH
62961 Louver, Roof Side Vent Inlet, RH
62962 Louver, Roof Side Vent Inlet, LH
62970 Louver Assy, Roof Side Vent, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
