Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe

Discontinued model Data version 1981-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

10 part groups · 2 illustrations

Illustrations

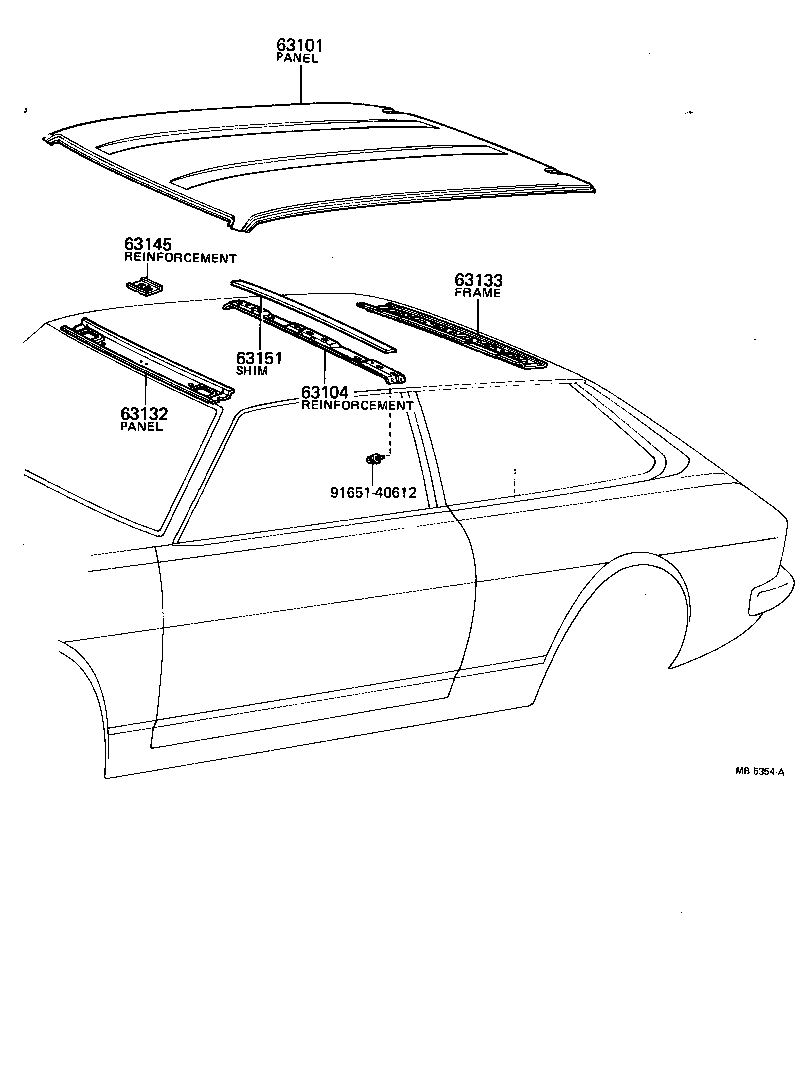

Figure MB9433B MB9433B 1974-08 → — Figure MB5354A MB5354A 1976-03 → 1979-08

Part groups

PNCDescription
63101 Panel Sub-assy, Roof
63104 Reinforcement Sub-assy, Roof Panel, Center
63105 Reinforcement Sub-assy, Roof Panel, Rear
63132 Panel, Windshield Header, Inner
63133 Frame, Back Window Opening, Upper
63145 Reinforcement, Windshield Header Inner Panel
63151 Shim, Roof Reinforcement
64101 Panel Sub-assy, Upper Back
64811 Glass, Back Window
64831 Weatherstrip, Back Window Glass
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
