Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe

Discontinued model Data version 1981-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Luggage Compartment Door & Lock

14 part groups · 2 illustrations

Illustrations

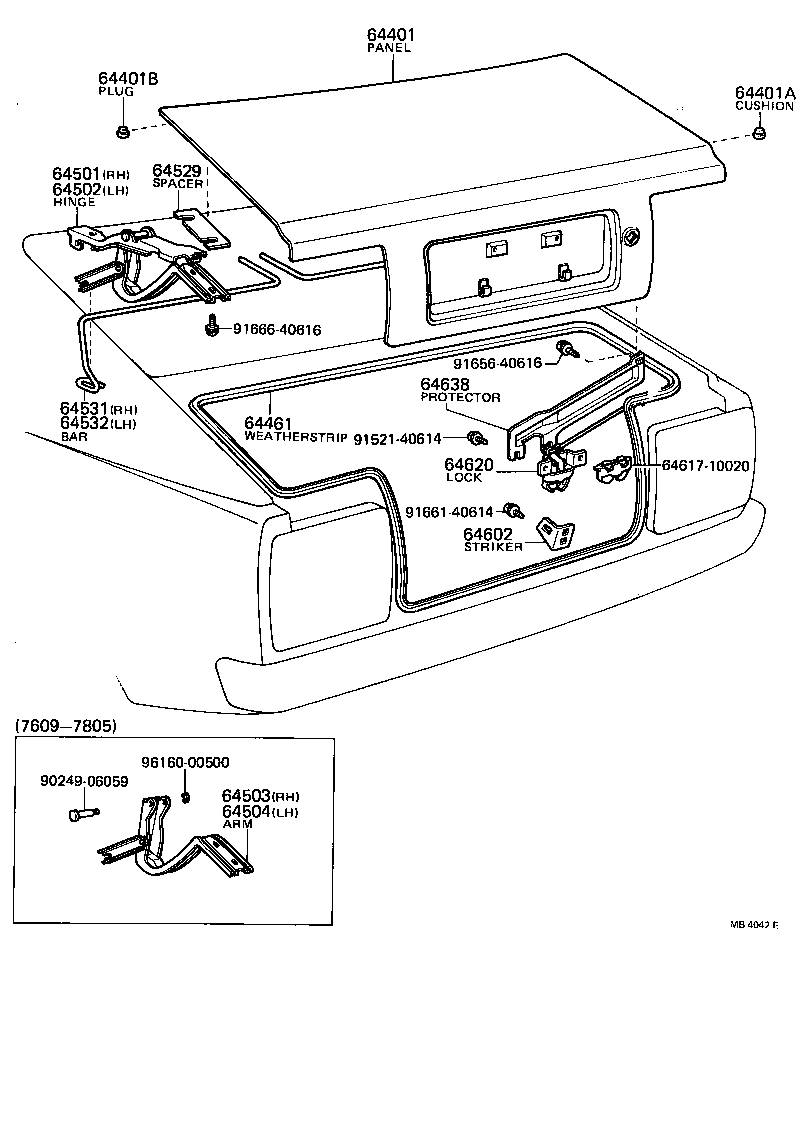

Figure MB5555C MB5555C 1974-08 → — Figure MB4042E MB4042E 1974-08 → 1979-08

Part groups

PNCDescription
64401 Panel Sub-assy, Luggage Compartment Door
64401A Cushion(FOR LUGGAGE COMPARTMENT DOOR PANEL)
64401B Plug, Hole(FOR LUGGAGE COMPARTMENT DOOR PANEL)
64461 Weatherstrip, Luggage Compartment Door
64501 Hinge Sub-assy, Luggage Compartment Door, RH
64502 Hinge Sub-assy, Luggage Compartment Door, LH
64503 Arm Sub-assy, Luggage Compartment Door Hinge, RH
64504 Arm Sub-assy, Luggage Compartment Door Hinge, LH
64529 Spacer, Luggage Compartment Door Hinge
64531 Bar, Luggage Door Hinge Torsion, RH
64532 Bar, Luggage Door Hinge Torsion, LH
64602 Striker Sub-assy, Luggage Compartment Door Lock
64620 Lock Assy, Luggage Compartment Door
64638 Protector, Luggage Compartment Door Link
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
