Toyota Corolla/Trueno
1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe
Discontinued model
Data version 1981-12

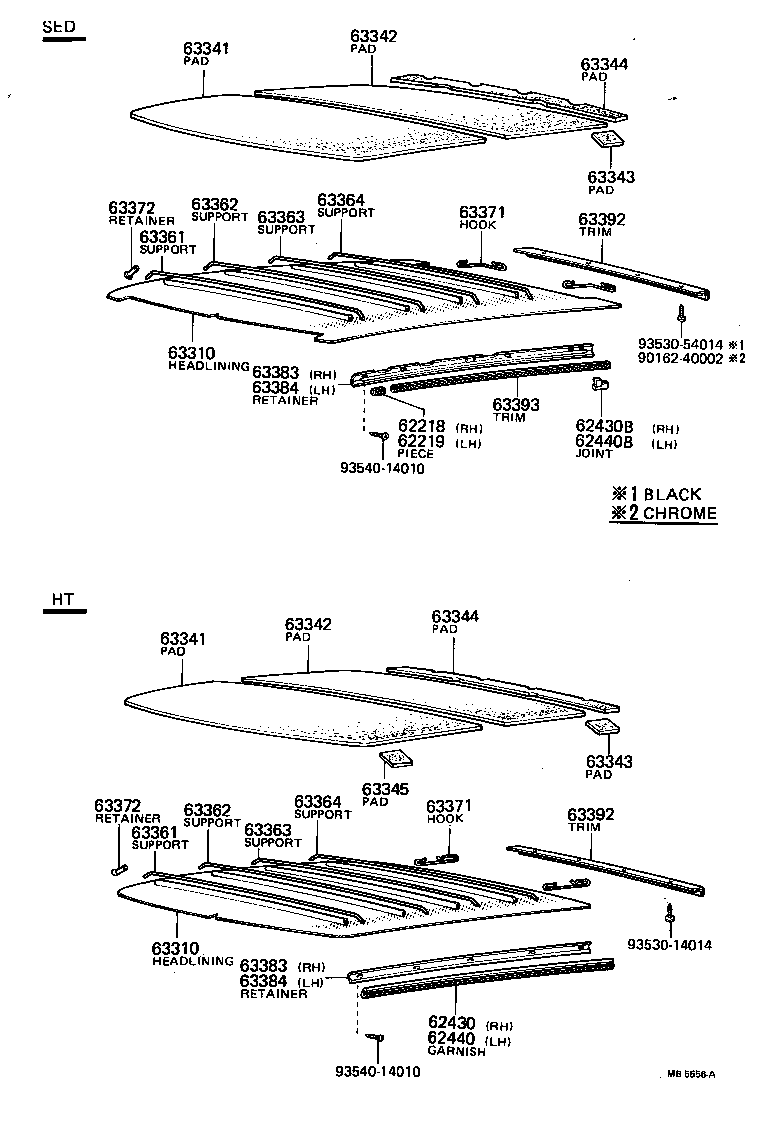

Roof Headlining & Silencer Pad
28 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62218 | Piece, Front Pillar Garnish Corner, RH |
| 62219 | Piece, Front Pillar Garnish Corner, LH |
| 62430 | Garnish Assy, Roof Side Rail, RH |
| 62430B | Joint, Roof Side Rail Garnish, RH |
| 62440 | Garnish Assy, Roof Side Rail, LH |
| 62440B | Joint, Roof Side Rail Garnish, LH |
| 63310 | Headlining Assy, Roof |
| 63310D | Clip, Roof Headlining |
| 63326 | Retainer, Roof Headlining, Gard Set, NO.1 |
| 63327 | Retainer, Roof Headlining, Gard Set, NO.2 |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63343 | Pad, Roof Silencer, NO.3 |
| 63344 | Pad, Roof Silencer, NO.4 |
| 63345 | Pad, Roof Silencer, NO.5 |
| 63361 | Support, Roof Headlining, NO.1 |
| 63362 | Support, Roof Headlining, NO.2 |
| 63363 | Support, Roof Headlining, NO.3 |
| 63364 | Support, Roof Headlining, NO.4 |
| 63365 | Support, Roof Headlining, NO.5 |
| 63371 | Hook, Roof Headlining Support |
| 63372 | Retainer, Headlining Support |
| 63376 | Clip, Headlining |
| 63382 | Retainer, Headlining, Rear Center |
| 63383 | Retainer, Roof Headlining, Rear RH |
| 63384 | Retainer, Roof Headlining, Rear LH |
| 63392 | Trim, Roof Headlining, Rear |
| 63393 | Trim, Roof Headlining, Center |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
