Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe

Discontinued model Data version 1981-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Deck Board & Deck Trim Cover

34 part groups · 4 illustrations

Illustrations

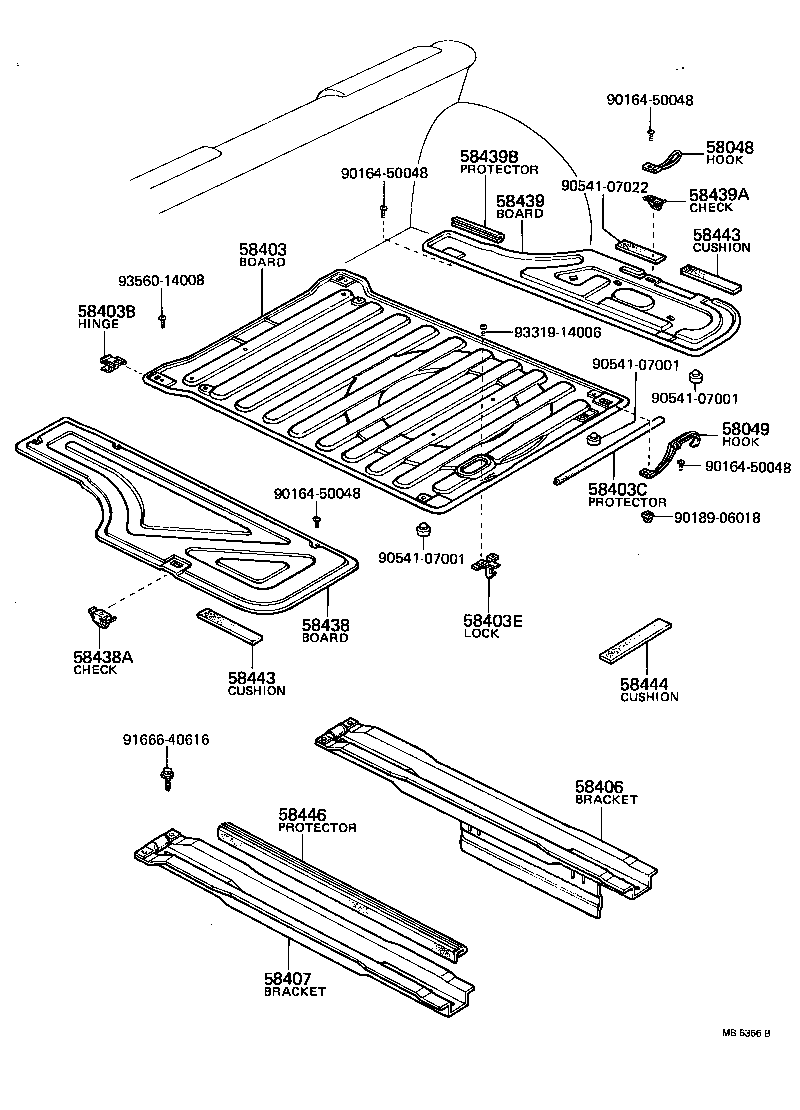

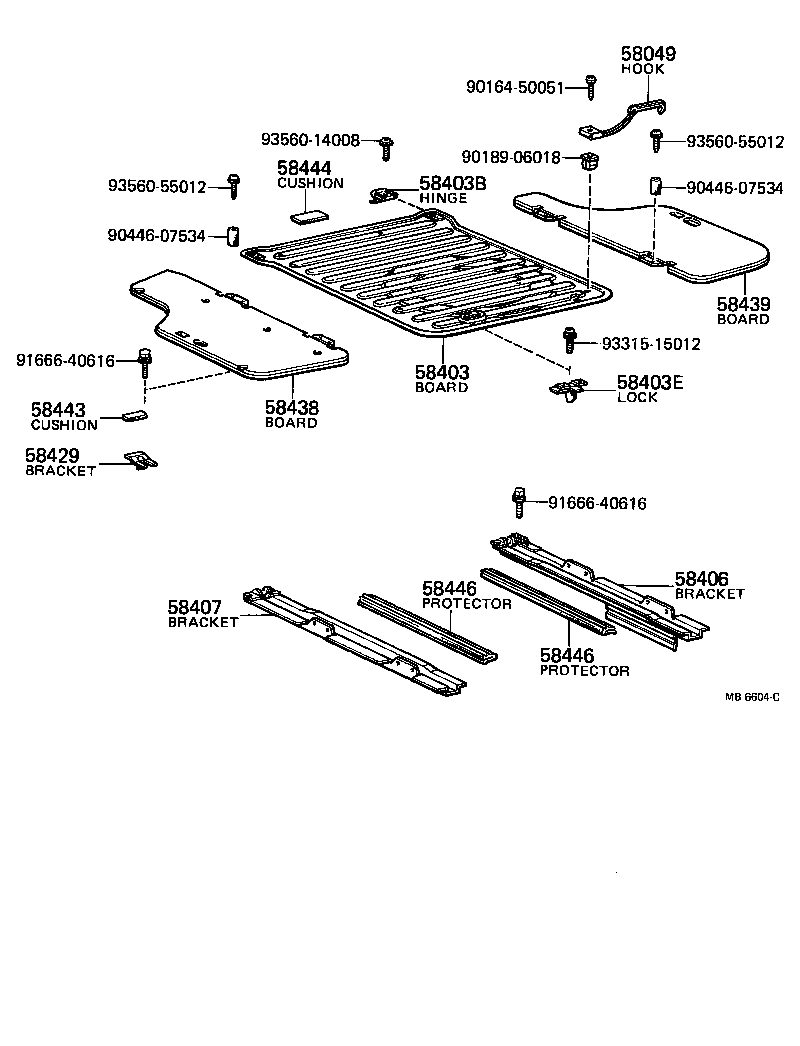

Figure MB5365C MB5365C 1976-03 → 1979-08 Figure MB5366B MB5366B 1976-03 → 1977-01 Figure MB6604C MB6604C 1977-01 → 1979-08 Figure MB5455 MB5455 1976-03 → 1979-08

Part groups

PNCDescription
58048 Hook, Deck Board, NO.1
58049 Hook, Deck Board, NO.2
58400 Belt Assy, Luggage Hold, NO.1
58400A Striker, Luggage Hold Belt
58400B Belt Assy, Luggage Hold, NO.2
58403 Board Sub-assy, Deck
58403B Hinge, Deck Board
58403C Protector, Deck Board, NO.2
58403E Lock Sub-assy, Deck Board
58406 Bracket Sub-assy, Deck Board, RH
58407 Bracket Sub-assy, Deck Board, LH
58429 Bracket, Deck Board, NO.4
58438 Board, Deck, NO.2
58438A Check, Deck Board, NO.2
58439 Board, Deck, NO.1
58439A Check, Deck Board, NO.1
58439B Protector, Deck Board, NO.1
58443 Cushion, Deck Board, NO.1
58444 Cushion, Deck Board, NO.2
58446 Protector, Deck Board Bracket
64709 Cover Sub-assy, Lower Back Panel
64709B Cover, Service Hole, NO.1(FOR LOWER BACK PANEL COVER)
64709C Cover, Service Hole, NO.2(FOR LOWER BACK PANEL COVER)
64750 Panel Assy, Deck Side Trim, RH
64750B Retainer(FOR DECK SIDE TRIM PANEL)
64750C Lid, Deck Side Trim, Speaker Grille
64750D Cover, Deck Side Trim, Washer
64750F Clip(FOR DECK SIDE TRIM PANEL)
64760 Panel Assy, Deck Side Trim, LH
64910 Cover Assy, Parcel
64910B Hanger, Parcel Cover
64910C Protector, Parcel Cover Hanger
64941 Arm Sub-assy, Tonneau Cover Lift, RH
64942 Arm Sub-assy, Tonneau Cover Lift, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
