Toyota Corolla/Trueno

1974-08 → 1981-07 · chassis KE3#,5#,TE3#,47,51 · catalogue 161230 · Europe

Discontinued model Data version 1981-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Panel & Glass

25 part groups · 3 illustrations

Illustrations

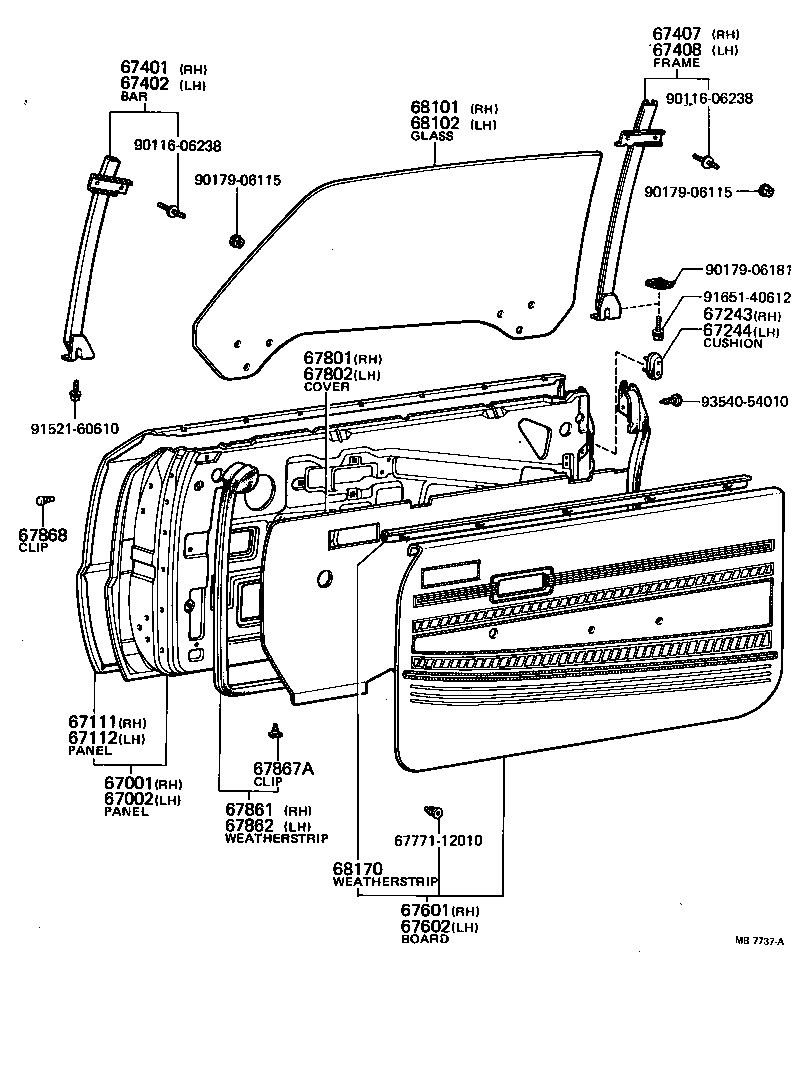

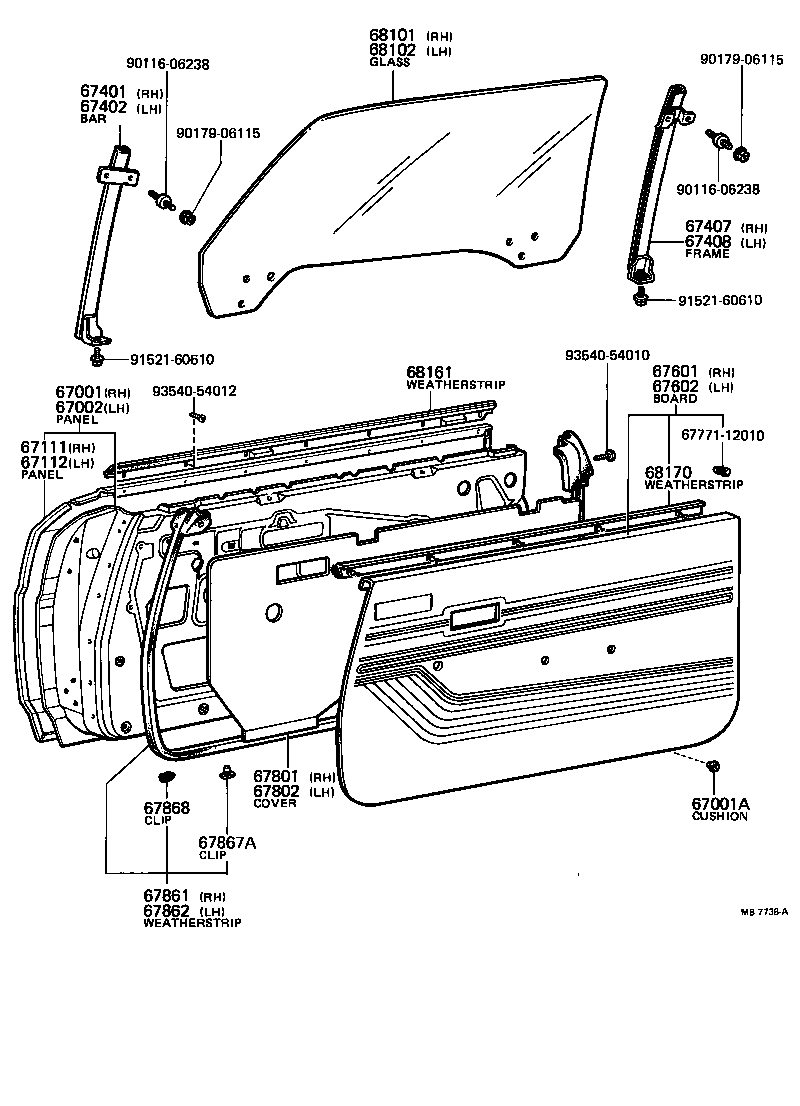

Figure MB7736A MB7736A 1974-08 → — Figure MB7737A MB7737A 1974-08 → — Figure MB7738A MB7738A 1974-08 → 1979-08

Part groups

PNCDescription
67001 Panel Sub-assy, Front Door, RH
67001A Cushion, Front Door Panel
67002 Panel Sub-assy, Front Door, LH
67111 Panel, Front Door, Outer RH
67112 Panel, Front Door, Outer LH
67243 Cushion, Front Door, Upper RH
67244 Cushion, Front Door, Upper LH
67401 Bar Sub-assy, Front Door Window, Front RH
67402 Bar Sub-assy, Front Door Window, Front LH
67407 Frame Sub-assy, Front Door, Rear Lower RH
67408 Frame Sub-assy, Front Door, Rear Lower LH
67601 Board Sub-assy, Front Door Trim, RH
67602 Board Sub-assy, Front Door Trim, LH
67785A Holder, Door Locking Button Collar(FOR FRONT DOOR)
67801 Cover Sub-assy, Front Door Hole, NO.1 RH
67802 Cover Sub-assy, Front Door Hole, NO.1 LH
67861 Weatherstrip, Front Door, RH
67862 Weatherstrip, Front Door, LH
67867A Clip, Door Weatherstrip(FOR FRONT DOOR)
67868 Clip, Front Door Glass Weatherstrip
68101 Glass Sub-assy, Front Door, RH
68102 Glass Sub-assy, Front Door, LH
68141 Run, Front Door Glass
68161 Weatherstrip, Front Door Glass, Outer
68170 Weatherstrip Assy, Front Door Glass, Inner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
